Product

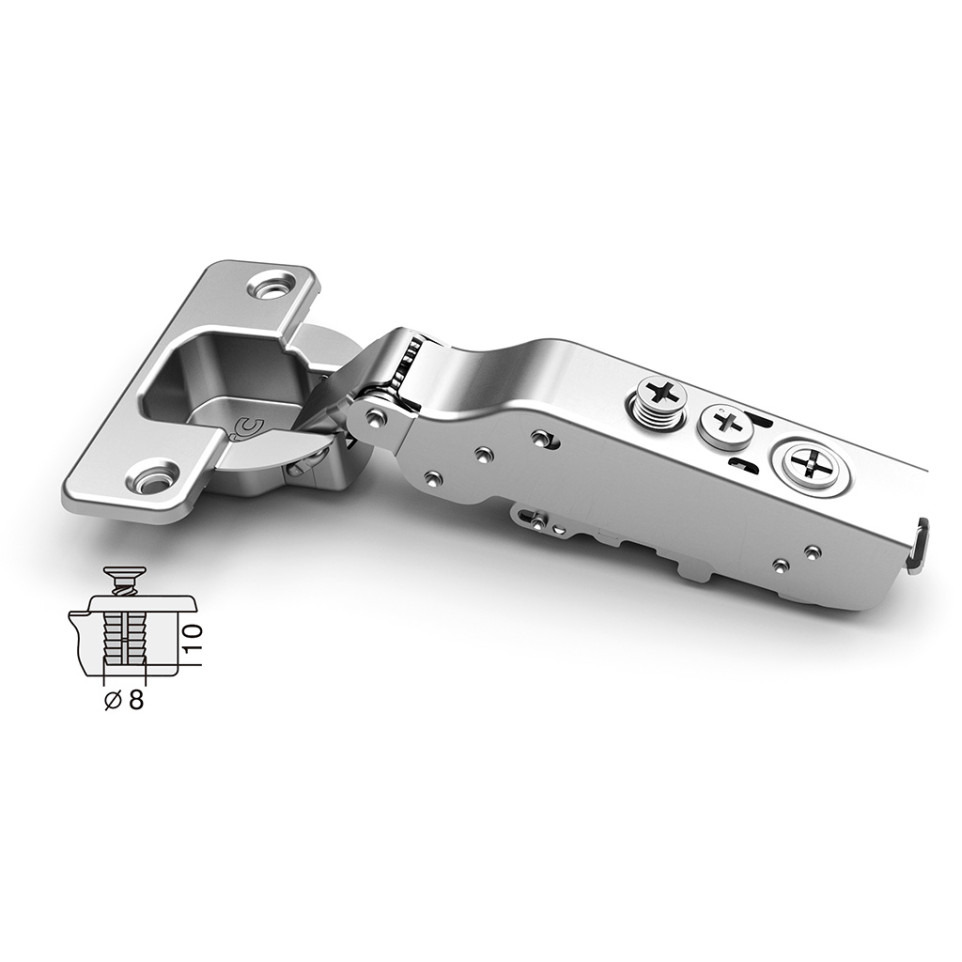

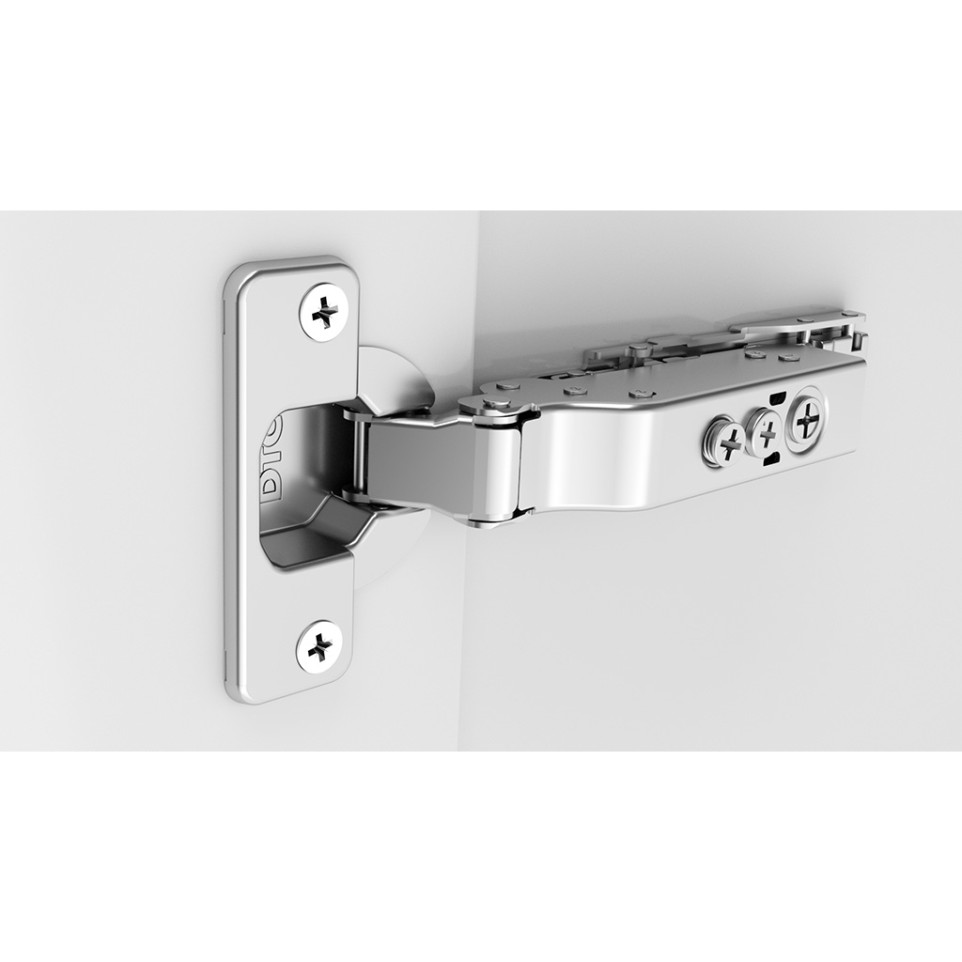

Pivot-Star 110° nickel-plated hinge with expansion sleeve mounting is designed for stud or overlay doors where smooth, quiet operation and reliable self-closing are essential, ideal for kitchens, wardrobes, or commercial cabinetry with a door thickness of 16–26 mm.
Specifications
- Nickel-plated steel construction for durability and corrosion resistance
- 110° opening angle, with integrated soft-close damper and automatic closing feature for controlled, quiet operation
- Cup diameter: 35 mm; cup depth: 11.5 mm
- Designed for surface mounting (applique type) using expansion sleeves (Ø8x10 mm) for secure installation

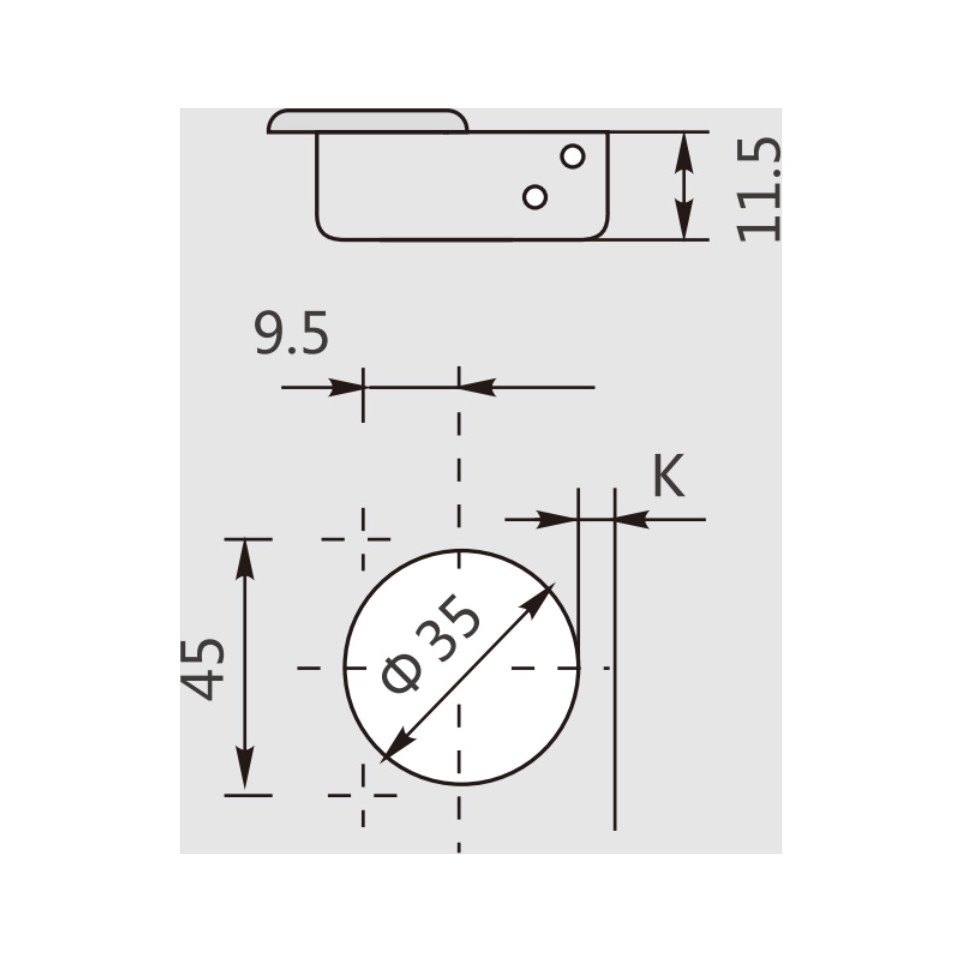

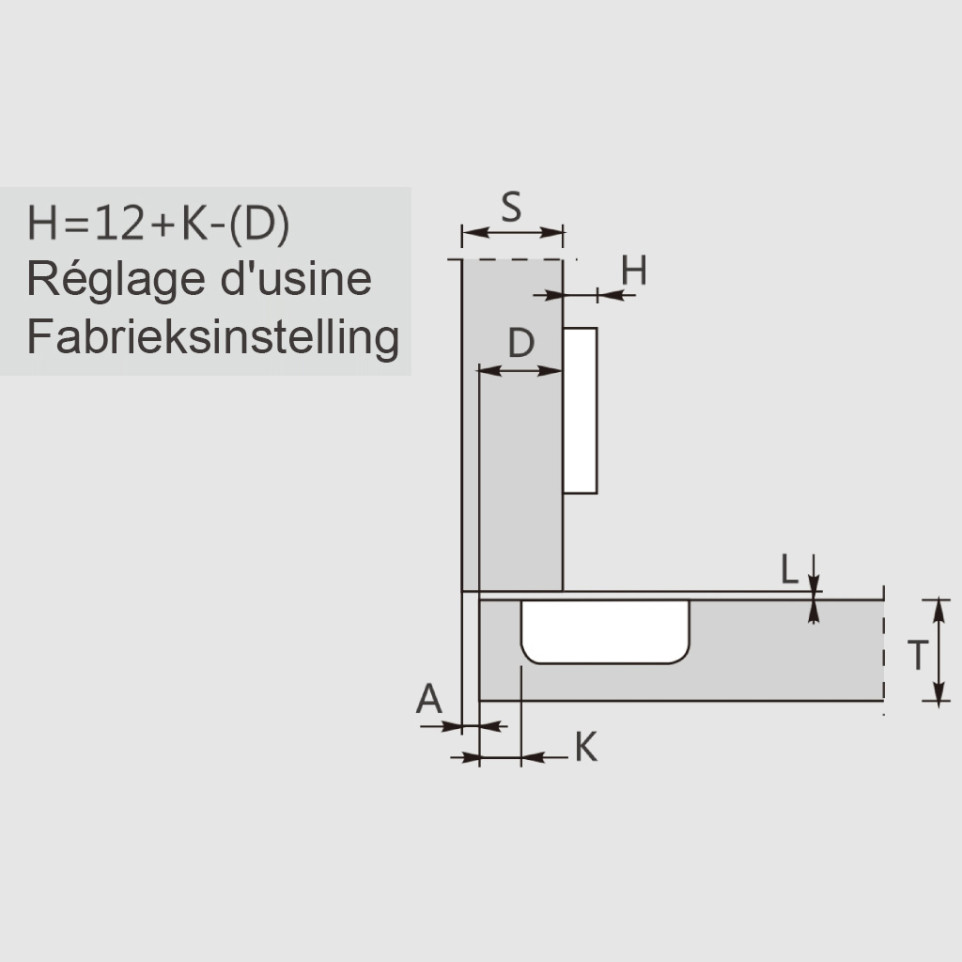

- Drilling template: 45 x 9.5 mm; Door drilling (K) distance: 3–6 mm
- Suitable for overlay applications with a robust self-closing mechanism
Usage
The hinge is installed by drilling a 35 mm hole at 11.5 mm depth on the door, then securing via the included expansion sleeves. Once mounted, the hinge allows for quiet, soft-closing movement and ensures cabinet doors close automatically, making it suitable for frequently opened storage areas and heavy-use environments.
FAQ
- What is the opening angle of this hinge?
- The hinge offers a 110° opening angle for convenient cabinet access.
- Does it have a soft-close feature?
- Yes, it has an integrated soft-close damper for silent, controlled door movement and automatic closing.
- What door thickness is compatible with this hinge?
- This hinge is compatible with door thicknesses from 16 to 26 mm.
- Is special hardware required for installation?
- The hinge is designed for mounting with expansion sleeves (Ø8x10 mm), enabling secure and simple installation.
- What are the dimensions required for drilling on the door?
- The hinge requires a 35 mm diameter hole with 11.5 mm depth and a drilling distance of 45 x 9.5 mm; the K distance on the door is 3–6 mm.
