Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

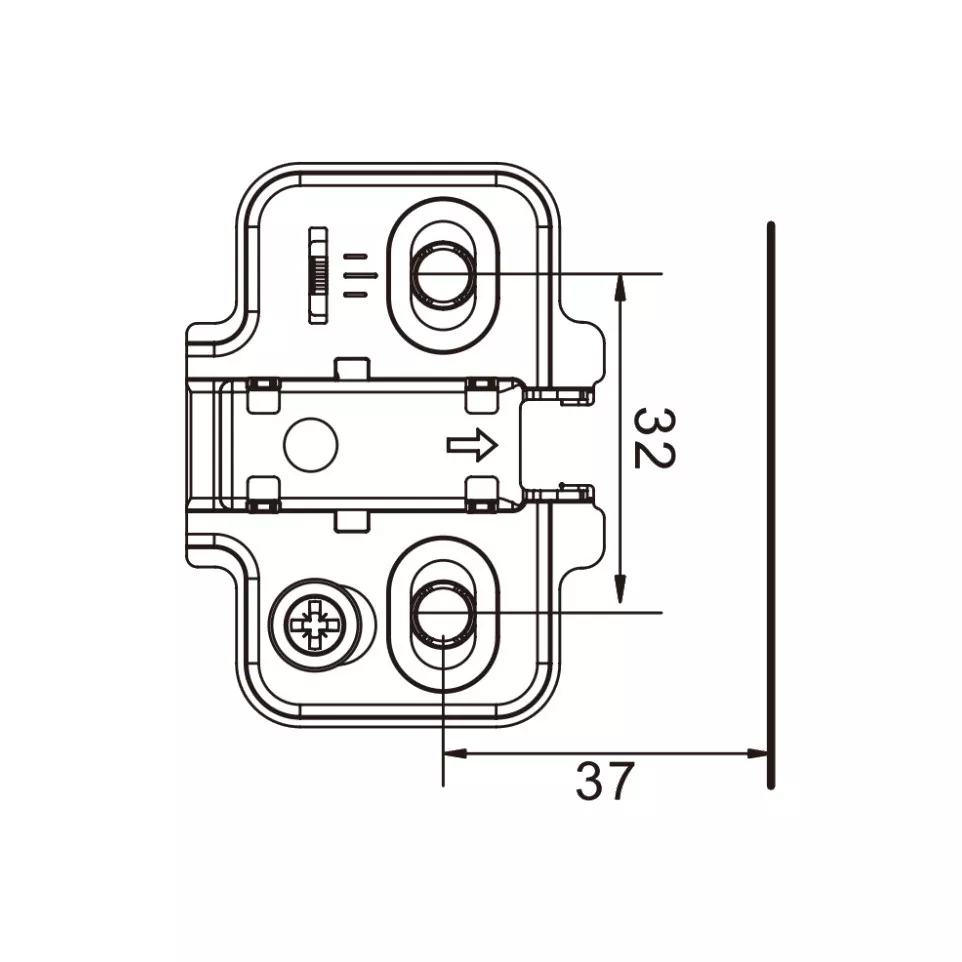

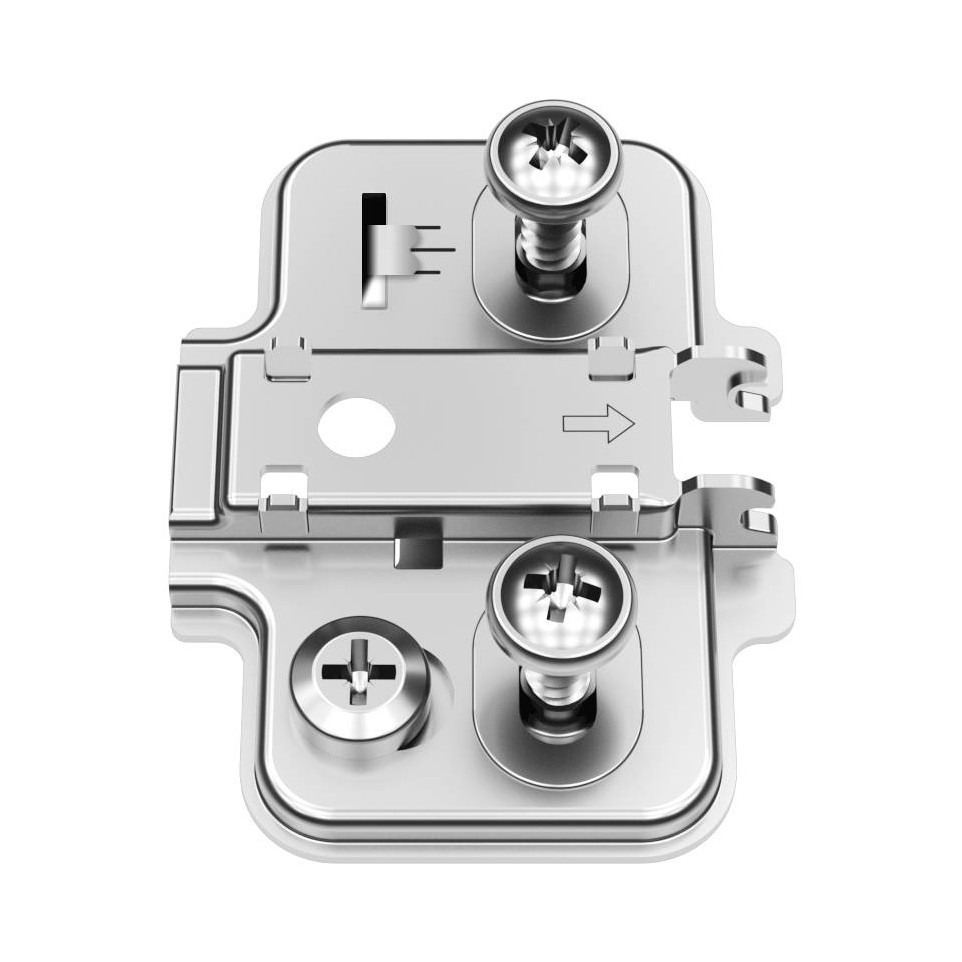

Nickel-plated cruciform mounting plate designed for stud hinges, supplied with screws for particle board installation (drilling Ø2.5mm). Features direct height adjustment and 0mm mounting plate spacing, suited for precise cabinet and furniture assembly.
Specifications
- Design: Cruciform shape, nickel-plated finish for corrosion resistance
- Materials/Technology: Manufactured from robust steel, supplied with mounting screws for easy particle board application (Ø2.5mm drilling)
- Durability: Nickel plating protects against wear and oxidation, ensuring longevity in intensive use
- Notable Features: Direct height adjustment capability for fine alignment; 0mm plate spacing for flush attachment
Usage

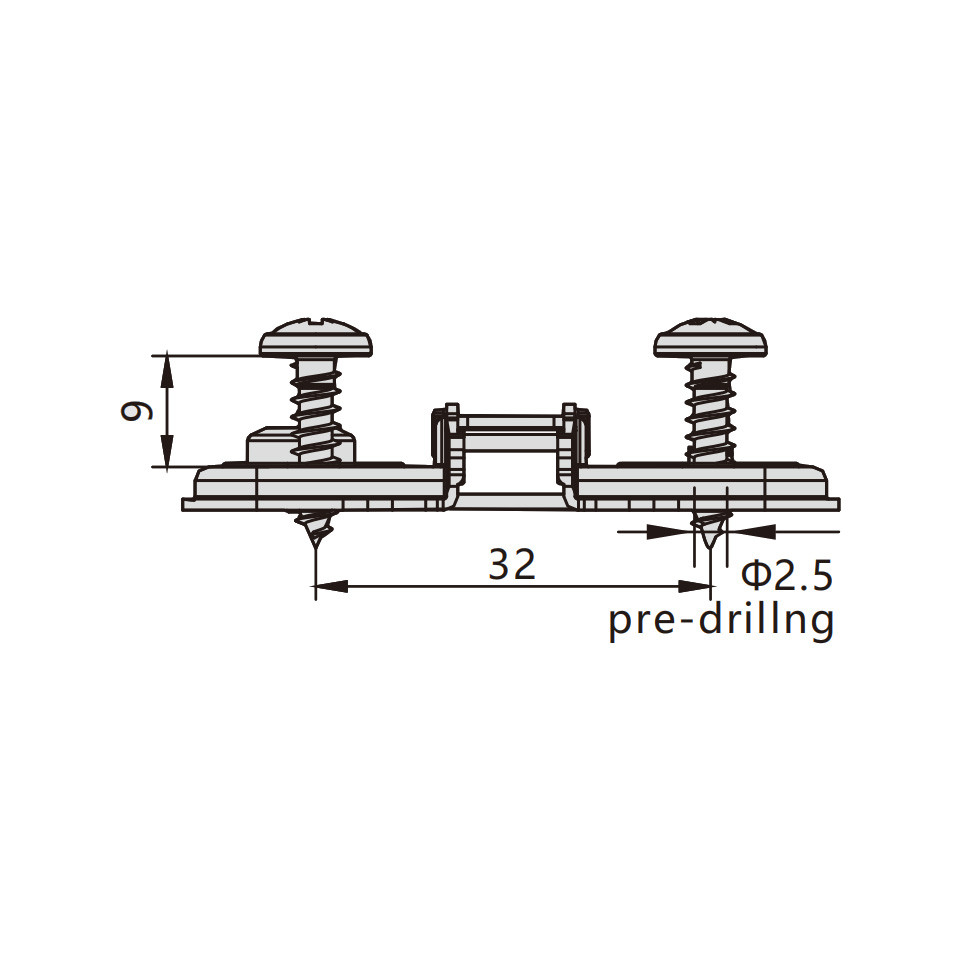

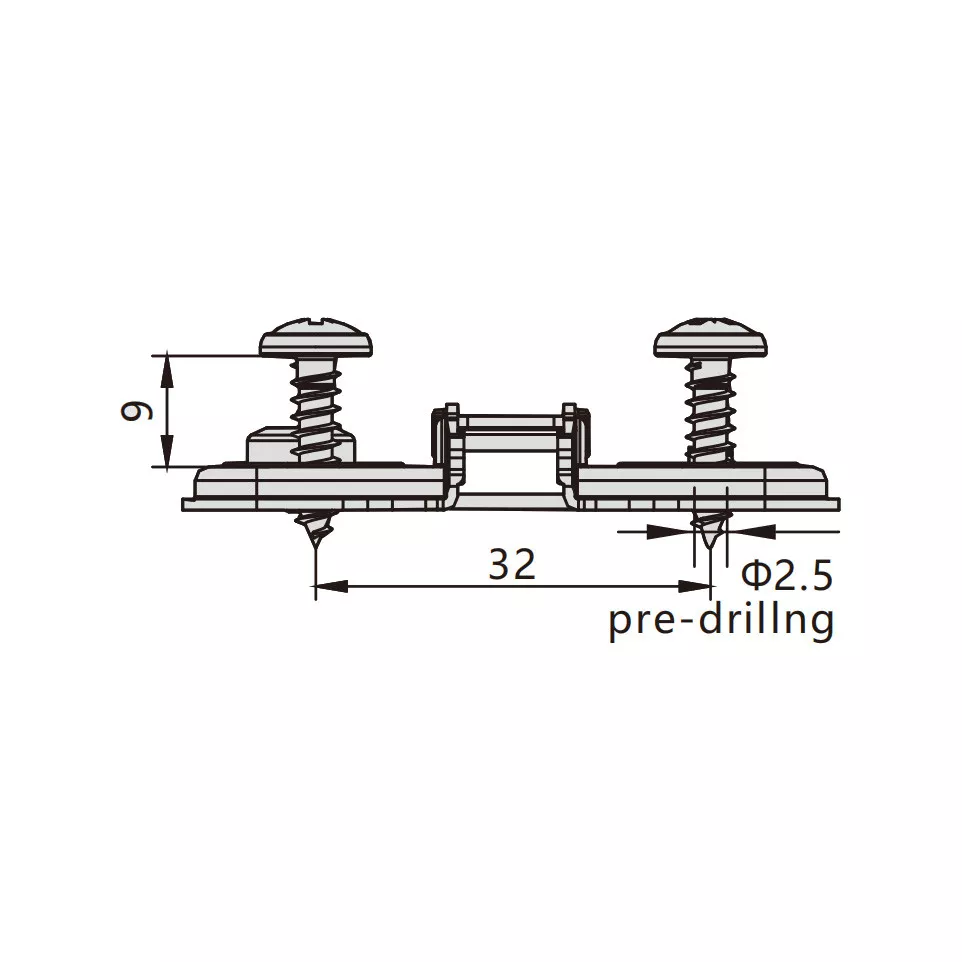

Position the mounting plate on the particle board surface, align and fix using provided screws for holes drilled at Ø2.5mm. Adjust the height as needed for precise door or panel alignment. Ideal for stud hinge systems in cabinetry and furniture fitting.
FAQ
-
What is the purpose of the cruciform design?
The cruciform shape provides stable, even support and easy hinge alignment. -
How is height adjustment performed?
Height can be directly adjusted via the integrated mechanism, allowing for quick and accurate alignment. -
Is the mounting plate compatible with all stud hinge systems?
It is optimized for standard stud hinges and accessories used with particle board and cabinets. -
What type of screws should be used with this plate?
Use the supplied screws specifically designed for particle board and Ø2.5mm pre-drilled holes. -
Does the nickel plating improve durability?
Yes, nickel plating offers additional resistance to corrosion and wear, ensuring a long service life.
