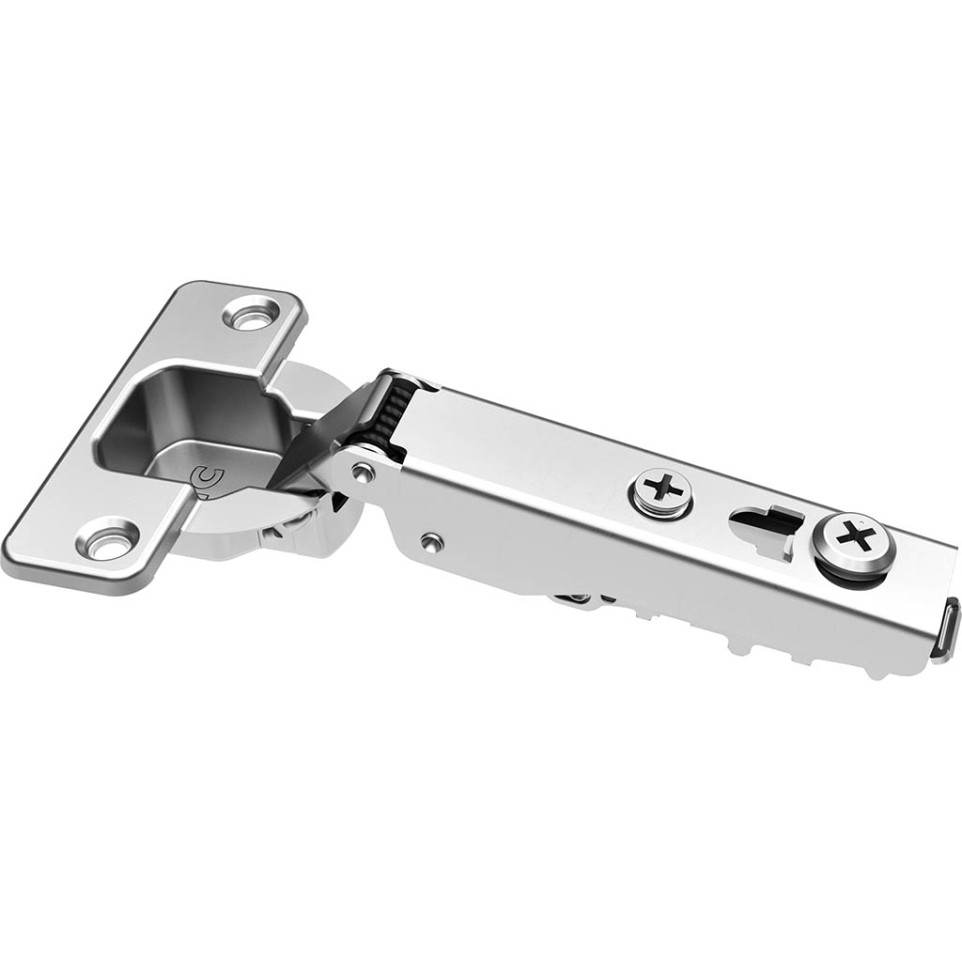

The DTC Stylish 110° Screw-On Hinge is a nickel-plated overlay hinge designed for cabinet doors, providing automatic closing functionality without integrated soft-closing. Ideal for doors with thicknesses between 16 and 26 mm.
Specifications
- Nickel-plated steel construction with a 110° opening angle
- Hinge cup diameter: 35 mm; cup depth: 11.5 mm
- Overlay mounting type; screw-on installation

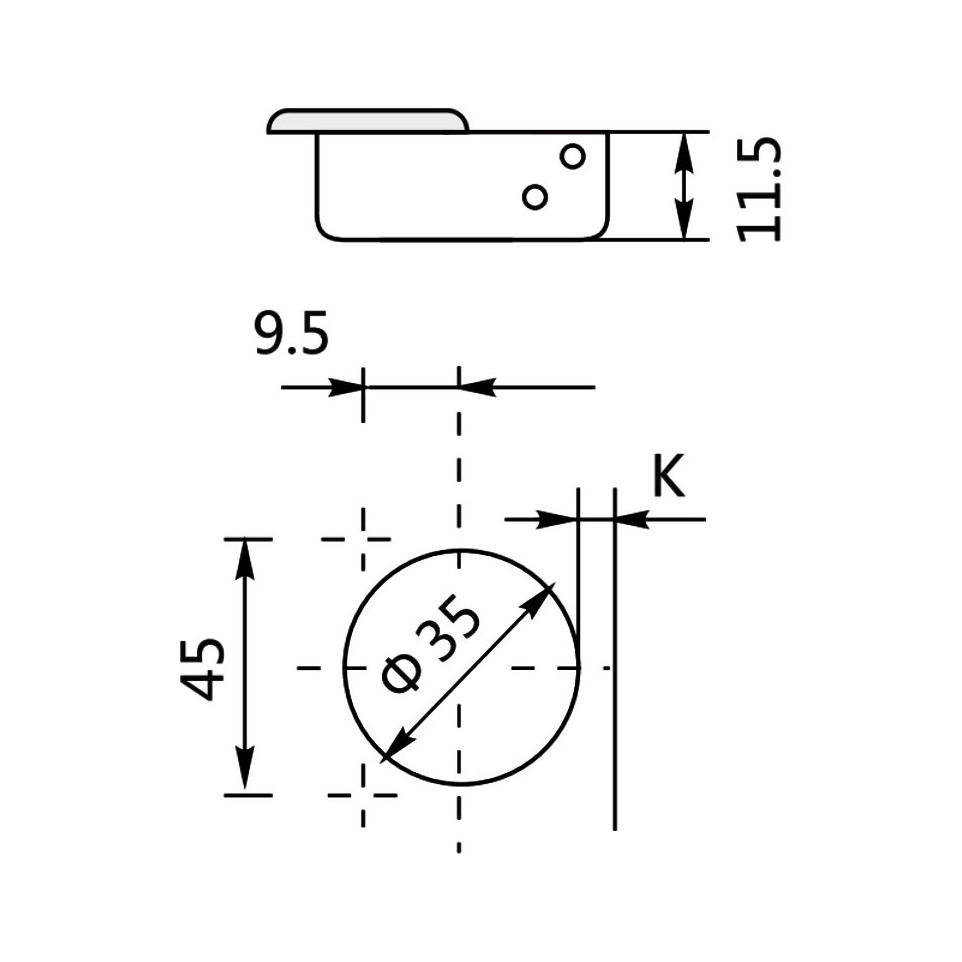

- Drilling pattern: 45 x 9.5 mm; suitable for door drilling distances (K) from 3 to 6 mm

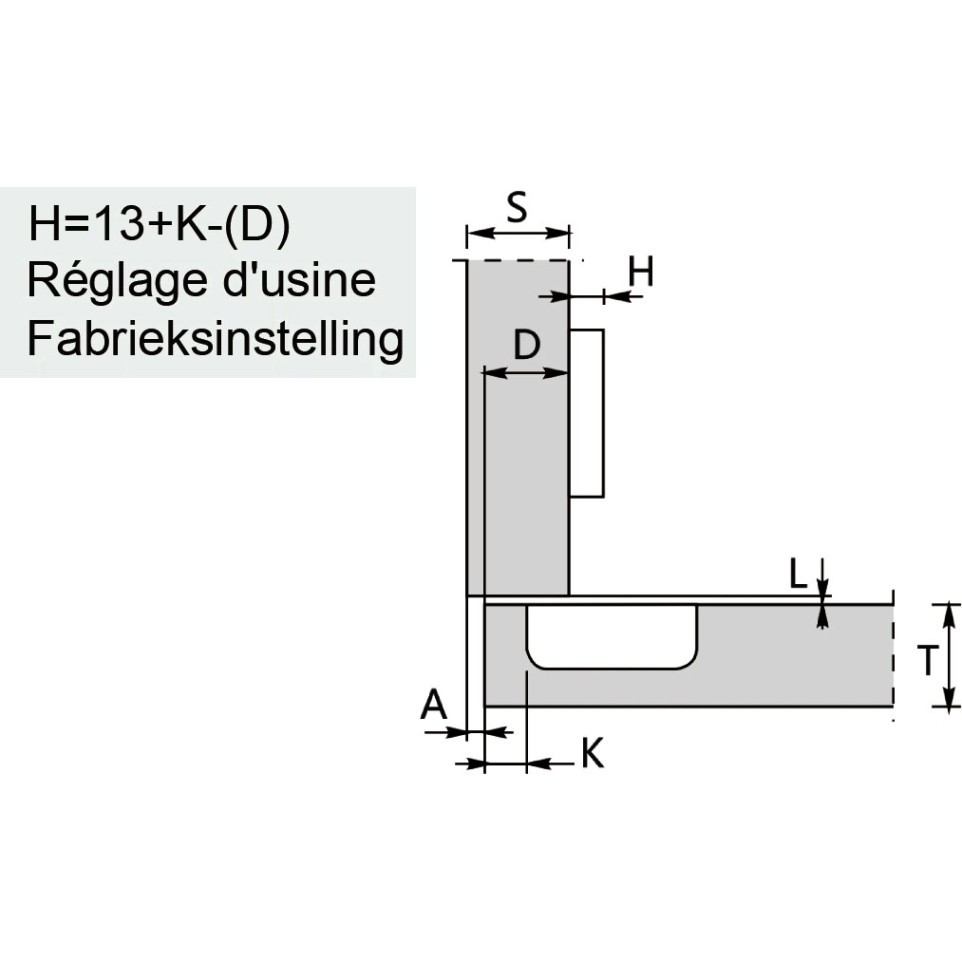

- Intended for use with overlay doors; accommodates panel thickness from 16 to 26 mm
- No integrated soft-close; features automatic self-closing action
Usage
Install the hinge by drilling the specified holes (35 mm diameter, 11.5 mm depth) into the cabinet door and screwing the hardware into place. Designed for overlay applications, it enables smooth, automatic closure of doors without a damping mechanism, ensuring reliable performance for kitchen, office, or storage cabinetry.
FAQ
-
What is the cup diameter and depth?
The hinge cup is 35 mm in diameter and 11.5 mm deep. -
Does this hinge include a soft-close feature?
No, this model does not include soft-close but has automatic self-closing. -
What door thickness can this hinge accommodate?
It is suitable for doors between 16 mm and 26 mm thick. -
What is the recommended drilling pattern for installation?
The recommended drilling pattern is 45 x 9.5 mm, with door drilling distances (K) from 3 to 6 mm. -
What type of installation does the hinge require?
This hinge is designed for screw-on mounting on overlay doors.
