Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

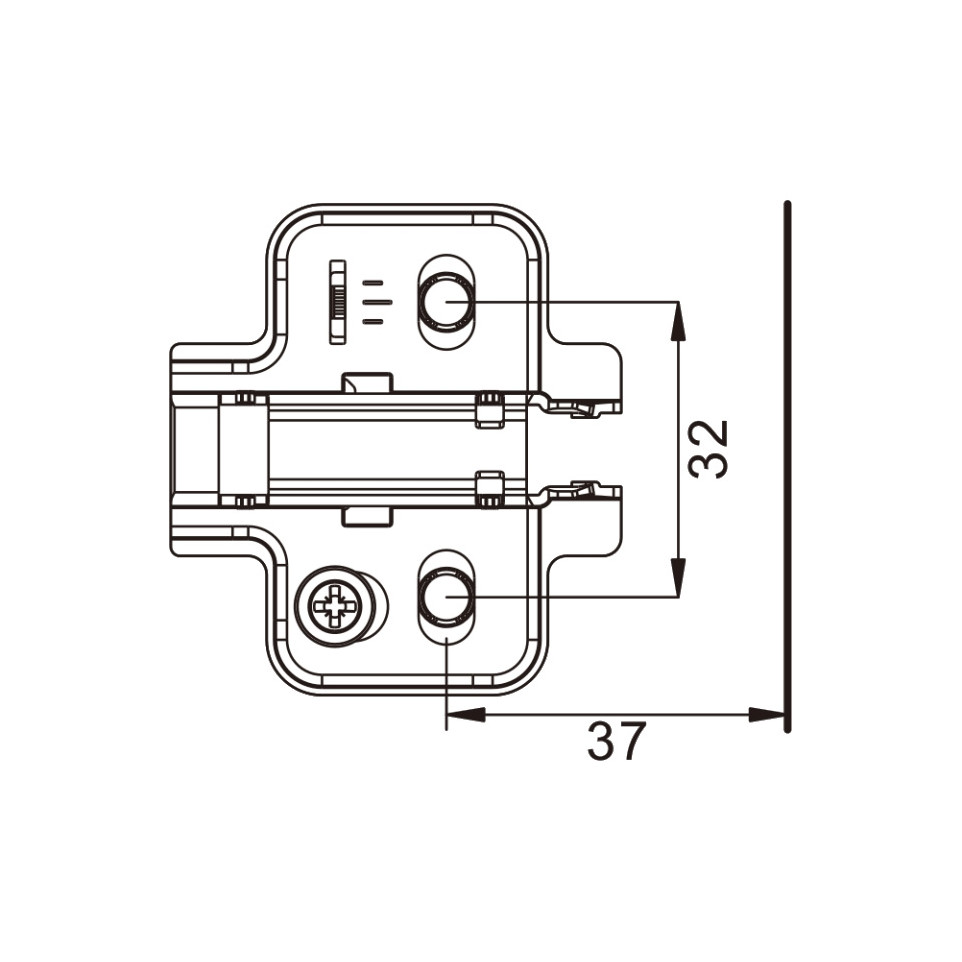

Nickel-plated Pivot-Star cruciform mounting plate with Euro screws, designed for 5 x 8mm bore holes and offering direct height adjustment with a 4mm spacing. Ideal for secure attachment of stud hinges in cabinetry and furniture applications.
Specifications
- Nickel-plated steel construction; robust and corrosion-resistant
- Euro screw installation for 5 x 8mm predrilled holes
- 4mm mounting distance; suitable for stud hinges
- Direct height adjustment for precise door alignment
- Cruciform design enhances mounting stability and compatibility
Usage
Install the mounting plate by fixing it into 5 x 8mm Euro screw holes within the cabinet. Attach a compatible stud hinge, and use the direct adjustment feature to finely tune the door’s height for perfect alignment, ensuring secure and stable operation.
FAQ
-
What type of hinges can be used with this mounting plate?
This plate is compatible with designated stud hinges, especially Pivot-Star and similar Euro screw hinges. -
Can I adjust the door height after installation?
Yes, direct height adjustment allows for precise positioning even after initial mounting. -
Is the mounting plate suitable for soft-close hardware?
It is compatible with soft-close mechanisms found in Pivot-Star and selected hinge systems. -
How is the plate installed?
Fix the plate in 5 x 8mm Euro predrilled holes using the provided screws, attach the hinge, and adjust as needed. -
What is the mounting distance provided by this plate?
The plate offers a 4mm mounting distance, suitable for standard cabinet construction.
