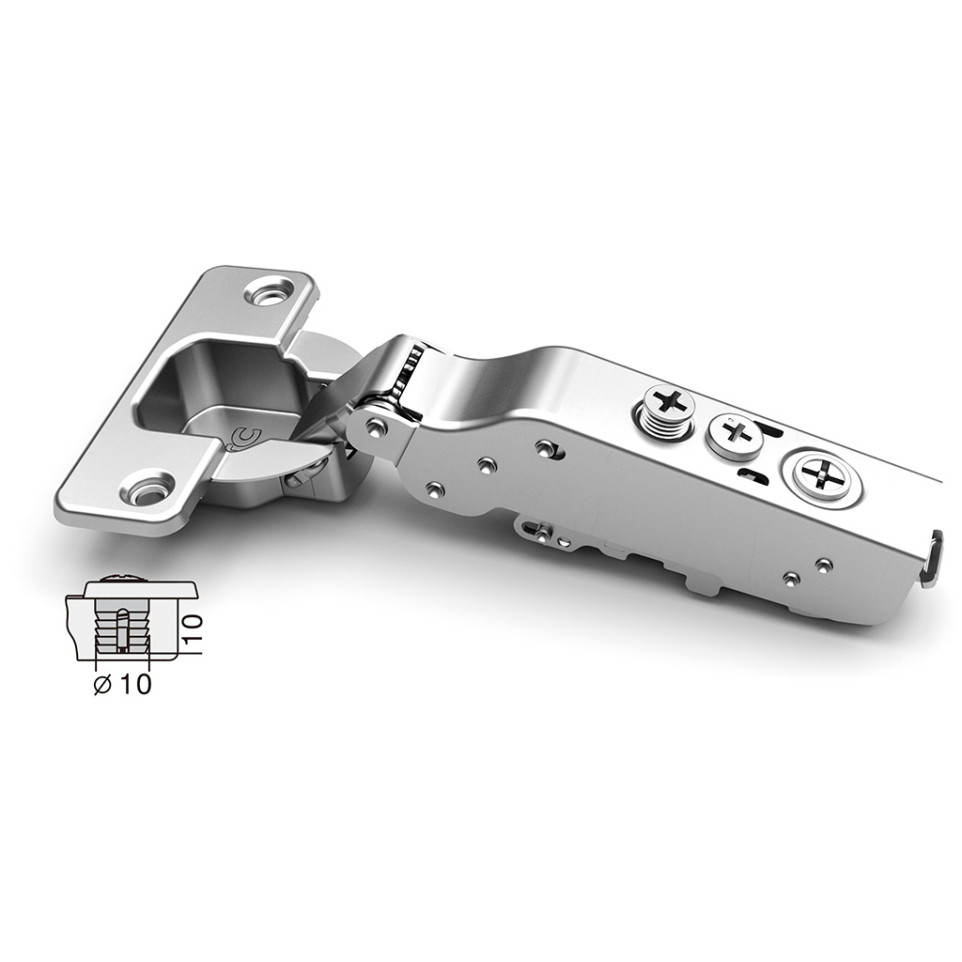

Pivot-Star 110° Nickel Quick-Mount Hinge with Soft-Close and Automatic Closing, for Doors (Ø10x10mm)

Pivot-Star 110° Nickel Quick-Mount Hinge with Soft-Close and Automatic Closing, for Doors (Ø10x10mm)
Pivot-Star 110° Nickel Quick-Mount Hinge with Soft-Close and Automatic Closing, for Doors (Ø10x10mm)
Pivot-Star 110° Nickel Quick-Mount Hinge with Soft-Close and Automatic Closing, for Doors (Ø10x10mm)
Pivot-Star 110° Nickel Quick-Mount Hinge with Soft-Close and Automatic Closing, for Doors (Ø10x10mm)
Pivot-Star 110° Nickel Quick-Mount...
Pivot-Star 110° Nickel Quick-Mount...
Pivot-Star 110° Nickel Quick-Mount...
Pivot-Star 110° Nickel Quick-Mount...

Estimated delivery date :  Monday 19 October
€2.82 HT
In stock

Ref : FGT-236015

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

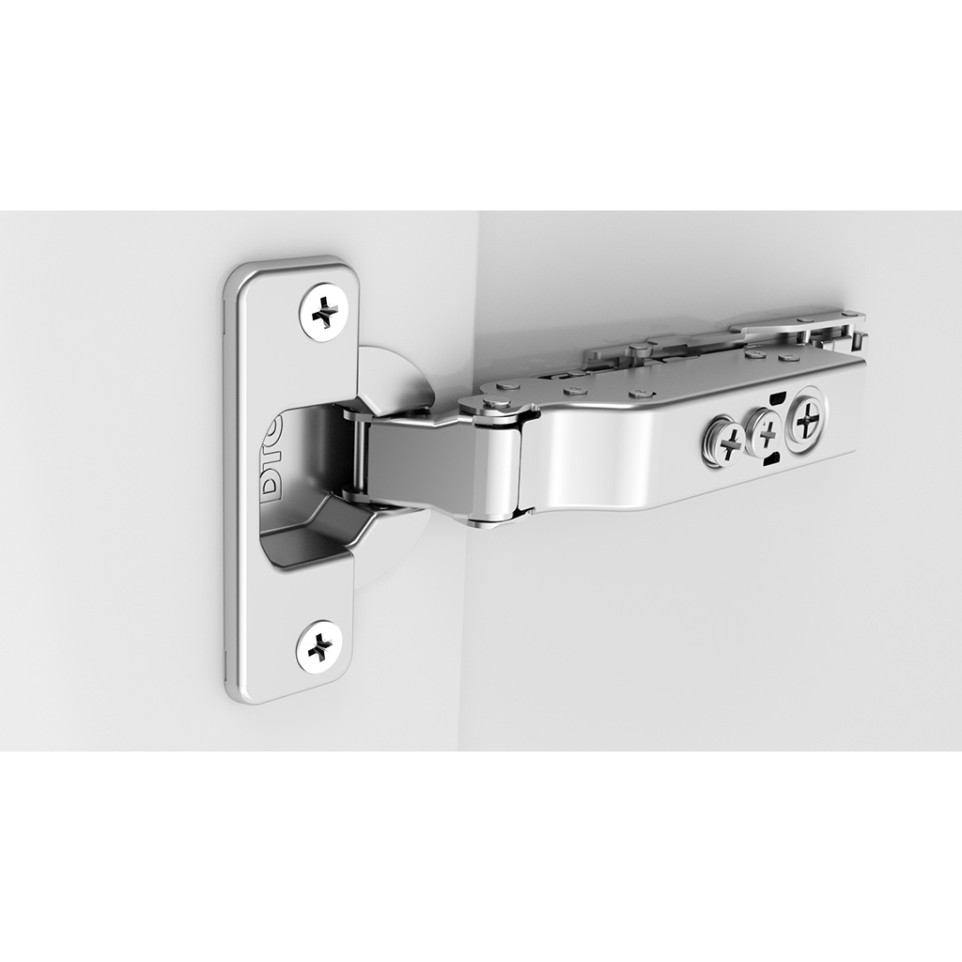

The Pivot-Star 110° nickel-plated hinge offers fast 1/4-turn mounting, integrated soft-close damping, and automatic closing for stud door applications. Designed for use in cabinets or furniture, it ensures smooth and quiet door operation.

Specifications

  • Nickel-plated steel construction with compact 35 mm cup diameter and 11.5 mm cup depth
  • Quick Assembly: 1/4-turn rapid installation
  • 110° opening angle for wide door access
  • Integrated soft-close technology and automatic closure mechanism
  • Overlay mounting type with 52 x 5.5 mm drilling template
  • Suitable for door thicknesses from 16 to 26 mm

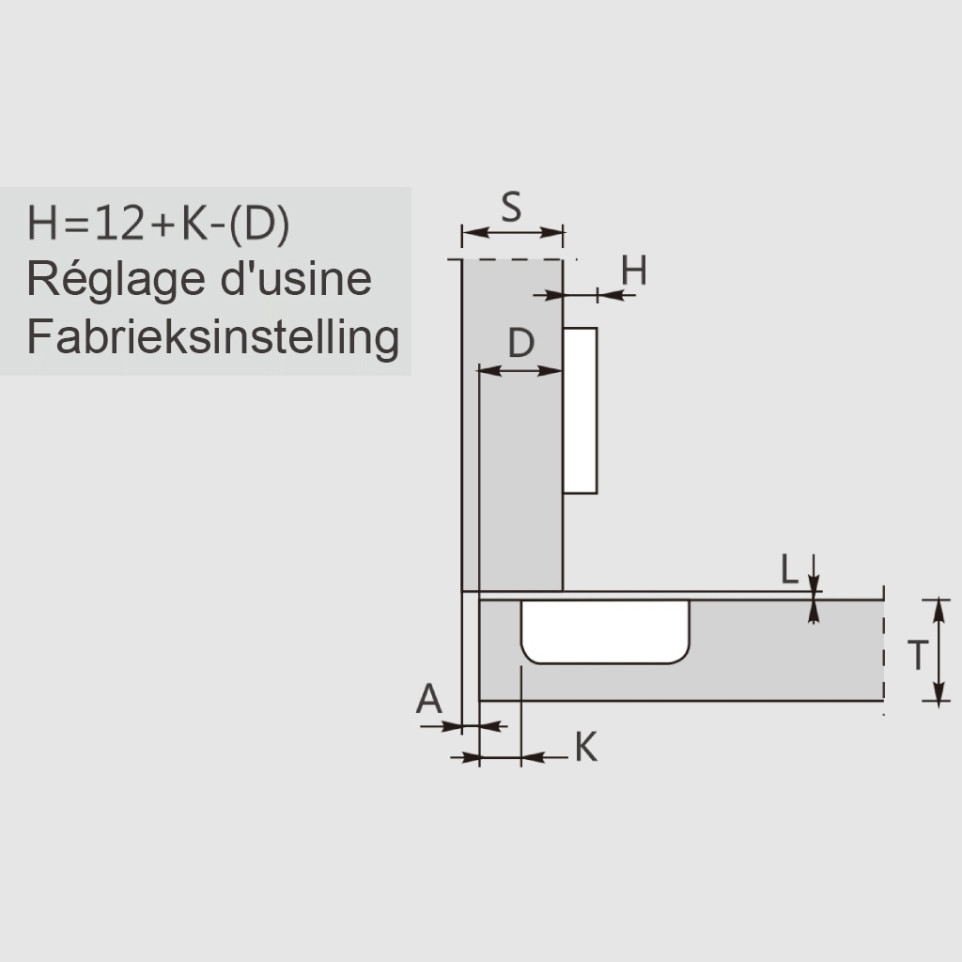

  • Adjustable drilling distance on door (K): 3–6 mm

Usage

Install the hinge by drilling a 35 mm cup hole in the door and using the provided mounting template for precise fitting. The hinge supports quick mounting and self-aligns with a snap-on mechanism. Its soft-close damping prevents slamming, while automatic closing ensures doors shut securely and quietly.

FAQ

  1. What door thicknesses are compatible with the Pivot-Star 110° hinge?

    • The hinge fits doors with thicknesses from 16 mm to 26 mm.

  2. Can the soft-close strength be adjusted?

    • The hinge features integrated soft-close damping, but the adjustment method varies by installation and may not be adjustable on all models.

  3. What type of mounting does this hinge require?

    • It uses overlay mounting with a quick snap-on design, suitable for stud doors.

  4. Does this hinge support both manual and automatic closing?

    • Yes, it includes automatic closing as well as soft-close damping for smooth operation.

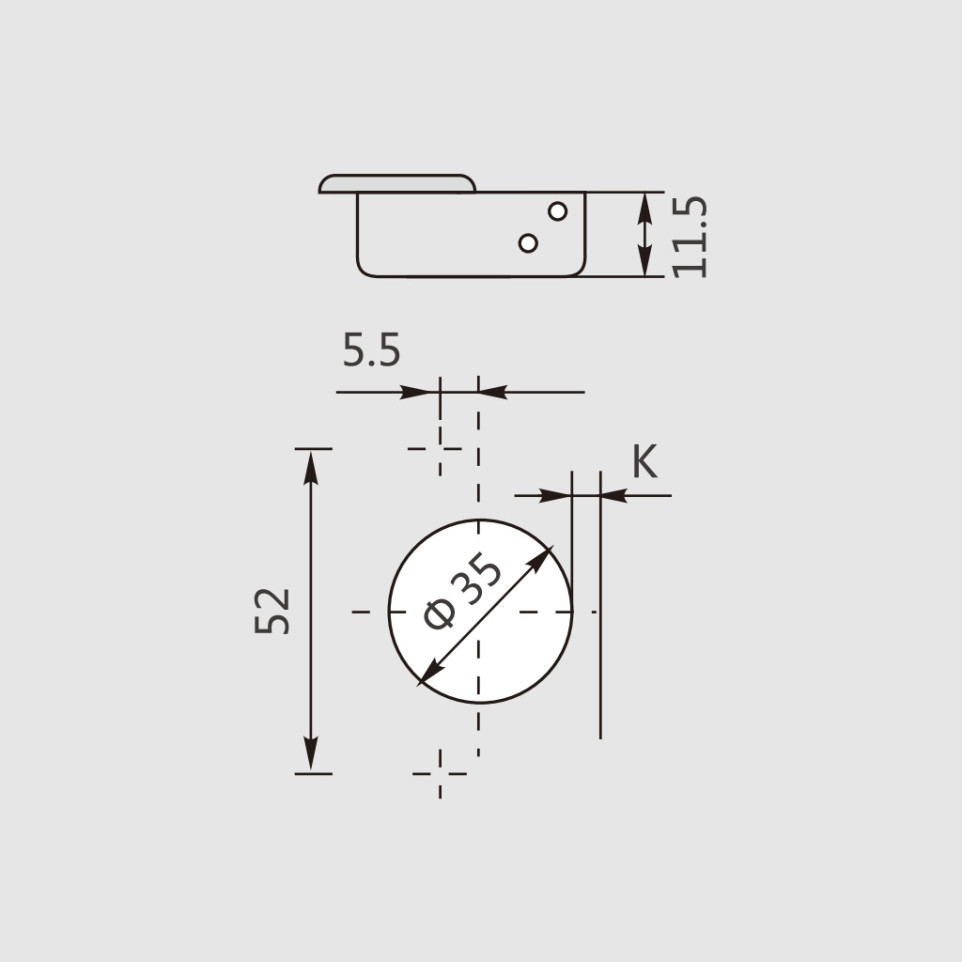

  5. What is the drilling scheme for installation?

    • The recommended drilling template is 52 x 5.5 mm, with cup diameter at 35 mm and depth at 11.5 mm.
