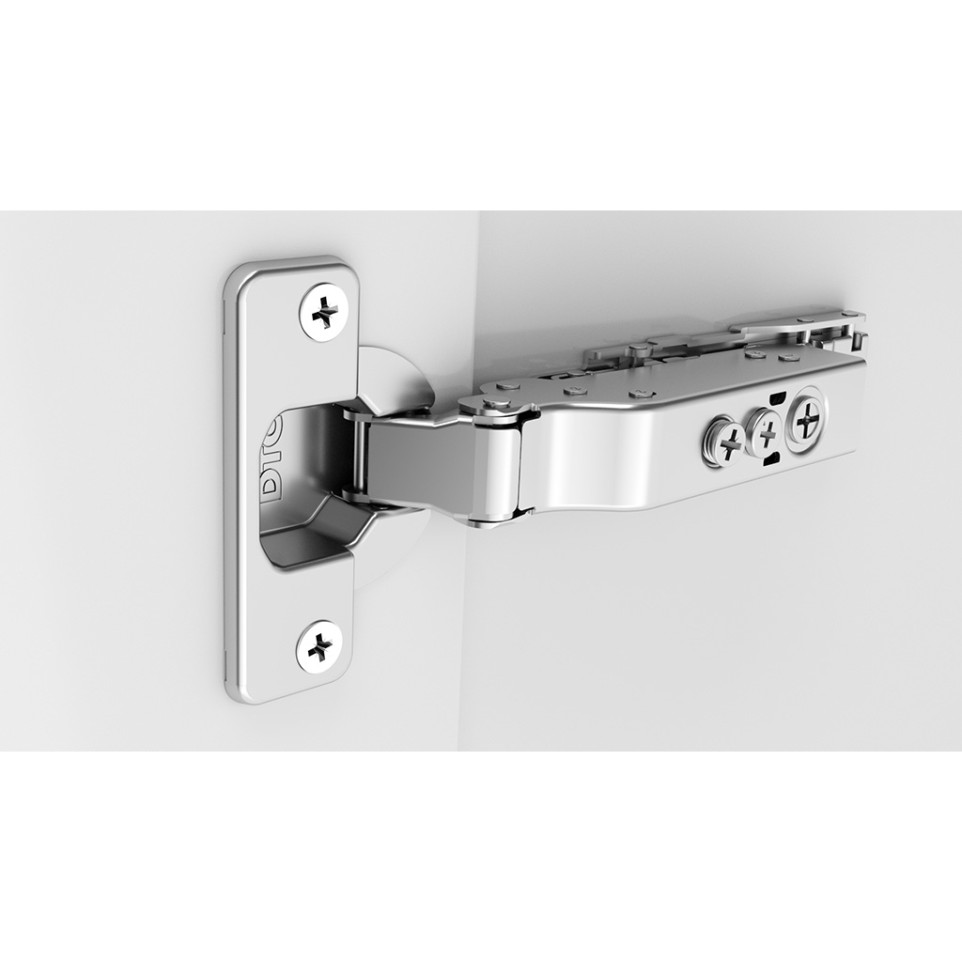

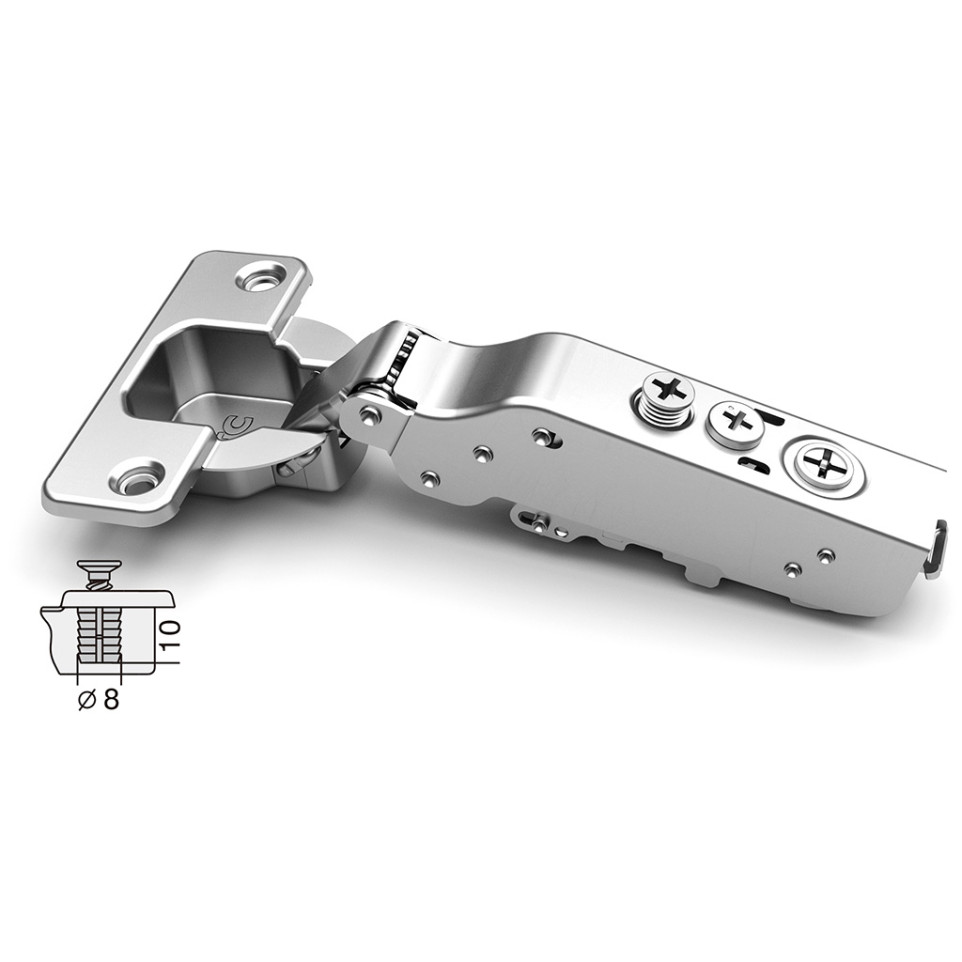

Nickel-plated Pivot-Star hinge with 110° opening angle, featuring integrated soft-close damping and automatic closing. Designed for screw-on installation on overlay doors in furniture and cabinetry applications.

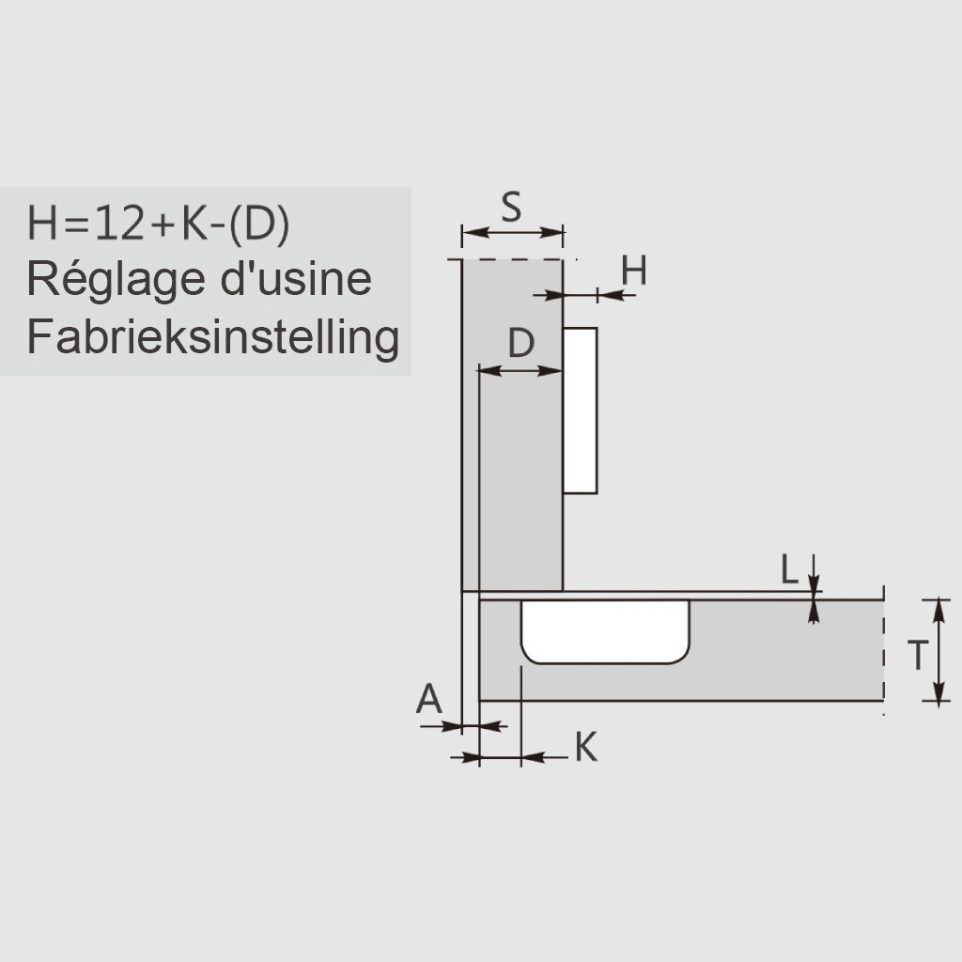

Attach the hinge to the cabinet frame using screws. Bore a 35 mm cup hole in the door at the required depth and position, set the hinge, and mount the plate following the specified drilling scheme. The integrated damper controls closing speed, delivering a smooth and silent motion with automatic door engagement.
What door thickness range is supported?
This hinge fits doors from 16 mm to 26 mm thick.
Is installation hardware included?
Screws are required for mounting and must be selected according to the application; check manufacturer guidelines.
How does the soft-close feature work?
An integrated damper inside the hinge arm slows the closing motion, ensuring quiet operation without slamming.

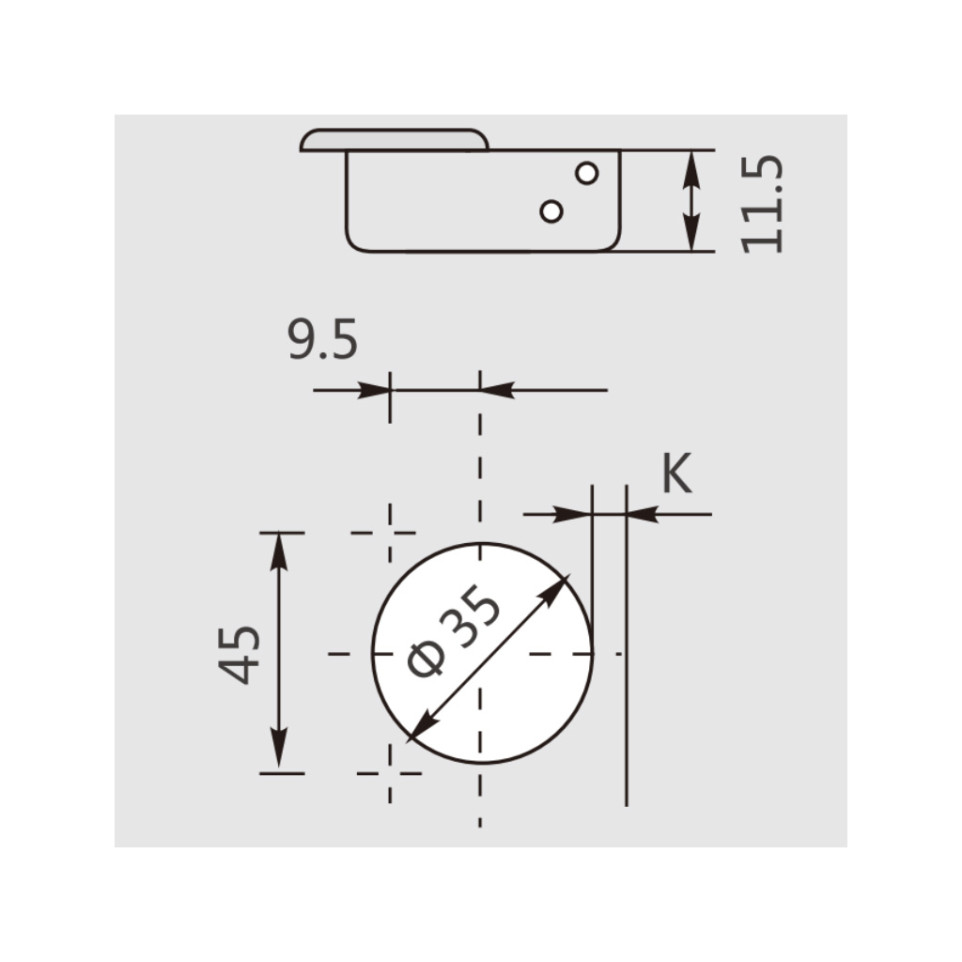

What is the required bore hole size for installation?
The hinge requires a 35 mm diameter cup hole with an 11.5 mm depth.
Can this hinge be used for overlay door applications?
Yes, it is specifically designed for overlay mounting on cabinet doors.
