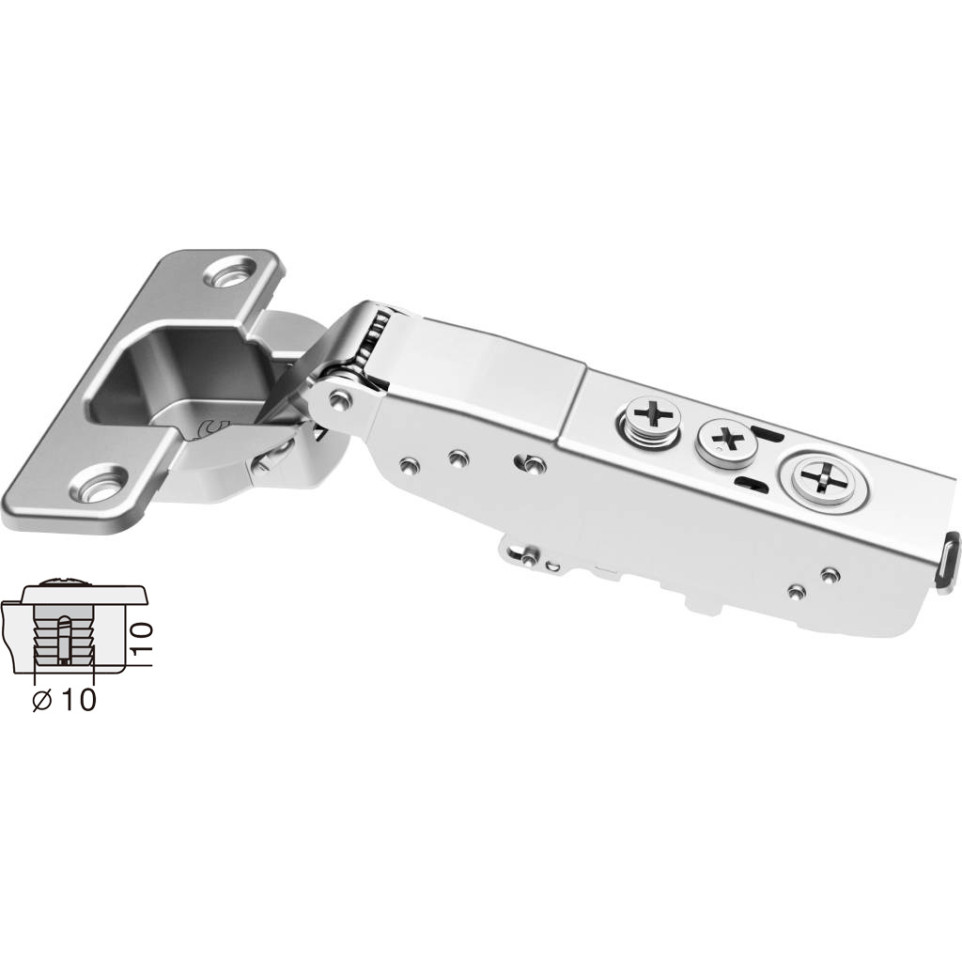

The Pivot-Star 110° Nickel-Plated Quick-Mount Hinge with integrated soft-closing and automatic closure is designed for semi-overlay cabinet doors with fast, secure installation. Suitable for door thicknesses from 16 to 26 mm, ideal for contemporary cabinetry.

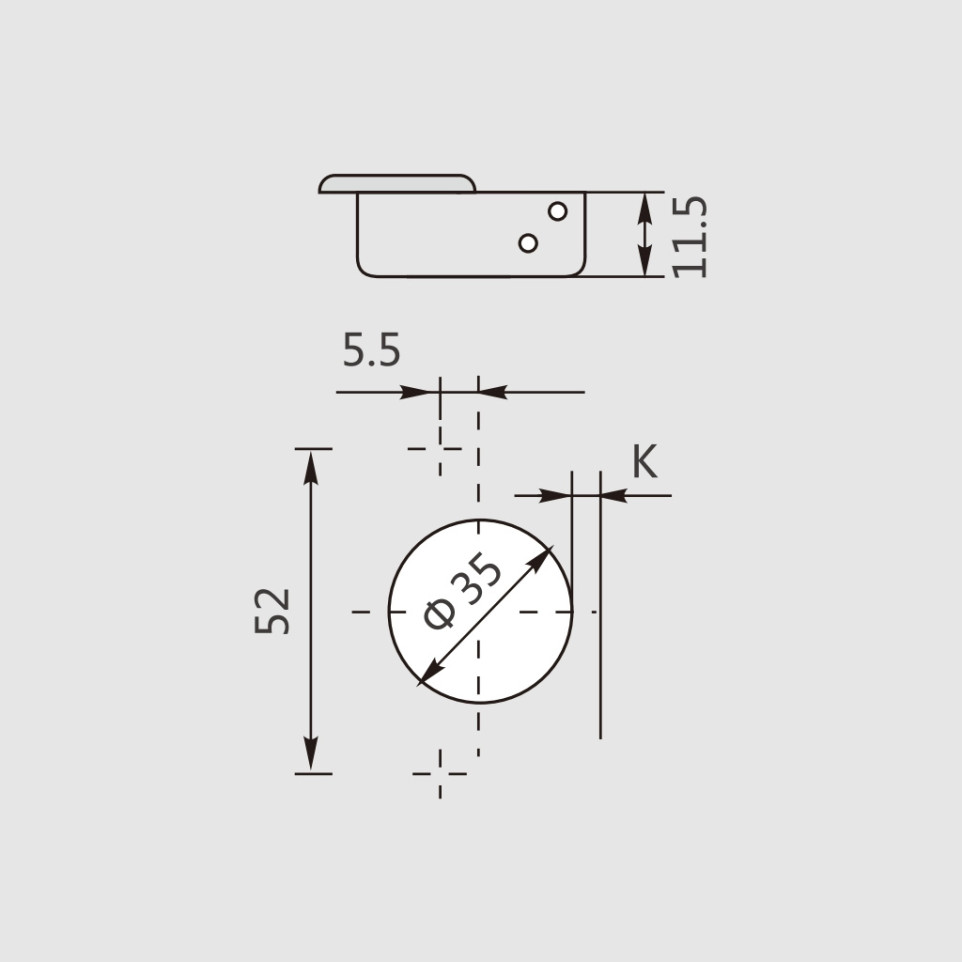

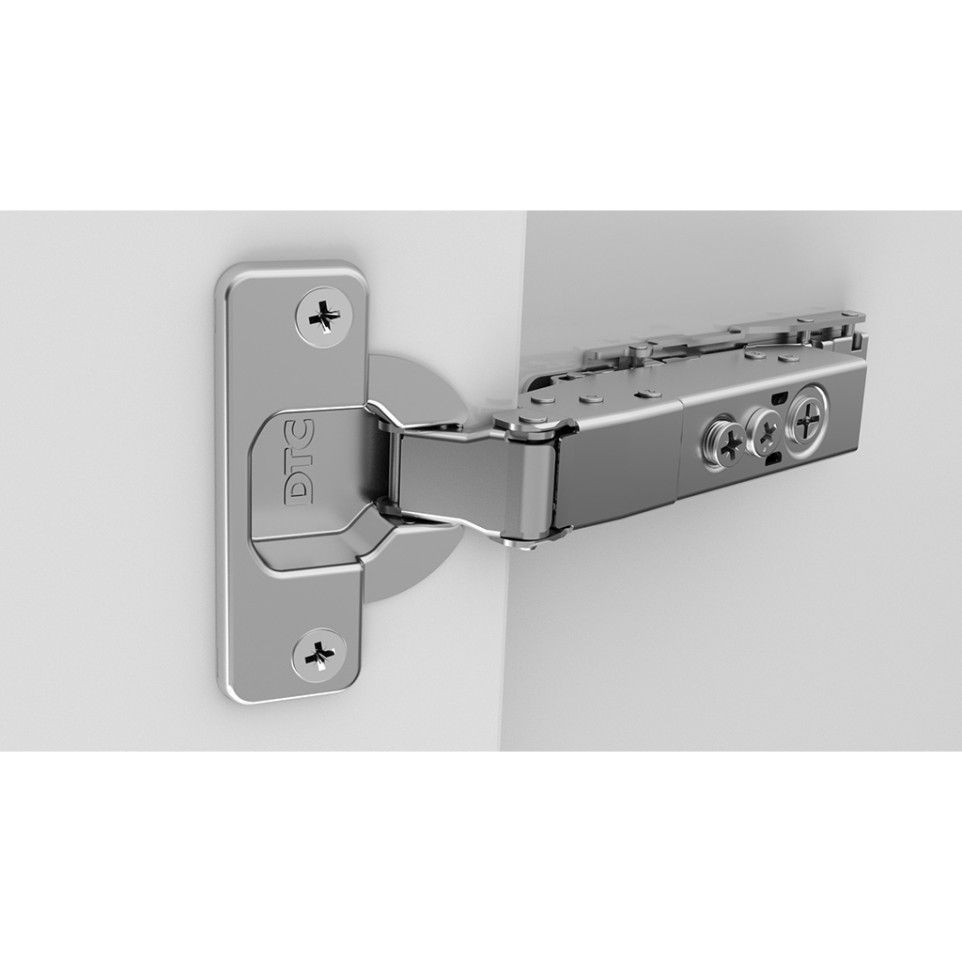

Mount the hinge to the cabinet with the provided quick 1/4-turn system and align with the 52 x 5.5 mm drilling pattern on the door. The hinge’s built-in soft-close damper ensures smooth and silent closure while the automatic closing feature keeps doors securely shut, ideal for kitchens and storage units.
What is the maximum opening angle of this hinge?
The hinge opens up to 110°, providing wide access to cabinet interiors.
Does this hinge include a soft-closing mechanism?
Yes, it features integrated soft-closing for smooth and silent door operation.
What door thickness can this hinge accommodate?
It suits doors with thicknesses ranging from 16 mm to 26 mm.
Is installation complicated or time-consuming?
No, the 1/4-turn quick-mount system makes installation fast and straightforward.
What type of cabinet application is this hinge designed for?
It is designed for semi-overlay door applications.
