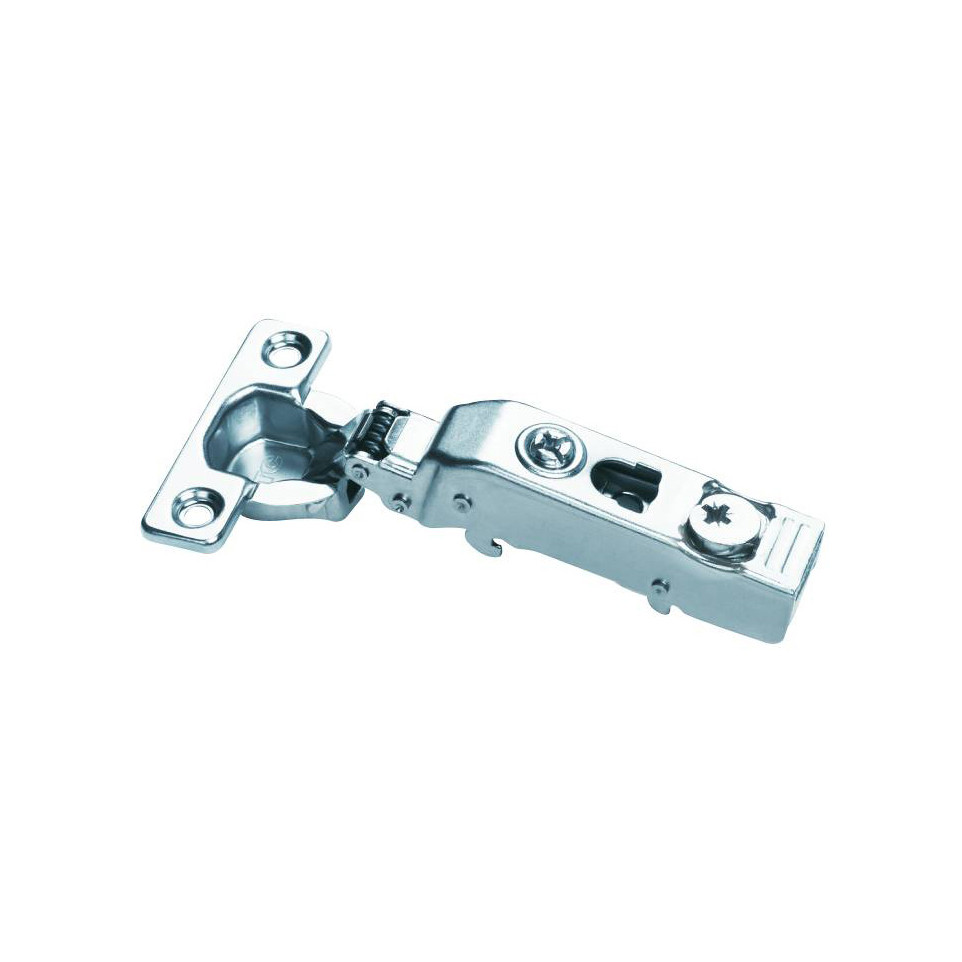

Pivot-Pro 100° nickel-plated screw-on hinge with integrated soft-close damping and automatic closing, featuring a Ø26mm cup for overlay doors; ideal for cabinetry requiring smooth, controlled door movement and precise alignment.
Install the hinge cup in a 26 mm diameter hole at a 10 mm depth in the cabinet door, aligning with the prescribed drilling pattern. Attach using screws, fitting for overlay doors between 12 and 22 mm thick. Integrated soft-close gently controls door movement; the automatic function ensures doors close securely.
What is the maximum door thickness supported? — This hinge is compatible with doors from 12 mm to 22 mm thick.
What type of installation does it require? — Designed for screw-on mounting for secure, straightforward installation.
Is this hinge suitable for overlay doors? — Yes, it is optimized for overlay (applique) door applications.
Does the hinge feature soft-close technology? — Yes, it has a built-in soft-close damping system for silent, controlled closure.
What is the required cup diameter for installation? — Drilling a 26 mm diameter cup in the door is required for fitting this hinge.
mvm-dt-2025-07-20
| Brand | DTC |
|---|---|
| Finishing | nickelé |
| Type of assembly | à visser |
| Material used | acier |

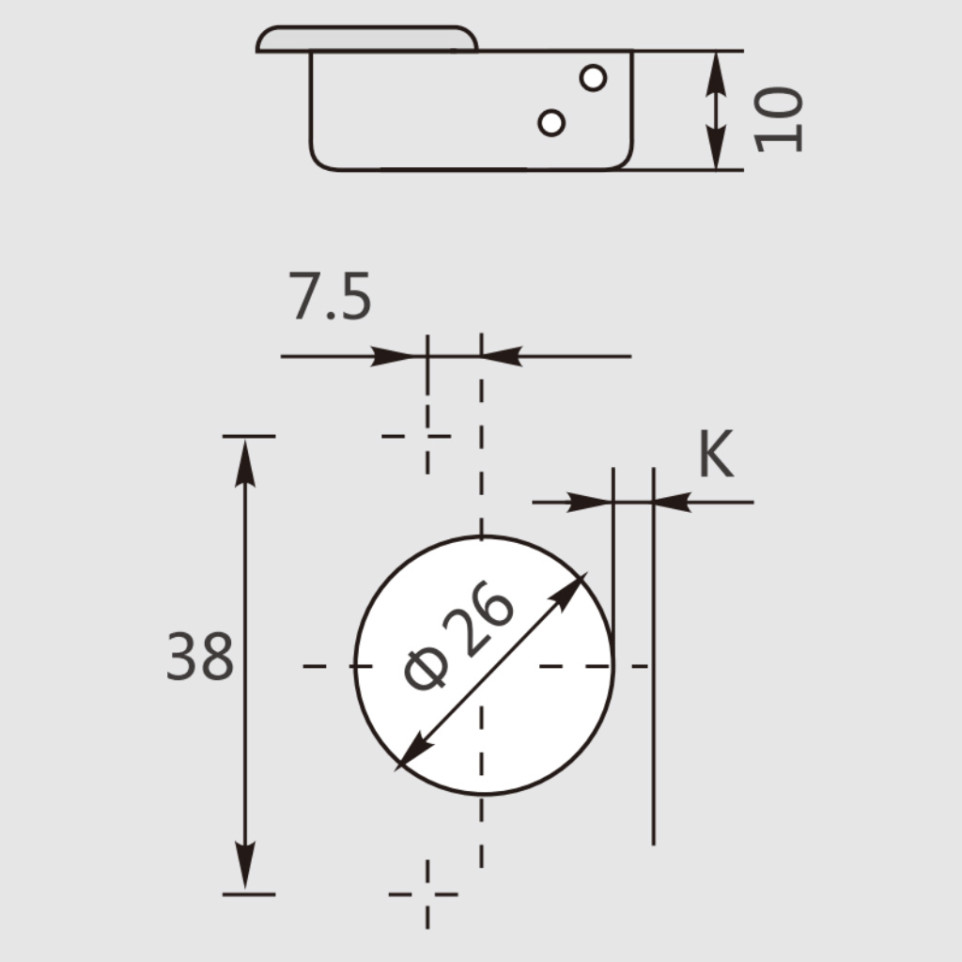

| Drilling diagram | TH38 x 8 mm |

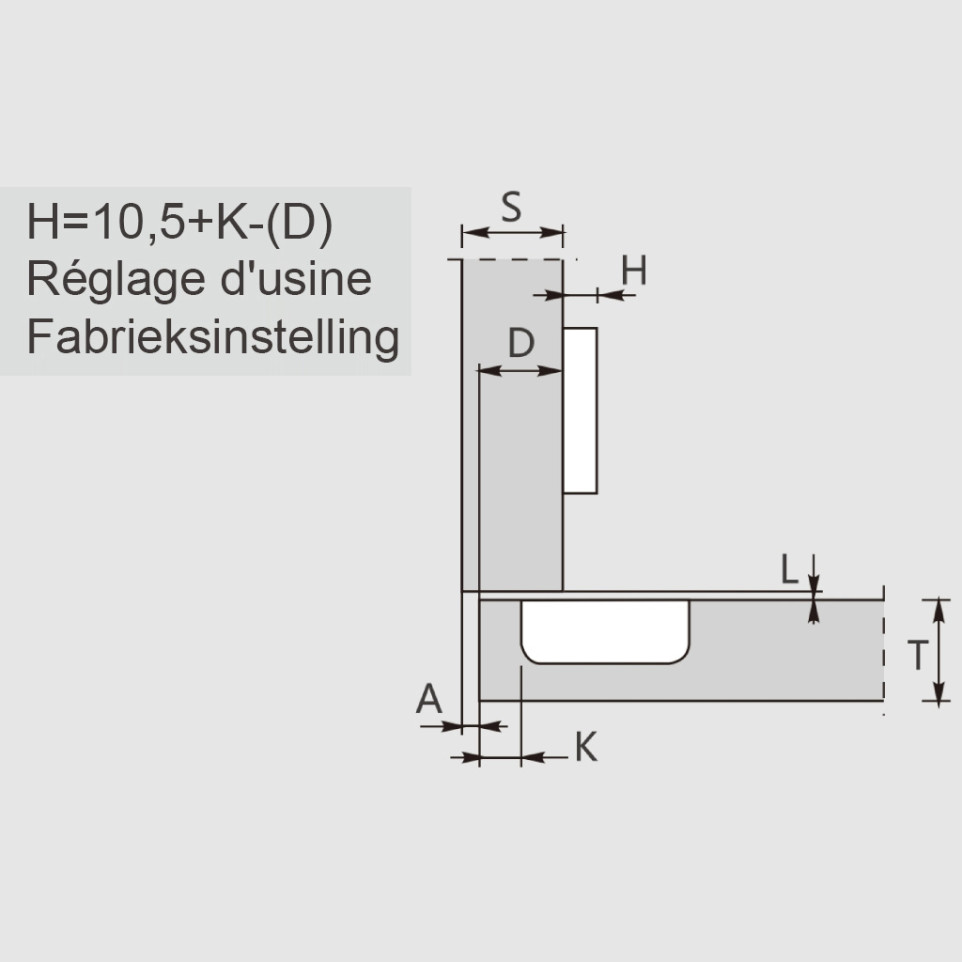

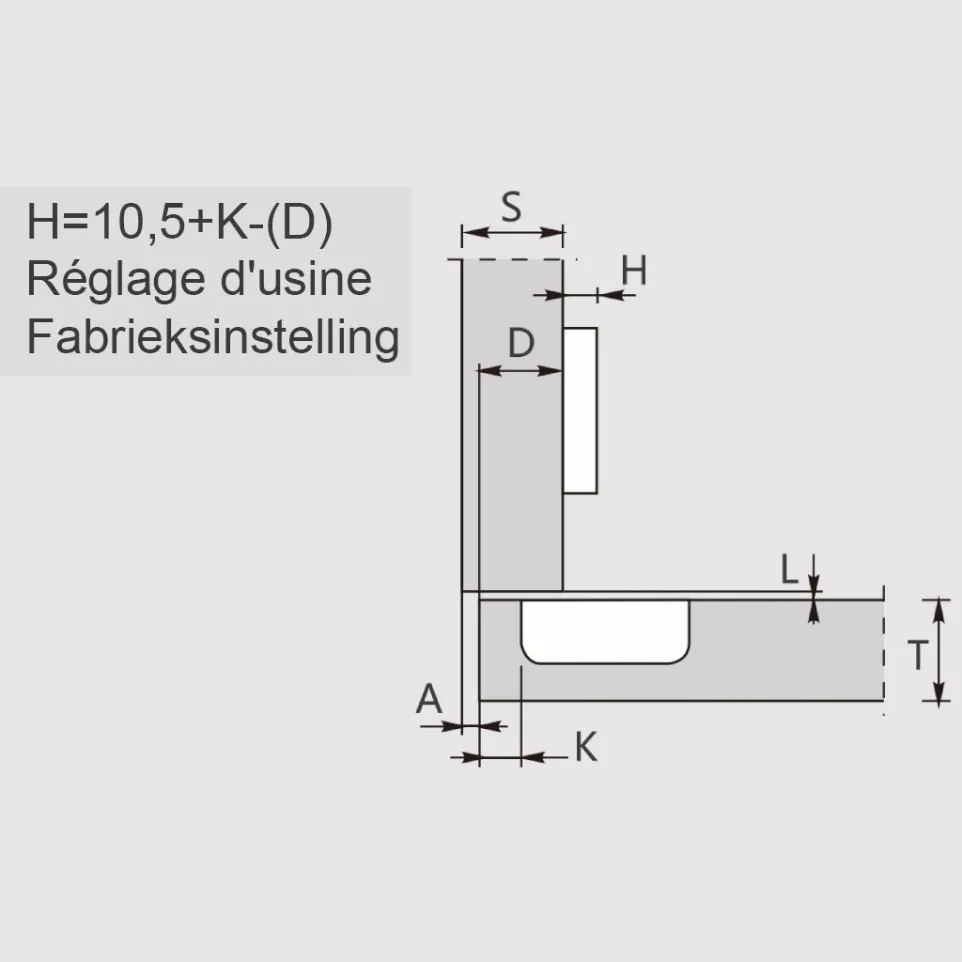

| Finish Fittings | en applique |
