Pivot-Star 110° Nickel-Plated Screw-On Hinge with Soft-Close and Self-Closing for Inset Door / PC

Pivot-Star 110° Nickel-Plated Screw-On Hinge with Soft-Close and Self-Closing for Inset Door / PC
Pivot-Star 110° Nickel-Plated Screw-On Hinge with Soft-Close and Self-Closing for Inset Door / PC
Pivot-Star 110° Nickel-Plated Screw-On Hinge with Soft-Close and Self-Closing for Inset Door / PC
Pivot-Star 110° Nickel-Plated Screw-On Hinge with Soft-Close and Self-Closing for Inset Door / PC
Pivot-Star 110° Nickel-Plated...
Pivot-Star 110° Nickel-Plated...
Pivot-Star 110° Nickel-Plated...
Pivot-Star 110° Nickel-Plated...

Estimated delivery date :  Thursday 6 August
€2.76 HT
In stock

Ref : FGT-236202

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

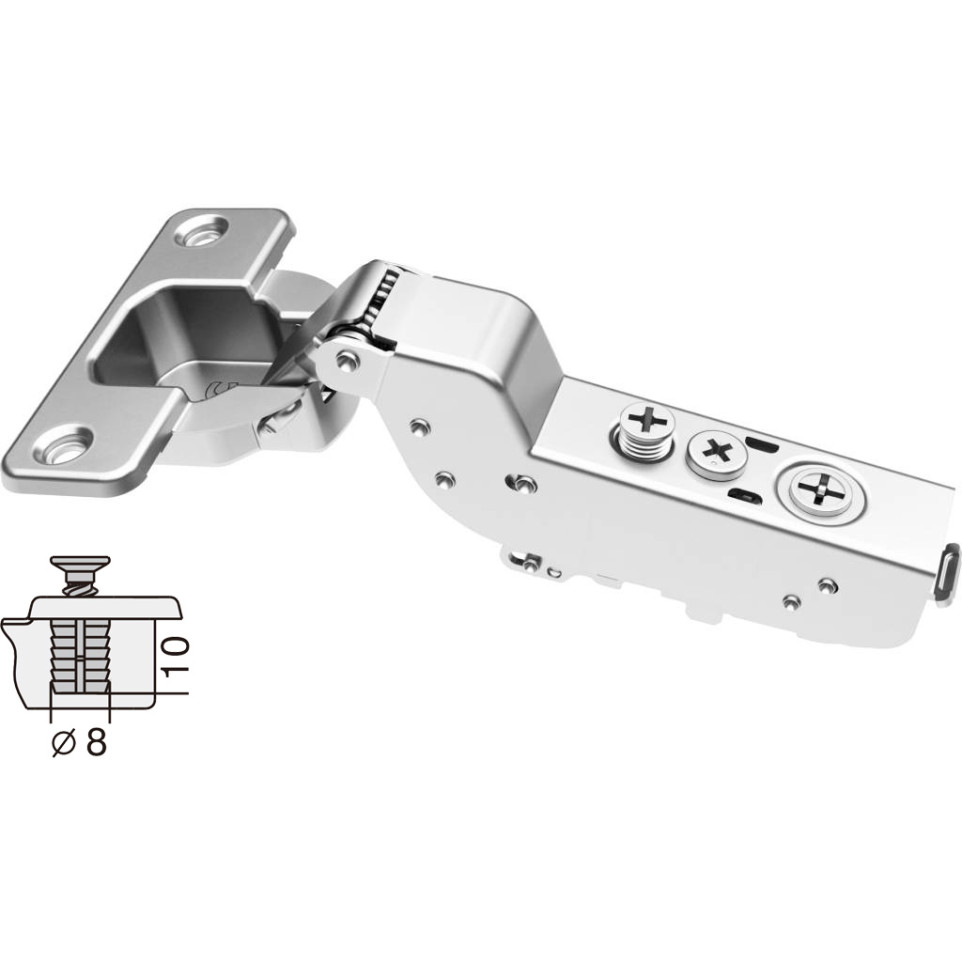

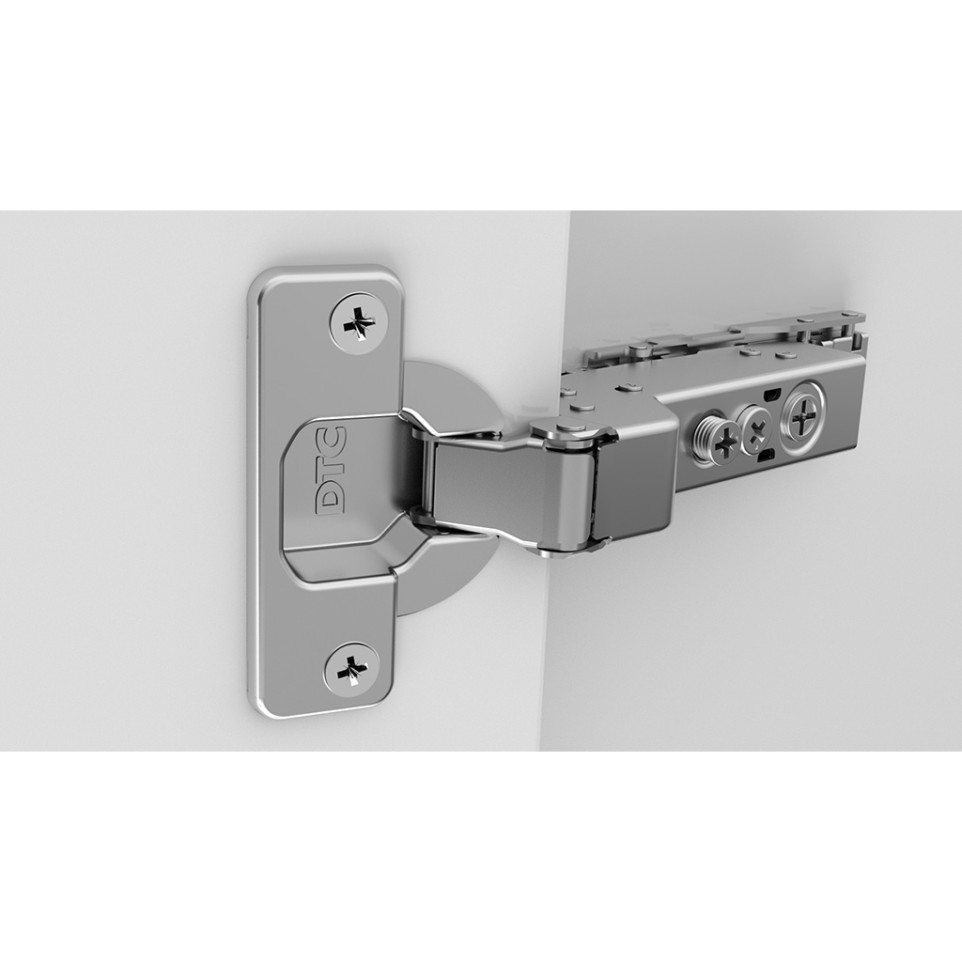

The Charnière Pivot-Star 110° is a nickel-plated stud hinge designed for screw mounting. It provides soft-closing and automatic door closure for inset cabinet doors, making it suitable for modern furniture applications.

Specifications

  • Nickel-plated metal construction for enhanced corrosion resistance
  • Built-in soft-close damper for improved comfort and noise reduction
  • Automatic closing mechanism ensures secure door closure
  • Opening angle: 110°
  • Hinge cup depth: 11.5 mm
  • Cup diameter: 35 mm
  • Suited for door thickness: 16–26 mm
  • Inset-type stud hinge
  • Mounting method: screw-on

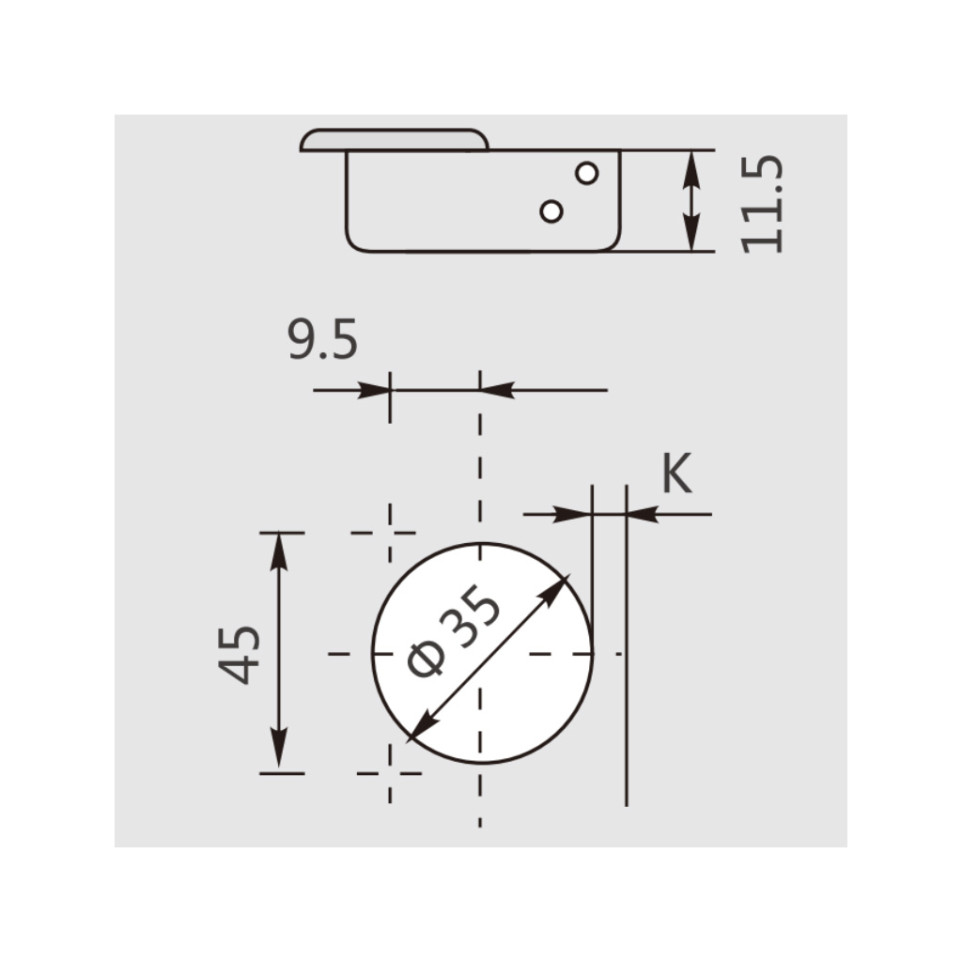

  • Drilling pattern: 45 x 9.5 mm

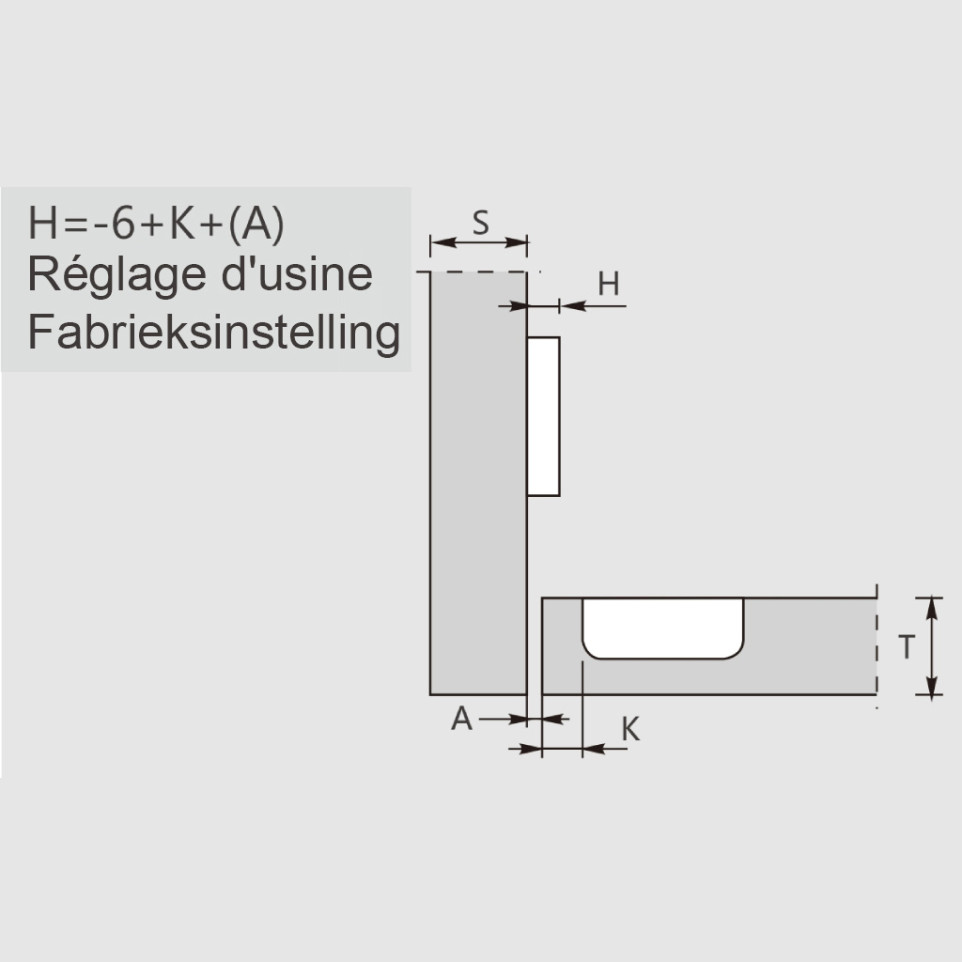

  • Door drilling distance options (K): 3–6 mm

Usage

Mount the hinge onto the cabinet body using screws, align the door according to the drilling template, and attach the door. The integrated damper and automatic closing feature slow the door’s motion and ensure it latches securely with a gentle push.

FAQ

  1. What is the maximum opening angle of this hinge?

    • The hinge opens to a wide 110°.

  2. Does the hinge provide soft-close functionality?

    • Yes, it features an integrated damper for smooth and quiet closing.

  3. What door thickness is compatible?

    • Suitable for doors between 16 and 26 mm thick.

  4. Is this hinge designed for inset (renting) doors?

    • Yes, it is specifically made for inset door mounting.

  5. How is it installed?

    • The hinge is screw-mounted and requires drilling a cup hole (Ø35 mm, depth 11.5 mm) with a prescribed mounting pattern.
