Pivot-Star 110° Black Titanium Screw-on Hinge with Soft-Close and Automatic Closing for Overlay Door / PC

Pivot-Star 110° Black Titanium Screw-on Hinge with Soft-Close and Automatic Closing for Overlay Door / PC
Pivot-Star 110° Black Titanium Screw-on Hinge with Soft-Close and Automatic Closing for Overlay Door / PC
Pivot-Star 110° Black Titanium Screw-on Hinge with Soft-Close and Automatic Closing for Overlay Door / PC
Pivot-Star 110° Black Titanium...
Pivot-Star 110° Black Titanium...
Pivot-Star 110° Black Titanium...

Estimated delivery date :  Thursday 6 August
€2.84 HT
In stock

Ref : FGT-236400

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

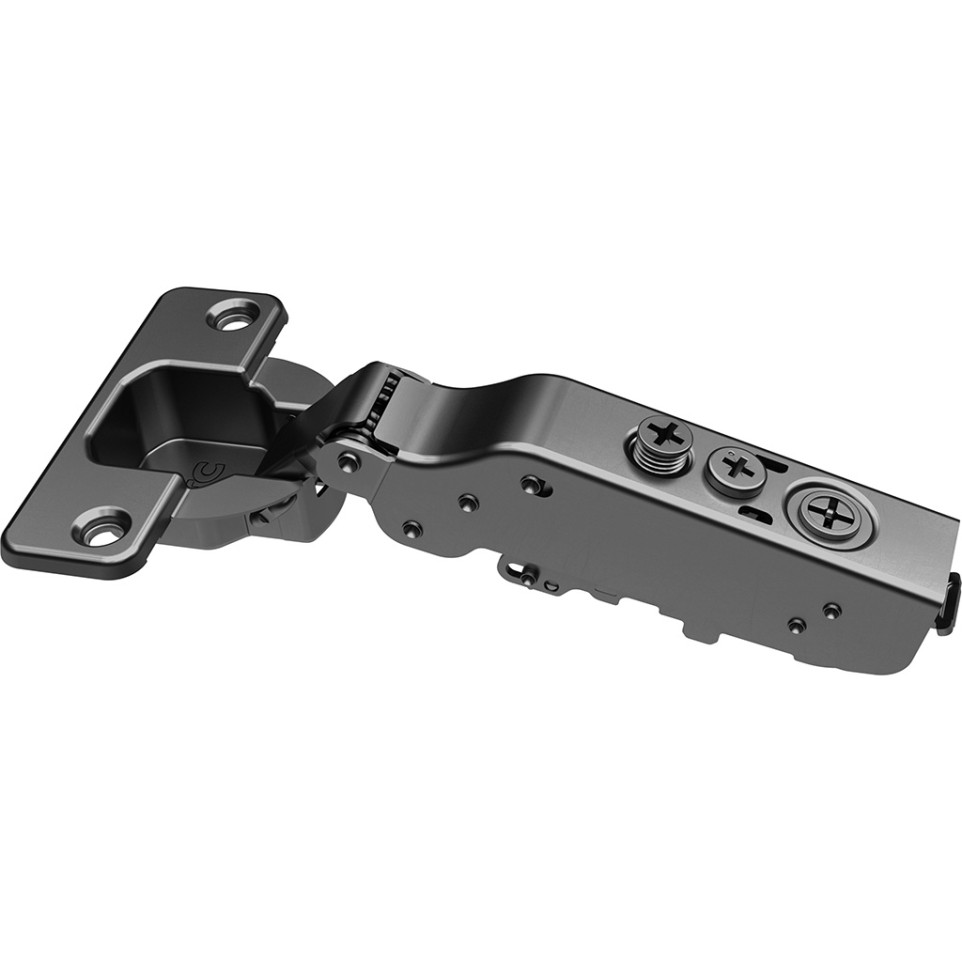

The Charnière Pivot-Star 110° Black Titanium Screw-On Hinge is designed for overlay doors, offering integrated soft-close damping and automatic closing. Ideal for cabinets, it ensures quiet, smooth operation and reliable positioning for modern furniture.

Specifications

  • Integrated soft-close technology and automatic closing for comfort and safety
  • Durable black titanium finish for corrosion resistance and lasting visual appeal
  • 110° opening angle enables wide door access
  • Cup depth: 11.5 mm; cup diameter: 35 mm

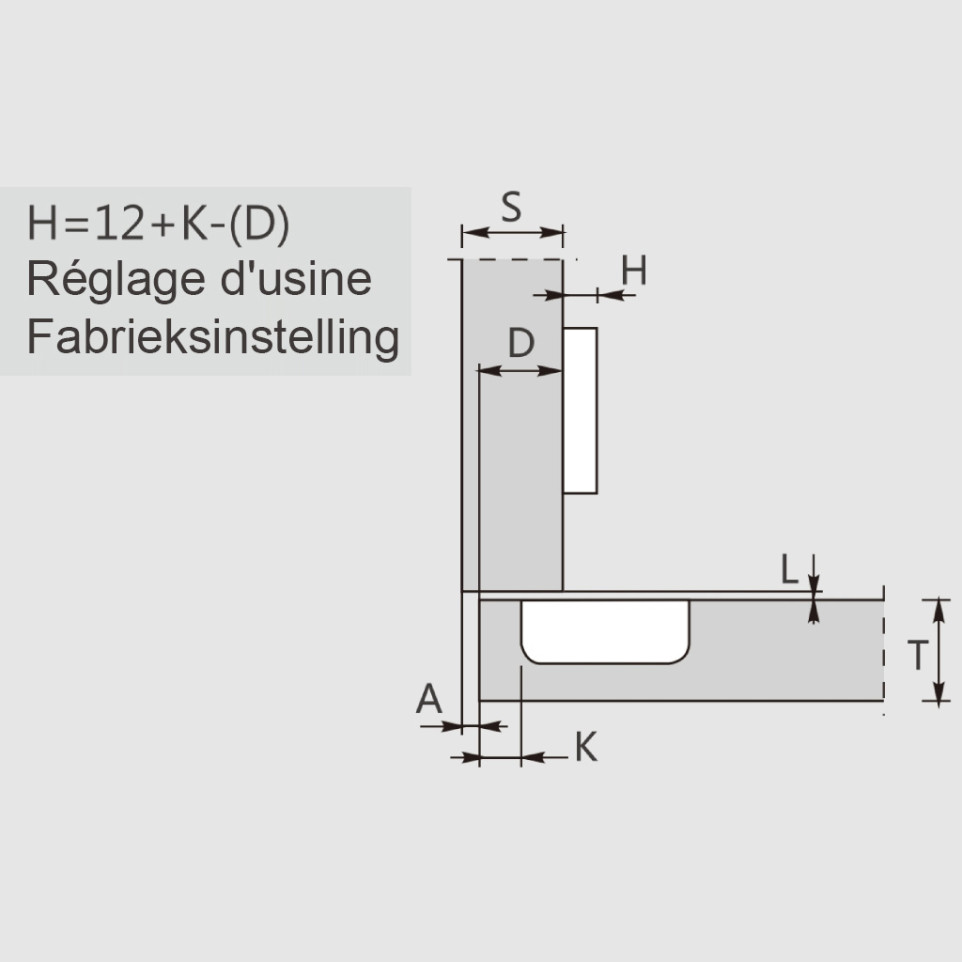

  • Designed for overlay mounting; suitable for door thicknesses from 16–26 mm
  • Screw-on installation for robust fixation

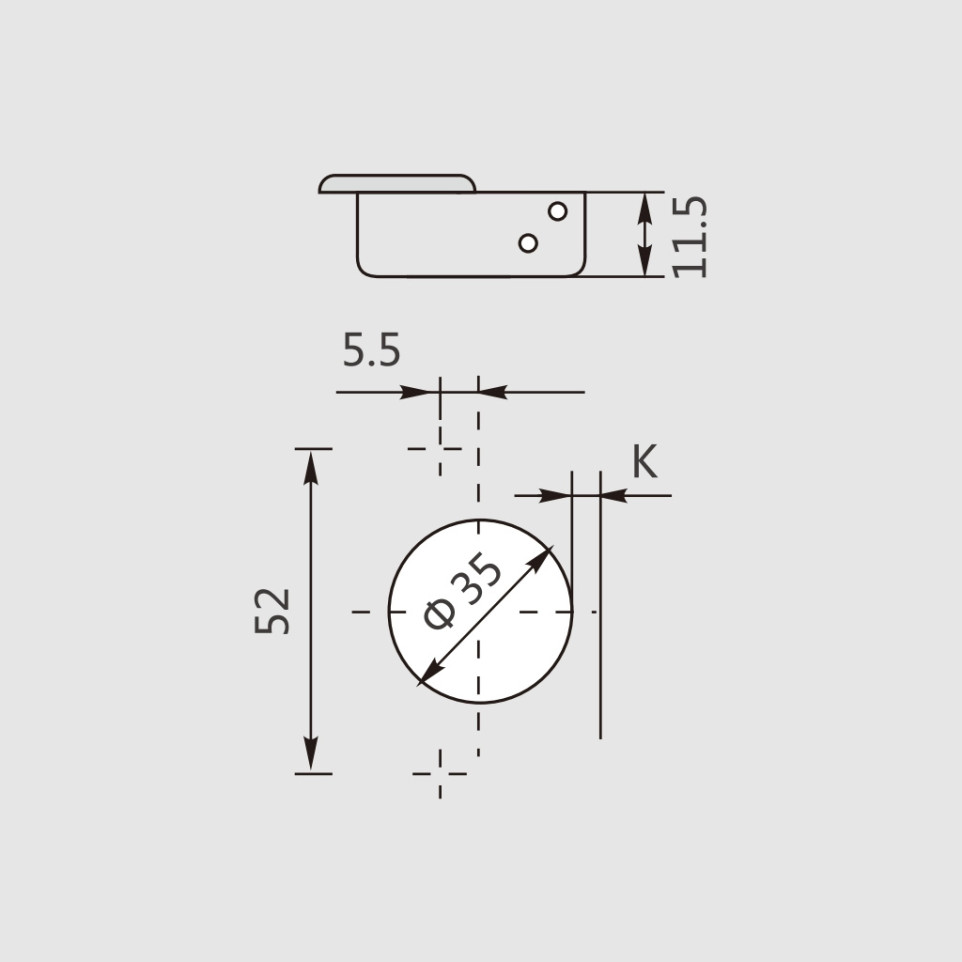

  • Drilling pattern: 52 x 5.5 mm; possible drilling distances on door (K): 3–6 mm

Usage

This hinge is screw-mounted on cabinet doors with overlay application, supporting door thickness from 16 to 26 mm. Its integrated soft-close system gently slows the door as it shuts, while the automatic closing mechanism keeps doors closed securely. The hinge’s drilling pattern allows seamless, precise installation.

FAQ

  1. What door thicknesses are compatible?

    • The hinge supports door thicknesses from 16 mm to 26 mm.

  2. Does the hinge include soft-close and automatic closing?

    • Yes, soft-close damping and automatic closing are both integrated.

  3. How is the hinge installed?

    • It is designed for screw-on attachment and requires a cup hole size of 35 mm in diameter and 11.5 mm in depth.

  4. What is the hinge's opening angle?

    • The hinge allows for a 110° door opening.

  5. What mounting and drilling options are available?

    • Overlay mounting with a 52 x 5.5 mm drilling pattern and possible door drilling distances of 3–6 mm.
