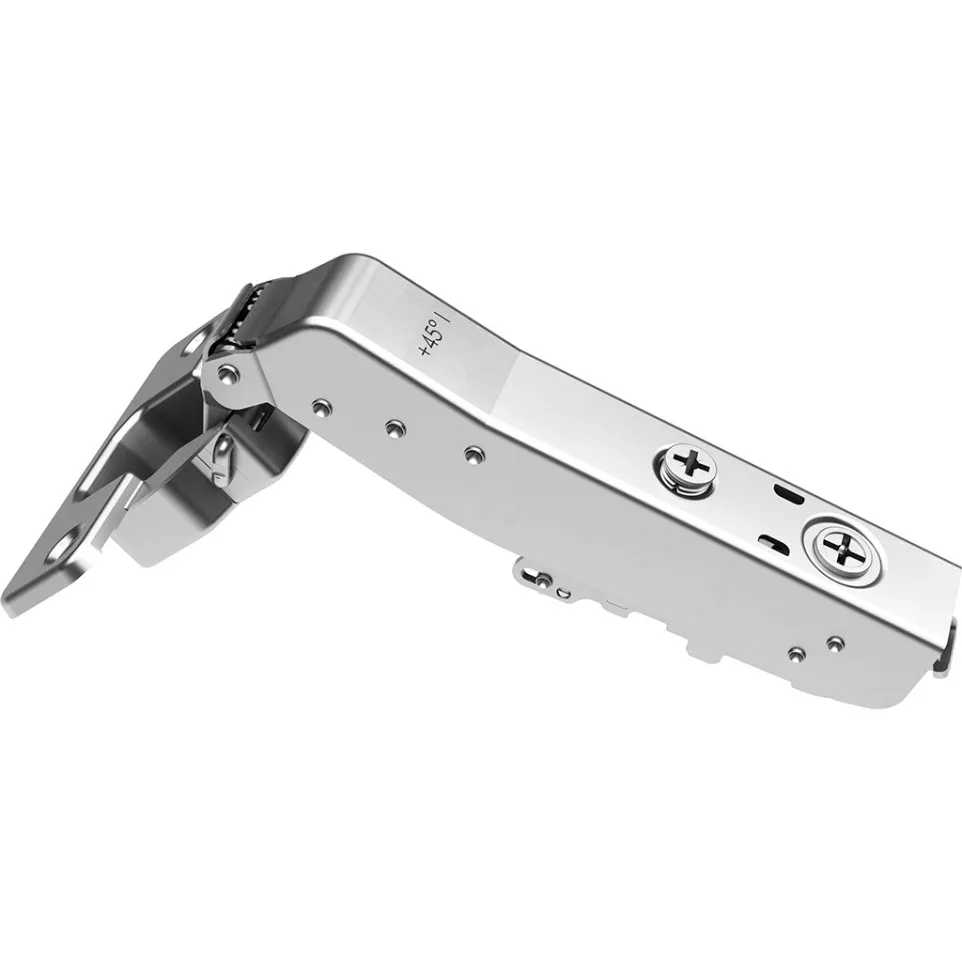

The 45° Pivot-Star 110° nickel-plated hinge is designed for overlay door installations, featuring integrated soft-close damping and automatic closing for silent and effortless cabinet door operation. Suitable for doors 16–26 mm thick.
This hinge is used to mount overlay cabinet doors at a 45° corner, providing controlled and quiet closing thanks to its integrated damping and automatic closing mechanism. It is suitable for kitchens, wardrobes, or commercial furniture with overlay doors of specified thickness.
What is the maximum opening angle for this hinge?
The hinge opens to 110°, allowing wide access to cabinet interiors.
Does this hinge offer a soft-close feature?
Yes, it includes integrated soft-close damping for gentle and quiet door closure.
What range of door thicknesses is supported?
It is compatible with doors between 16 mm and 26 mm thick.
What mounting method does the hinge use?

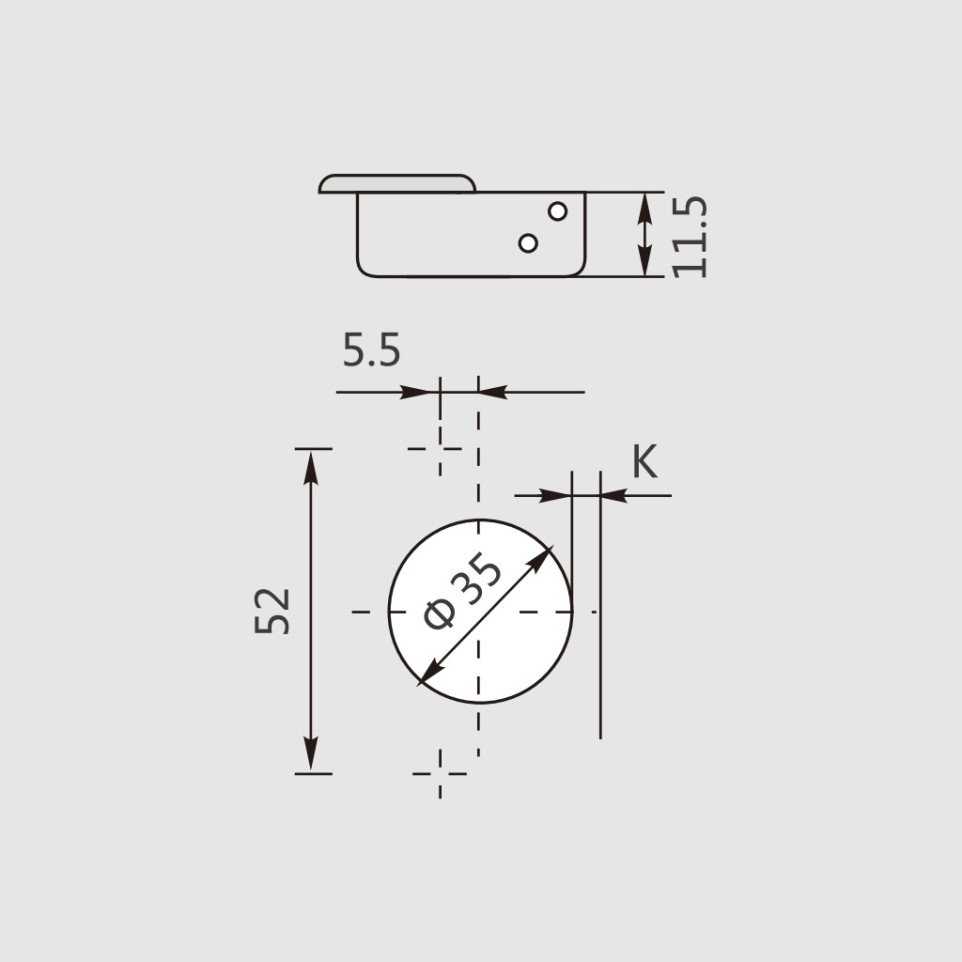

Mounting is screw-on, requiring the designated drilling pattern for secure attachment.
Can this hinge be used for corner doors?
Yes, it is specifically designed for 45° corner overlay door applications.
