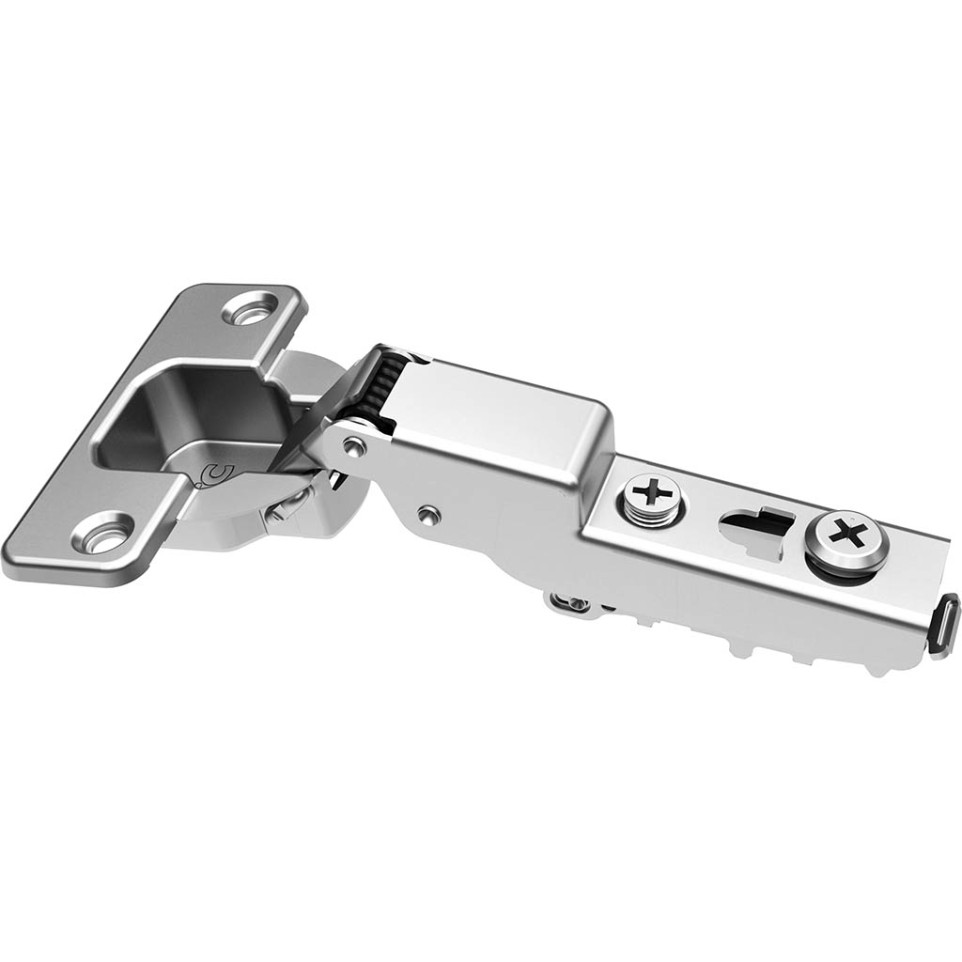

The DTC Stylish 110° nickel-plated screw-on hinge is engineered for semi-overlay doors, providing secure automatic closing without integrated soft-closing. Suitable for furniture and cabinetry where reliable self-closing action and precise installation are essential.
Specifications
- Constructed from nickel-plated steel for corrosion resistance and a modern look
- Opening angle: 110°, offering wide access

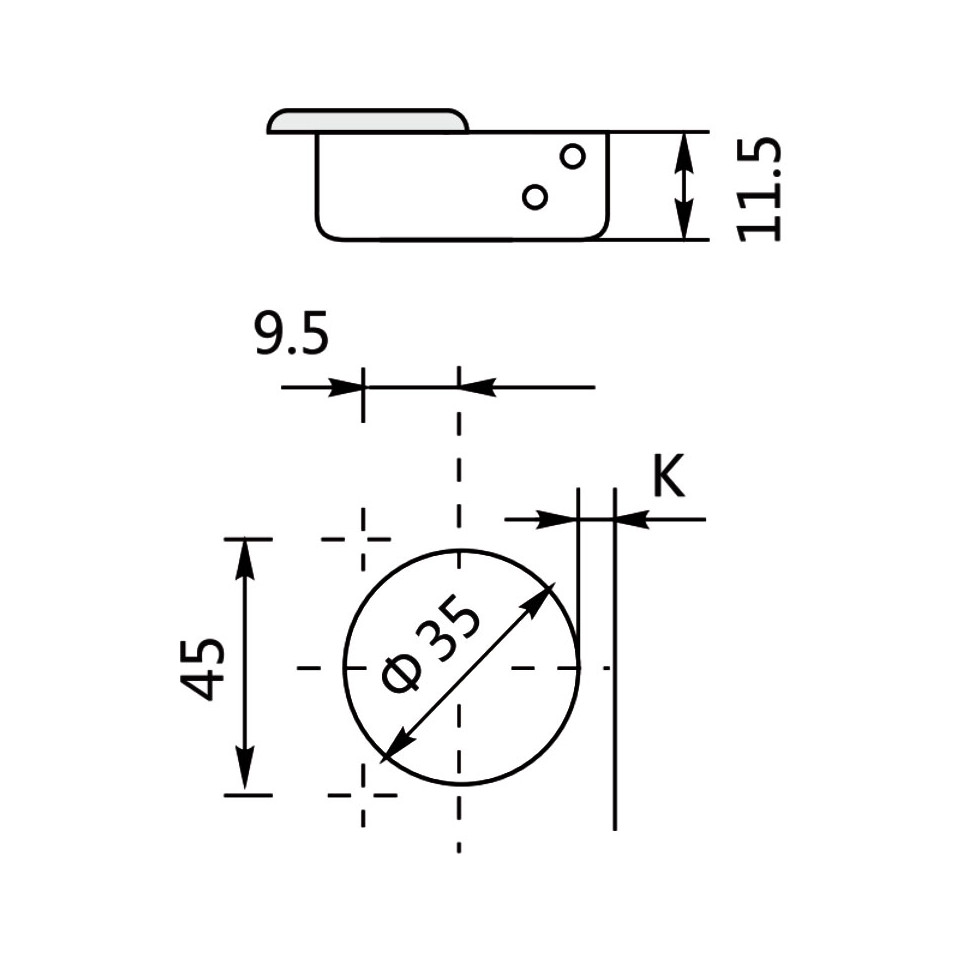

- Hinge cup depth: 11.5 mm; cup diameter: 35 mm
- Designed for semi-overlay mounting with screw-fix installation
- Compatible with door thicknesses from 16 to 26 mm

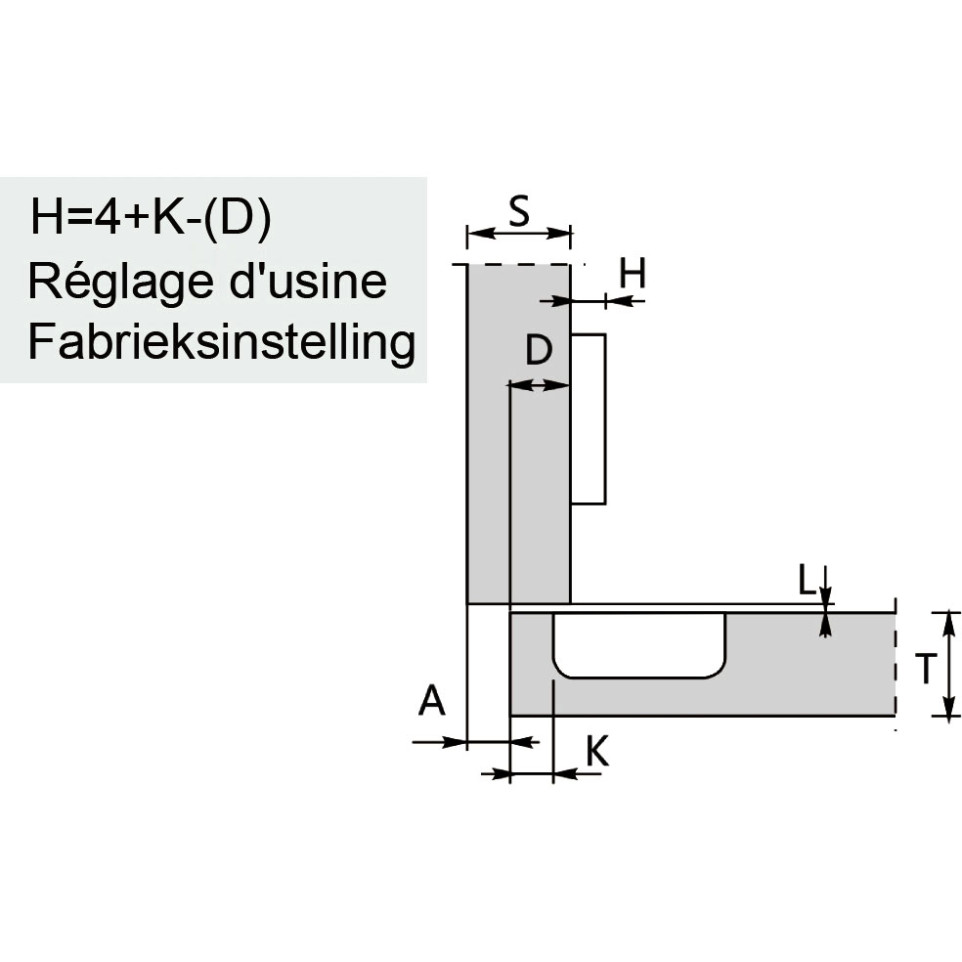

- Door drilling distances (K): adjustable from 3 to 6 mm
- Mounting pattern: 45 x 9.5 mm
Usage
Install by screwing the hinge cup into a 35 mm hole on the cabinet door and attaching the hinge arm to the frame. The hinge delivers an automatic closing function: as the door approaches the closed position, an internal spring completes the closure. Best used for kitchen, bathroom, or utility room cabinetry requiring dependable self-closing with straightforward mounting.
FAQ
-
What is the opening angle of this hinge?
The hinge opens to 110°, allowing wide and convenient access to cabinet interiors. -
Does this hinge include soft-close functionality?
No, this model features automatic closing without soft-close damping. -
What door thicknesses are compatible with this hinge?
The hinge is suitable for doors with a thickness between 16 mm and 26 mm. -
What is the required cup hole size for installation?
The cup requires a 35 mm diameter hole, 11.5 mm deep. -
Is the mounting hardware included, and how is it installed?
The hinge is screw-mounted; installation requires pre-drilling according to the 45 x 9.5 mm pattern and attaching with screws.
