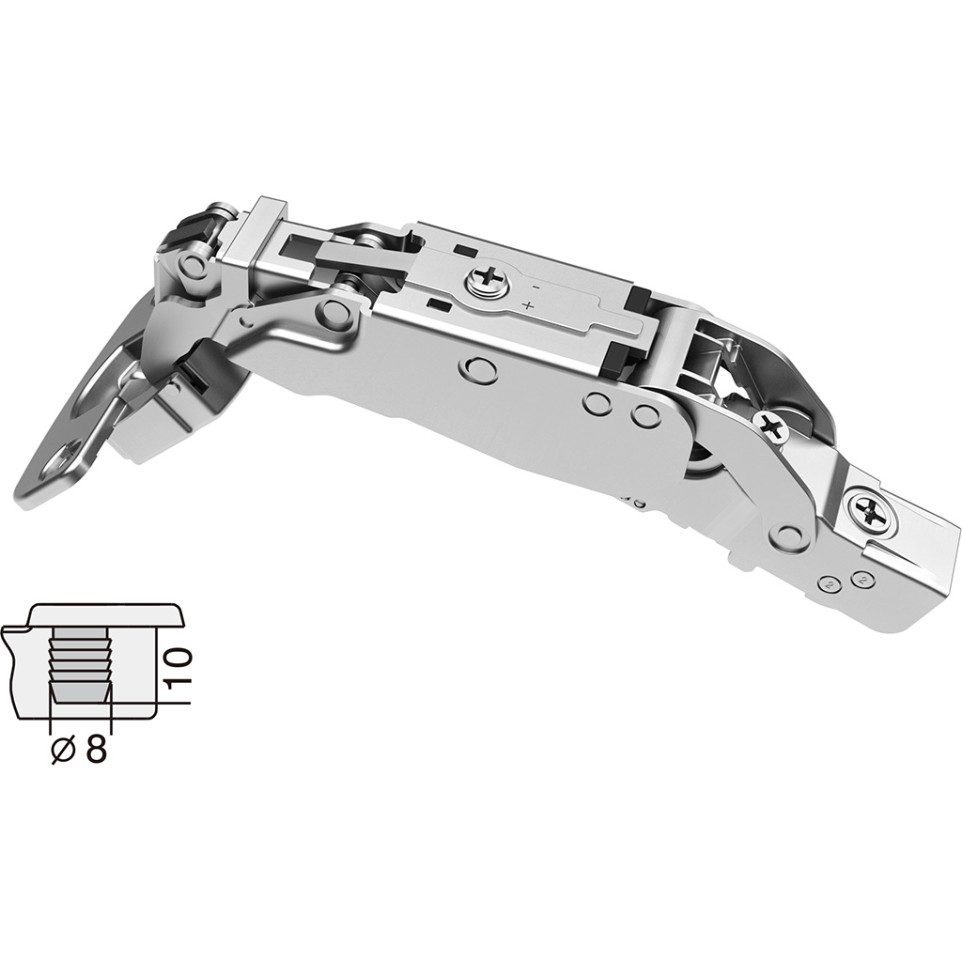

Pivot-Star 160° nickel-plated stud hinge with integrated soft-close and automatic closing, designed for overlay cabinets and doors. Suitable for residential and commercial furniture applications requiring reliable, quiet, and smooth door movement.
Install the hinge in the door with the knock-in fitting and overlay mount to frame or cabinet. The integrated damper cushions the closing motion, while automatic closing secures the door at every use. Suitable for kitchen, wardrobe, or general furniture doors.
What is the maximum opening angle of this hinge?
The hinge opens up to 160°, allowing wide access to the cabinet or furniture.
Does the hinge feature soft-close and automatic closing?
Yes, it has an integrated damper for soft closing and an automatic closing mechanism.
What door thicknesses are compatible with this hinge?
It fits doors with thickness ranging from 18mm to 28mm.
How is the hinge installed?

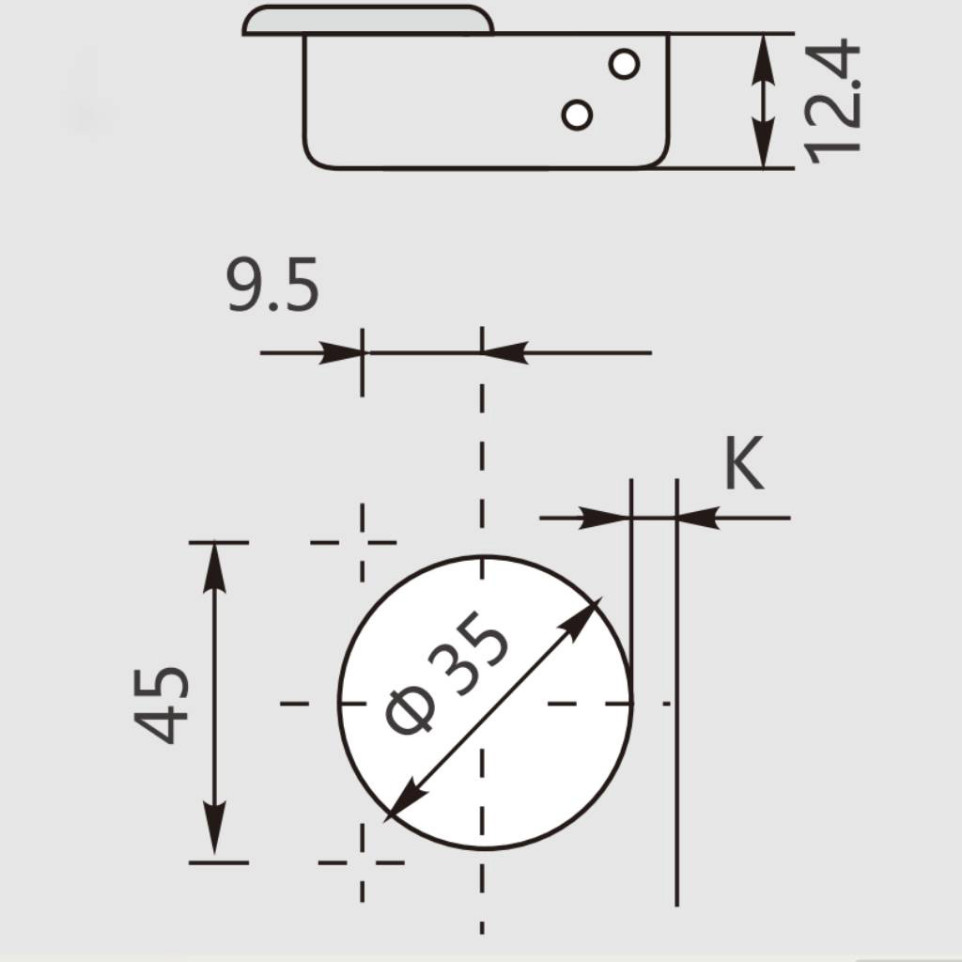

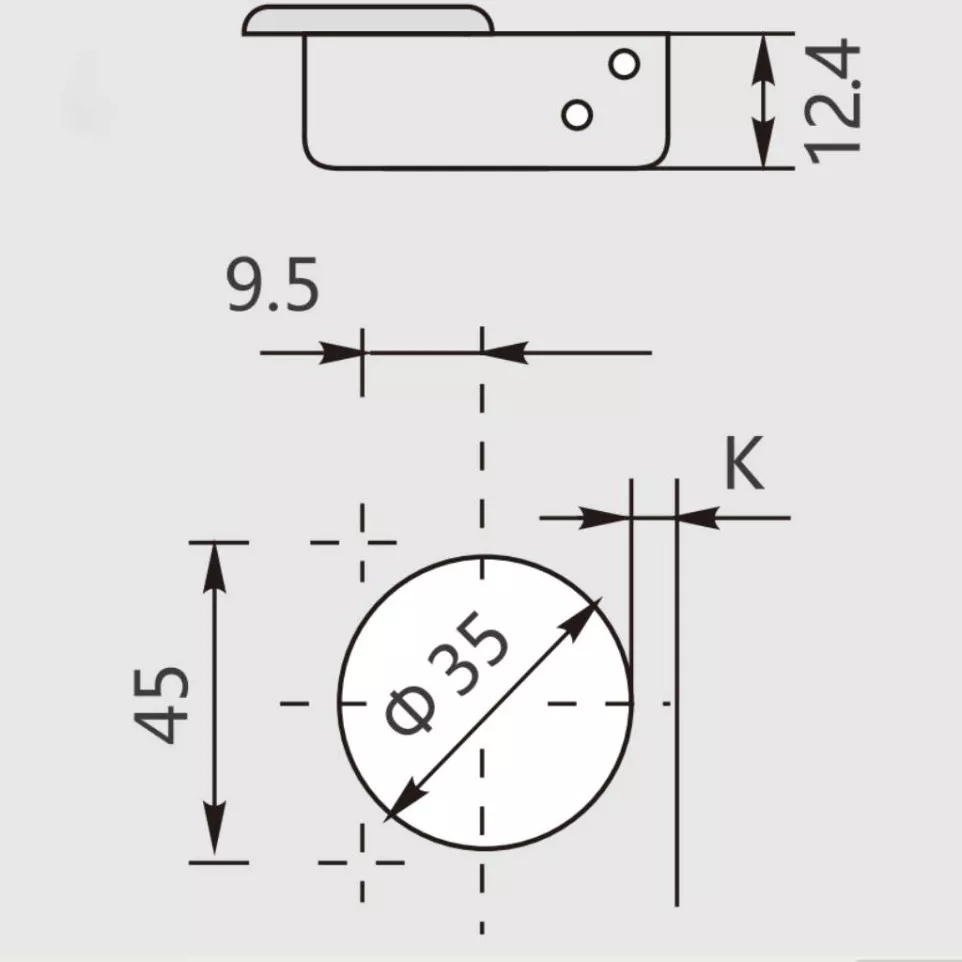

It is installed with a knock-in method and uses a drilling template of 45 x 9.5mm.
Is the closing speed adjustable?
Yes, the hinge includes a mechanism to adjust the door closing speed for different applications.
