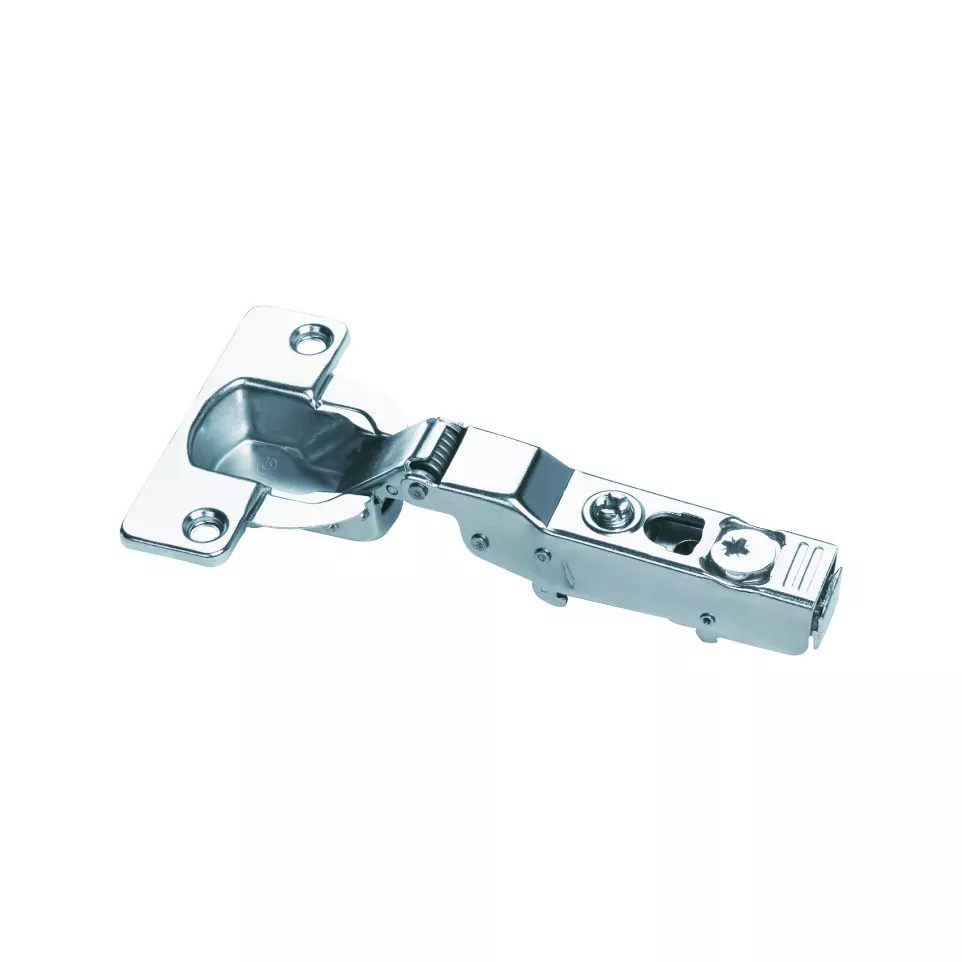

The Pivot-Pro 95° Nickel-Plated Hinge is designed for semi-overlay cabinet doors, featuring integrated soft-close damping and automatic closing. Suitable for doors 20–40mm thick, it enables smooth, controlled opening and closing for residential or commercial cabinetry.

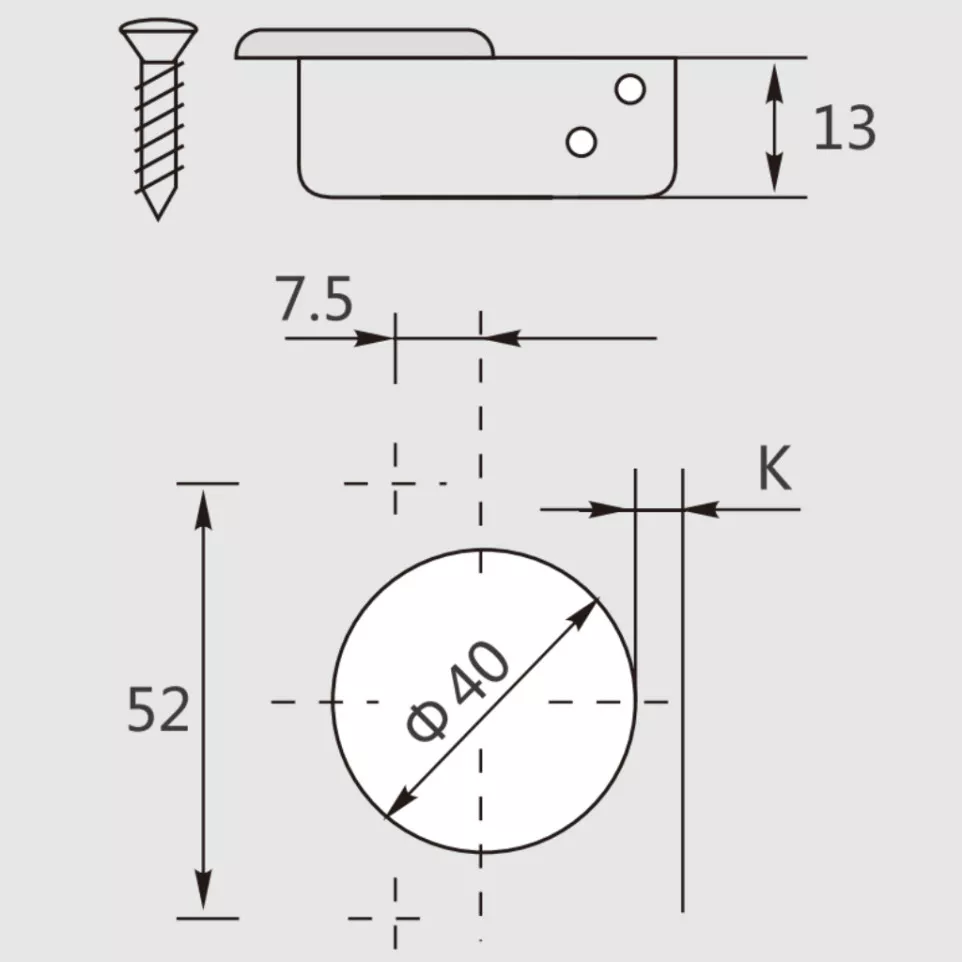

Install the hinge onto semi-overlay doors using screws, aligning the 52 x 5.5 mm drilling pattern and the 40 mm diameter cup. The built-in damper ensures quiet closing, while the automatic closure keeps doors securely shut. Recommended for kitchen, bathroom, or office cabinets.
What door thickness is supported?
Compatible with doors from 20 mm to 40 mm thick.
Does it include soft-close and automatic closing?
Yes, both soft-close damping and automatic closure are integrated.
What is the maximum opening angle?
The hinge opens to a maximum of 95°, providing wide access.
Is installation hardware included?
The hinge is designed for screw-on installation; check product packaging for hardware inclusion.
Can this hinge be used for full overlay doors?
It is specifically engineered for semi-overlay doors; consult specifications before use on other door types.
