Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

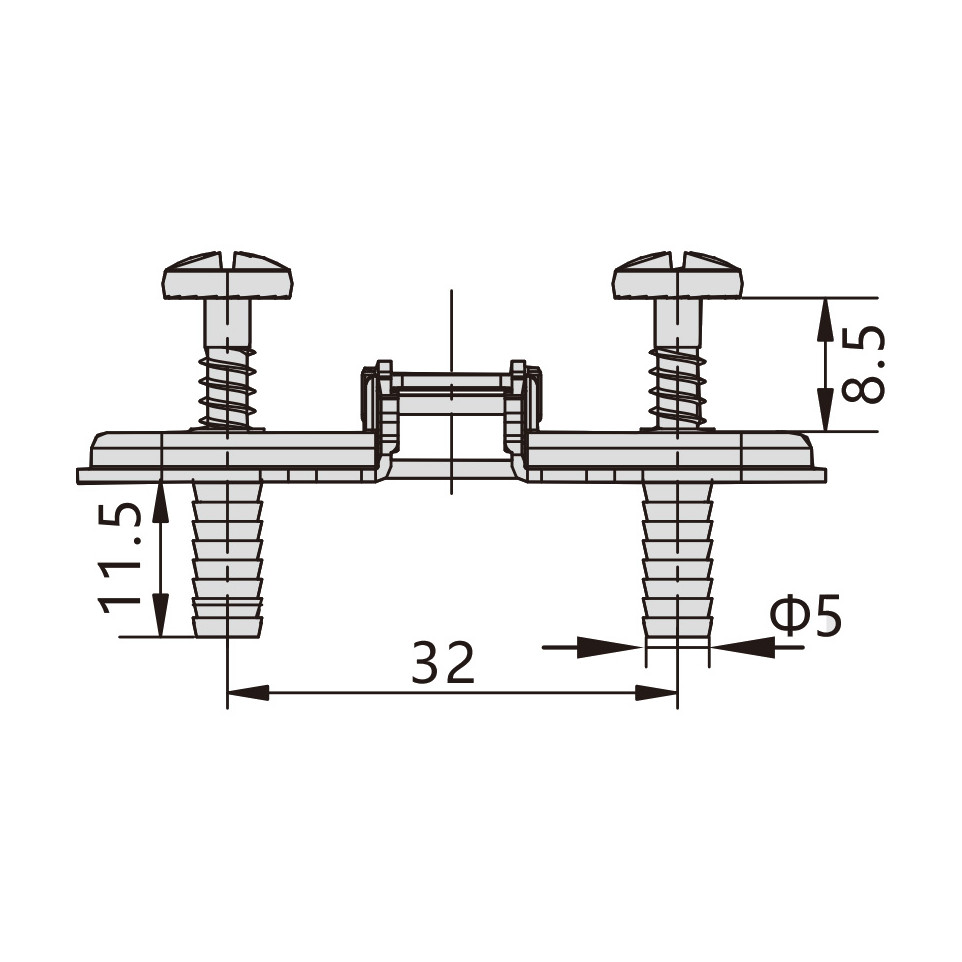

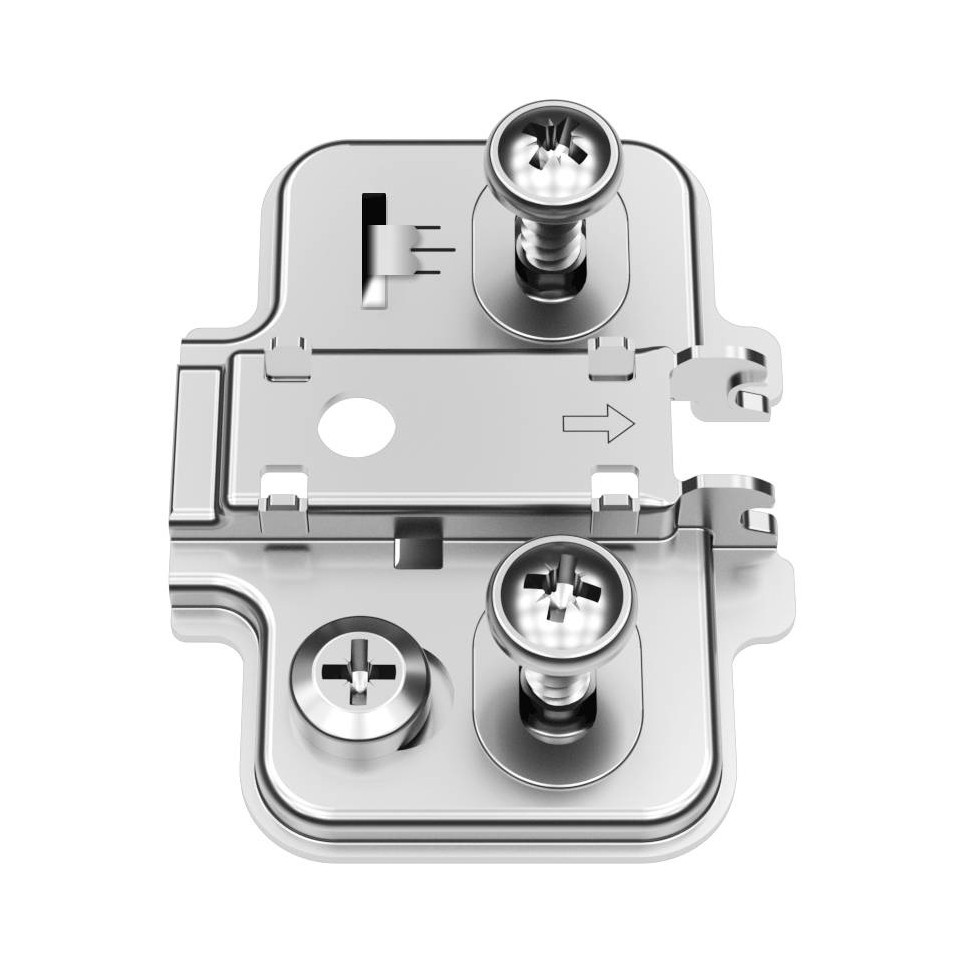

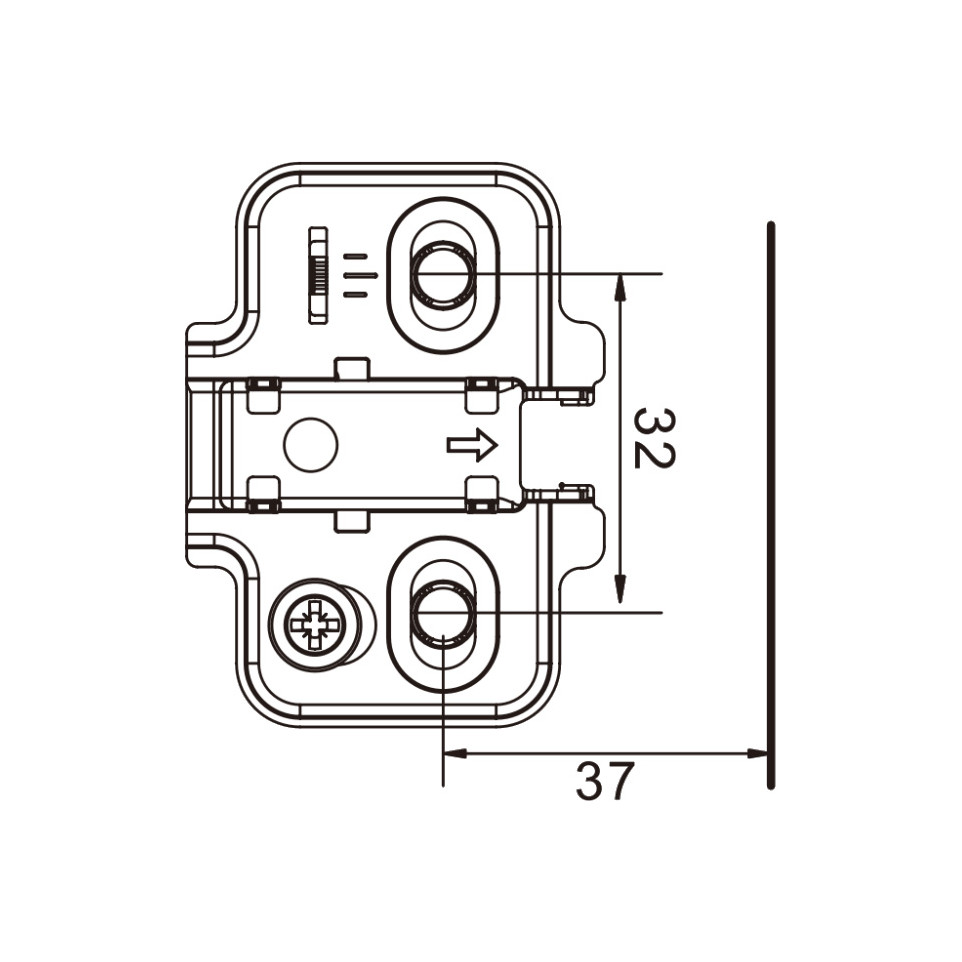

Stylish cruciform mounting plate in nickel finish, supplied with special screws and expanding sleeves for 5 x 12mm drill holes. Designed for stud hinges and accessories, featuring direct height adjustment and 2mm installation offset per piece.
Specifications
- Nickel-plated steel construction for enhanced corrosion resistance and professional appearance
- Integrated direct height adjustment for quick and precise alignment
- Designed for Ø5 x 12mm pre-drilled holes with special screws and expansion sleeves
- 2mm mounting distance for optimal hinge positioning
- Suitable for use with various stud hinge applications and accessories
Usage
Install the cruciform mounting plate into cabinet panels using the provided special screws and expansion sleeves; once secured, adjust the height directly to achieve perfect hinge alignment and smooth door operation.
FAQ
-
What is the recommended drilling size for installation? Use a Ø5 x 12mm drill hole for the expanding sleeves.
-
Can the mounting plate’s height be adjusted after installation? Yes, direct height adjustment is built in for precise positioning.
-
What type of screws are included? Special screws are supplied for secure and reliable mounting with expansion sleeves.
-
Is this mounting plate compatible with all stud hinges? It is designed for use with most stud hinges and related accessories; verify dimensions for specific models.
-
What material is the plate made from? The plate is constructed from nickel-plated steel for durability and corrosion protection.
