Product

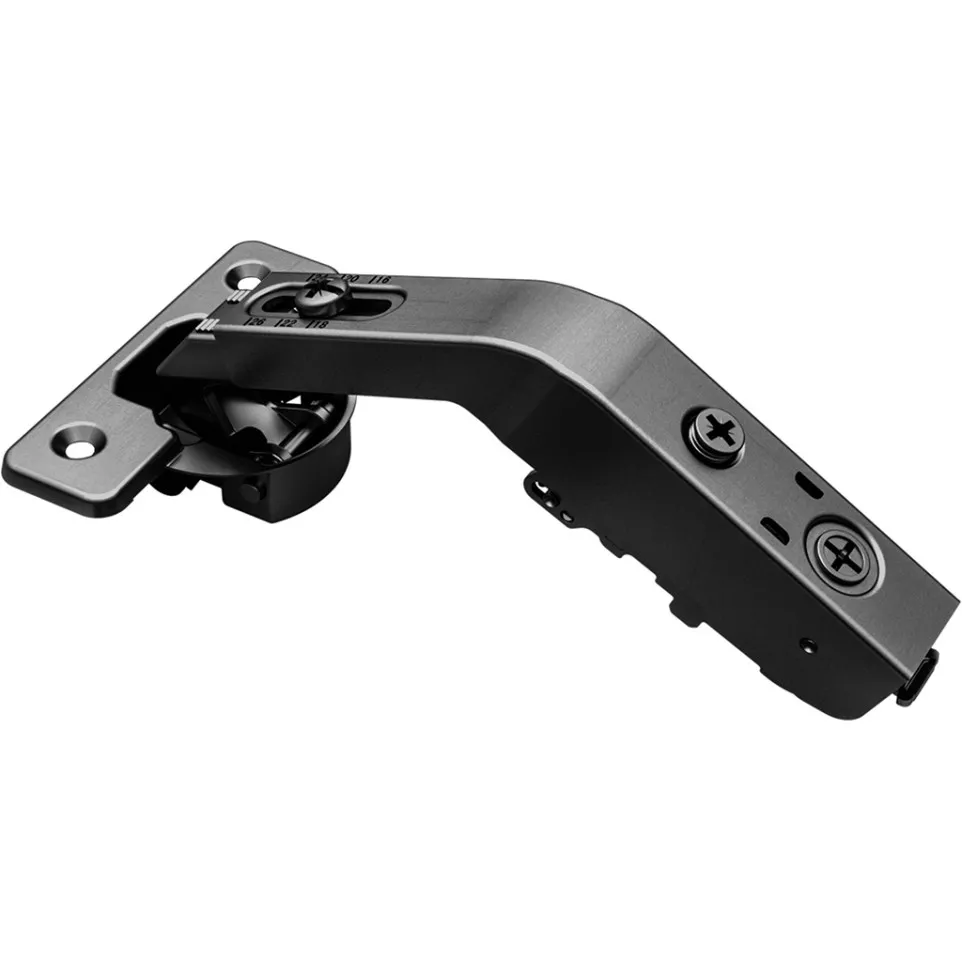

The Pivot-Star 55° Black Titanium Screw-On Corner Cabinet Bi-Fold Hinge is designed for folding doors in corner cabinets. It offers automatic closing functionality without integrated soft-closing, ensuring a reliable and controlled door movement in residential or commercial cabinetry.
Specifications
- Screw-on mounting system for fast, secure installation

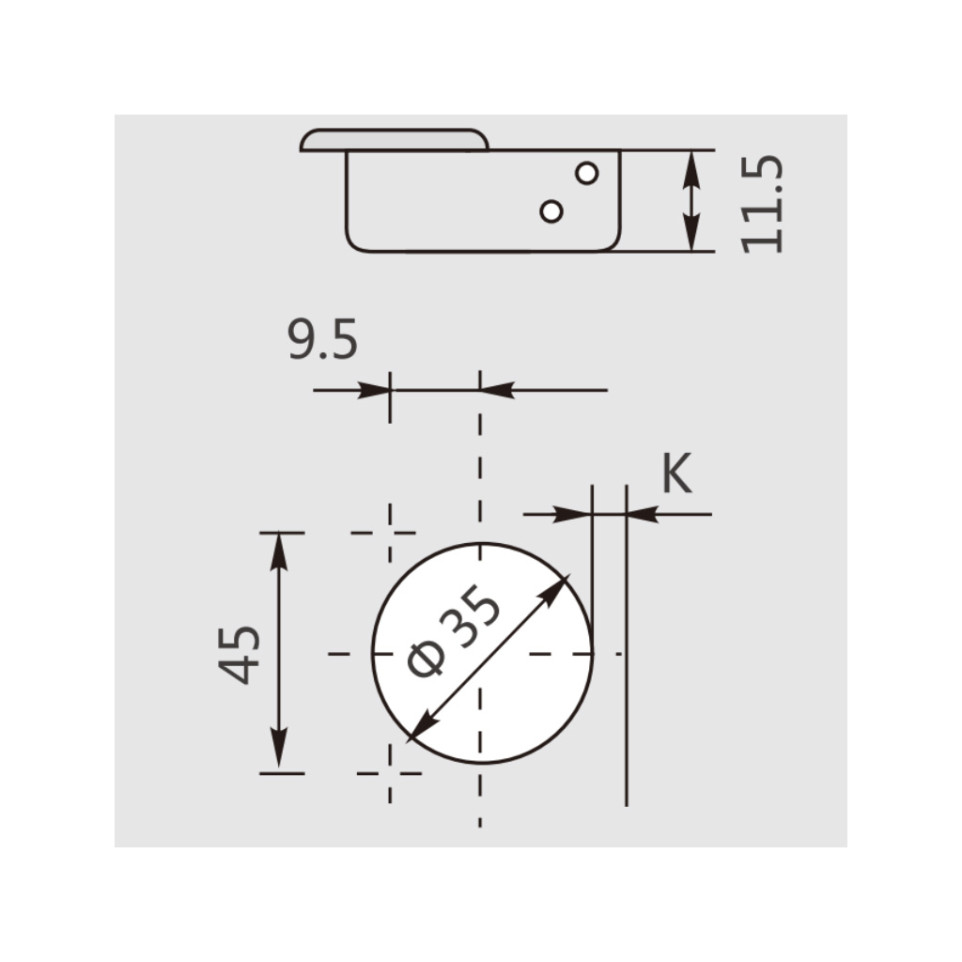

- Black titanium finish, 35 mm hinge cup diameter, 11.5 mm cup depth
- 55° door opening angle, overlay hinge type with 45 x 9.5 mm drilling pattern

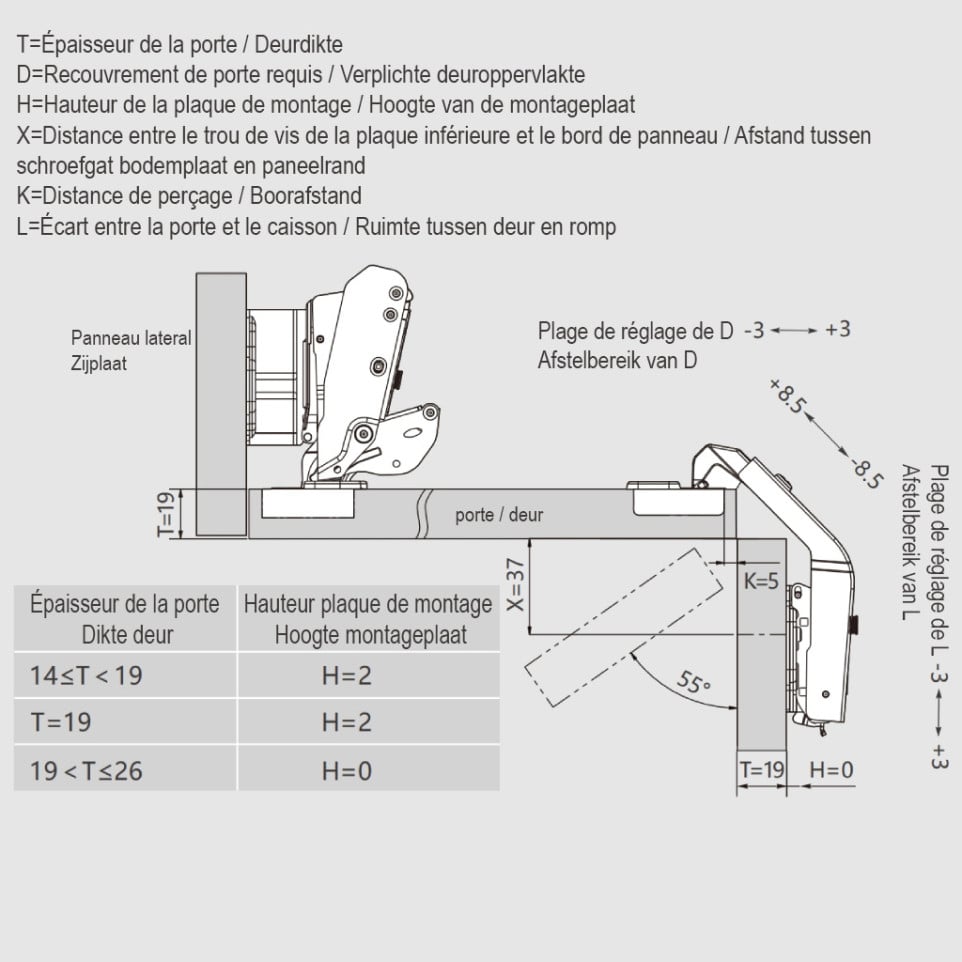

- Suitable for door thicknesses from 14–26 mm
- Drilling location on door (K): 3–7 mm
- Automatic closing, no built-in dampening mechanism
- Designed specifically for corner cabinet folding applications
Usage
Attach the hinge with screws to the door using the specified 45 x 9.5 mm drilling pattern. It is engineered for folding door panels in corner cabinets, providing reliable closure thanks to its automatic closing feature. The hinge supports door thicknesses of 14–26 mm and does not provide integrated soft-close, making it suitable where simple and functional door operation is desired.
FAQ
-
What is the maximum door thickness supported?
The hinge accommodates door thicknesses of 14 to 26 mm. -
Does this hinge have soft-closing?
No. It features automatic closure but does not offer dampened soft-closing. -
What drilling measurement should be used?
Use a 45 x 9.5 mm drilling pattern and position holes 3–7 mm from the door edge as required. -
What is the hinge cup size?
The hinge cup diameter is 35 mm and the cup depth is 11.5 mm. -
Is this hinge suitable for overlay or inset applications?
This model is for overlay applications on folding doors in corner cabinets.
