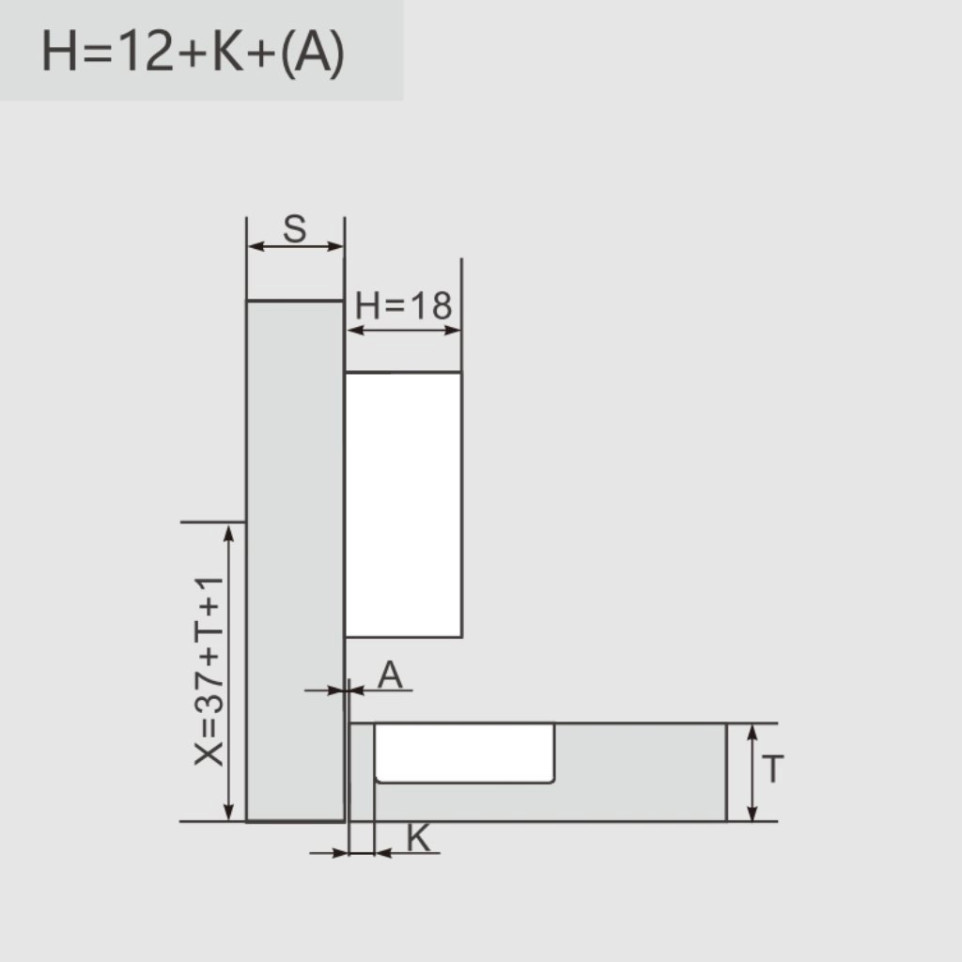

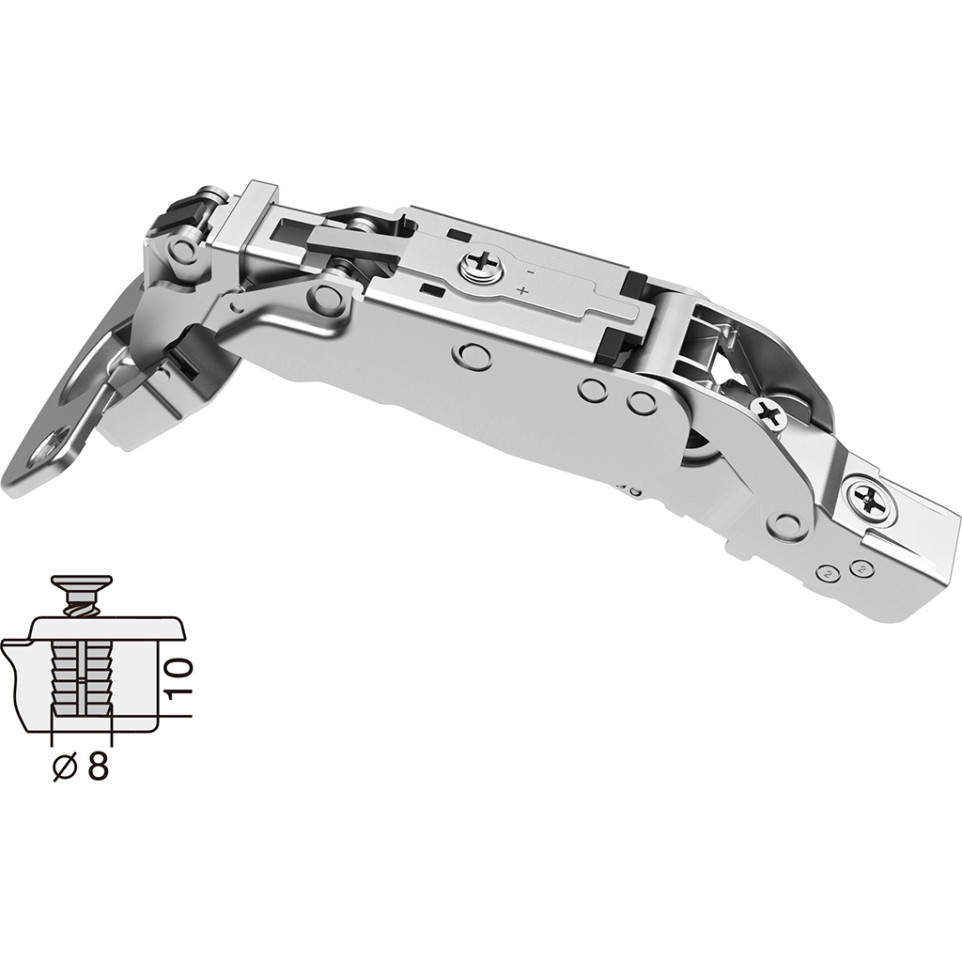

The Pivot-Star 160° nickel-plated hinge with expansion sleeves is designed for full overlay doors and offers integrated soft-closing and automatic closing, providing smooth and controlled door movement—ideal for cabinets requiring wide opening access.

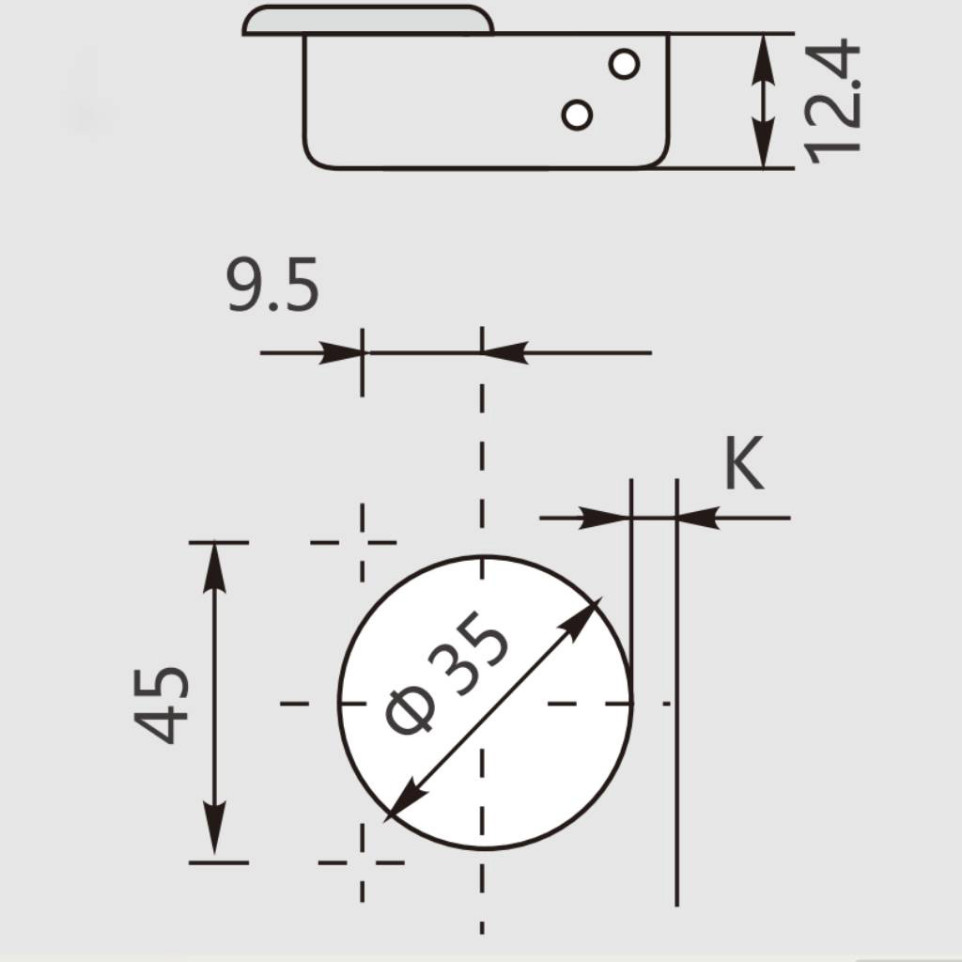

Install the hinge by knocking in the expansion sleeves (Ø8x10mm) into the drilled door cup (35 mm diameter, 12.4 mm deep) and aligning with the prescribed drill pattern (45 x 9.5 mm). Adjust the damping strength as needed to suit the door’s size for a controlled and silent close; the automatic close function ensures secure door closure every time.
What is the maximum opening angle of the Pivot-Star hinge?
The hinge allows doors to open up to 160°, maximizing cabinet access.
Is soft-closing adjustment available?
Yes, the integrated damper can be fine-tuned to control closing speed according to door size and weight.
What door thicknesses are compatible?
This hinge supports door thicknesses between 18 and 28 mm.
How do you mount this hinge?
It is installed using expansion sleeves (Ø8x10mm), with a 35 mm diameter cup and a 12.4 mm cup depth for quick and secure tool-free installation.
Is this hinge suitable for heavy-use applications?
Yes, it is designed for durability and tested above 100,000 operating cycles, making it reliable for frequent door opening and closing.
