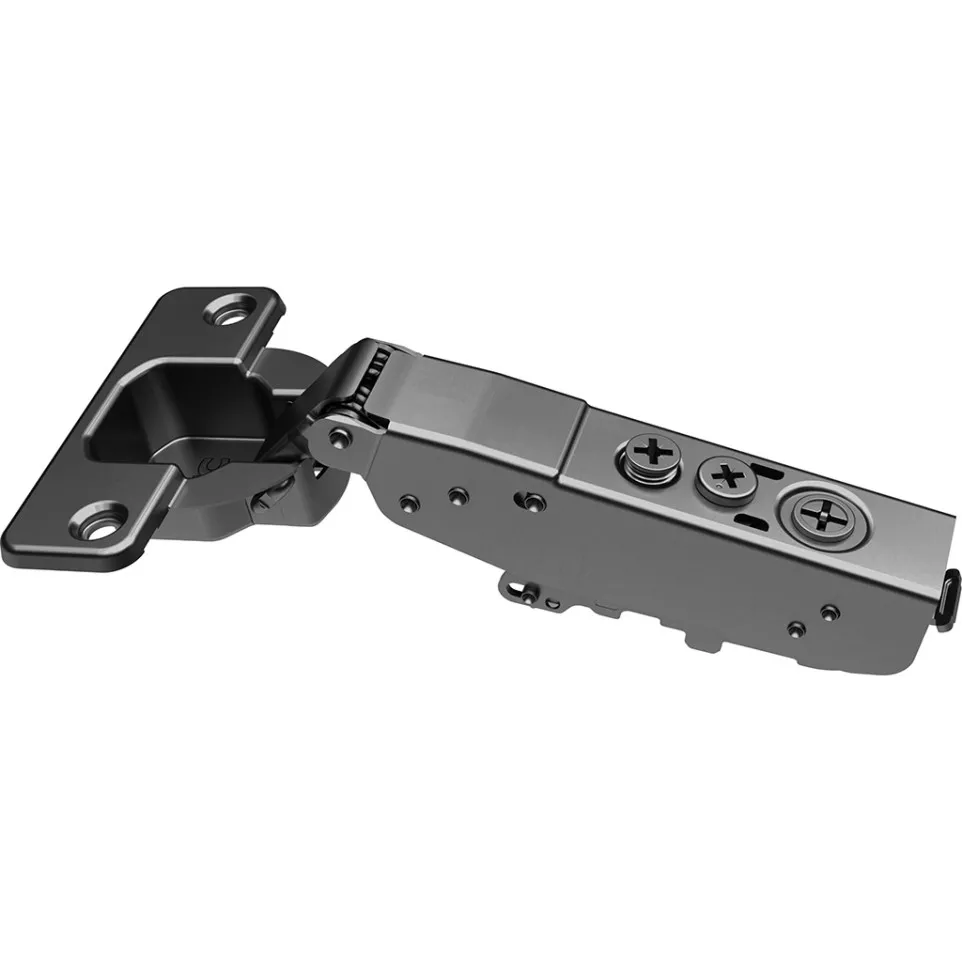

The Pivot-Star 110° black titanium screw-on hinge features integrated soft-close damping and automatic closing, designed for semi-overlay cabinet doors in residential or commercial interiors.

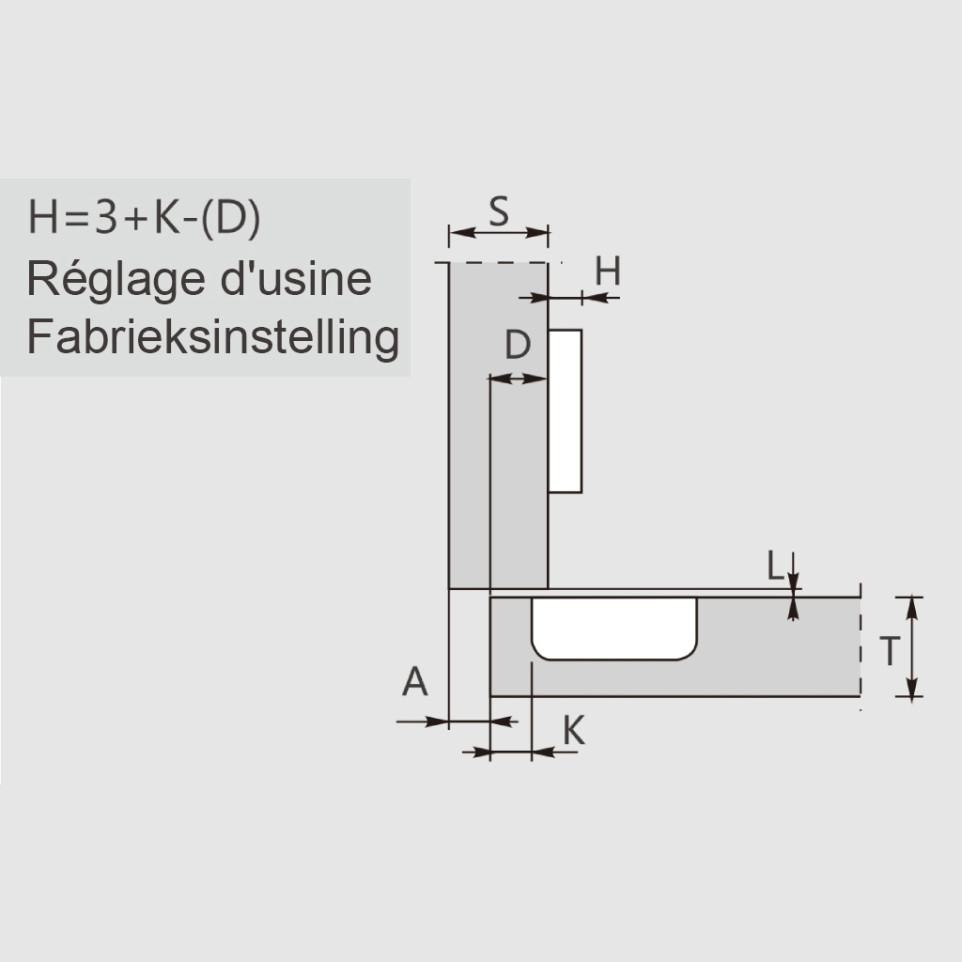

Install the hinge by attaching it to the cabinet frame and semi-overlay door using screws. Adjust the drilling position between 3–6 mm as required and benefit from quiet, controlled closing thanks to the built-in damping. The hinge automatically draws the door closed, increasing convenience and reducing slamming.
What is the maximum opening angle? – The hinge opens to 110°, suitable for most cabinet applications.
Does it have a soft-close feature? – Yes, this hinge has integrated damping for a quiet, controlled closing motion.
Which door thickness is compatible? – This hinge supports doors with thickness from 16 mm to 26 mm.

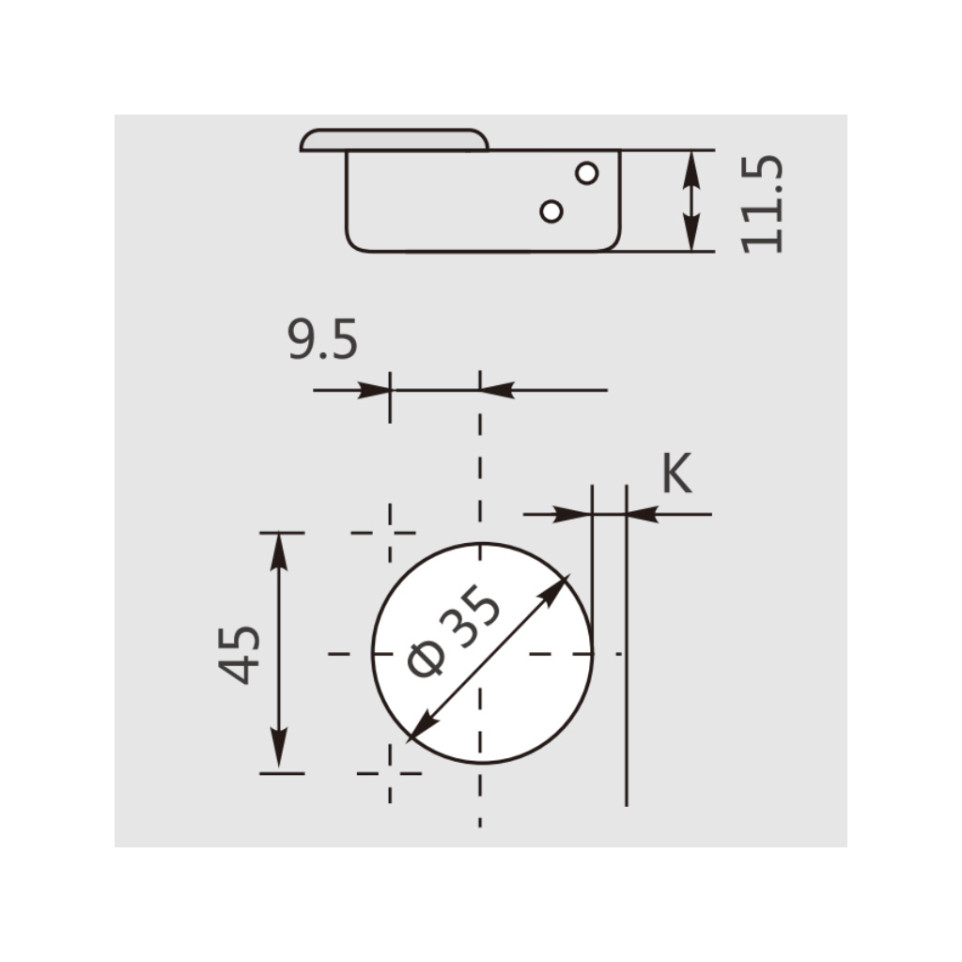

How is the hinge installed? – It is mounted with screws using a 45 x 9.5 mm drilling pattern on semi-overlay doors.
Is the soft-close speed adjustable? – The hinge design supports easy adjustments to door alignment and closing speed for different applications.
