Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

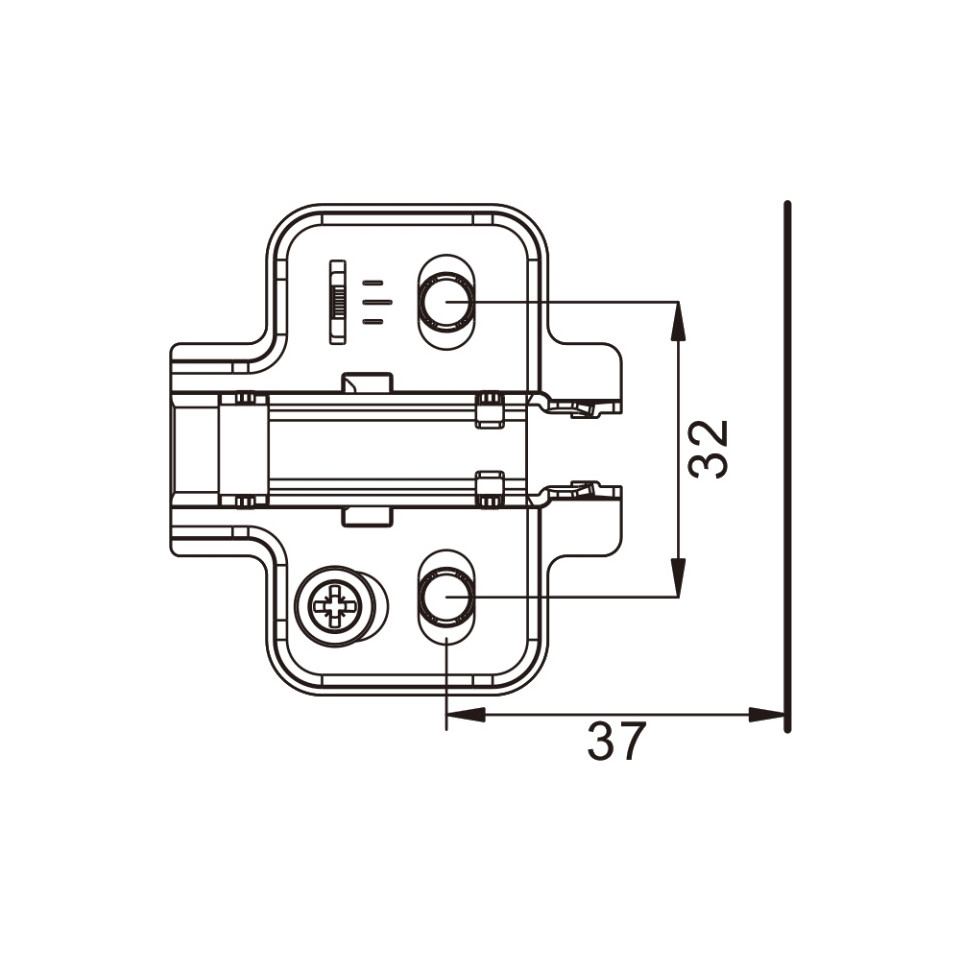

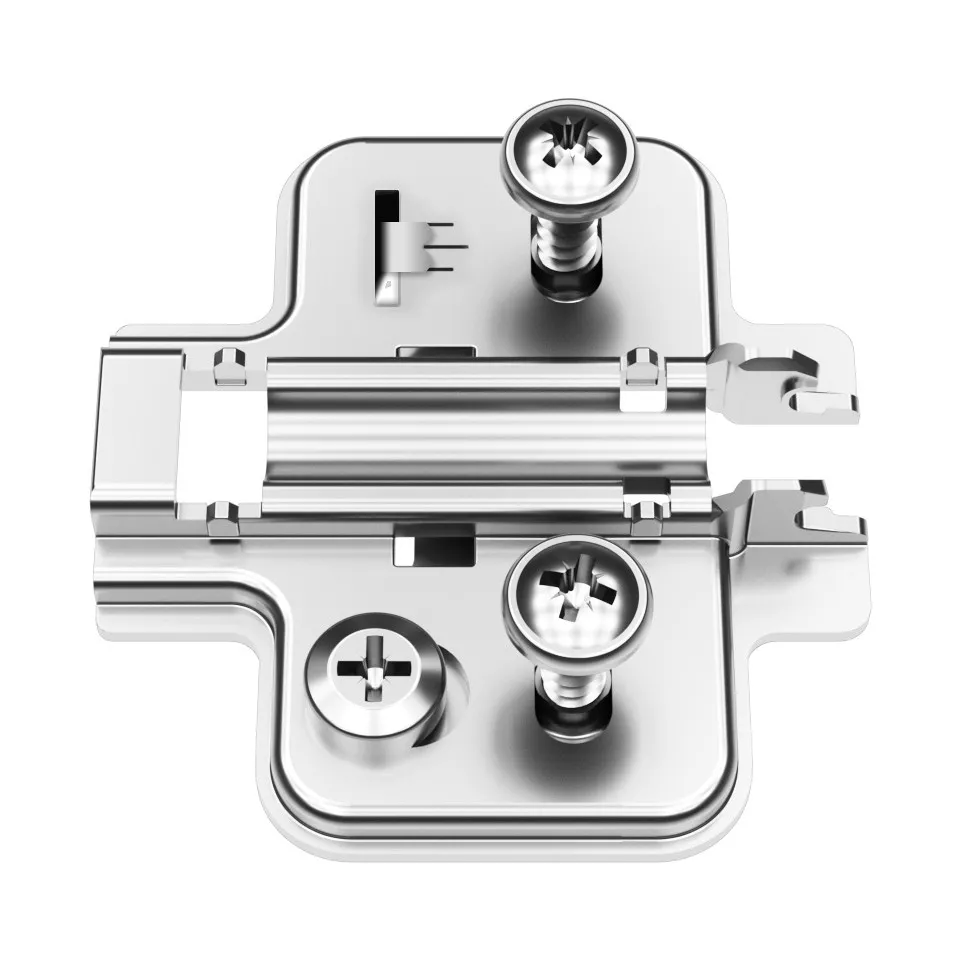

Cruciform mounting plate Pivot-Star, nickel-plated, supplied with special screws and expansion sleeves suitable for Ø5 x 12 mm drilling, provides a dependable foundation for installing stud hinges in cabinetry and furniture projects. Includes direct height adjustment and 2 mm distance per unit.
Specifications
- Nickel-plated steel construction for corrosion resistance and durability

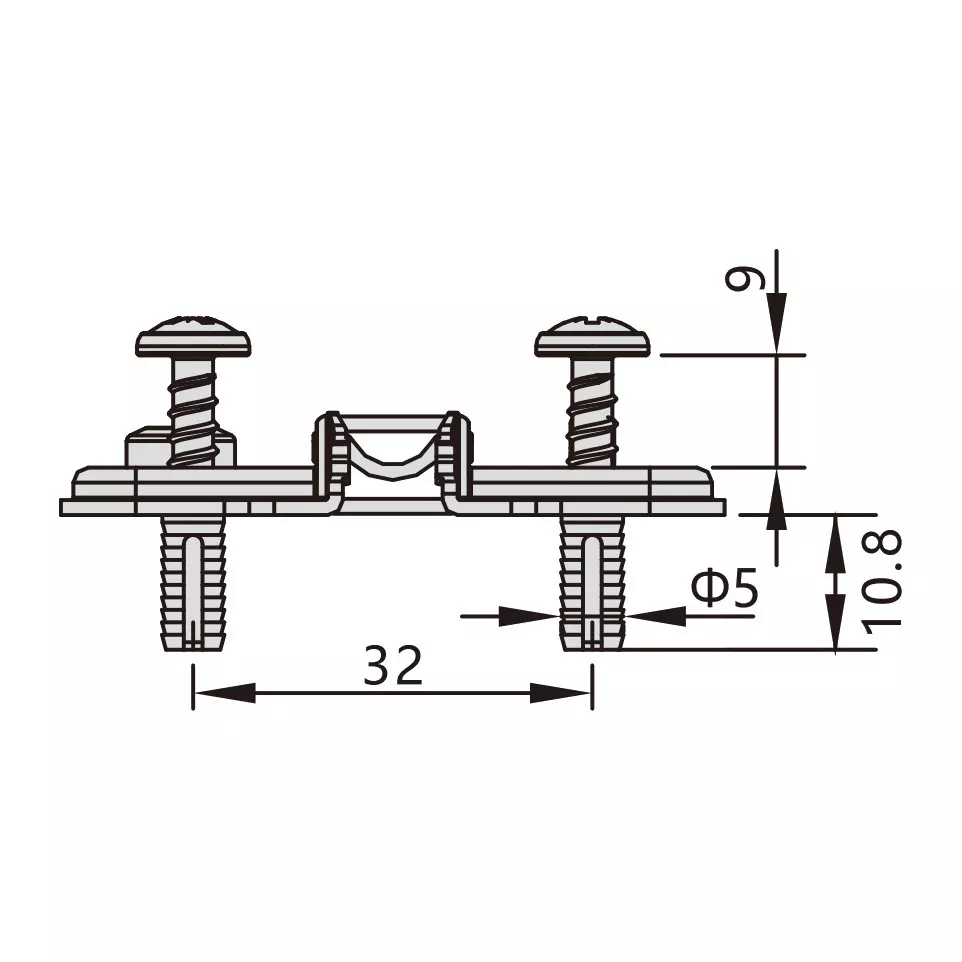

- Special screws and expansion sleeves included to ensure secure mounting in 5 mm x 12 mm boreholes
- Direct height adjustment facilitates precise door alignment with a 2 mm mounting plate height
- Compatible with Pivot-Star stud hinges and accessories
- Designed for quick and stable hinge plate installation
Usage
Install the cruciform plate into pre-drilled Ø5 x 12 mm holes using the included expansion sleeves and screws. The direct height adjustment feature allows precise door leveling. Commonly used in cabinetry work where reliable hinge mounting and easy adjustment are required.
FAQ
-
What type of hinges does this mounting plate support?
This plate is designed for use with Pivot-Star stud hinges and other compatible accessories. -
What is the required drilling size for installation?
Drilling holes Ø5 mm x 12 mm are needed to use the included expansion sleeves. -
How do I adjust the door height after installation?
The plate provides direct height adjustment to fine-tune the door position by 2 mm. -
Is the mounting hardware included?
Yes, special screws and expansion sleeves are included for fast, secure assembly. -
What finish does the plate have?
The product is nickel-plated for improved corrosion resistance and a professional appearance.
