Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product
The DTC Stylish 110° nickel-plated hinge with integrated soft-close and automatic closing is designed for cabinet doors. It features quick mounting with expansion dowels (Ø8x10mm), making it suitable for both new installations and replacements in kitchen or furniture projects.
Specifications
- Nickel-plated finish with robust 35 mm diameter and 11.5 mm depth cup
- 110° opening angle for wide accessibility
- Integrated soft-close mechanism and automatic closing
- Inset mounting type; drilling template 45 x 9.5 mm
- Compatible with door thicknesses from 16 to 26 mm

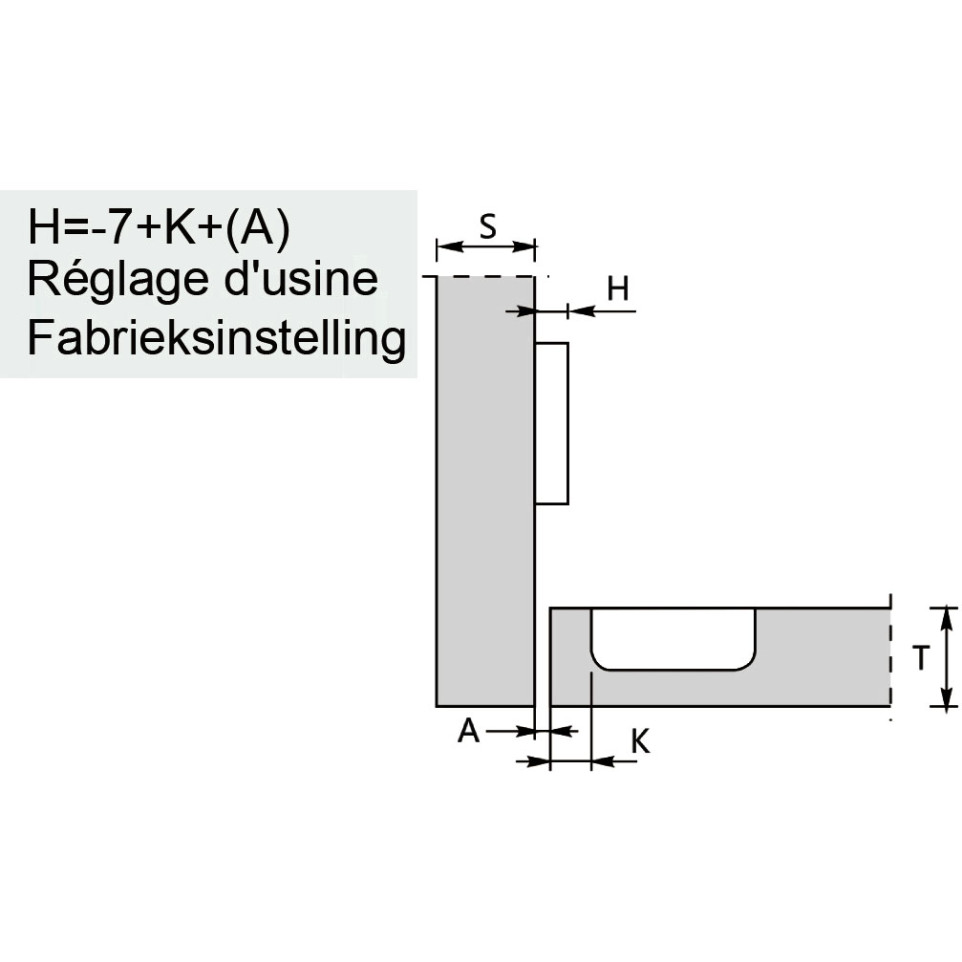

- Drilling distances on the door (K): 3–6 mm
- Quick installation with expansion sleeves
Usage
Drill holes according to the provided template, insert the expansion dowels, and securely mount the hinge to the cabinet door. The integrated damping ensures a quiet, controlled close, while the automatic closing mechanism reliably draws the door shut for everyday use in kitchens, bathrooms, or storage furniture.
FAQ
-
What is the opening angle of this hinge?
The hinge opens to 110°, allowing wide access to cabinet interiors. -
Is soft-close functionality included?
Yes, it features integrated soft-close for smooth and quiet door closure. -
For what door thicknesses is this hinge suitable?
It is compatible with door thicknesses between 16 and 26 mm. -
How is the hinge installed?
Installation is done using Ø8x10mm expansion dowels; follow the 45 x 9.5 mm drilling template. -
Does it have automatic closing?
Yes, the hinge is equipped with an automatic closing feature for added convenience.
