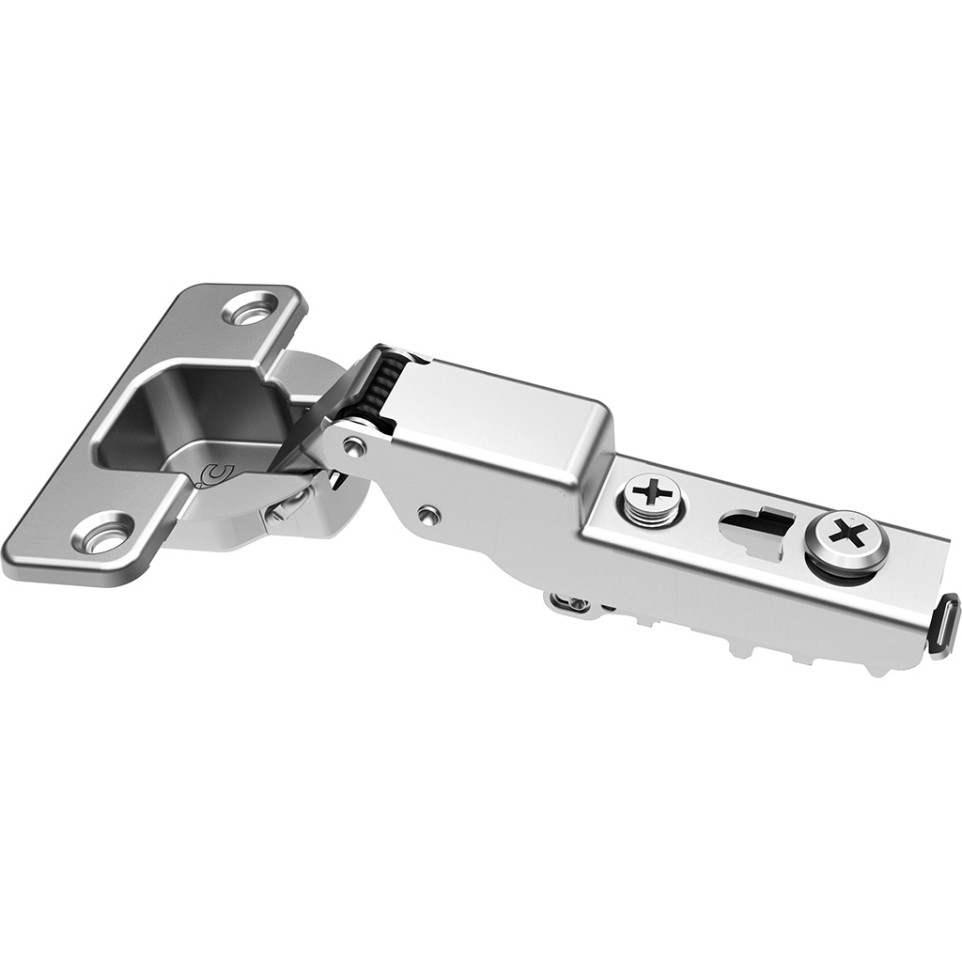

The Stylish 110° screw-on nickel plated hinge is designed for semi-overlay cabinet doors, providing reliable automatic closing without built-in damping. Ideal for doors 16–26 mm thick, this hinge ensures precise movement and secure installation.
Specifications
- 110° opening angle for wide door access
- Nickel-plated finish, engineered for resilience and modern appearance

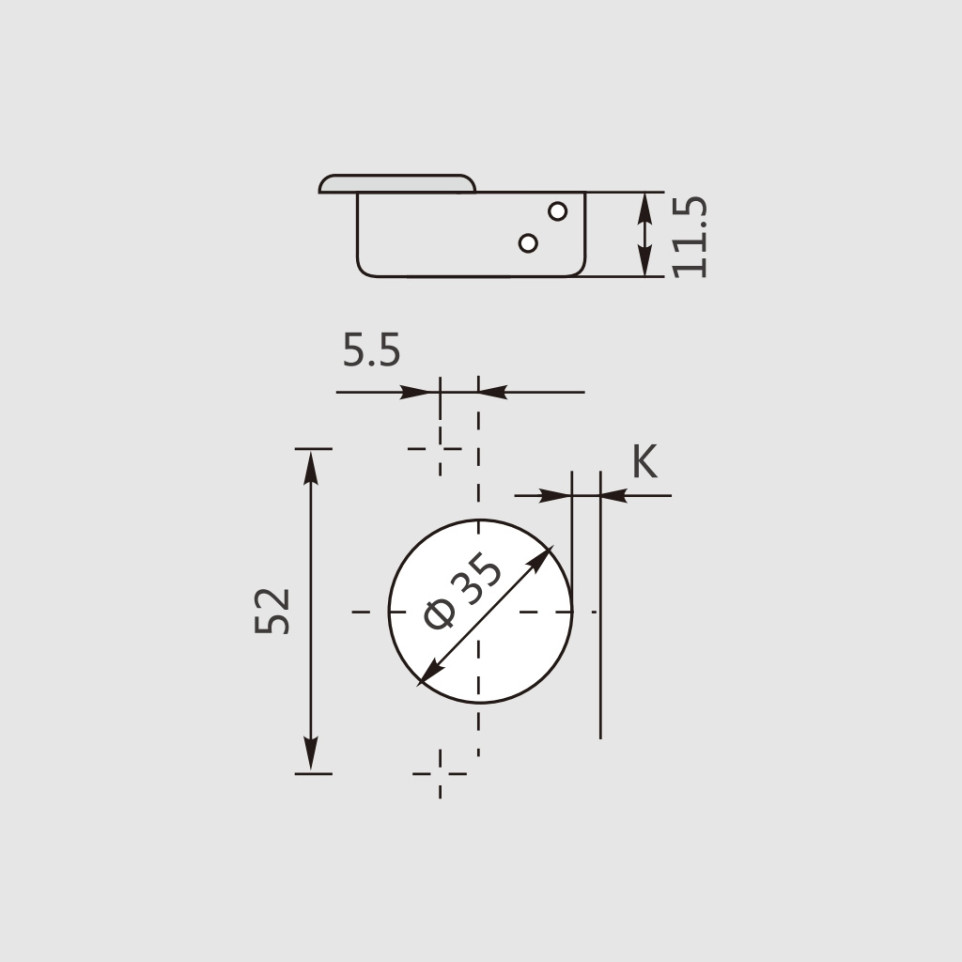

- Cup depth: 11.5 mm; cup diameter: 35 mm
- Semi-overlay fitting type with screw-mounted installation

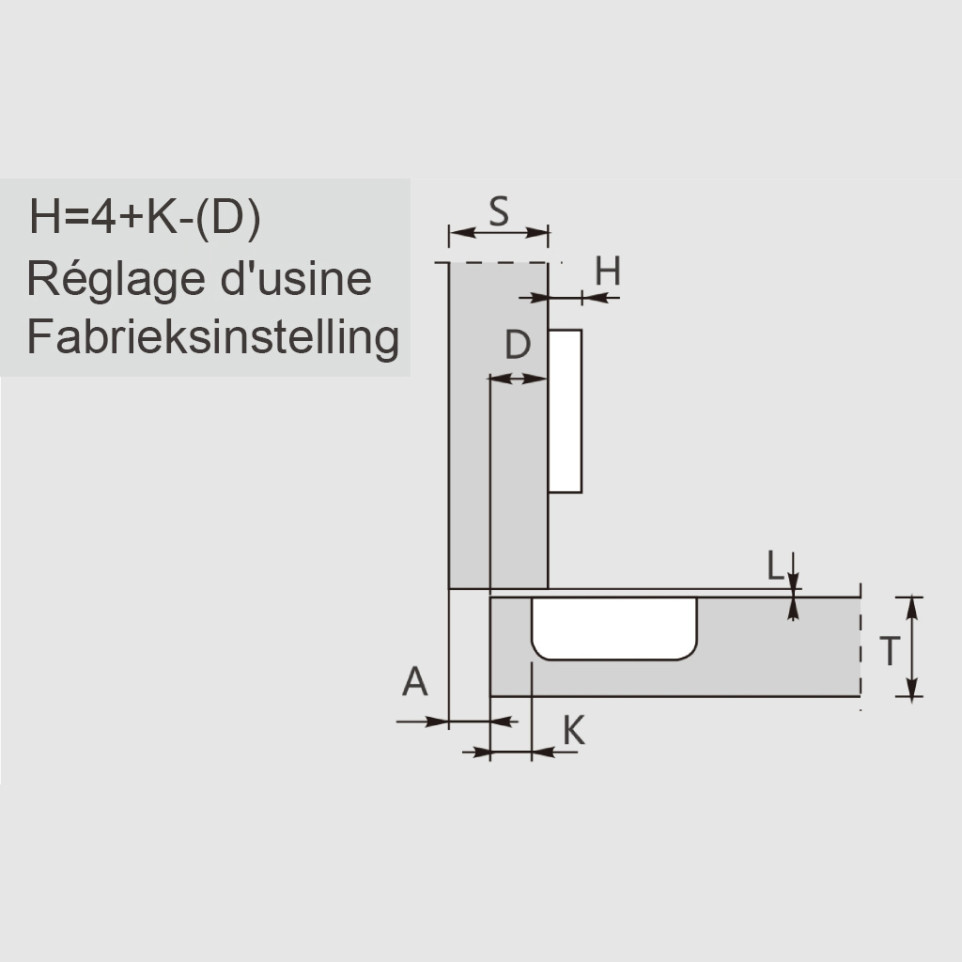

- Drilling pattern: 52 x 5.5 mm, with door drill distance (K): 3–6 mm
- Suitable for door thickness: 16–26 mm
- No integrated damping, features automatic self-closing
- Robust and dependable build for frequent use
Usage
Mount the hinge with screws onto a properly drilled cabinet door and frame, ensuring compatibility with the specified cup diameter and depth. The mechanism offers self-closing action without damping, making it suitable for semi-overlay installations in kitchens, offices, or utility cabinets.
FAQ
-
What is the maximum opening angle? The hinge opens to 110°, allowing convenient cabinet access.
-
Does the hinge feature soft-closing or damping? No, this model does not include integrated damping; it has automatic self-closing functionality.
-
What are the cup dimensions and drilling requirements? The cup is 35 mm in diameter and 11.5 mm deep. The drilling pattern is 52 x 5.5 mm with door distances (K) from 3 to 6 mm.
-
What door thicknesses are compatible with this hinge? Doors between 16 mm and 26 mm thick are supported.
-
Is installation hardware included? Screws are required for installation. Ensure all installation steps follow the specified drilling scheme and dimensions.
