Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

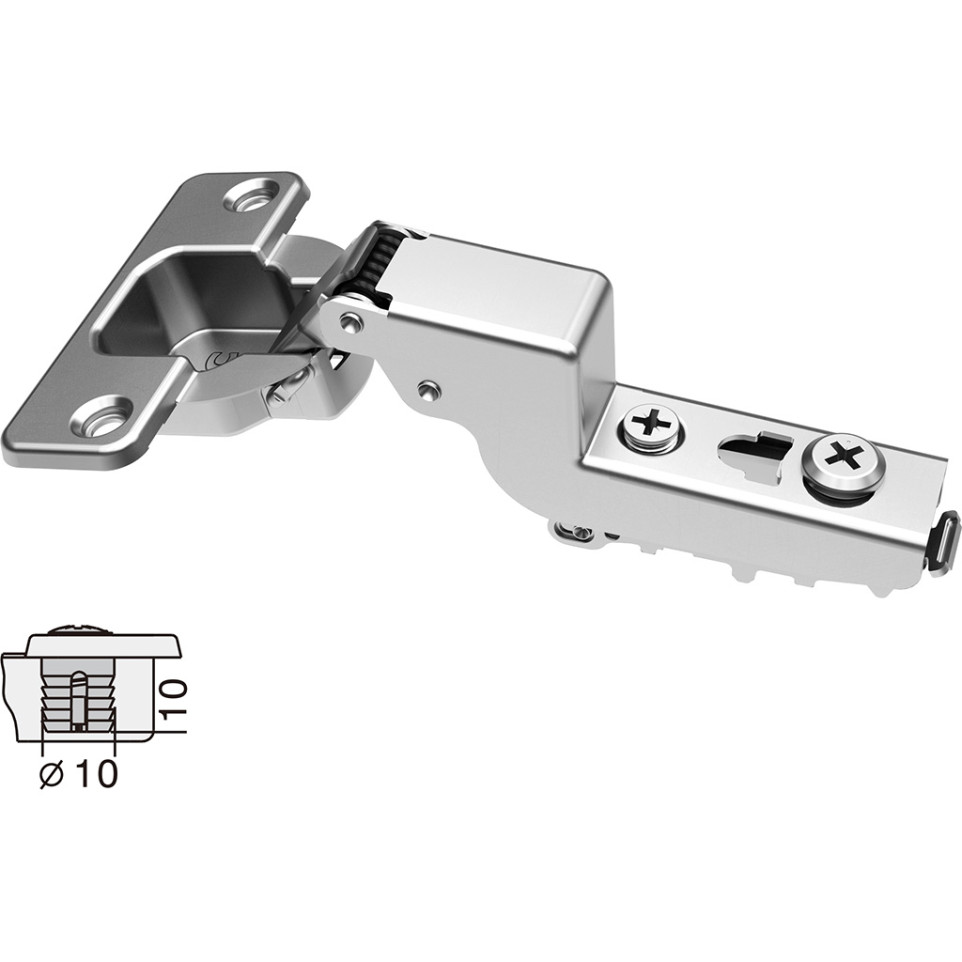

Stylish 110° nickel-plated hinge designed for fast installation and seamless operation on cabinet or furniture doors. Integrated soft-closing and automatic closing mechanisms enhance comfort and performance in kitchen, bathroom, and living spaces.
Specifications
- Nickel-plated finish for corrosion resistance and modern aesthetics
- Integrated soft-closing technology for smooth, silent door movement
- 11.5 mm cup depth and 35 mm cup diameter for secure, precise fit
- Fast 1/4-turn clip-on mounting
- Compatible with door thickness from 16 to 26 mm

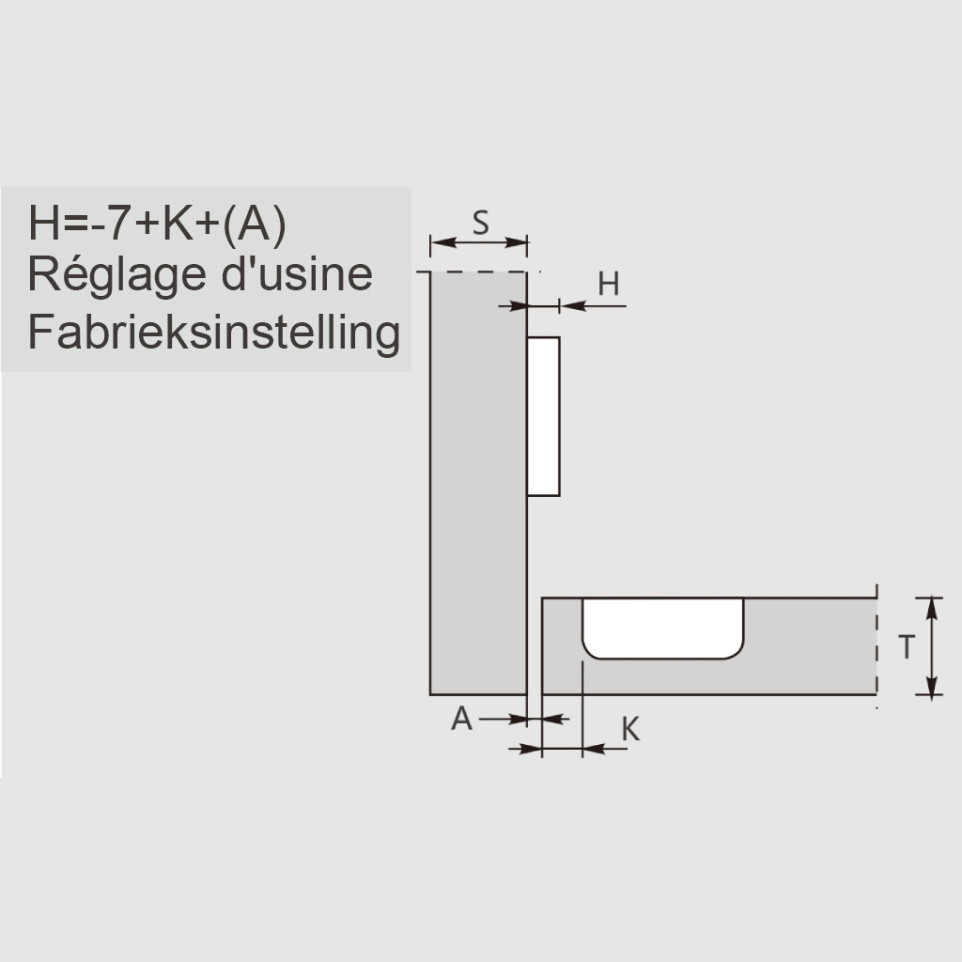

- Adjustable drilling distance on door (K): 3–6 mm
- Ferrure for inset doors
- 110° wide opening for easy access
Usage

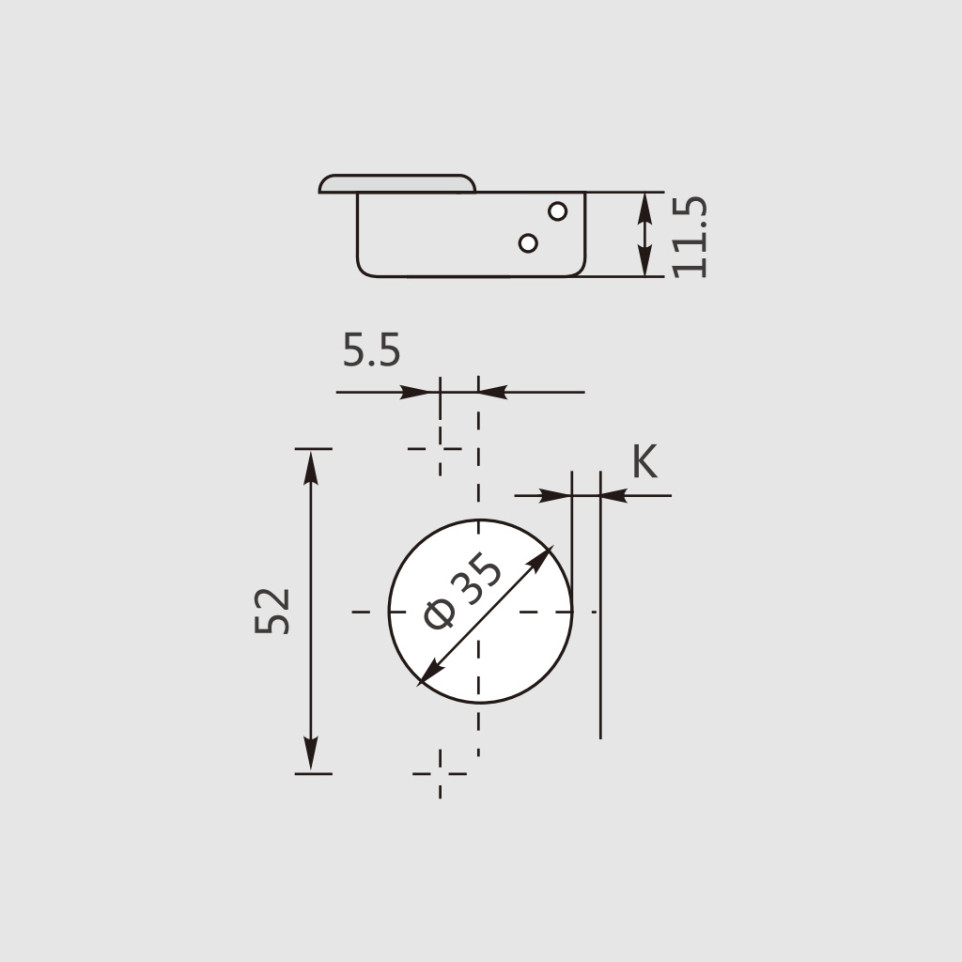

Position the hinge cup in a 35 mm borehole, using a drilling pattern of 52 x 5.5 mm. Secure with a 1/4-turn mounting system for quick installation. The hinge offers soft-close action and automatic closure, accommodating doors between 16–26 mm thick.
FAQ
-
What is the opening angle of this hinge?
- The hinge offers a 110° opening angle for enhanced accessibility.
-
Does it include a soft-close mechanism?
- Yes, it is equipped with integrated soft-closing, ensuring gentle and silent closure.
-
What door thickness is supported?
- Suitable for doors with 16–26 mm thickness.
-
How is the hinge installed?
- Features a quick 1/4-turn clip-on mounting for efficient installation.
-
What is the size of the hinge cup?
- The cup diameter is 35 mm with a depth of 11.5 mm.
