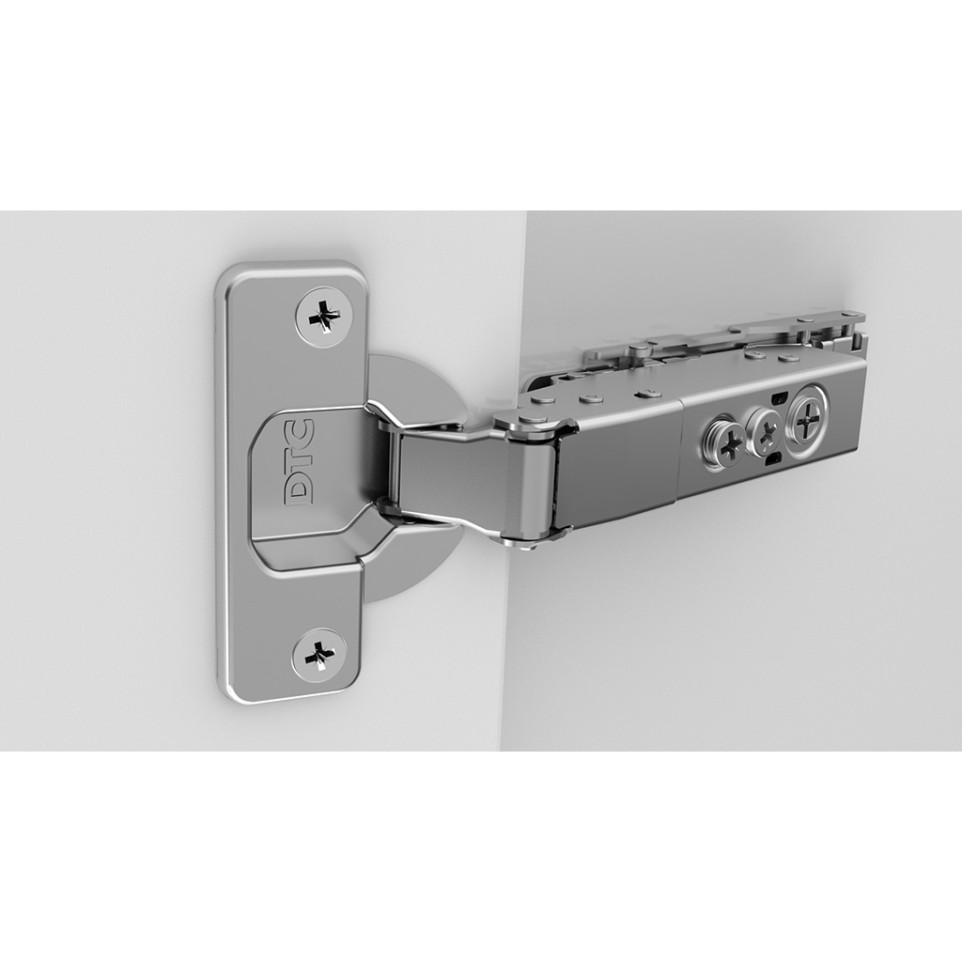

Nickel-plated Pivot-Star 110° hinge with integrated soft-close and automatic closure, designed for semi-overlay doors in cabinets and furniture projects.
This hinge is used to mount semi-overlay cabinet doors, providing silent and smooth closure through its integrated damping technology. Simply screw the hinge into place on the door and frame using the specified drilling pattern. The automatic closure mechanism ensures doors always close softly and securely.
What is the maximum door thickness supported? - 26 mm; suitable for doors ranging from 16 to 26 mm.
Does the hinge have an integrated soft-close mechanism? - Yes, it features built-in damping for quiet and gentle closing.

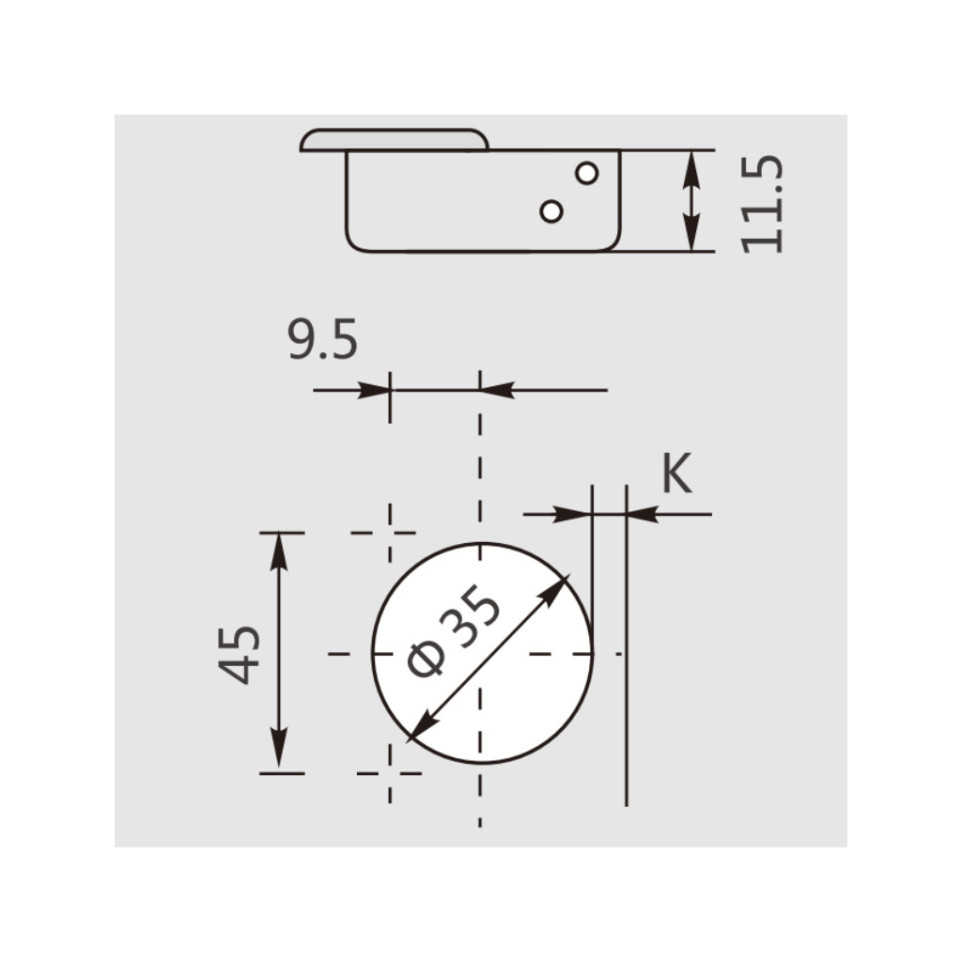

What size hole is required for installation? - The cup diameter should be 35 mm, with a cup depth of 11.5 mm and a drilling pattern of 45 x 9.5 mm.

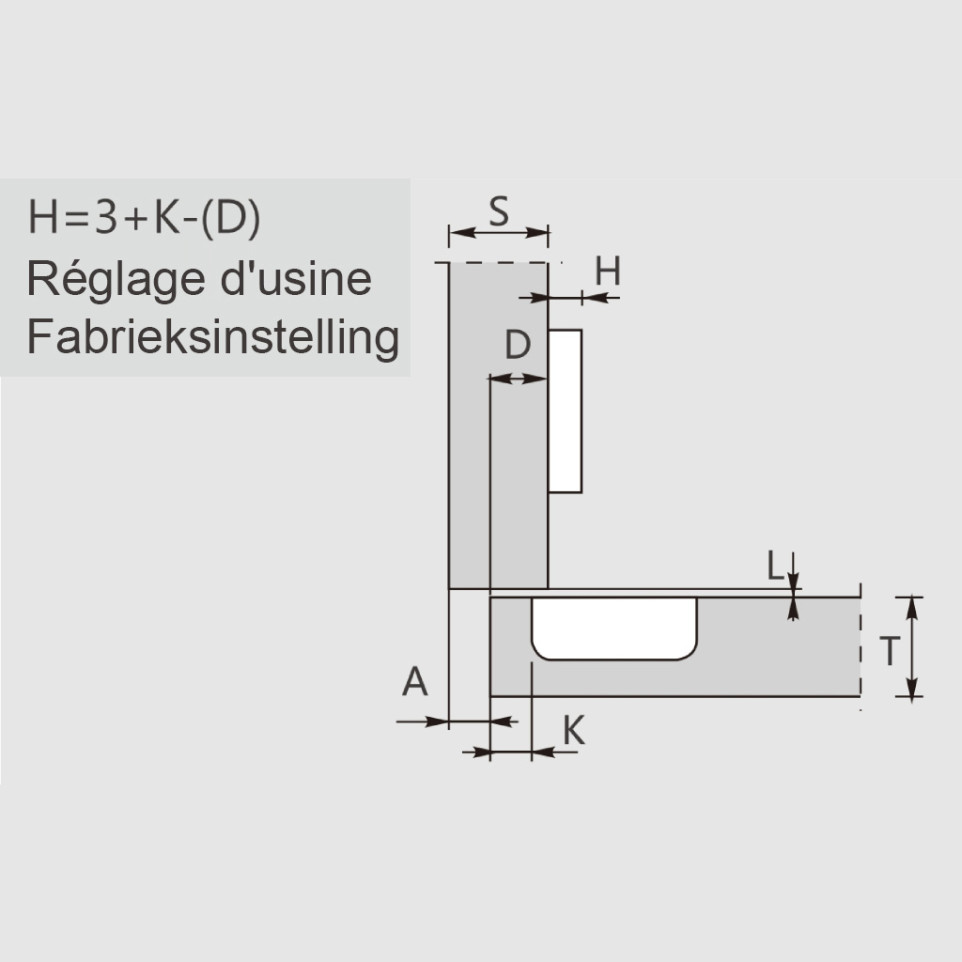

Is this hinge suitable for full overlay or semi-overlay doors? - It is specifically designed for semi-overlay door applications.

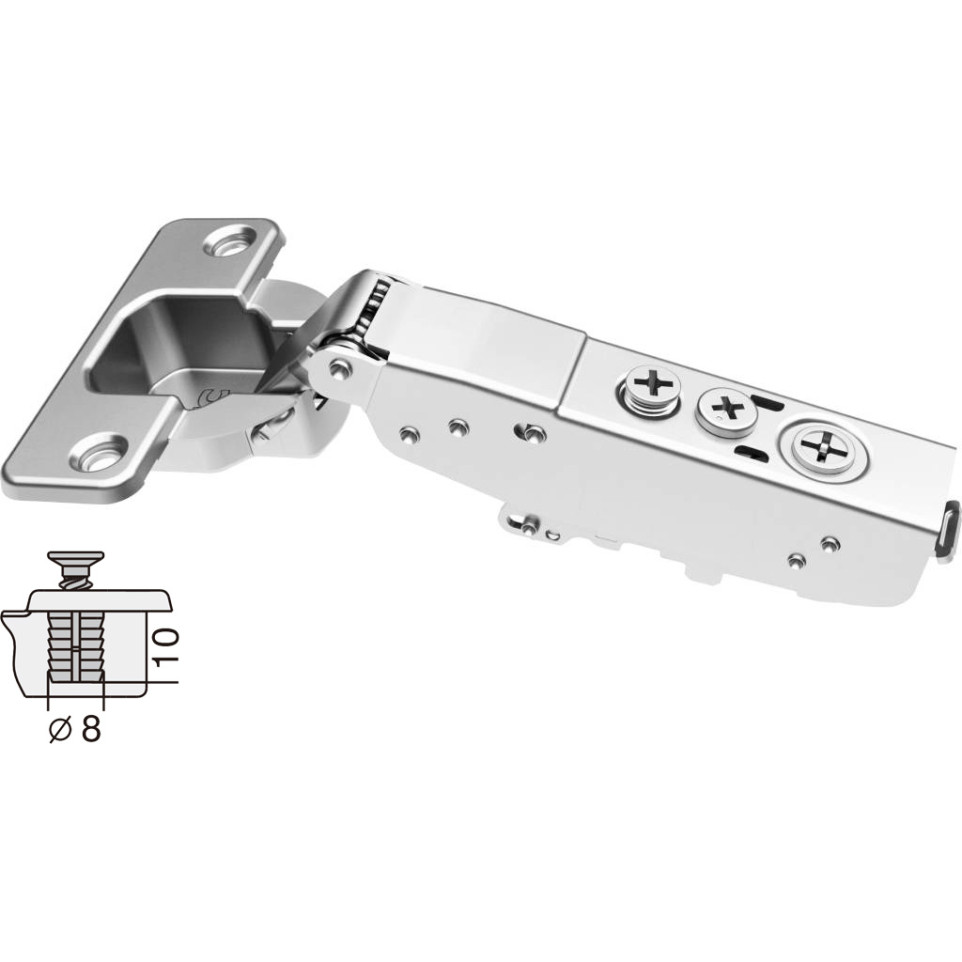

How is the hinge mounted? - The hinge is screw-mounted; simply drill according to recommended measurements and fasten with screws.
