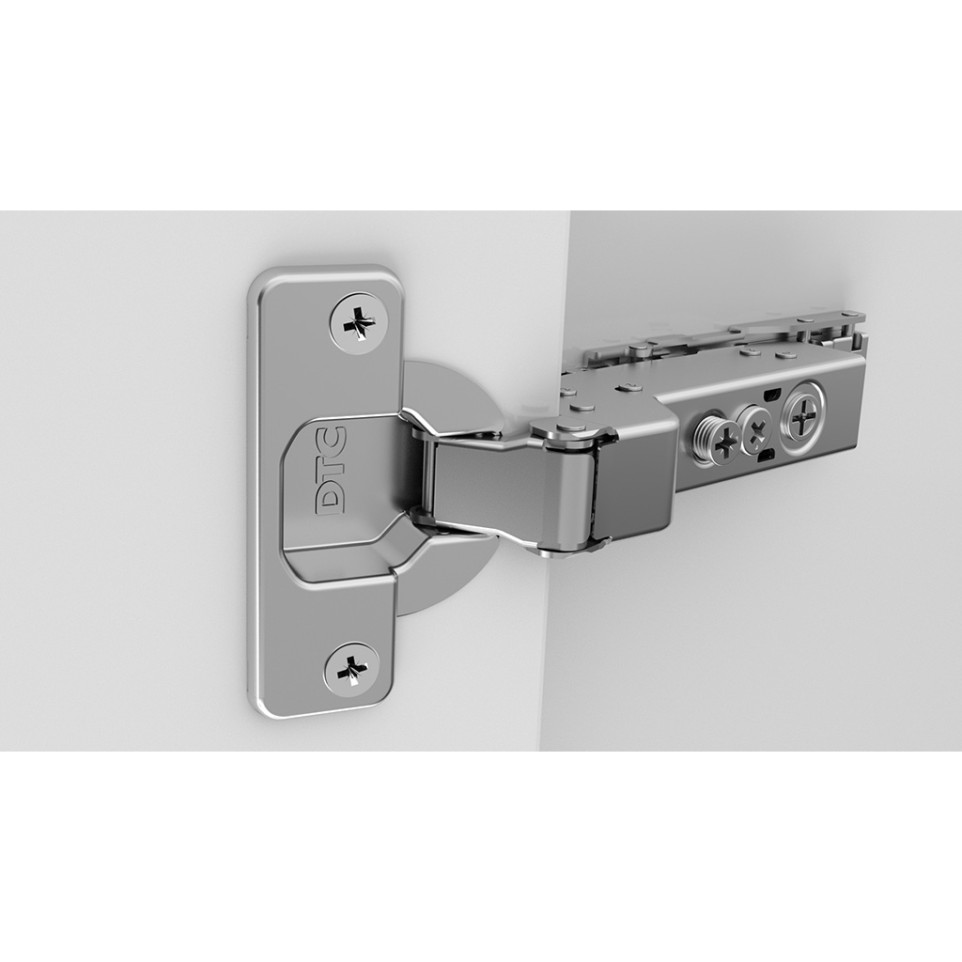

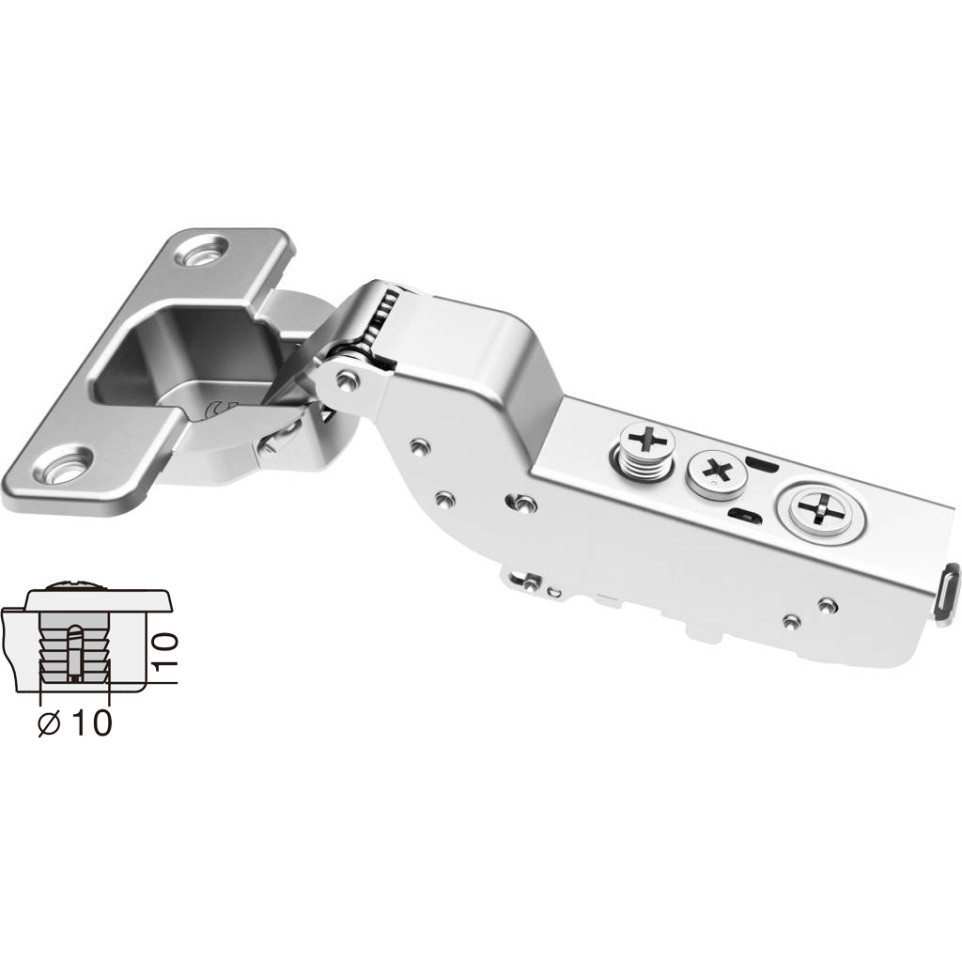

Nickel-plated Pivot-Star hinge with 110° opening angle, featuring built-in soft-close dampening and automatic closing. Designed for rapid quarter-turn installation on flush doors in cabinets or furniture.
The hinge mounts quickly to cabinet doors using a 1/4-turn snap mechanism, enabling efficient installation and removal. It ensures doors open smoothly to 110° and close quietly thanks to built-in damping and automatic closure—ideal for kitchen, bathroom, or office cabinetry.
What is the opening angle of this hinge?
The hinge opens to a full 110°, suitable for most cabinet applications.
Does it include a soft-close feature?
Yes, the integrated damper provides soft-close and automatic door closure.

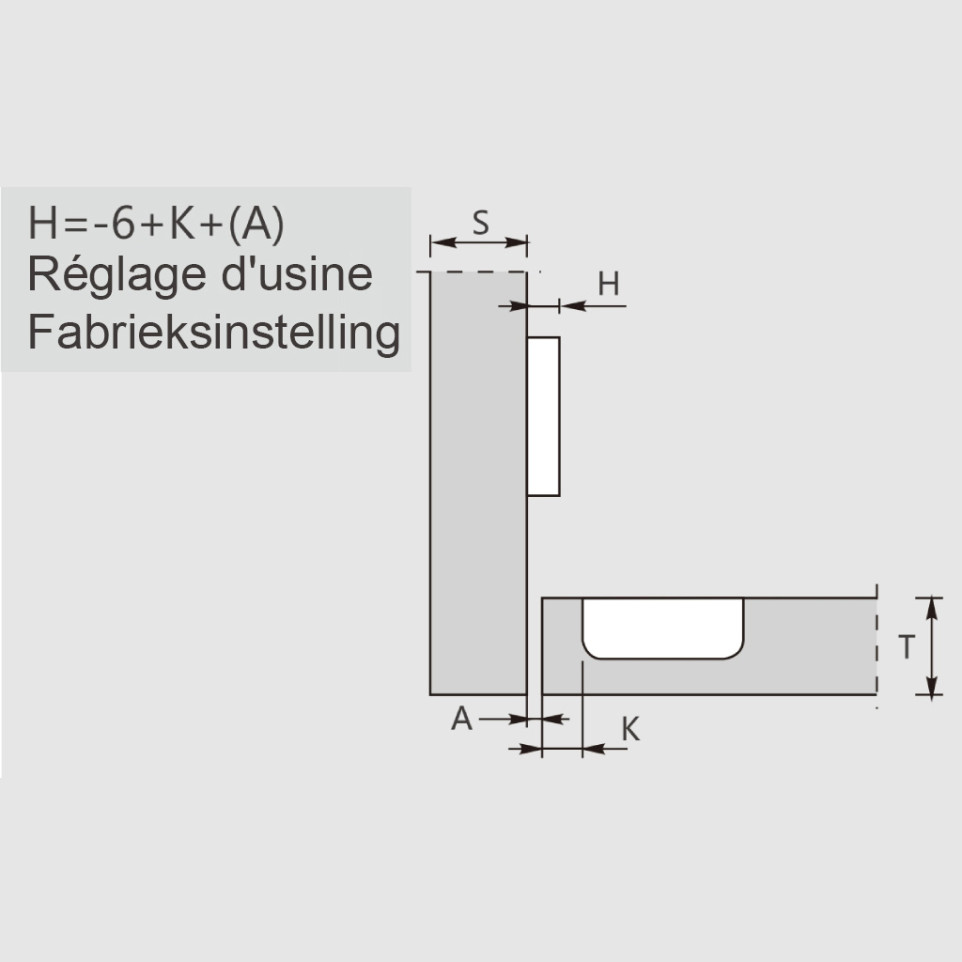

What door thickness does it support?
It is designed for doors with a thickness between 16 mm and 26 mm.

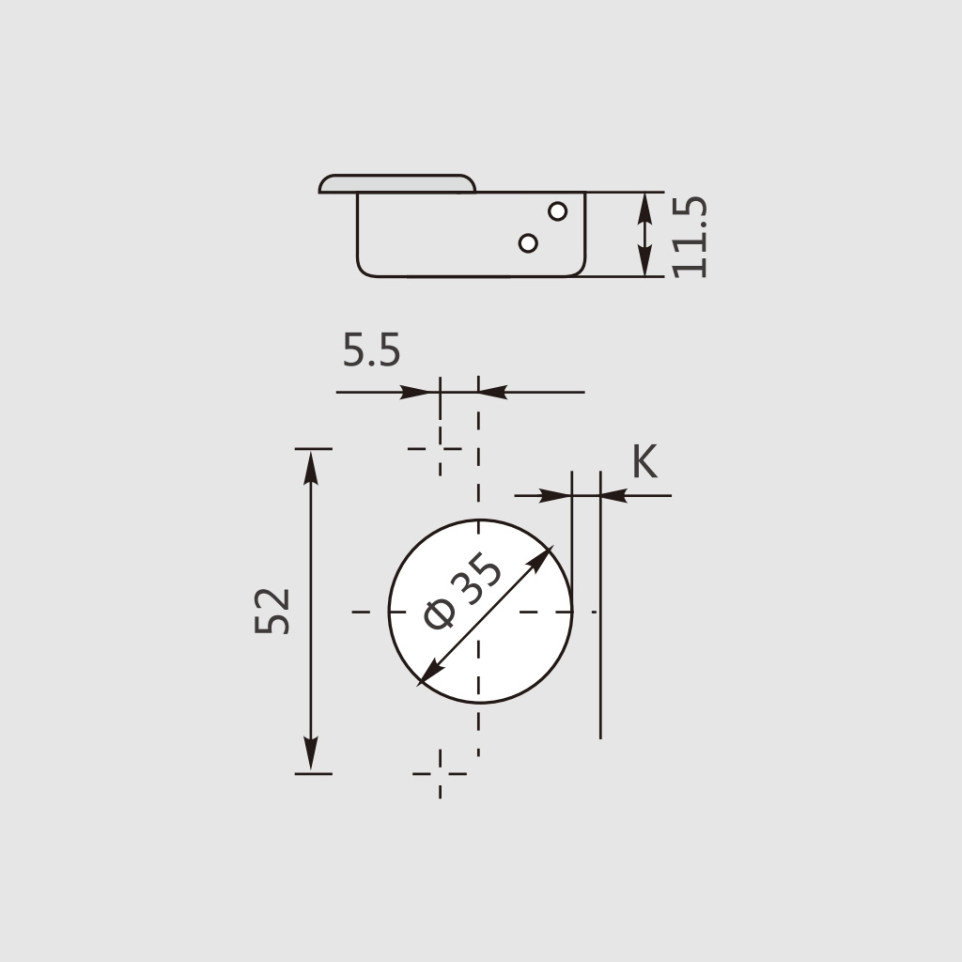

What are the cup dimensions for installation?
The cup diameter is 35 mm, and the depth is 11.5 mm to fit standard drilling patterns.
How is the hinge installed?
The rapid mounting system requires only a 1/4 turn for secure, tool-free attachment.
