Product

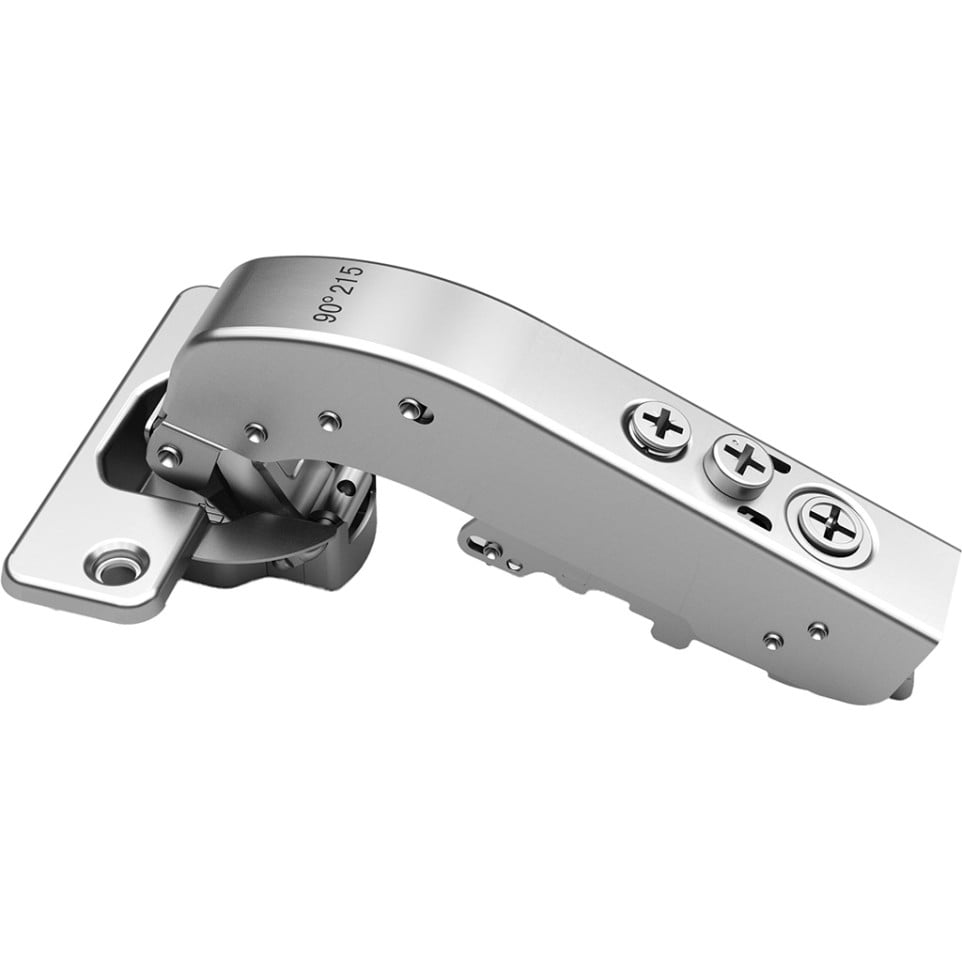

The 90° Pivot-Star 110° nickel-plated screw-on hinge is designed for frame cabinets, offering smooth, controlled soft-close and automatic closure for doors between 16 and 26 mm thick; ideal for precise, silent furniture applications.
Specifications
- Nickel-plated finish with integrated soft-close mechanism and automatic close
- Steel construction for lasting reliability

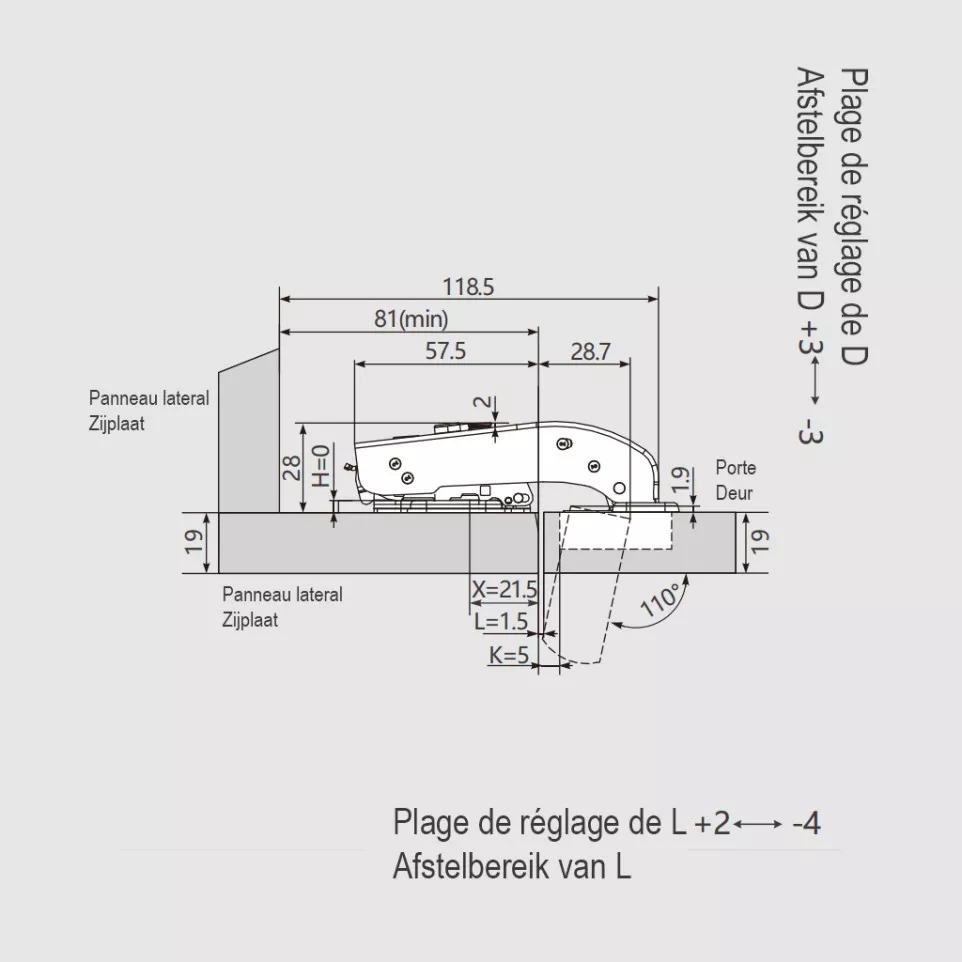

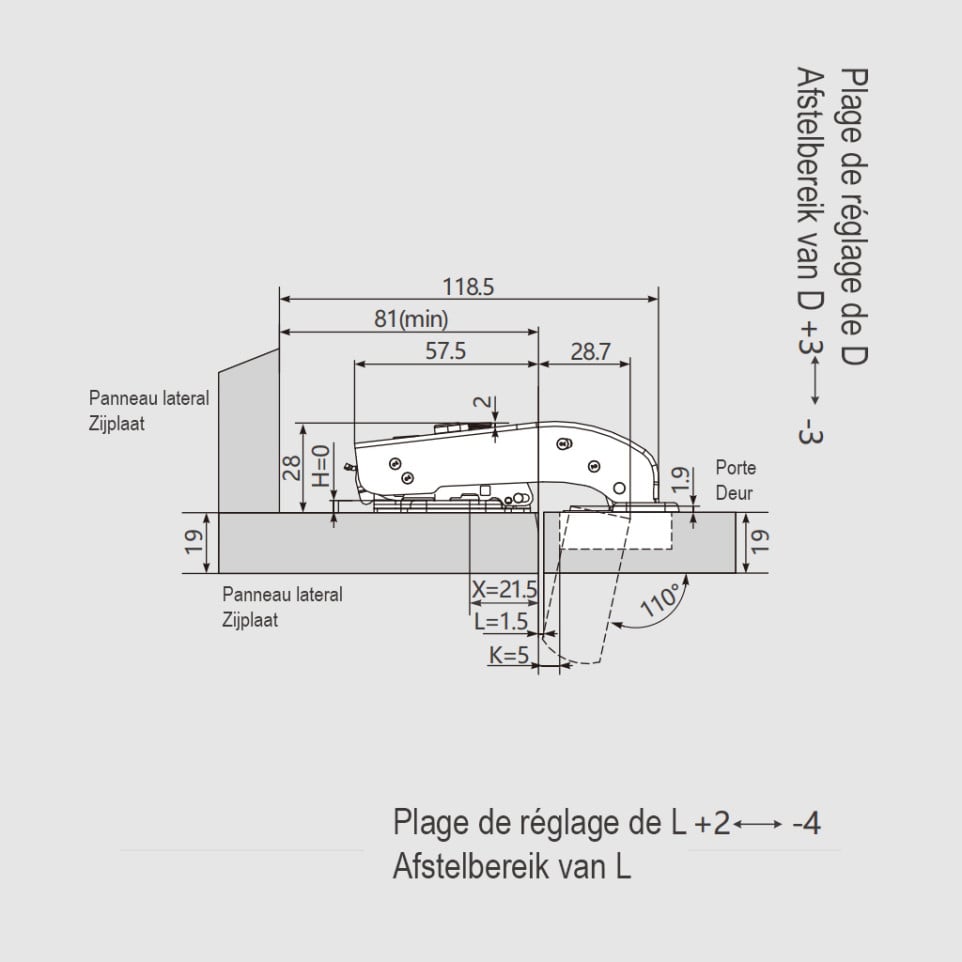

- 110° opening angle, 11.5 mm cup depth, 35 mm cup diameter
- Screw-on mounting system for secure installation
- Designed for inset door applications with 52 x 5.5 mm drilling pattern
- Accommodates door thicknesses from 16 to 26 mm
- Adjustable drilling distance on the door (K): 3–6 mm
Usage
Install the Pivot-Star 110° hinge by screwing it onto a cabinet frame using the specified cup and drilling pattern. Its integrated damper system ensures doors close gently and automatically, making it well-suited for kitchens, wardrobes, or any application that demands quiet, controlled movement and reliable alignment.
FAQ
- What door thicknesses does this hinge support?
Compatible with doors ranging from 16 mm to 26 mm in thickness.
- How does soft-close functionality work?
The built-in damper controls and slows the door’s movement for quiet, smooth closing without slamming.
- Is the mounting system screw-on or press-in?
This model features a screw-on mounting system for firm installation.

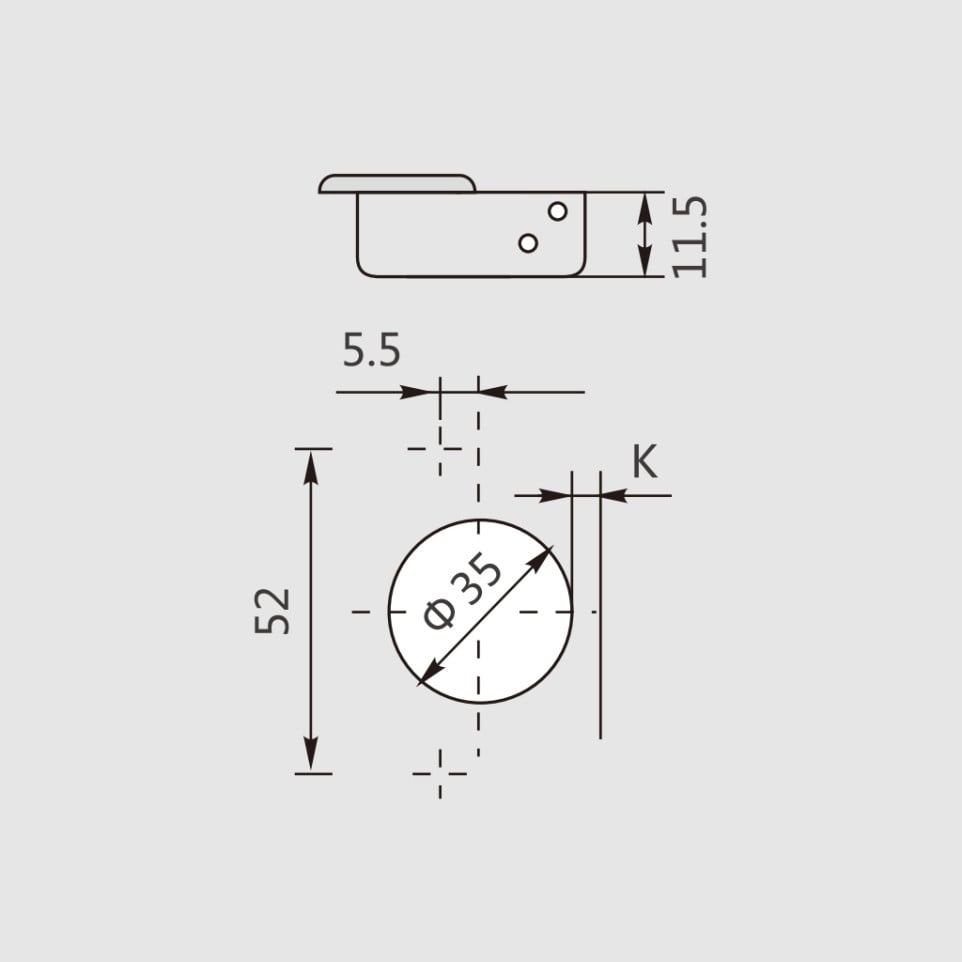

- What is the required drilling pattern?
The hinge uses a 52 x 5.5 mm drilling scheme, with a cup diameter of 35 mm and a cup depth of 11.5 mm.
- Can it be used on overlay or inset doors?
This hinge is designed for inset door applications on frame cabinets.
