The Pivot-Star 160° nickel-plated screw-on hinge with integrated soft-close and automatic closing is designed for overlay cabinet doors. Ideal for modern kitchens or cabinetry, it offers a wide opening angle and smooth, controlled closure for doors 18–28 mm thick.
Screw the hinge to the cabinet side and door using the prescribed drilling scheme. Adjust soft-close speed as needed to match the door weight and user preference. The automatic closing feature ensures doors stay shut, while the large opening angle facilitates easy access to cabinet interiors.
What is the maximum opening angle of this hinge?
The hinge opens up to 160°, allowing wide access to the cabinet space.
Does this hinge include a soft-close feature?
Yes, it has integrated soft-close damping and the closing speed can be adjusted to suit different doors.
What door thickness is compatible with this hinge?
It is suitable for door thicknesses ranging from 18 to 28 mm.
How is the hinge mounted?

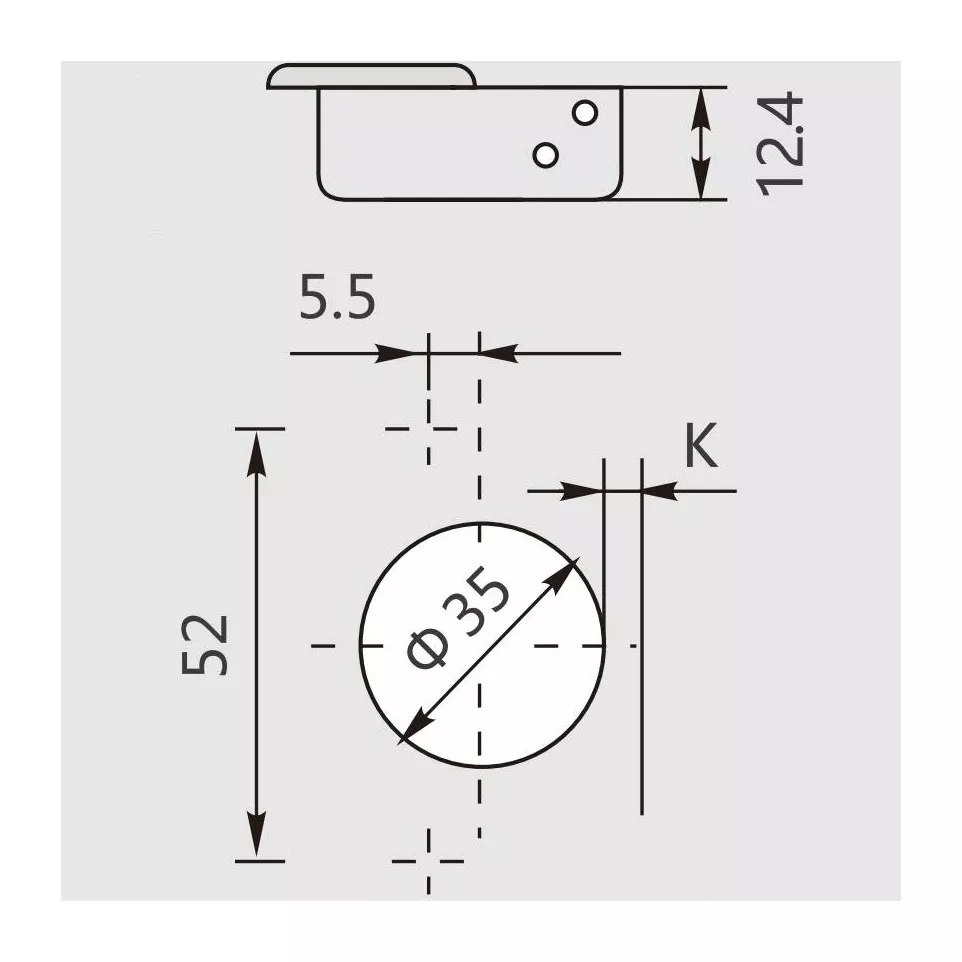

The hinge is screw-mounted, requiring a 35 mm diameter and 12.4 mm deep cup hole, with a 52 x 5.5 mm drilling pattern.
Is the automatic closing function always active?
Yes, the hinge automatically ensures the door is drawn closed, enhancing convenience and safety.
