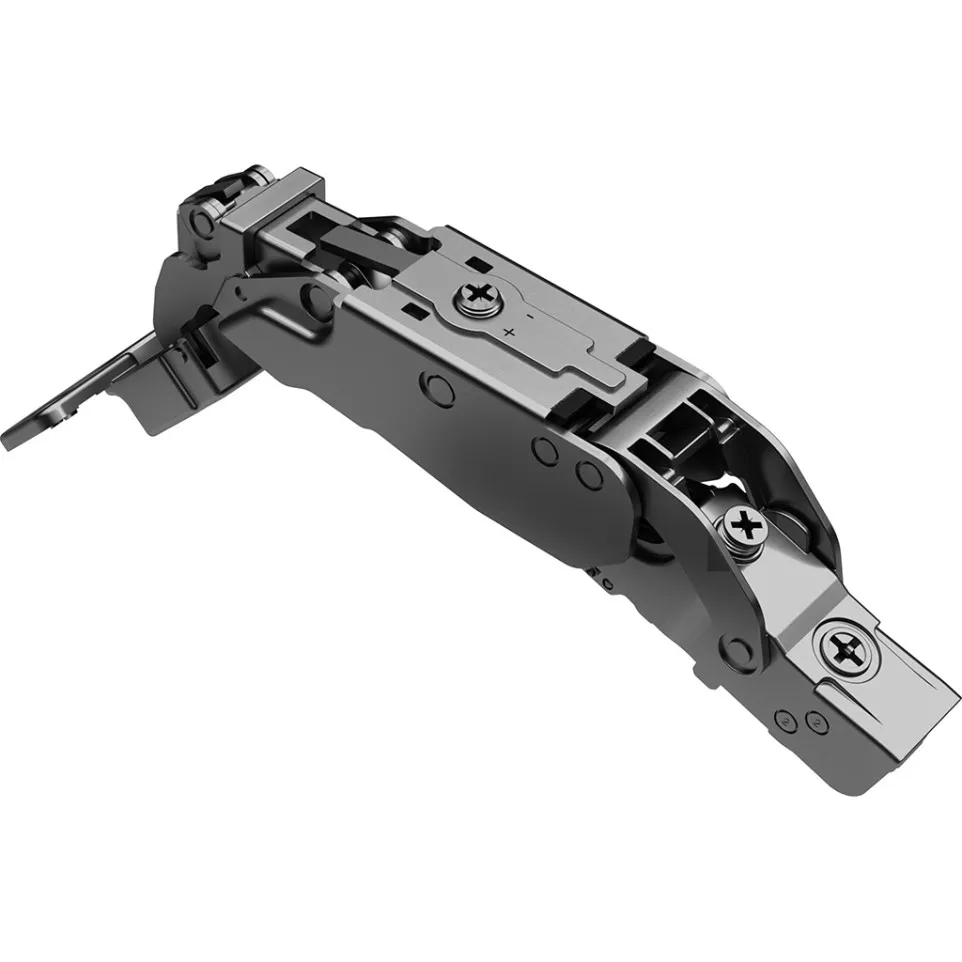

High-performance black titanium Pivot-Star hinge for overlay doors, offering a wide 160° opening angle, adjustable soft-close damping, and automatic closing. Designed for stud hinge applications where reliable, quiet, and secure door movement is required.
To install, align and mount the hinge onto the door using screw-on fixation. Adjust the soft-close speed to suit door weight and user preference. The hinge supports doors 18–28 mm thick and allows wide, controlled opening up to 160°, with automatic closure and silent, gentle operation for kitchens, cabinets, or furniture.
What door thicknesses can this hinge accommodate?
It fits doors between 18 mm and 28 mm.
Is the soft-close feature adjustable?
Yes, the damping speed can be fine-tuned for different door weights or closing preferences.
What is the required drilling pattern?
The hinge uses a 52 x 5.5 mm drilling scheme and cup hole dimensions of 35 mm diameter, 12.4 mm depth.
Does this hinge support automatic door closure?
Yes, the built-in mechanism ensures automatic and secure closing after gentle engagement.
How durable is the Pivot-Star hinge?
Designed to exceed EU standards, it maintains reliable performance beyond 100,000 open/close cycles.
