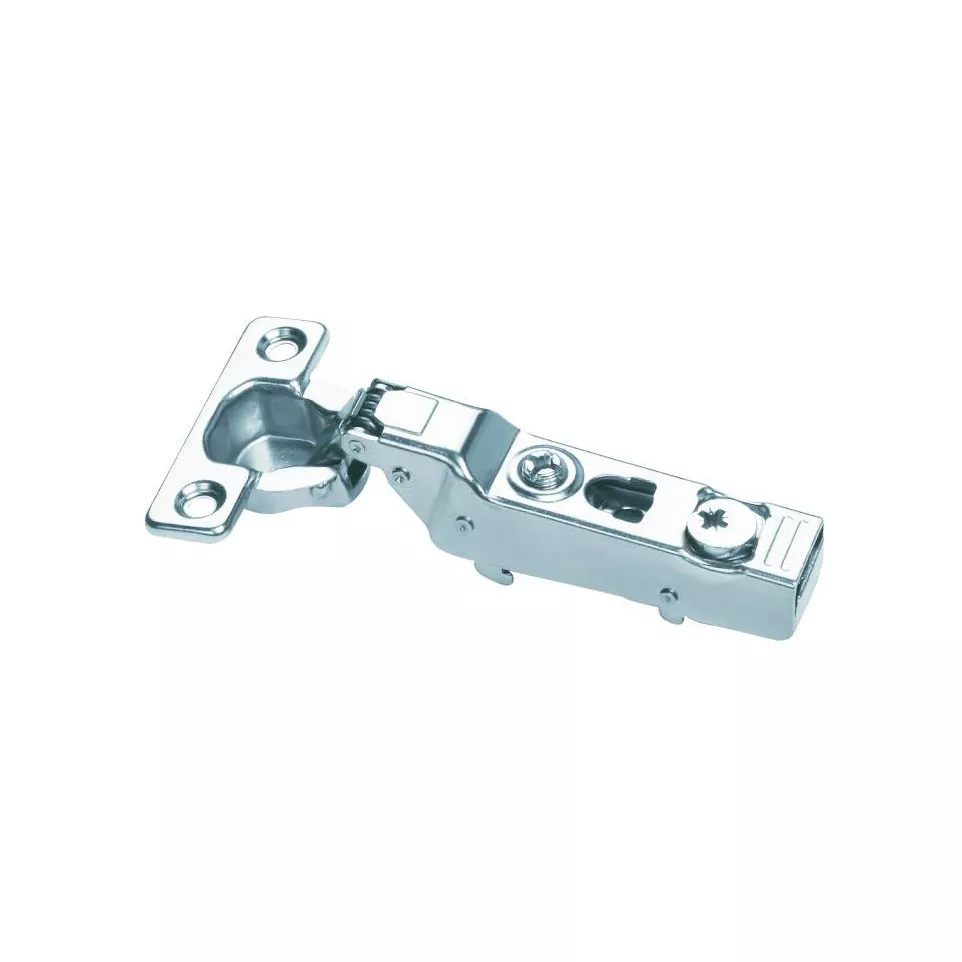

The DTC Pivot-Pro 100° nickel-plated screw-on hinge is designed for inset (recessed) cabinet doors requiring smooth, quiet motion and automatic closing. Its compact Ø26mm cup and built-in damper provide a reliable solution for modern cabinetry.

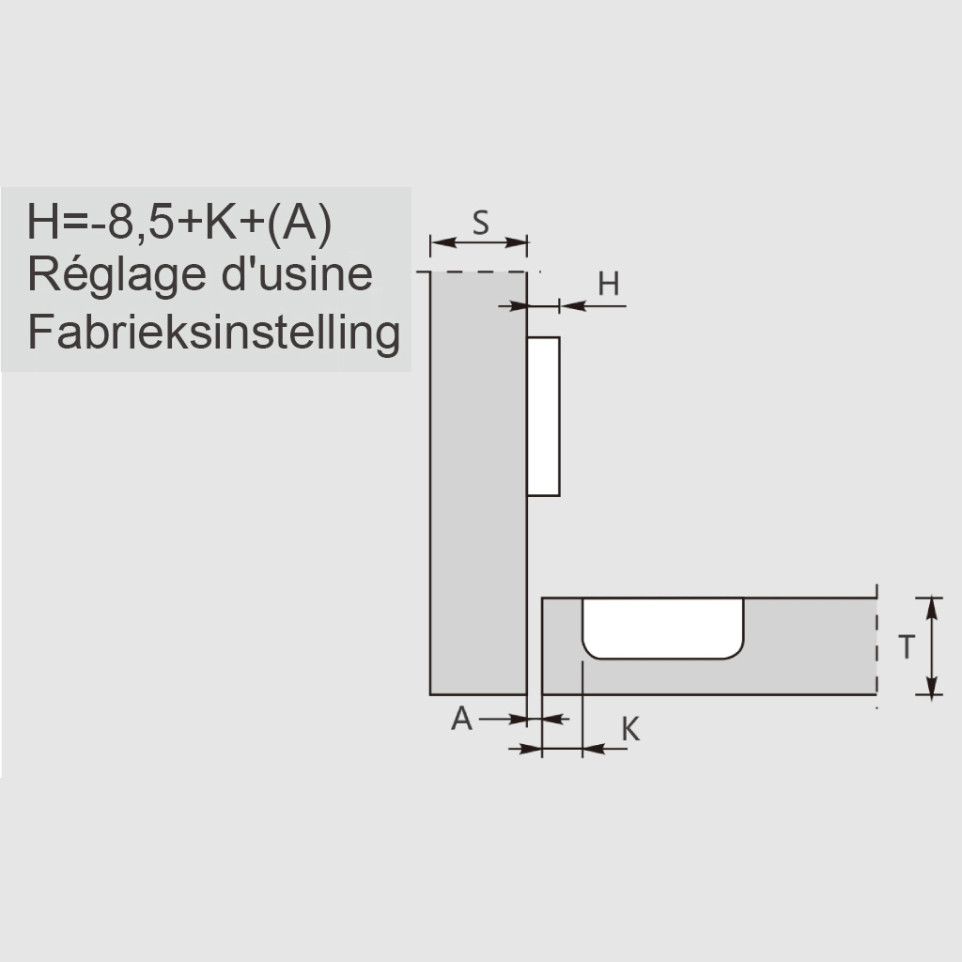

Install by screwing the hinge into a 26 mm diameter, 10 mm deep cup drilled in the cabinet door, according to the 38 x 8 mm mounting pattern. Designed for recessed doors 12–22 mm thick, the hinge provides smooth, controlled closing with built-in soft-closing and automatic return.
What door thicknesses is this hinge compatible with?
Fits doors 12–22 mm thick.
What is the required cup diameter for installation?
A 26 mm diameter bore is necessary in the door.
Does the hinge provide soft-closing functionality?
Yes, it features an integrated damping system for soft and quiet closing.
Is this hinge suitable for overlay doors?
No, it is designed for inset doors (recessed mounting).
What is the maximum opening angle?
The hinge opens to a maximum of 100°.
mvm-dt-2025-07-20
| Brand | DTC |
|---|---|
| Finishing | nickelé |
| Type of assembly | à visser |
| Material used | acier |
| Drilling diagram | TH38 x 8 mm |
| Finish Fittings | rentrant |
