Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

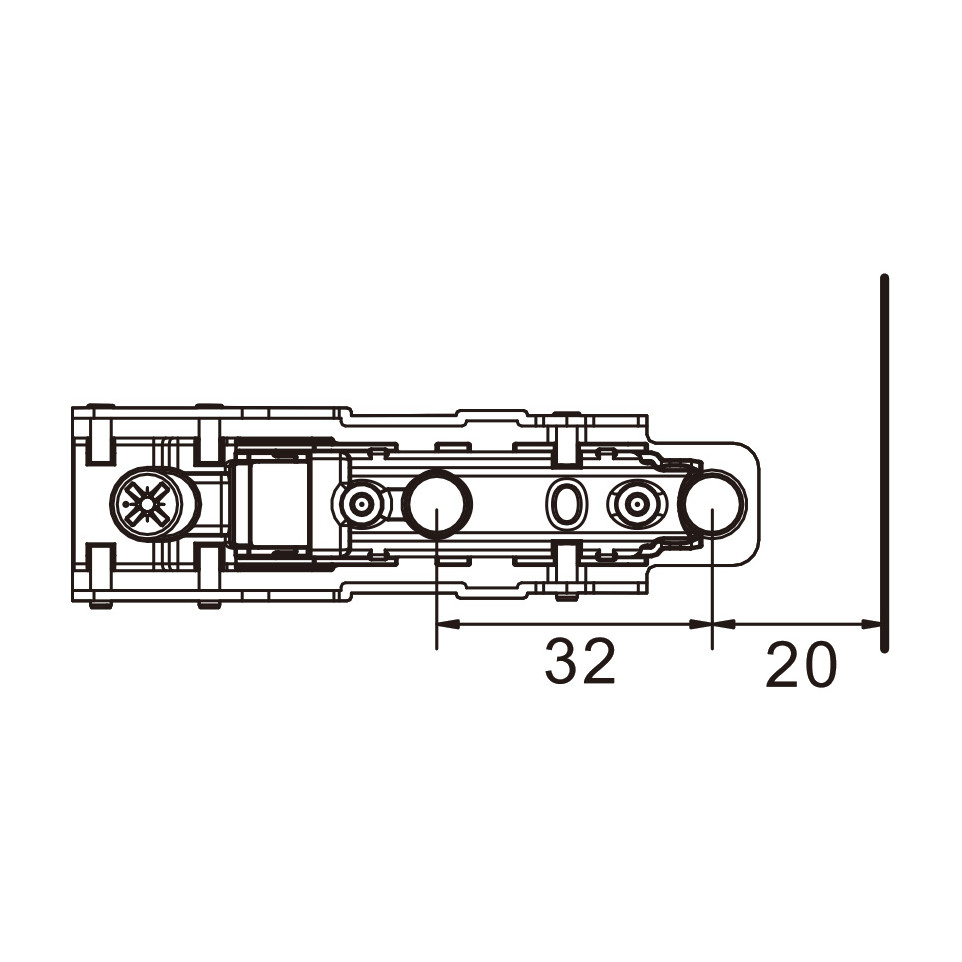

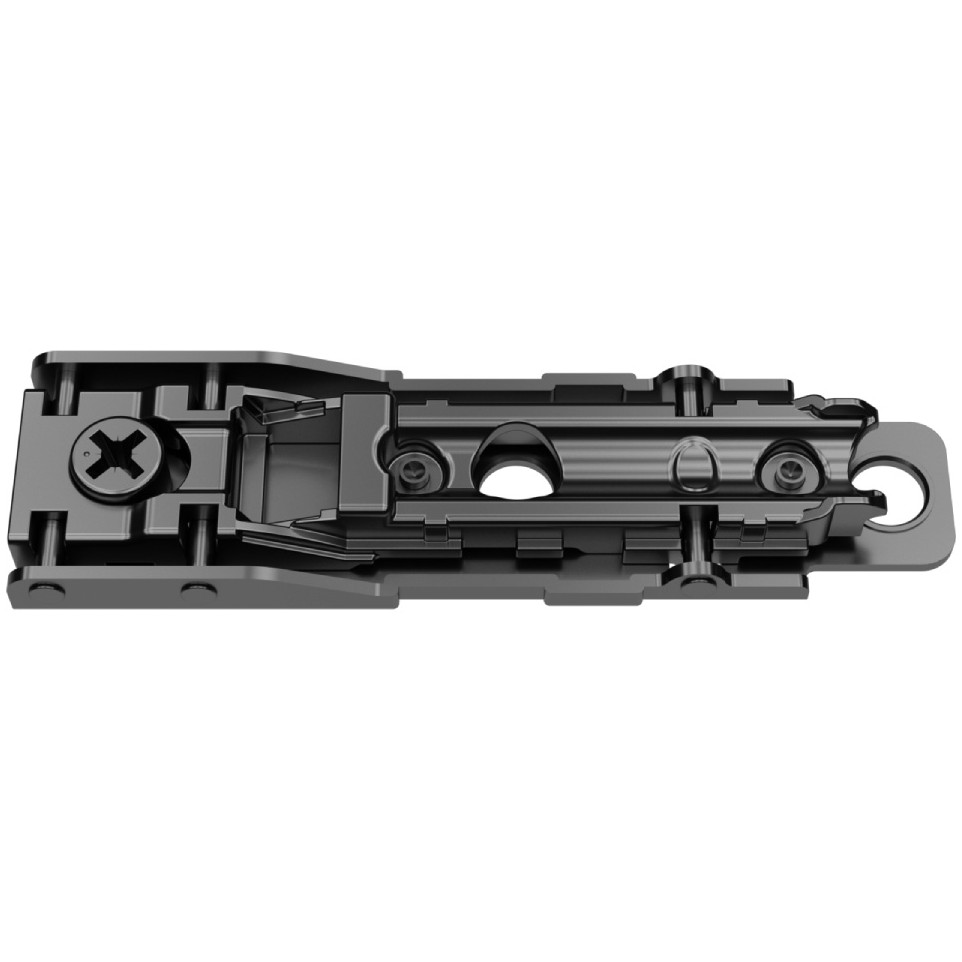

Linear Pivot-Star mounting plate in black titanium finish with Euro screws for 5 x 8mm drilling, featuring direct height adjustment at 0mm distance. Designed for secure installation and precise vertical adjustment, suited for stud hinges and cabinetry assembly.
Specifications
- Black titanium finish, metal construction for strength and corrosion resistance
- Uses Euro screws (Ø5 x 8mm) for fast, stable mounting
- Direct height adjustment mechanism for easy fine-tuning
- 0mm plate spacing for flush fit
- Compatible with Pivot-Star stud hinge systems
- Cam-adjustable design allows +2mm/-2mm vertical movement
Usage
Install the plate in cabinetry by drilling Ø5 x 8mm holes, securing with Euro screws, and adjust the plate’s height directly for perfect door alignment. Its cam system enables quick, tool-free vertical changes, streamlining hinge fitting and adjustments in furniture or wardrobe construction.
FAQ
-
What materials is the mounting plate made from?
The plate is made of robust metal with a black titanium finish for enhanced durability. -
Can the height be adjusted after installation?
Yes, the direct height adjustment feature allows vertical movement up to +2mm or -2mm, even after mounting. -
What screw type is required for installation?
Euro screws sized Ø5 x 8mm are required for proper installation in predrilled holes. -
What hinge systems is this plate compatible with?
It is designed for use with Pivot-Star stud hinges and accessories in cabinetry and furniture projects. -
Where is this plate typically used?
Commonly used in cabinets, wardrobes, and furniture requiring precise alignment and easy hinge adjustment.
