Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece

Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...

Estimated delivery date :  Friday 24 July
€20.54 HT
In stock

Ref : FGT-1957211

Variantes

Comaglio 472 Automatic Door Drop Seal 12x28.5x630mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x630mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1030mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1030mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1130mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1130mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1330mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1330mm per piece Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece Comaglio 472 Automatic Drop-Down Seal 12x28.5x1230mm per piece Comaglio 472 Automatic Drop-Down Seal 12x28.5x1230mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Usage

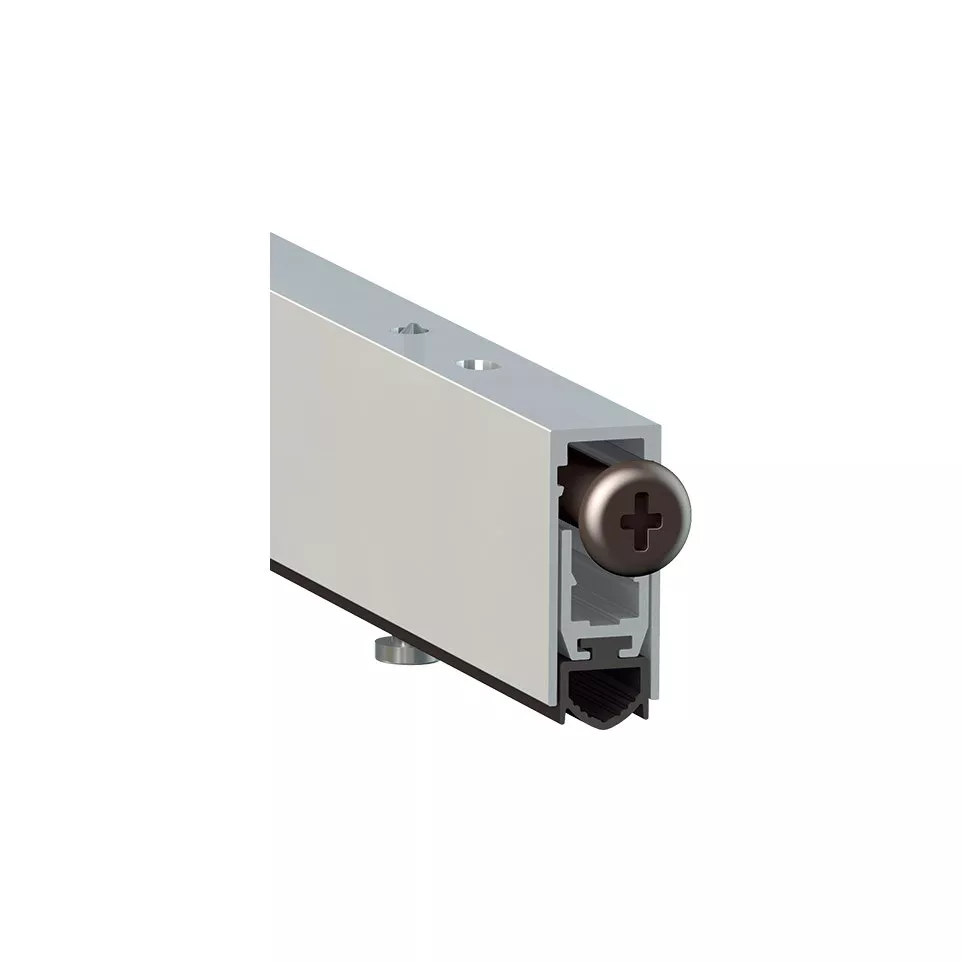

The Plinthe automatique Comaglio 472 is designed to automatically seal the gap beneath doors, improving insulation and reducing the infiltration of sound, air, dust, and light in both residential and commercial settings.

Advantages

  • Ensures a consistent seal at the bottom of doors for effective barrier against drafts and noise
  • Operates automatically without manual adjustment when opening or closing the door
  • Adapts to uneven floor surfaces for reliable performance over time
  • Slim design fits unobtrusively onto most standard doors without affecting appearance or function
  • The drop mechanism helps prevent undue wear by retracting when not in use

Specifications

  • Constructed from durable materials with a robust internal spring mechanism for long-lasting operation
  • Sized at 12 mm (height) x 28.5 mm (width) x 530 mm (length), suitable for standard door widths; easy to cut down to fit custom sizes if needed
  • Designed to maintain sealing effectiveness even after repeated daily use; complies with typical building standards for weather- and acoustic-sealing devices
  • Drops automatically upon door closure to fill floor gaps up to approximately half an inch; retracts on opening for smooth clearance over thresholds

How it works

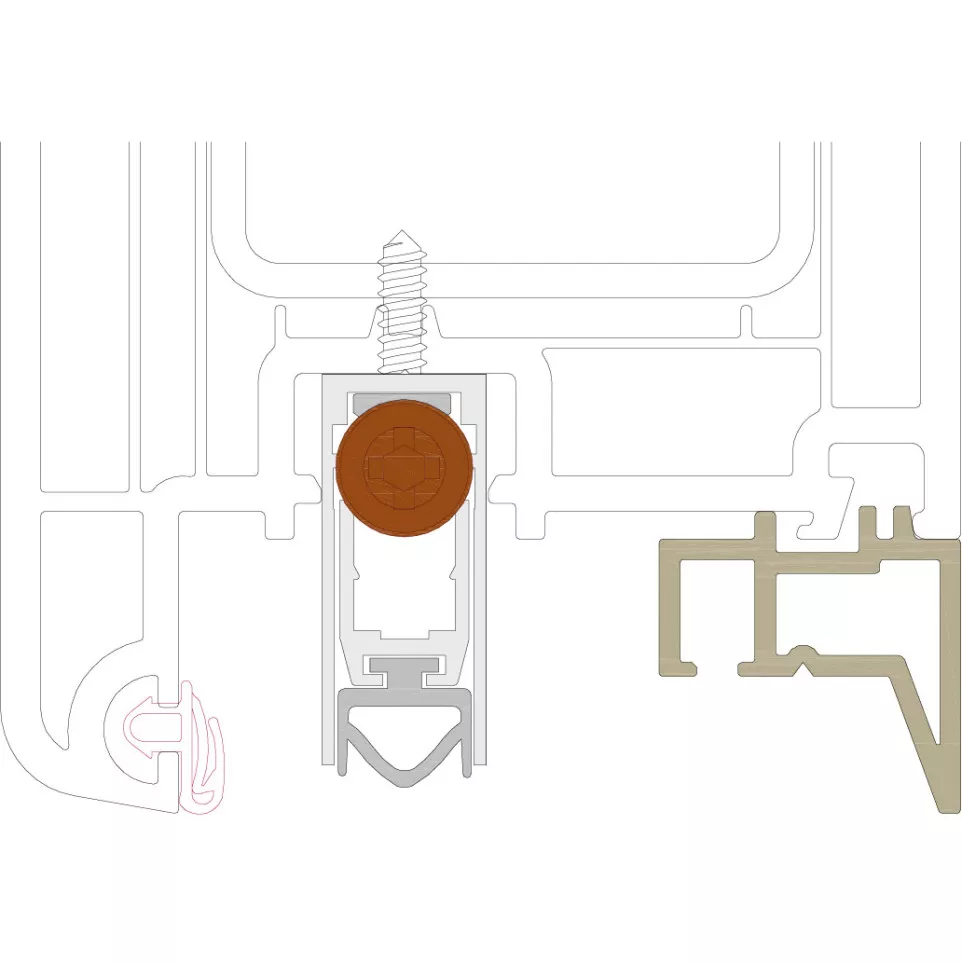

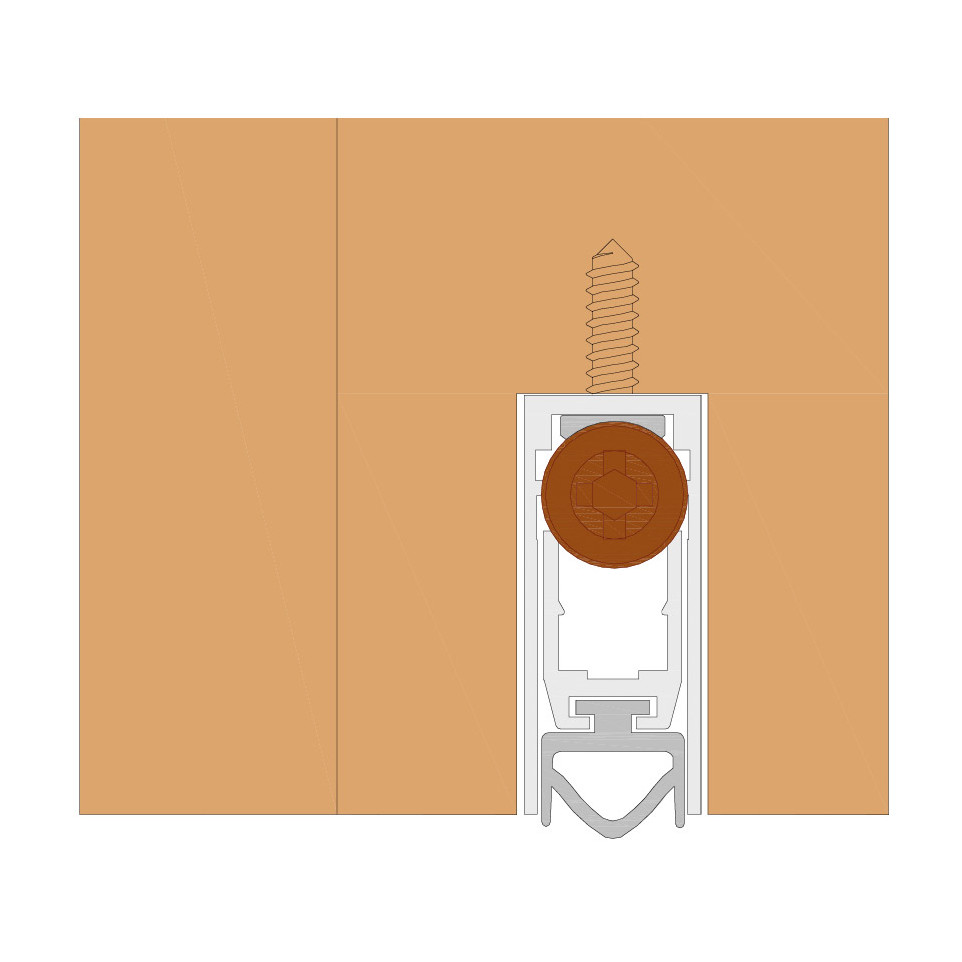

The automatic baseboard uses an internal plunger system: as you close the door, contact with the frame activates its concealed spring mechanism, which smoothly lowers a sealing bar downwards. When opened, the bar retracts back into its housing without dragging.

See more

Product Details

Brand Comaglio
Length (in mm) 530
Stroke ( mm ) 18
Fire resistance (min) 30,00
Noise level (dBA) 43,00
Groove width (mm) 12,00
FGT-1957211
