Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece

Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece
Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece
Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece
Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece
Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece
Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece
Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece
Comaglio 472 Automatic Drop Down Door...
Comaglio 472 Automatic Drop Down Door...
Comaglio 472 Automatic Drop Down Door...
Comaglio 472 Automatic Drop Down Door...
Comaglio 472 Automatic Drop Down Door...
Comaglio 472 Automatic Drop Down Door...
Comaglio 472 Automatic Drop Down Door...

Estimated delivery date :  Tuesday 9 June
€22.21 HT
In stock

Ref : FGT-1957215

Variantes

Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x630mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x630mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1030mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1030mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1130mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1130mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1330mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1330mm per piece Comaglio 472 Automatic Drop-Down Seal 12x28.5x1230mm per piece Comaglio 472 Automatic Drop-Down Seal 12x28.5x1230mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Usage

The Comaglio 472 automatic baseboard is designed to seal the gap beneath doors in residential or commercial environments, effectively limiting drafts, noise, dust, and smoke exchange between rooms.

Advantages

  • Automatically lowers to create an optimal floor seal when the door closes
  • Minimizes ingress of air, sound, light, smoke and insects for improved comfort and hygiene
  • No manual adjustment needed after installation thanks to integrated mechanism
  • Suits a range of door types in both private and public buildings
  • Requires precise mortising during installation which may extend fitting time slightly for inexperienced installers

Specifications

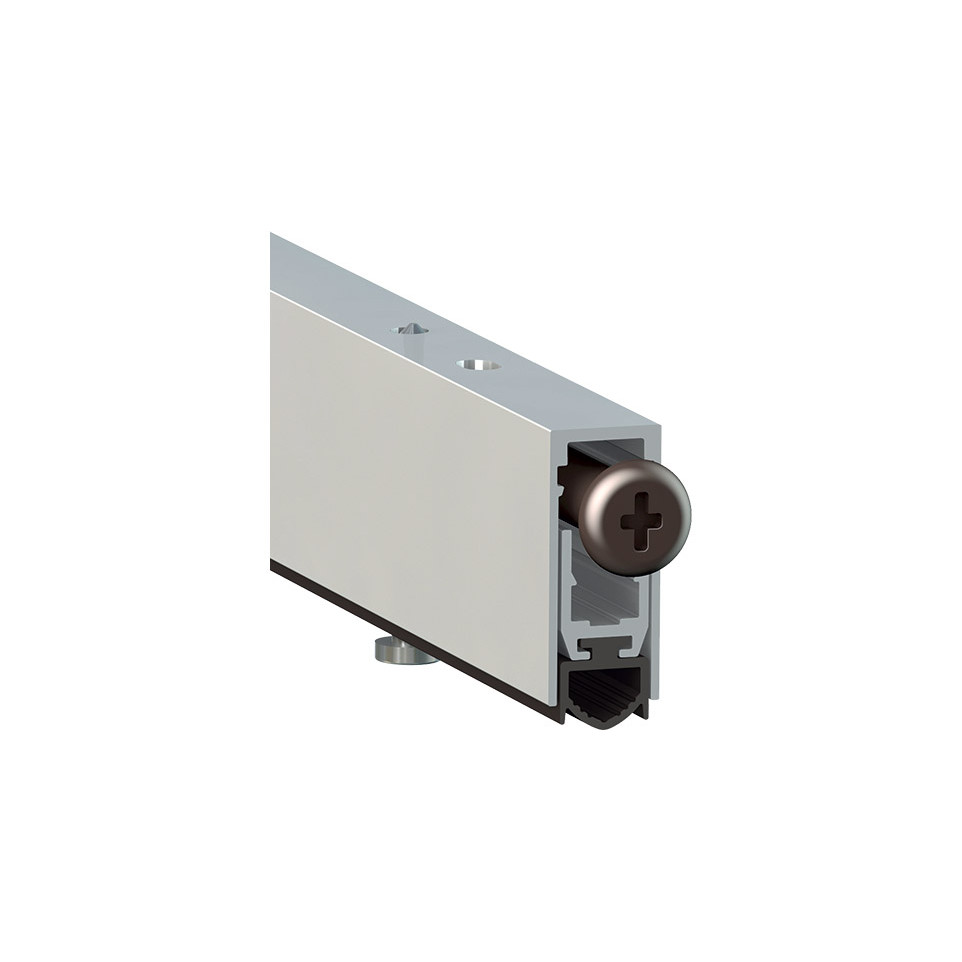

  • Anodized aluminum housing with high-resilience sealing insert for long-term reliability[1]
  • Durable design suitable for frequent operation; complies with common fire/smoke containment standards[1][3]

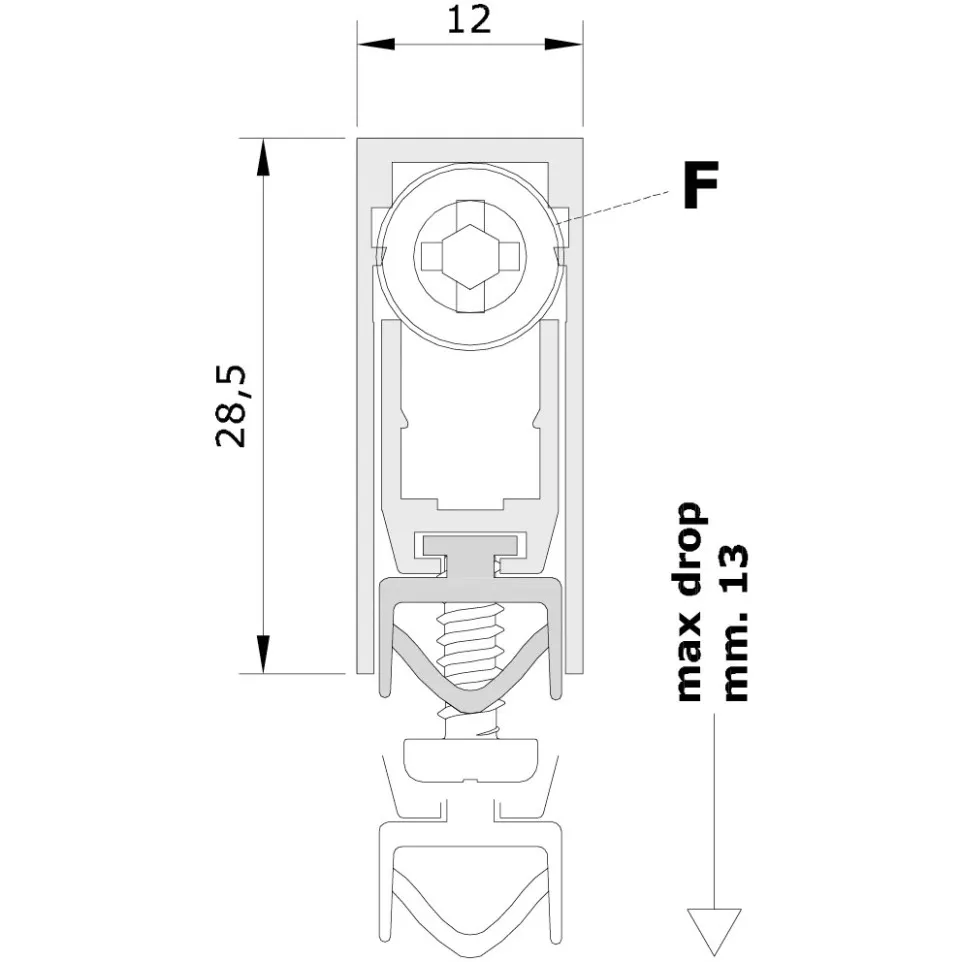

  • Covers a door width up to 930 mm; cross-section dimensions: height 12 mm × width 28.5 mm; sealing drop typically adjustable up to approximately half an inch (≈12 mm)[7]

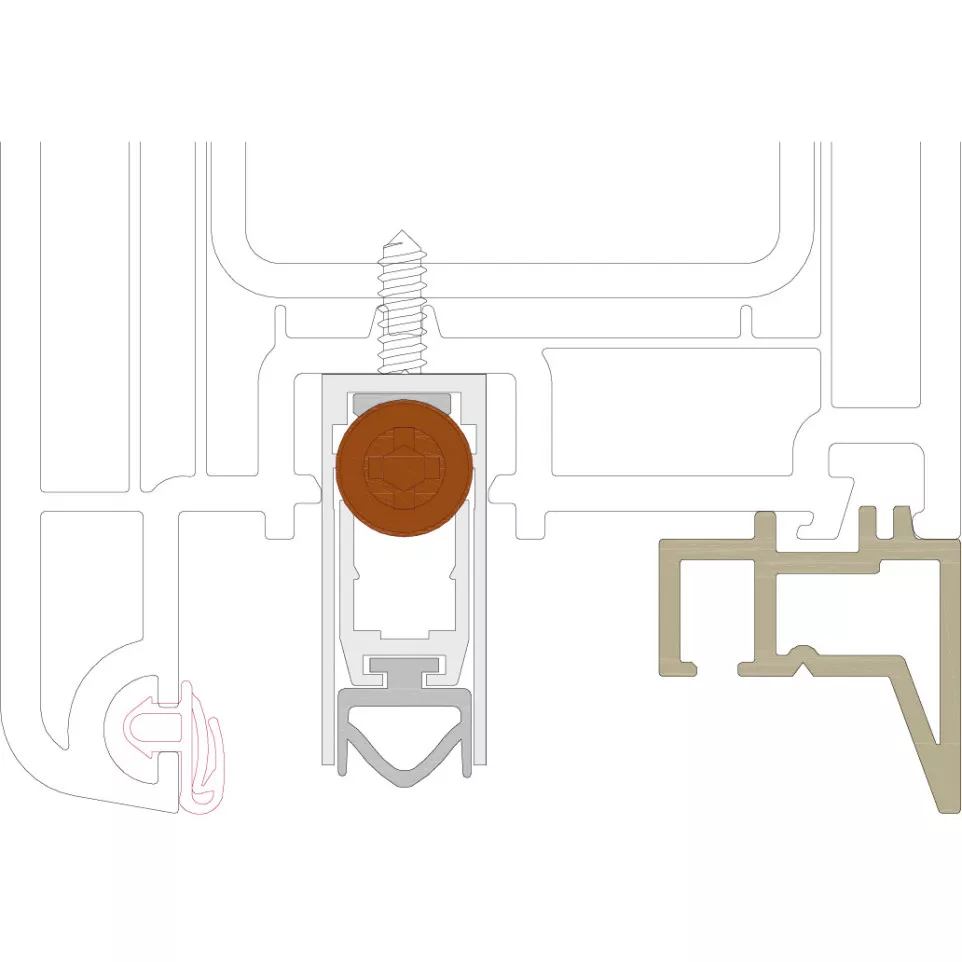

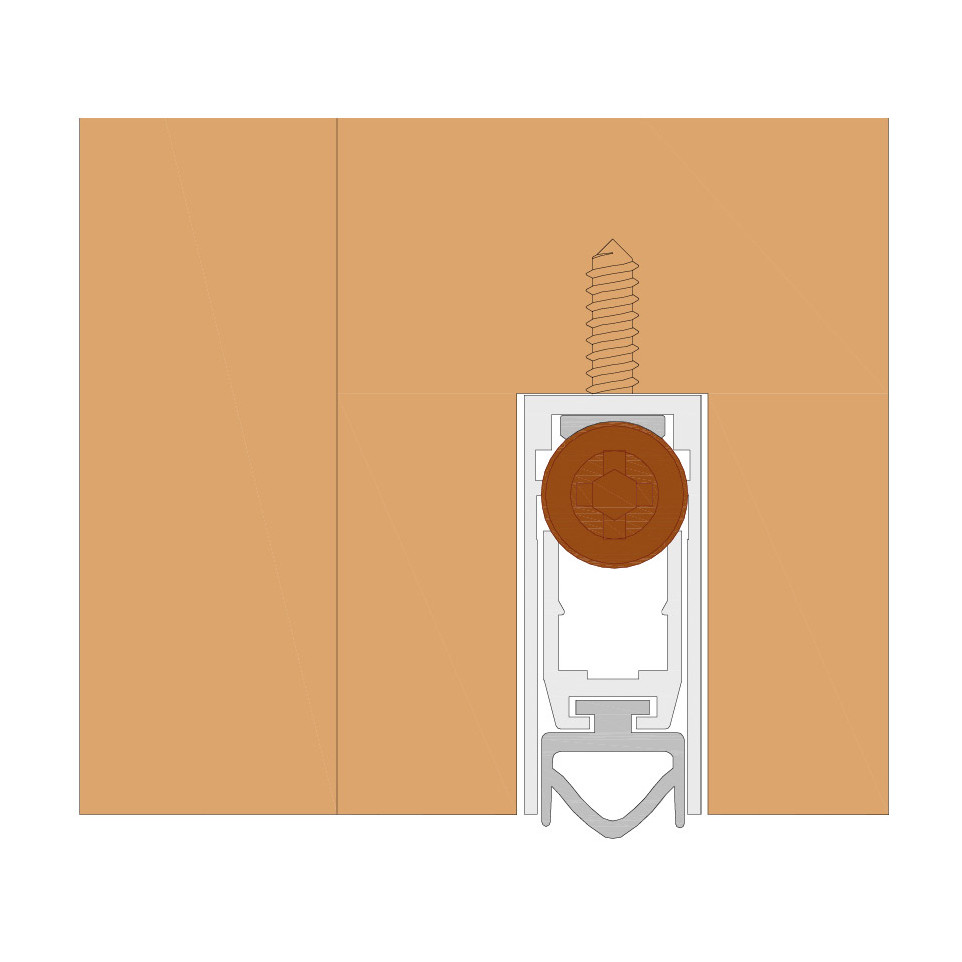

  • Semi-mortised fitting enables discreet integration beneath wooden or metal doors; robust internal spring mechanism ensures consistent gasket deployment[4][5]

How it works

When the door closes, a built-in plunger activates the internal spring mechanism. This action smoothly drops the gasket against the floor surface to form a continuous barrier. The seal retracts automatically as soon as the door opens again[5].

See more

Product Details

Brand Comaglio
Length (in mm) 930
Stroke ( mm ) 18
Fire resistance (min) 30,00
Noise level (dBA) 43,00
Groove width (mm) 12,00
FGT-1957215
