Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece

Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece
Comaglio 472 Automatic Door Drop Seal 12x28.5x830mm per piece
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...
Comaglio 472 Automatic Door Drop Seal...

Estimated delivery date :  Friday 24 July
€21.57 HT
In stock

Ref : FGT-1957214

Variantes

Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x530mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x630mm per piece Comaglio 472 Automatic Door Drop Seal 12x28.5x630mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1030mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1030mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1130mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1130mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1330mm per piece Comaglio 472 Automatic Door Threshold 12x28.5x1330mm per piece Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece Comaglio 472 Automatic Drop Down Door Seal 12x28.5x930mm per piece Comaglio 472 Automatic Drop-Down Seal 12x28.5x1230mm per piece Comaglio 472 Automatic Drop-Down Seal 12x28.5x1230mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Usage

The Comaglio 472 automatic baseboard is designed to create an effective seal at the bottom of doors, blocking drafts, noise, dust, and light in both residential and commercial environments.

Advantages

  • Prevents air infiltration for improved energy efficiency
  • Reduces transmission of noise and external disturbances
  • Minimizes entry of dust, smoke, and insects into the room
  • Automatically adjusts to floor unevenness upon door closure
  • Slim design for discreet integration with various door types

Specifications

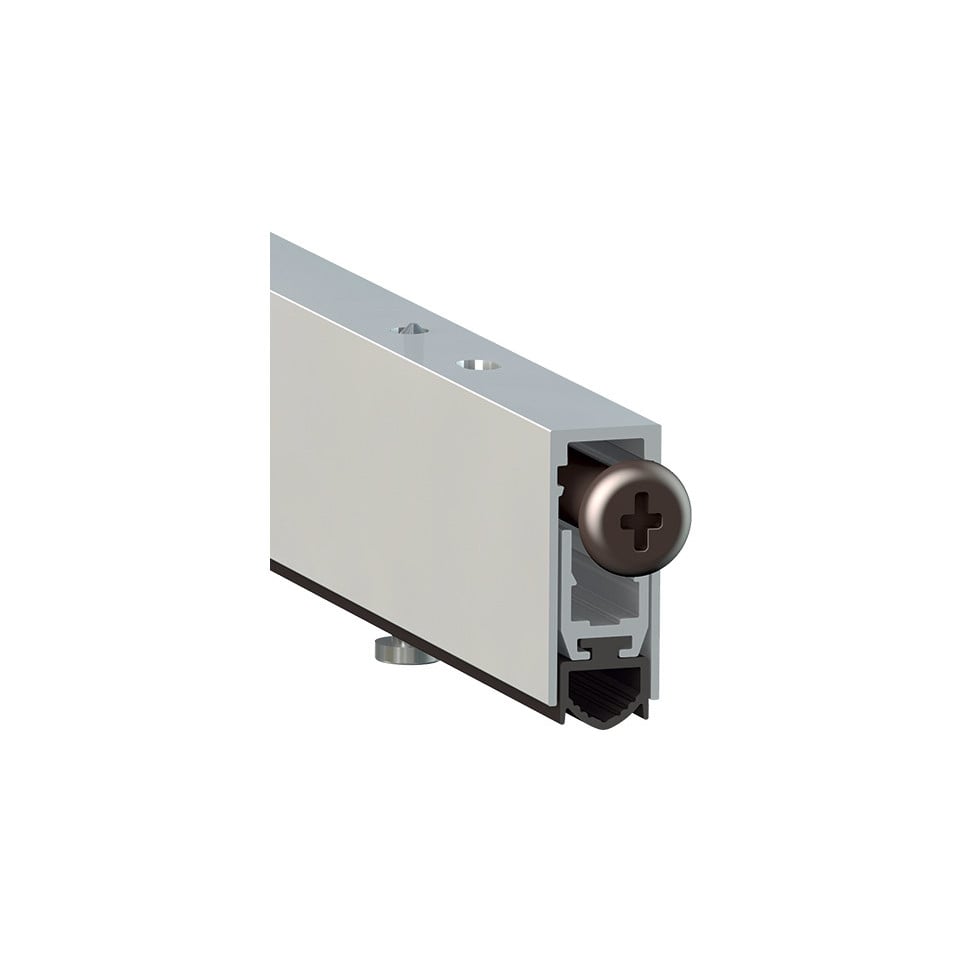

  • Anodized aluminum profile; integrated drop-down seal mechanism with neoprene or similar elastomer gasket [1][5]
  • Sustains frequent operation cycles; suitable for fire-rated and acoustic doors following EN standards [3][8]

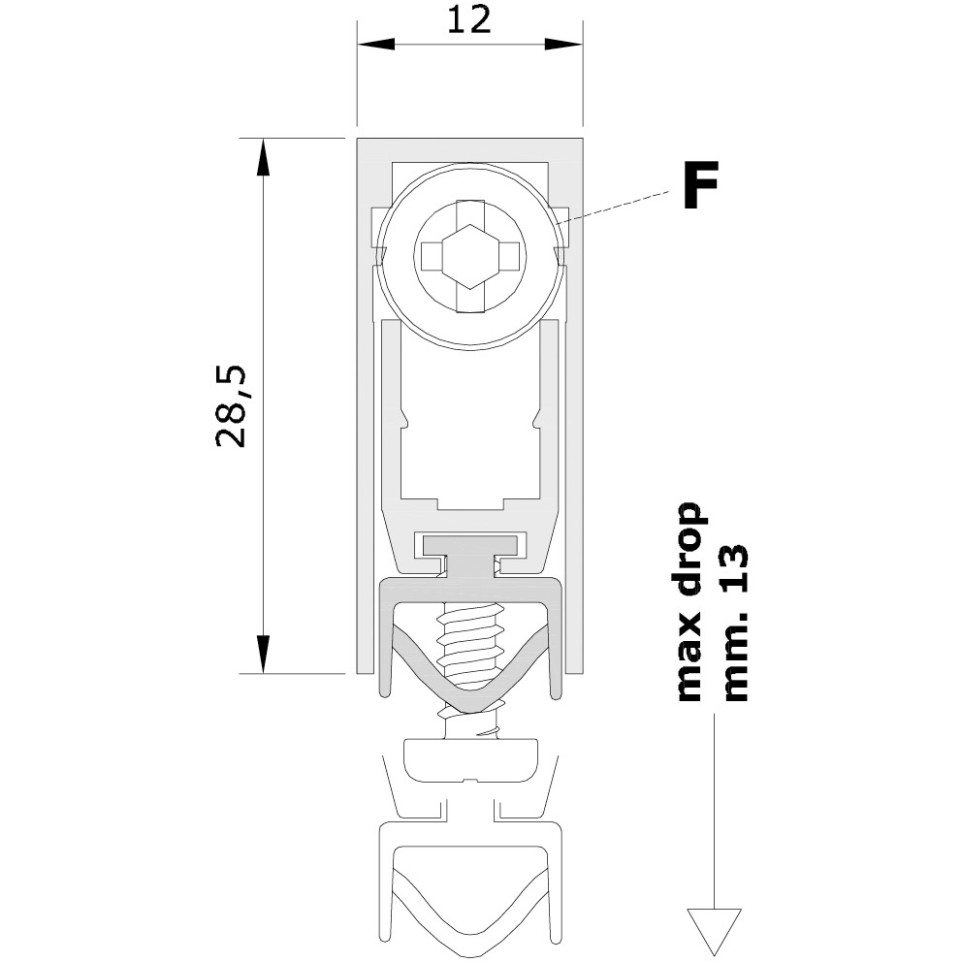

  • Covers gaps up to approximately 15 mm; dimensions: height x width x length = 12 mm x 28.5 mm x 830 mm per piece [1]

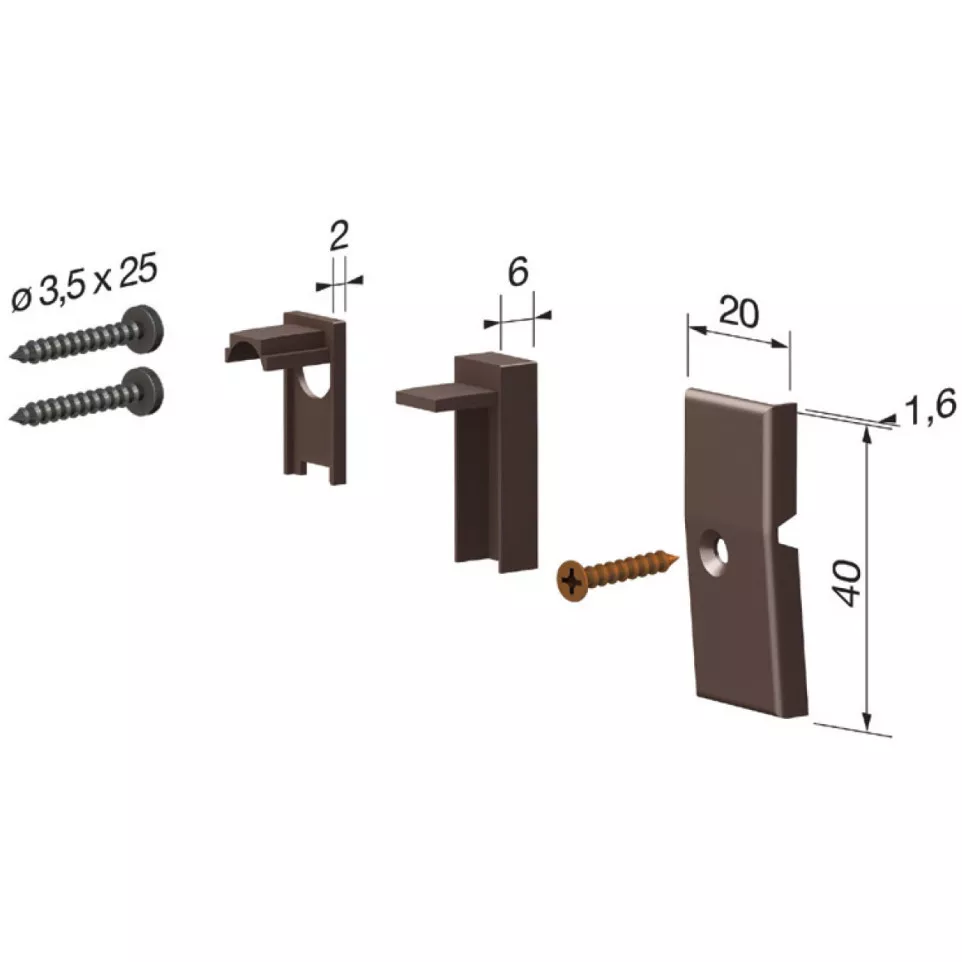

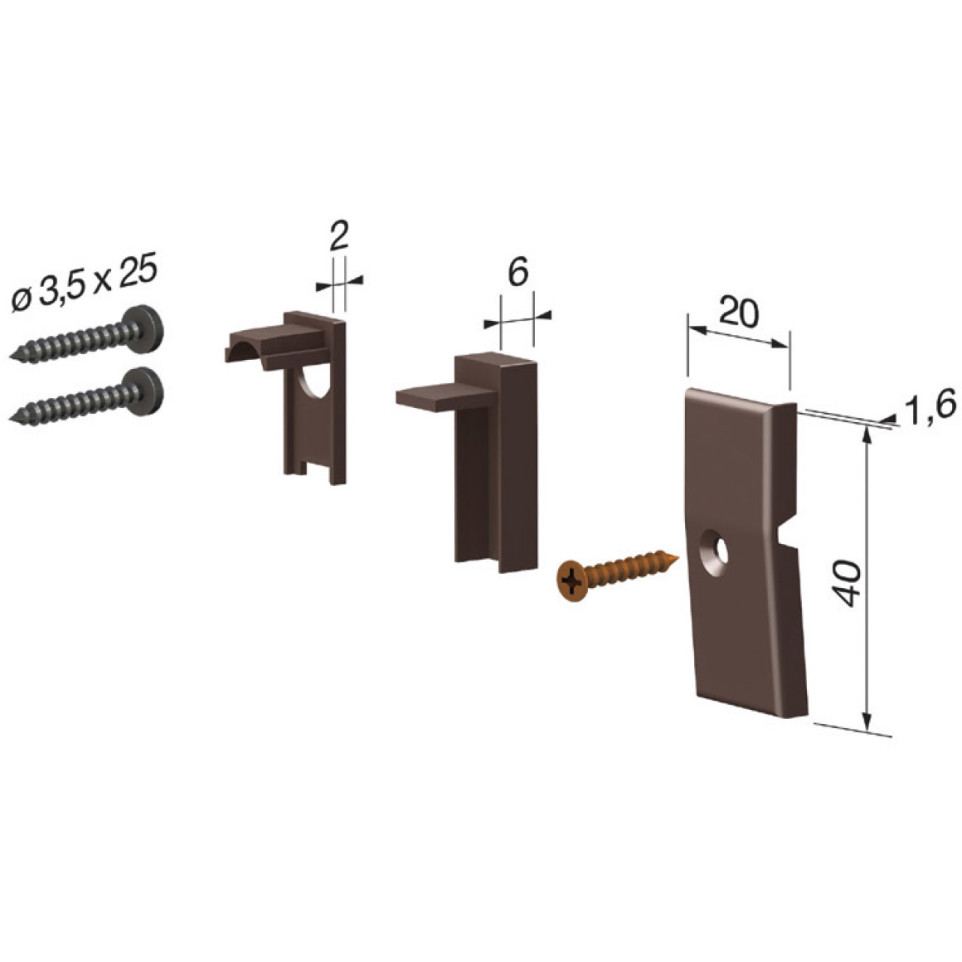

  • Concealed mounting hardware enables a seamless finish without visible screws or brackets [4][8]

How it works

When the door closes, a lateral plunger activates a concealed spring mechanism that drops the sealing bar against the floor. The seal retracts automatically when opened to prevent dragging or wear on floors[1][5].

See more

Product Details

Brand Comaglio
Length (in mm) 830
Stroke ( mm ) 18
Fire resistance (min) 30,00
Noise level (dBA) 43,00
Groove width (mm) 12,00
FGT-1957214
