Usage

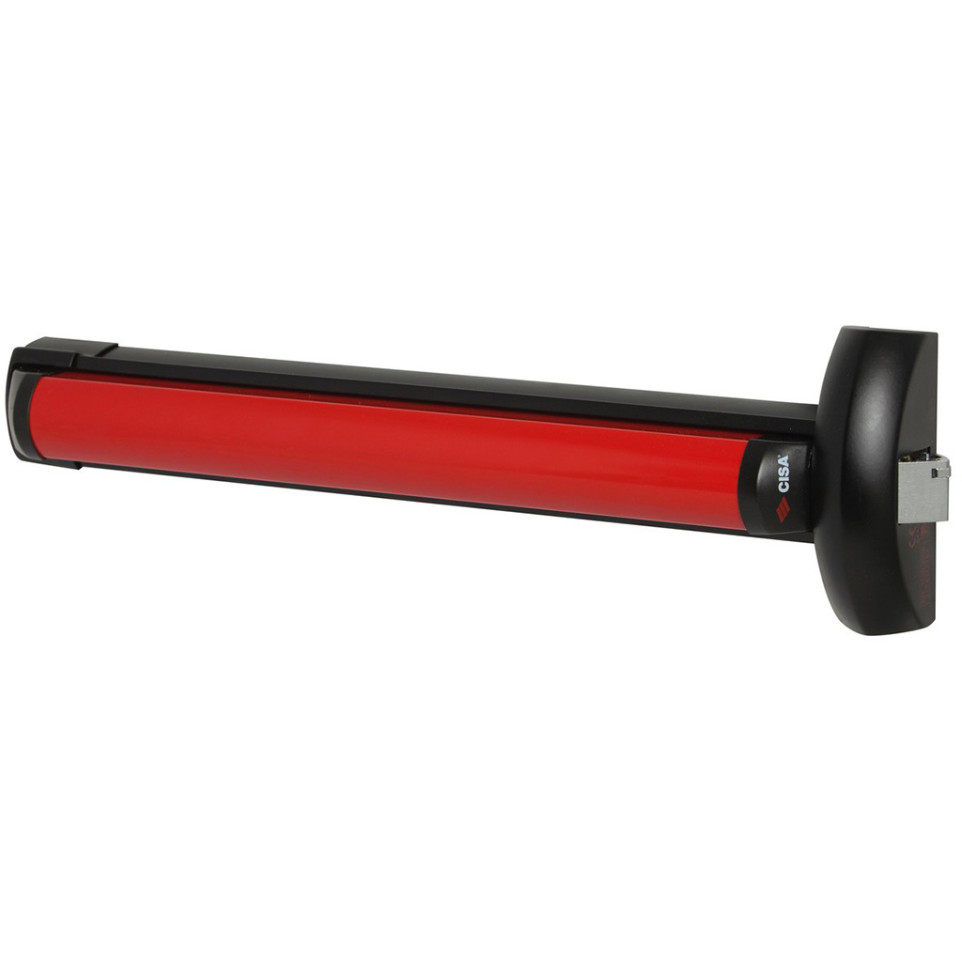

The CISA Fast Touch rim panic bar, 1200 mm in red and black, is designed for rapid and safe emergency exit from public or commercial buildings, allowing quick opening of outward-swinging doors during evacuations.
Advantages
- Tool-free installation ensures quick fitting on a wide variety of door types.
- Tested for durability: over 500,000 operating cycles on doors up to 400 kg.
- Sleek red and black design harmonizes with modern interiors while providing clear visibility in emergencies.
- Noiseless operation thanks to an internal cable mechanism connecting additional locks.
- Clip-on cover allows easy maintenance without needing screws or elaborate disassembly.
Specifications
- Main body made from painted aluminium alloy; painted steel bar can be shortened down to a minimum length of 300 mm if required.
- Certified according to EN1125 standards; CE-marked for use as approved panic exit hardware.
- Tolerates intensive use—tested beyond standard requirements (500,000 cycles with max door mass of up to 400 kg).
- PVD-coated finish resists corrosion; suitable for installation on wood, PVC, composite, aluminium or iron doors. Modular design allows integration with additional locking points or accessories across the CISA Fast range.
How it works
The user pushes the full-length horizontal bar to instantly disengage the lock and open the door. The device is operable from inside in any situation without keys; external access may be controlled by an optional compatible handle or cylinder lock set. Maintenance is streamlined via a removable clip-on cover for periodic inspection or cleaning.[1][2][6]
