Usage

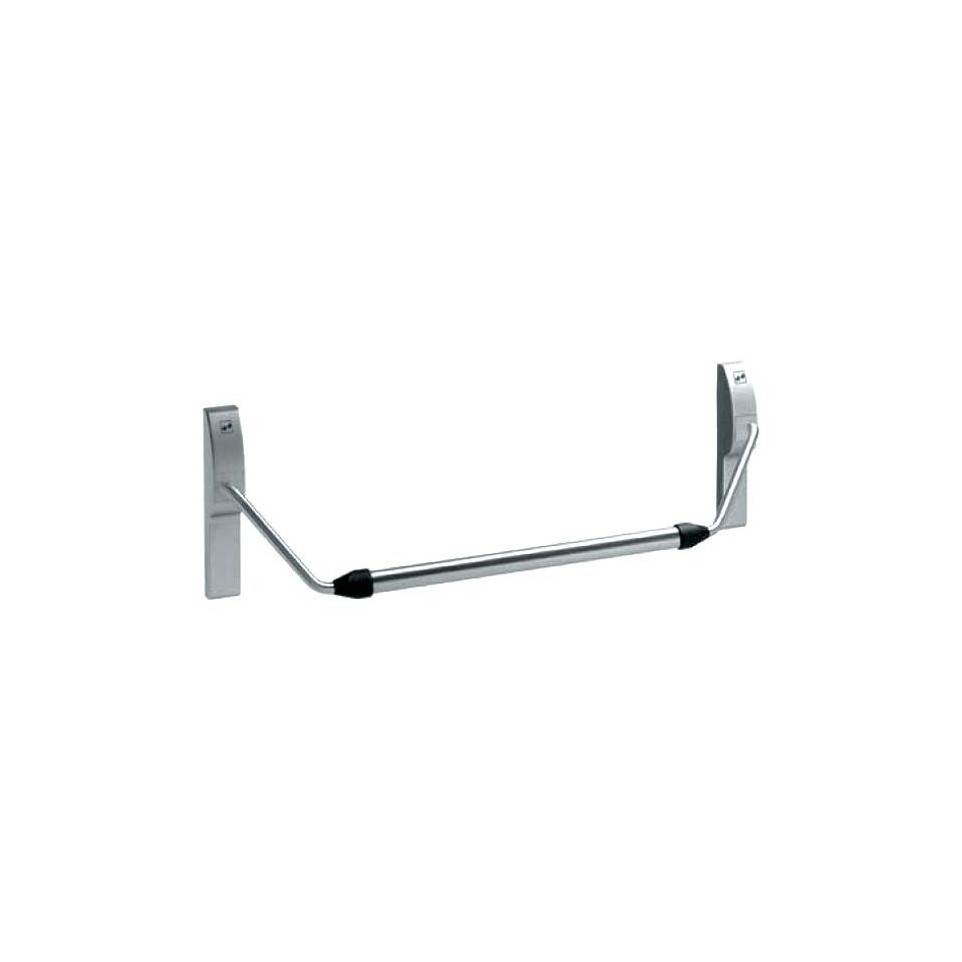

The Assa Abloy series 8000 stainless steel and silver panic bar is designed for secure, rapid exit in emergency situations, specifically for doors equipped with a mortice lock at 92 mm PZ. It suits public and commercial environments where safety compliance is essential.
Advantages
- Complies with EN 1125 standard and CE-marked for guaranteed performance in panic exit scenarios.
- Constructed from stainless steel and robust alloy components, offering enhanced resistance to wear and corrosion.
- Durable design tested up to 500,000 open-close cycles on doors up to 400 kg.
- Sleek appearance with satin or silver finish integrates seamlessly into modern architectural settings.
- Quick installation and clip-on system simplify ongoing maintenance; includes fixing screws and instructions.

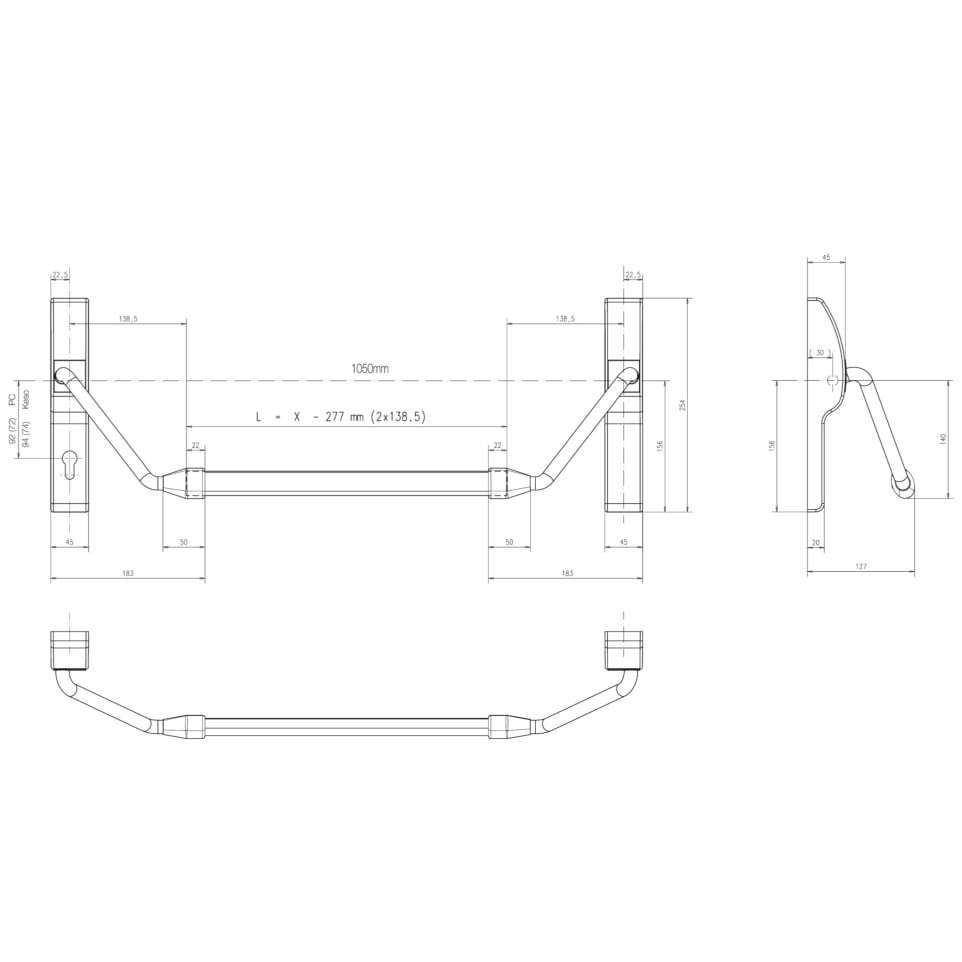

Specifications
- The main bar uses stainless steel or aluminum alloy; external covers are available in inox (stainless) or silver finishes for aesthetics and durability.
- Carries CE certification according to EN1125:2008, ensuring suitability for emergency exits per EU regulations; corrosion resistance rated Class 3 or higher.
- The device operates effectively over at least half a million cycles on doors weighing up to 400 kg; projection limited to a maximum of 150 mm as per standards.[1][6]
- Panic function lock compatibility (for mortice locks at PZ92 mm), non-handed universal design, suitable for single-leaf doors; adjustable length options allow adaptation during installation.[4][6]
How it works
To operate the panic bar from inside, simply press the horizontal bar—this instantly retracts the latch allowing immediate door opening. External access is possible via key or handle if fitted. Maintenance is streamlined by tool-free cover removal.
