Usage

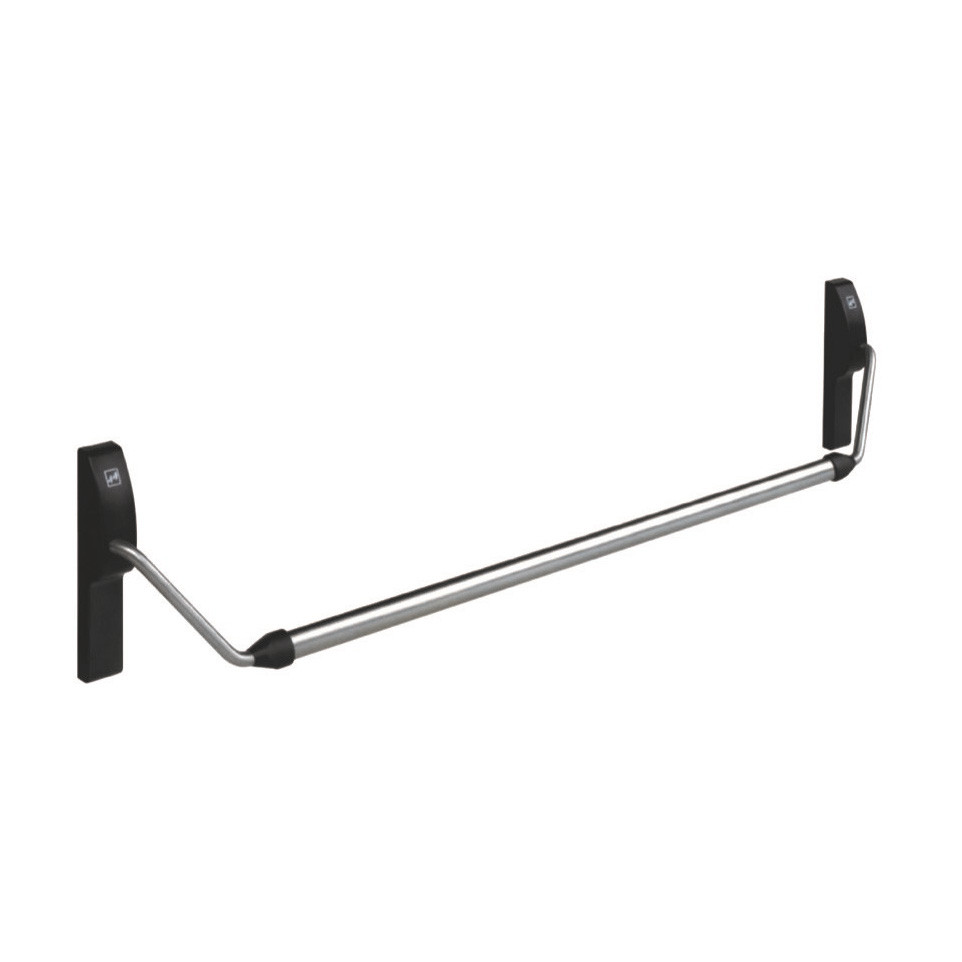

The Assa Abloy série 8000 stainless steel and black panic bar is designed for rapid and secure emergency exits in public or commercial buildings equipped with mortice locks at a 92 mm PZ center distance. It ensures compliance with safety standards in high-traffic environments.
Advantages
- Constructed from brushed stainless steel for enhanced strength and corrosion resistance[1].
- Composite housing combines durability with a modern, discreet appearance[1].
- The push bar measures 1000 mm and can be cut to fit various door widths, increasing installation flexibility[1][8].
- Carries EN 1125 certification for reliable performance on escape routes, meeting European safety requirements[1][6][8].
- Supplied complete with installation hardware; external fittings ordered separately as needed[1].
Specifications

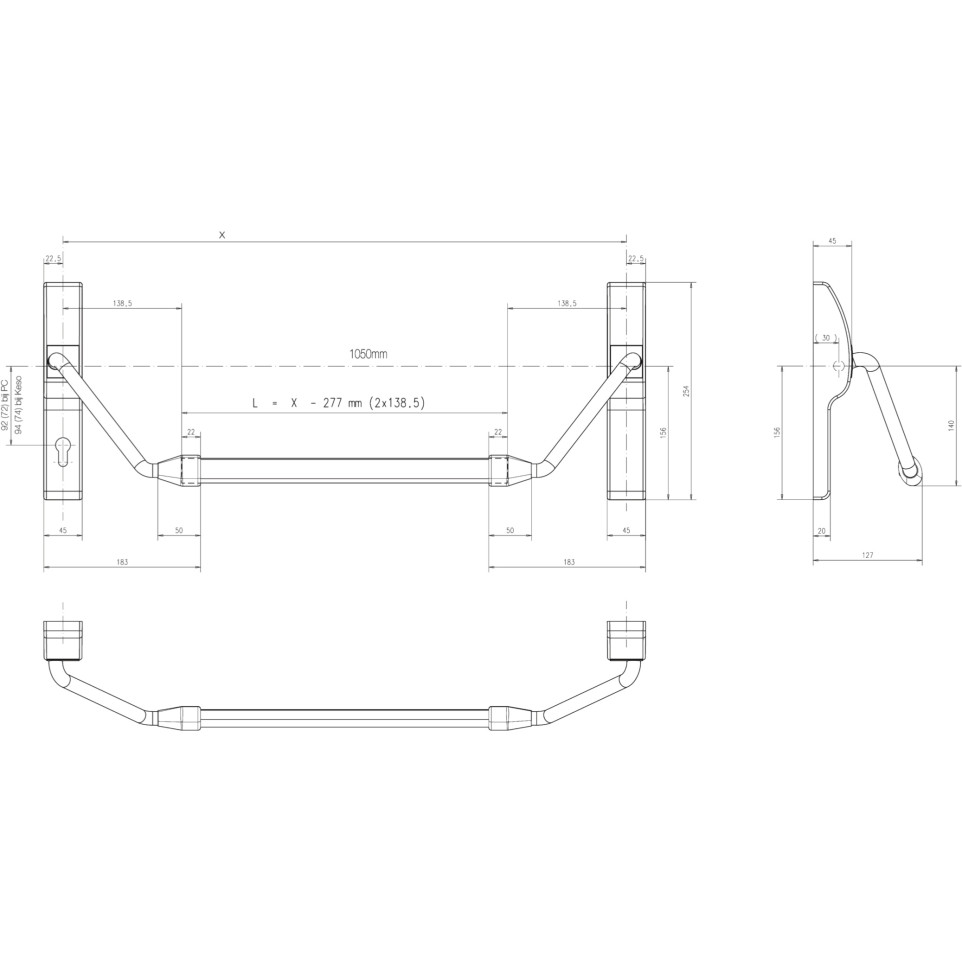

- Design: Brushed stainless steel push bar with black composite housing. Bar length: 1000 mm (field adjustable)[1][8].
- Durability: Certified to EN 1125; suitable for use on fire doors; high resistance to corrosion (Class 3/4)[6][8].
- Performance: Suitable for installation distance of PZ 92 mm mortice locks. Field-shortenable push bar fits diverse applications; supports heavy usage.
- Differentiators: Non-handed design allows versatile mounting. Supplied with fixing screws and pins required for most installations[1][8]. External operation available via separate handle or key units.
How it works
The panic bar operates by simply pressing the horizontal stainless steel rail, which retracts the latch of the connected mortice lock, enabling swift opening of the door during emergencies. Installation aligns easily with standard Euro profile cylinders at a PZ 92 mm center distance.[1][8]
