Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Usage

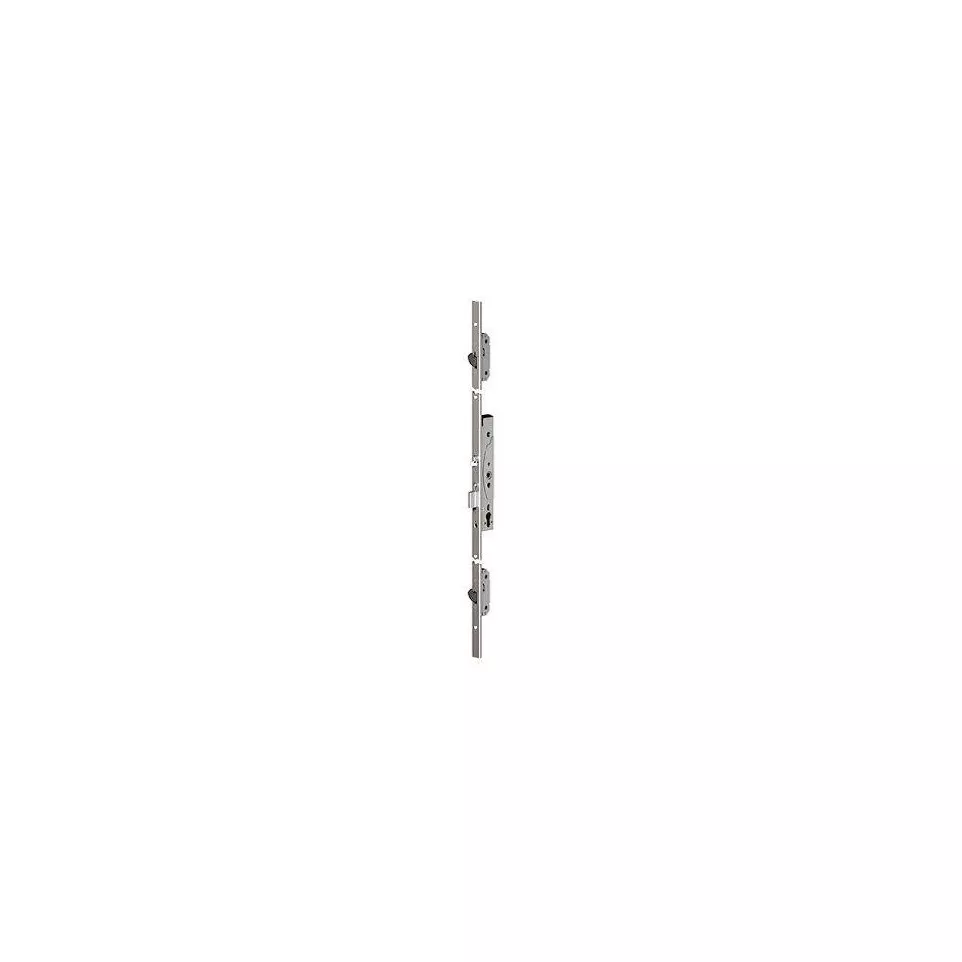

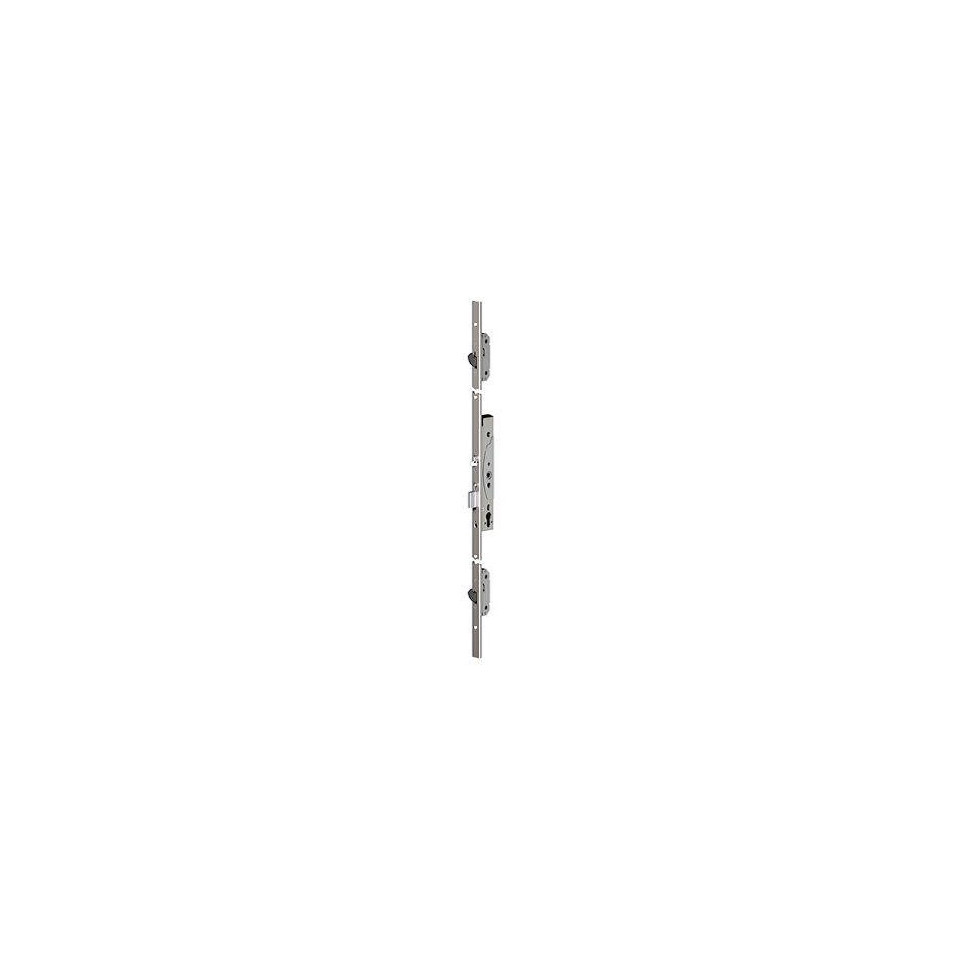

The Abloy EL466 solenoid multipoint lock is designed for secure access control on medium-traffic profile doors, such as those in offices, public buildings, or maintenance rooms. It enables controlled entry while ensuring mechanical safety standards.
Advantages
- Electrically controlled outside handle for integration with access control systems
- Mechanical inside handle always allows exit for safety compliance
- Multipoint locking: main deadbolt plus two auxiliary hook bolts enhance security
- Flexible configuration: switchable between fail-locked and fail-unlocked operation modes
- Suits both fire-rated and exit doors; certified to EN14846, EN179 and EN1125 standards
Specifications

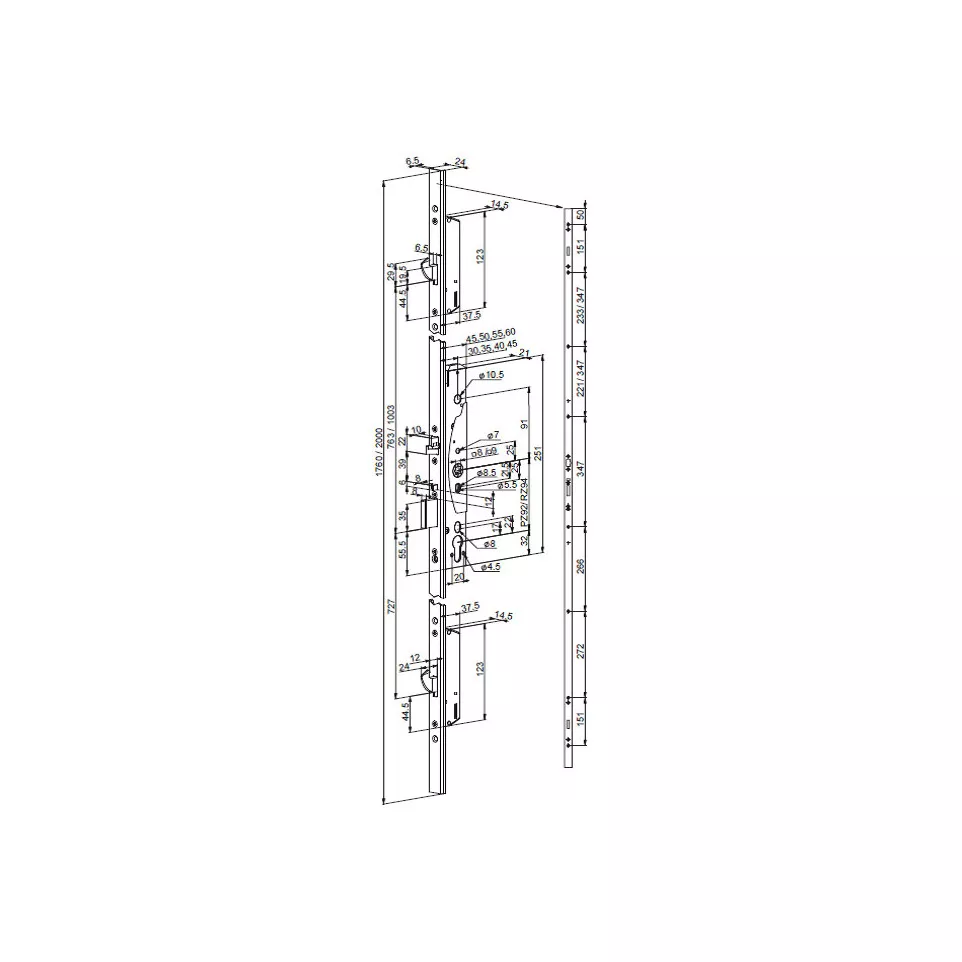

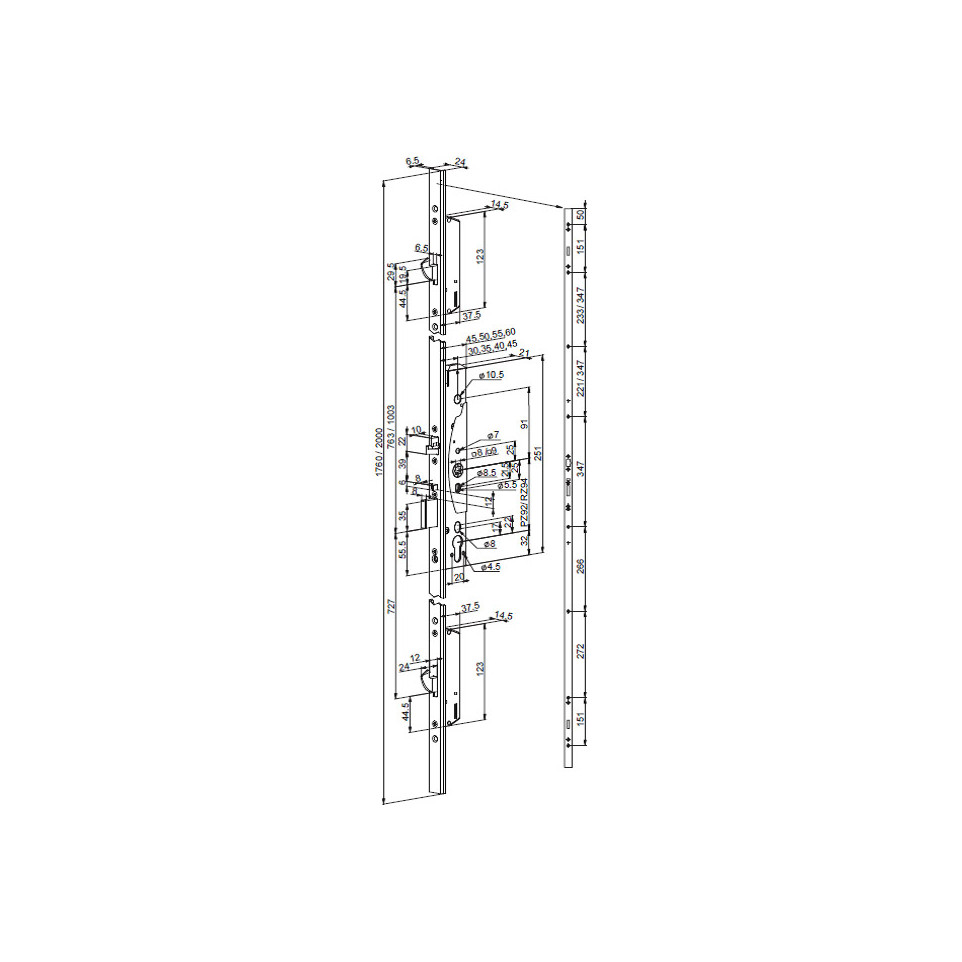

- Design: Europrofile DIN standard lock case with U-shape (for metal) or flat (for wood) forend; non-handed installation; modular spindle system.
- Materials/Technologies: Solenoid actuation, robust steel construction; compatible with Abloy mechanical cylinder override.
- Sustainability/Certifications: Certified to EN14846 (electric locks), EN179 (emergency exits), and EN1125 (panic exits); suitable for fire-rated door installations.
- Performance: Operating voltage range: 12–24 VDC; current draw at idle: max. 240 mA @12V /130 mA @24V; max. bolt throw: deadbolt – 20 mm, hook bolts – 24 mm.
- Differentiators: Integrated monitoring contacts provide real-time status signals Mechanical cylinder override option Modular setup enables adaptation to different door environments Adjustable handing and function directly on the lock case Supports split spindle configurations.
How it works
The EL466 unlocks its outside handle electrically when authorized via an access control system. Engaging the handle retracts all locking points simultaneously. The inside handle always opens mechanically, supporting safe egress even during power outages or emergencies. Monitoring contacts can relay status information to building management systems.
