Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Product

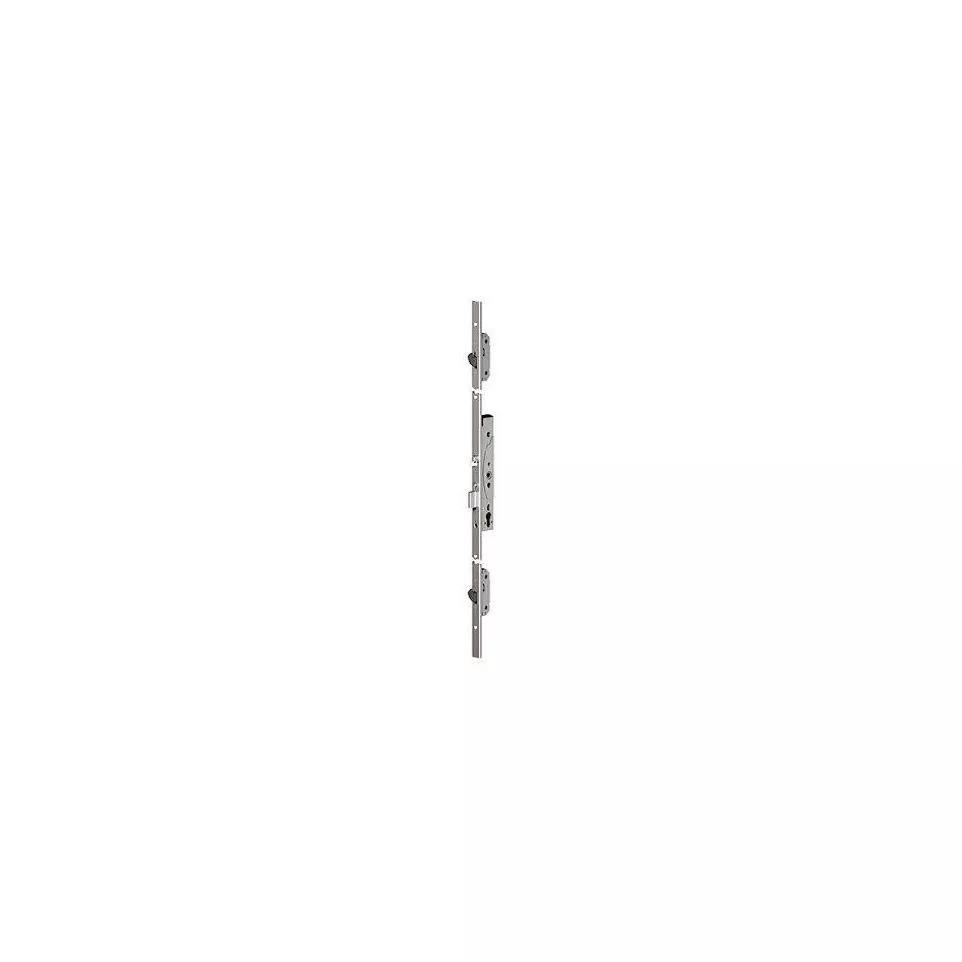

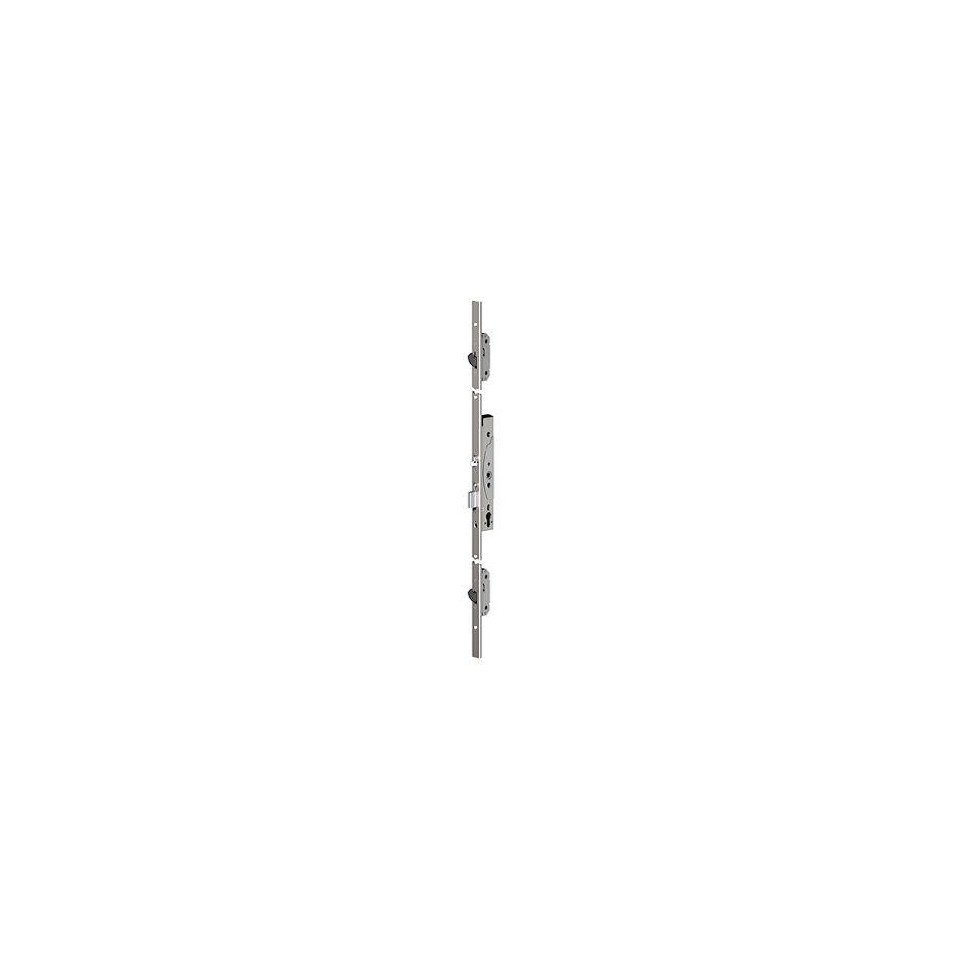

The Abloy EL466 is a modular, solenoid-operated multipoint lock designed for high-security applications on exterior and interior doors. It enables electric control of the exterior handle while ensuring mechanical override and emergency escape from the inside.
Specifications
- Robust construction with a sealed steel case and reinforced chrome-plated steel faceplate
- Modular multipoint locking: deadbolt plus two automatic spring-loaded hook bolts
- Compatible with European profile cylinders, reversible for left/right doors
- Split spindle system supports one-sided handle control and panic function
- Operating voltage: 12–24 V DC; consumption: 550 mA at 12 V, 270 mA at 24 V
- Center distance: 92 mm; backset: 35 mm (other options available)

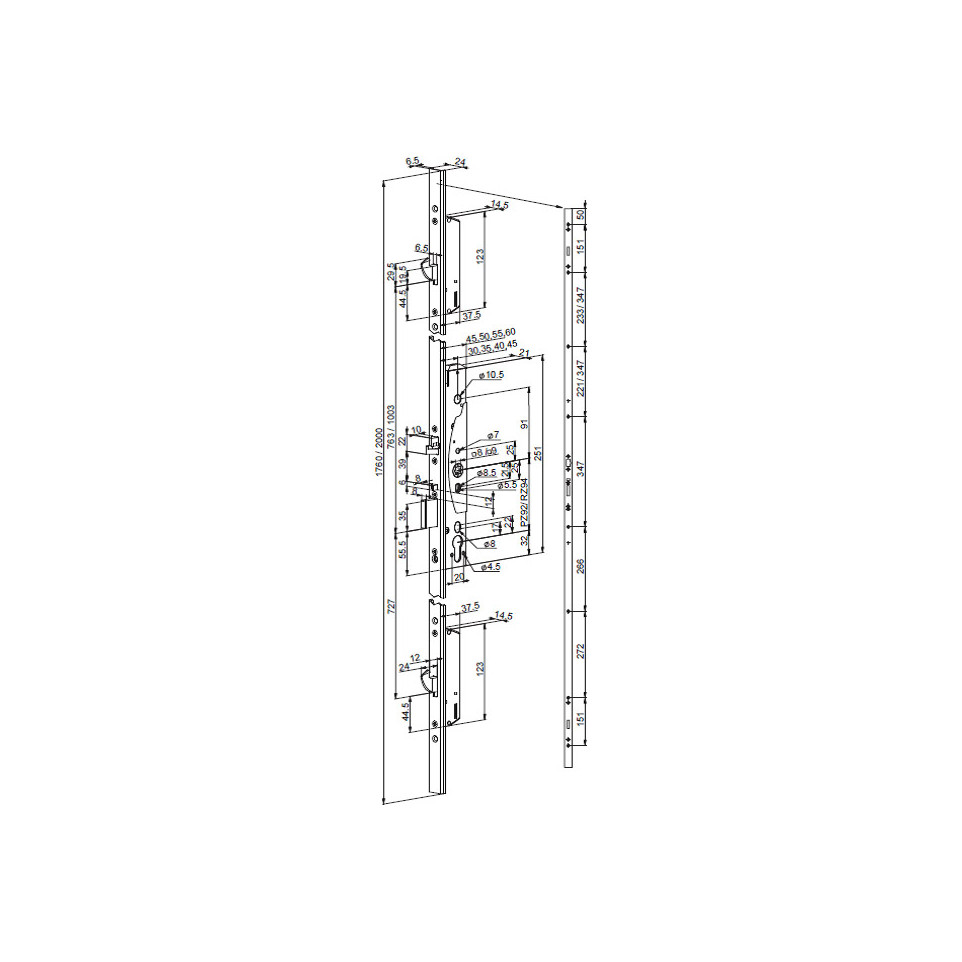

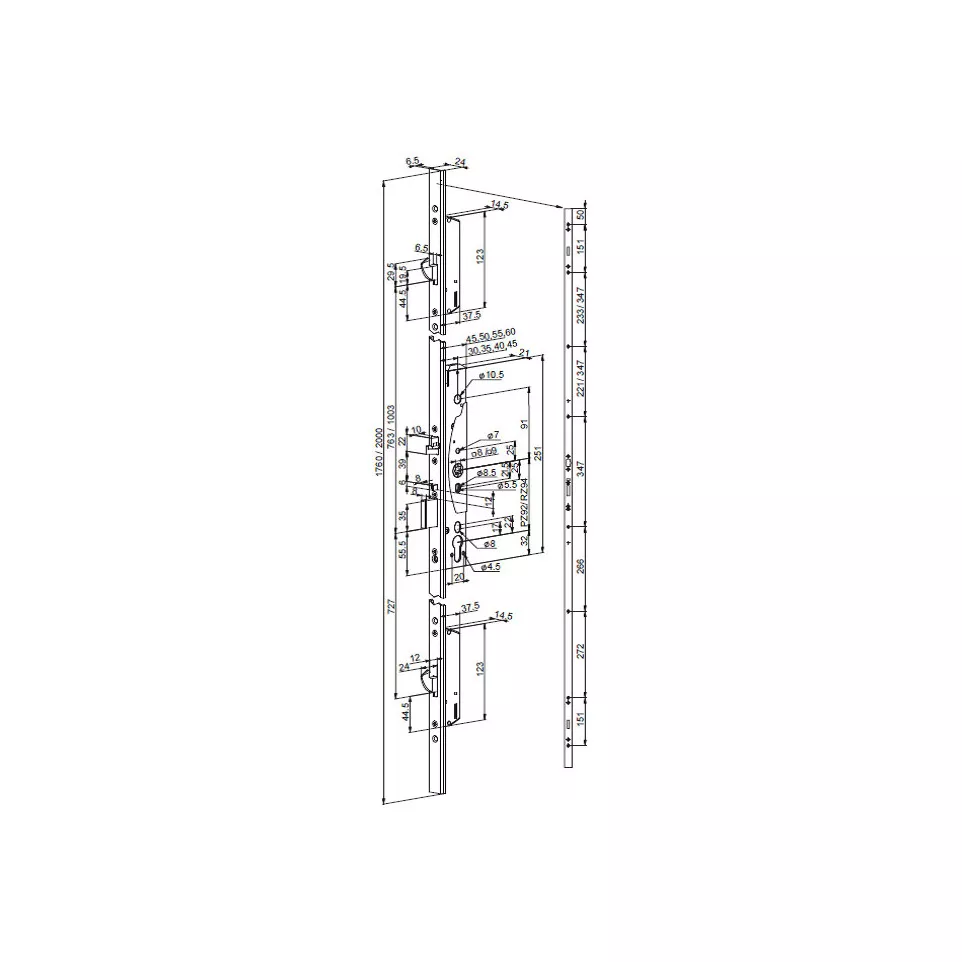

- Faceplate: 1760/2000 × 24 × 6.5 mm; case: 254 × 50 mm
- Signals for bolt status, handle/cylinder operation, and door position
- Certified to EN 12209 (security class 6), EN179, EN1125, SKG***, CE, and Benor/atg RF 30’/60’ fire standards
- Suitable for use on fire doors, with a lateral resistance of 10 kN
Usage
The EL466 provides electric unlocking of the exterior handle via impulses from access control devices such as badge readers or keypads. It can be configured for fail-safe or fail-secure operation. The interior handle always enables mechanical egress, and the lock features automatic deadbolt locking and multipoint security regardless of power state.
FAQ
-
Can the EL466 be used on fire doors? Yes, it is certified for fire resistance (Benor/atg RF 30’/60’) and suitable for fire-rated door assemblies.
-
Is the lock reversible for left or right-handed doors? The lock is fully reversible for both left and right opening with simple mechanical adjustment.
-
How is the exterior handle controlled? The exterior handle is electrically controlled and activated or deactivated by an external access control signal; the interior always allows mechanical exit.
-
Does the lock support emergency exit functions? Yes, the panic function ensures free egress from the inside at all times, compliant with EN179 and EN1125 standards.
-
What monitoring features are included? The lock provides status signals for the bolt, handle use, cylinder use, and door position, supporting integration with building management or security systems.
