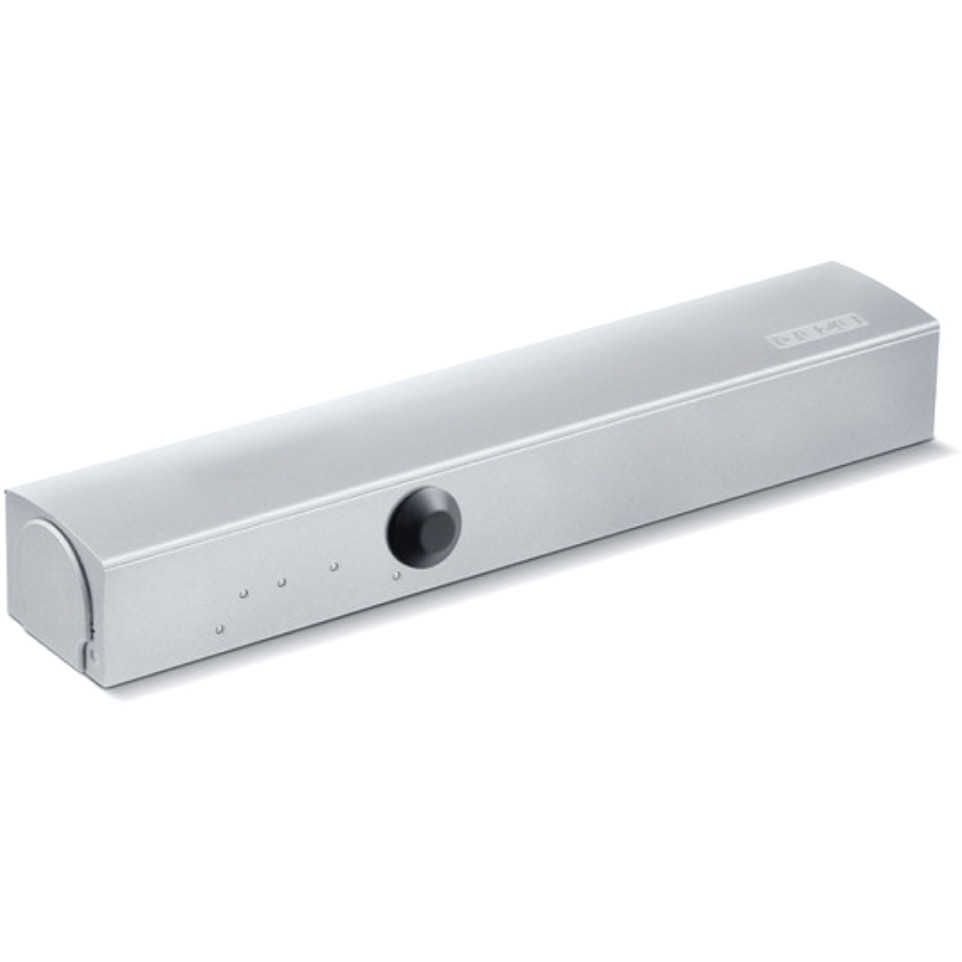

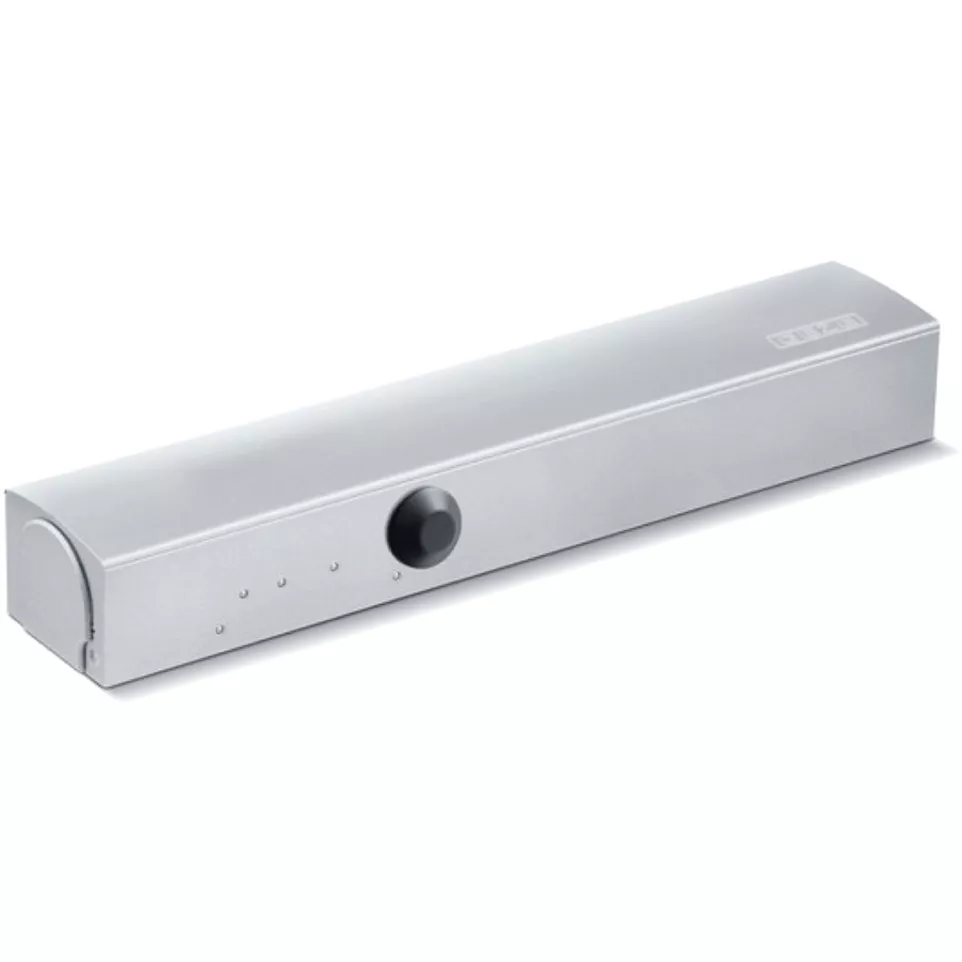

GEZE TS 4000 E Overhead Door Closer Silver Without Arm (Reverse Mounting) / pc

GEZE TS 4000 E Overhead Door Closer Silver Without Arm (Reverse Mounting) / pc
GEZE TS 4000 E Overhead Door Closer Silver Without Arm (Reverse Mounting) / pc
GEZE TS 4000 E Overhead Door Closer...
GEZE TS 4000 E Overhead Door Closer...

Estimated delivery date :  Wednesday 5 August
€1,096.43 HT

Ref : FGT-136241

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

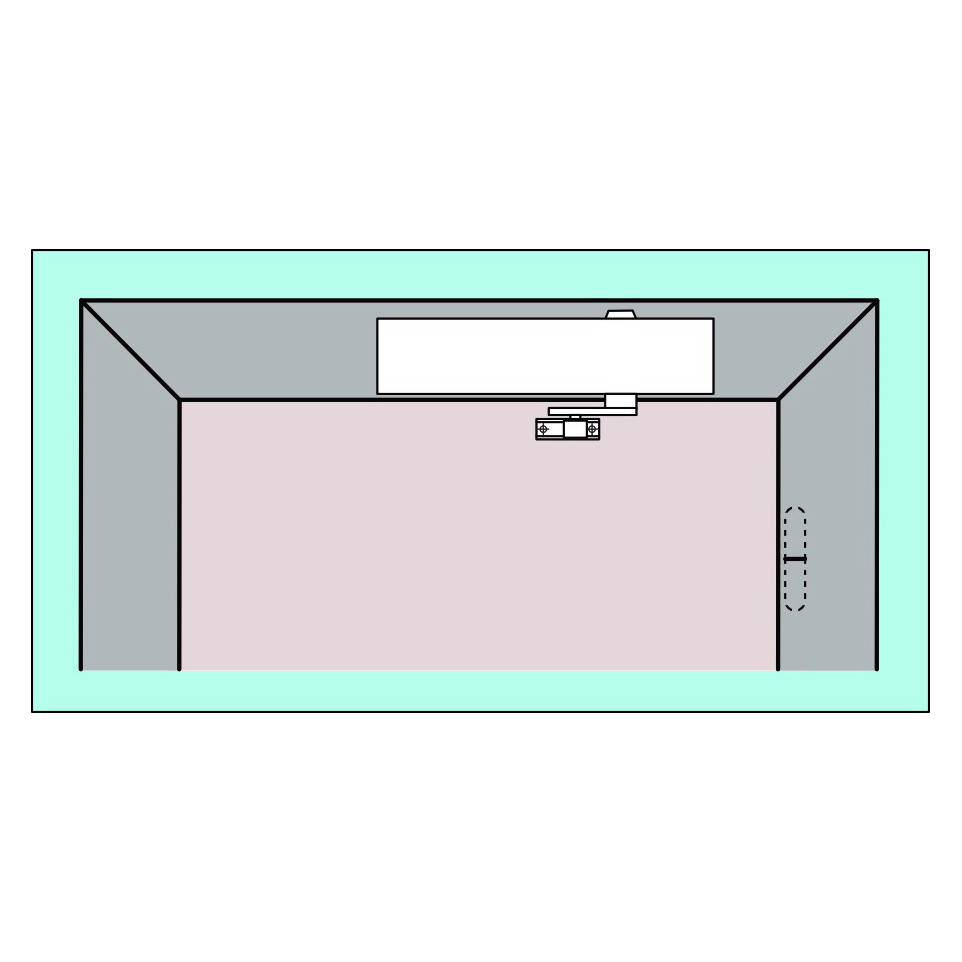

The Geze TS 4000 E Overhead Door Closer in silver is designed for concealed reverse mounting, with installation exclusively on the side opposite to hinges—closer body on the frame and arm on the leaf. It suits single action doors up to 1400 mm wide in commercial or public buildings.

Specifications

  • Rack and pinion mechanism with elliptical gear and integrated electro-hydraulic hold-open device within EN 1155; hold-open range between 80° and 180°
  • Continuous force adjustment EN 1–6 via frontal screw with optical indicator; closing speed and latching action adjustable, all fixings concealed by a slightly curved front plate
  • Security valve for both opening and closing directions; operating voltage 24 VDC
  • Standard link arm for TS 4000 E, freeswing arm for TS 4000 EFS variant; in fire alarm scenarios, the hold-open function releases for secure closing
  • Certified to EN 1154: 1996 + A1:2002 and EN 1155: 1997 + A1:2002; fire resistance rated to 120 minutes; Certifire approved
  • Compatible with door leaves up to 1400 mm width and up to 180 kg weight
  • Silver aluminium construction; mounting plate available

Usage

Install the TS 4000 E only on the side opposite the hinges, with the body on the door frame and the arm attached to the leaf. Adjust settings using the front screw and indicator. During daily use, the device can hold the door open at the desired angle; in a fire, power is cut to release the hold-open function and ensure the door closes securely.

FAQ

  1. Can this closer be used on both right and left-hand doors?
    Yes, it is suitable for both right and left single-action doors when installed on the side opposite the hinges.

  2. What is the maximum door size and weight supported?
    It supports doors up to 1400 mm wide and up to 180 kg.

  3. Does it have a fire rating?
    Yes, it is fire-rated up to 120 minutes, ensuring compliance for most fire door installations.

  4. How is the hold-open function controlled?
    The integrated electro-hydraulic mechanism holds the door open between 80° and 180°; in case of fire, the hold-open releases automatically for safe closure.

  5. Are adjustments visible or concealed?
    All fixing and adjustment screws are hidden by a slightly curved front plate for a clean appearance.

mvm-dt-2025-07-07

See more

Product Details

Brand Geze
Finishing argent
Voltage (V) 24 V DC
Product Dimensions 60 x 325 x 46 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 1-6
Leaf width (mm) 1400
Max. weight of leaf (kg) 120 Kg
For interior door oui
Operation technology à pignon et crémaillère
For door ext. opening outwards. non
Opening brake non
Max. opening angle on hinges 180°
Late Close non
Max. opposite opening angle hinges non communiqué
Type of opening function simple action
Adjustable closing speed oui
FGT-136241
