Insulating Mass 2300 0.5 kg for Floor Door Closer per Piece
€46.58
In stock
Usage

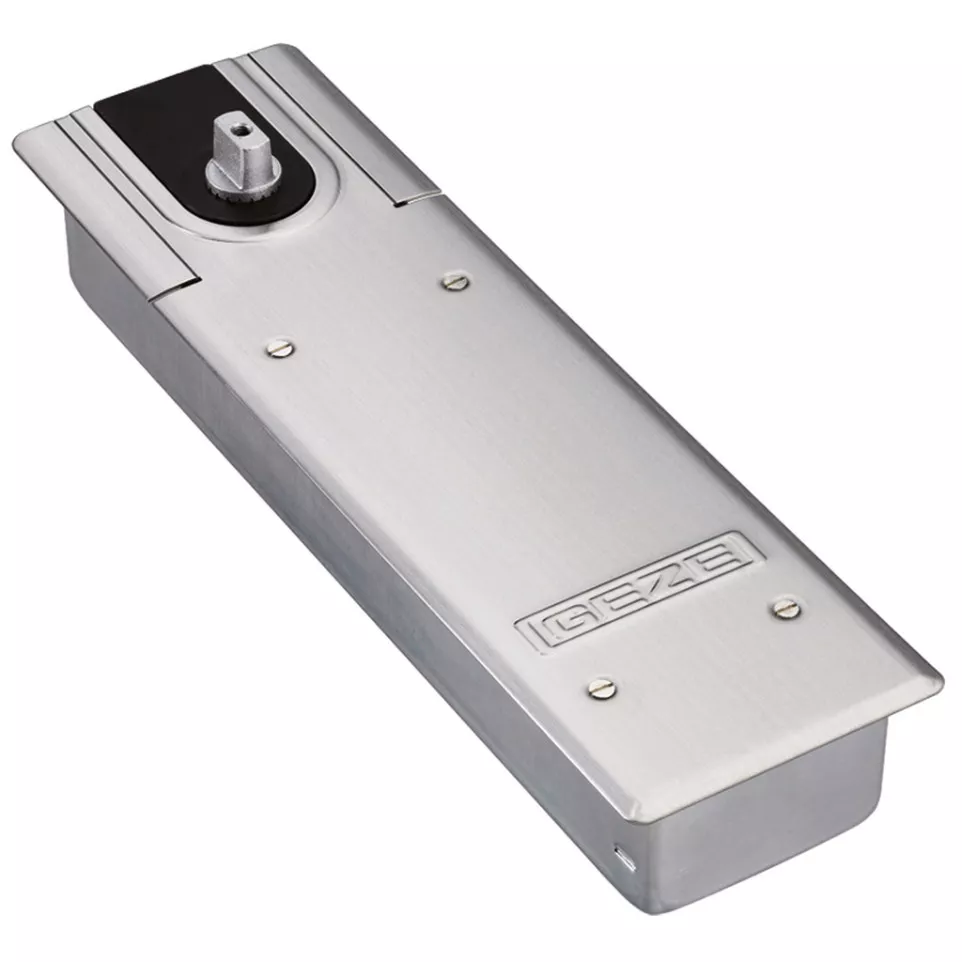

The Pivot de sol Geze TS 550 NV EN 3-6 + axe (arrêt débrayable) is designed for concealed installation in heavy single or double action doors, up to 1,400 mm wide and weighing up to 300 kg. Ideal for high-traffic commercial entrances and institutional buildings.
Advantages
- Continuously adjustable closing force from EN 3 to EN 6 ensures precise adaptation for various door weights and usage conditions.
- Integrated mechanical hold-open function with an adjustable range of approximately 80°–165°, which can be engaged or disengaged as required.
- Accessible top-side adjustment for closing speed, latching action, back check, and delayed closing simplifies commissioning and maintenance even after installation.
- Tested durability with a lifespan exceeding one million opening/closing cycles under intensive use standards.
- No cover plate included; must be specified separately if required by project aesthetics or protection needs.
Specifications
- Robust design with reinforced components; optimized for floor integration in both swing (double-action) and single-action doors without visual surface hardware interference.
- TUV tested to meet EN1154 standards (classification: EN3-6), compatible with EI60 fire resistance when combined appropriately; non-fire-rated version supplied here.
Conforms also to DAS NFS61937 when used with external magnet device.
Dimensions: approx. H82 × L342 × P54 mm[4][7]. - Bespoke performance supports doors up to max. width of 1,400 mm and weight of up to max.300 kg.
Maximum opening angle reaches about170°, fixed opening damping built-in[4][5]. All major adjustment functions accessible from above the installed unit.[4]
- No cover plate included; product delivered complete with axle but without finishing plate—suitable where visual minimalism beneath the door is desired or custom finishing plates are used.
How it works
This concealed floor spring uses hydraulic technology: as the door opens, energy is stored in an internal spring mechanism. On release, hydraulic controls manage a smooth return motion at adjustable speeds while optional hold-open keeps the door at set angles until disengaged[1][5]. All adjustments are performed from above after installation for easy maintenance access[1][4].
