GEZE TS 4000 E Door Closer Body Without Arm Silver (Standard Mounting) / pc
€1,169.89
Usage

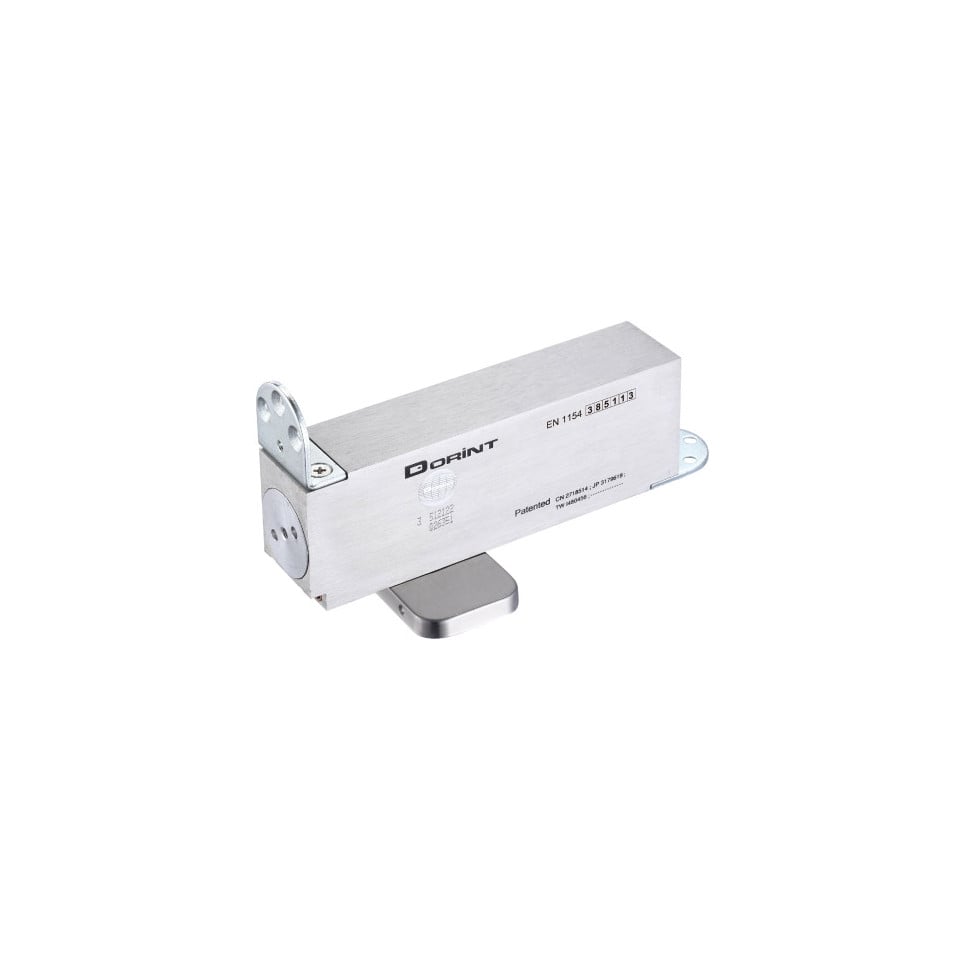

The Dorint DFG895 hydraulic door pivot without hold-open is designed for concealed installation at the bottom of swing doors, ensuring smooth and controlled closing in commercial or public buildings where discreet, reliable operation is required.
Advantages
- Hydraulic braking system ensures safe and precise door closing.
- Concealed installation preserves the door’s aesthetic appearance.
- Suits double action doors up to 1250 mm wide and 150 kg in weight.
- Tested for fire doors; certified according to EN1154 standards.
- Bidirectional floor plate adjustment simplifies alignment during installation.
Specifications
- Came-operated hydraulic mechanism; embedded at the bottom of the door leaf; brushed stainless steel cover included.
- Lifespan tested up to 500,000 cycles; conforms to EN1154 certification for standard and fire-rated applications.
- Maximum leaf width: 1250 mm; maximum weight: 150 kg; force class EN5. Closing speed adjustable in two zones (150°–10°, then from 10°–0°).

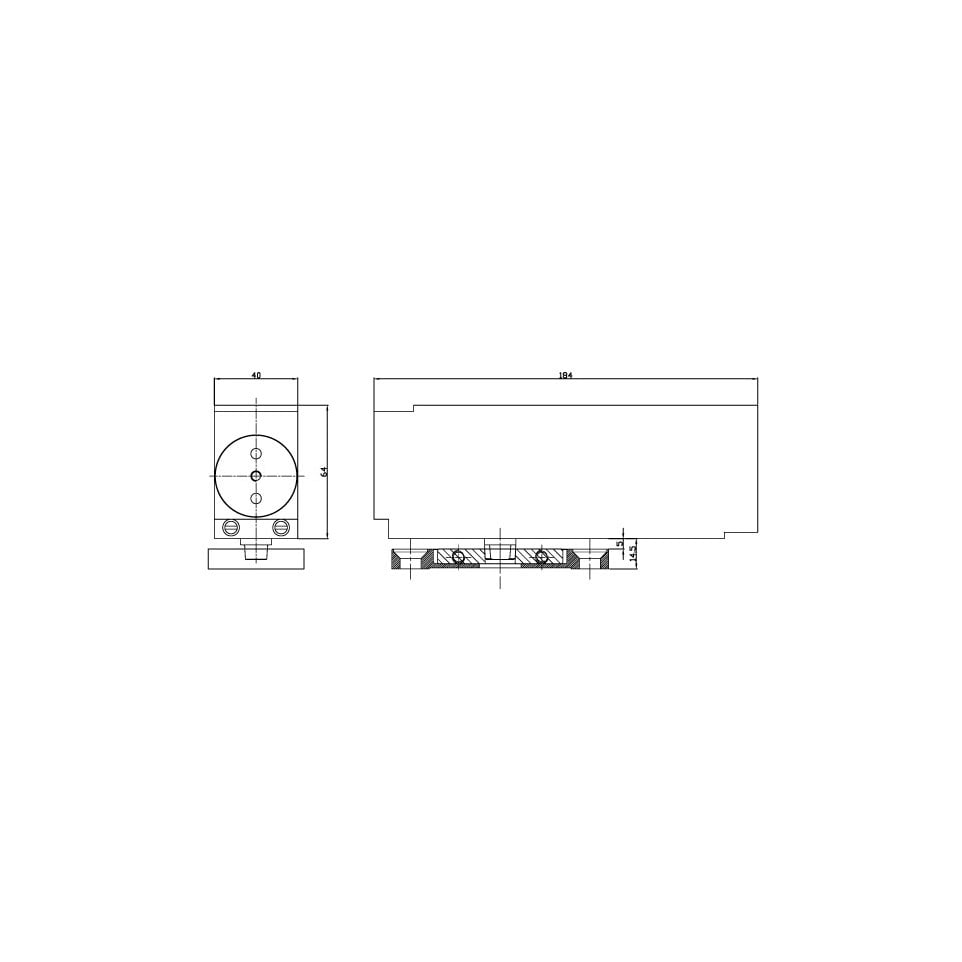

- Double-action opening capability with minimum required door thickness of at least 50 mm. Installation dimensions: height x length x depth – 64 x 184 x 40 mm. Bi-directional floor plate adjustment (+/- 2 mm).
How it works
The pivot is mortised into the base of a swing door. During operation, its internal cam-driven hydraulic system controls movement in both directions, providing dampened closure with adjustable speed across two different angular ranges for enhanced safety and efficiency.
