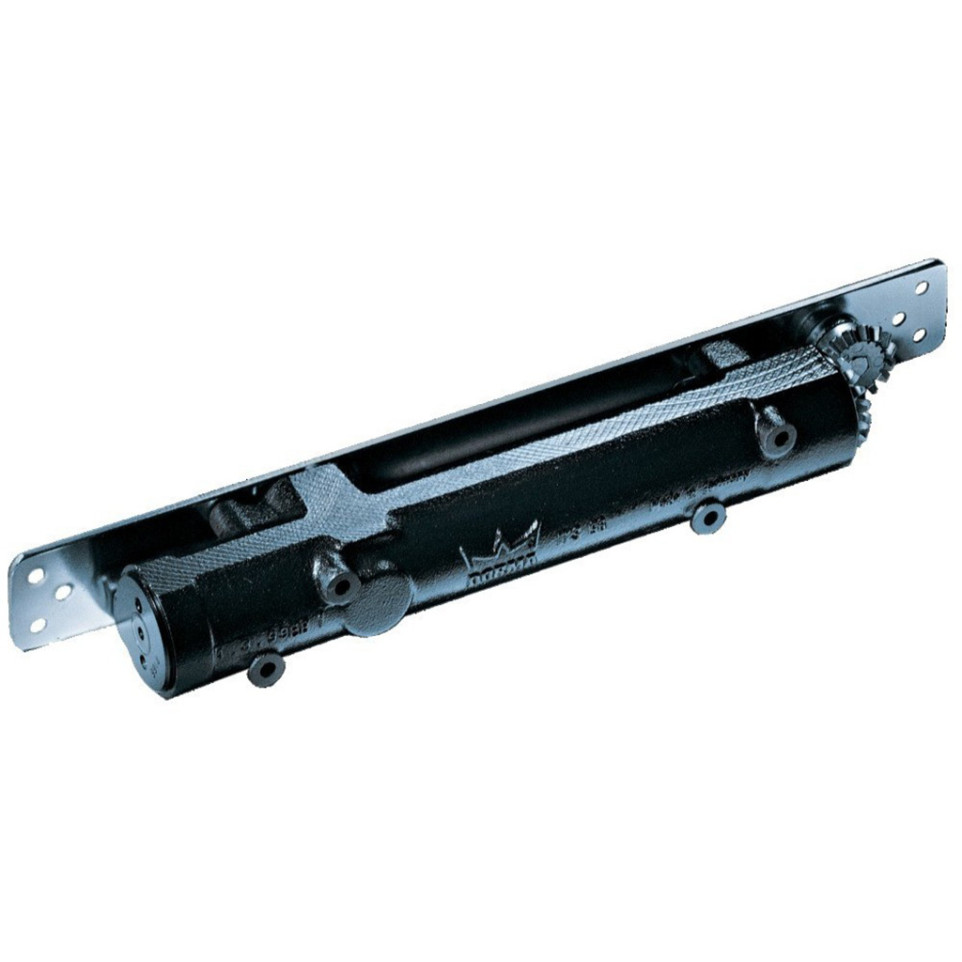

DORMA ITS96 Concealed Door Closer for Leaf or Frame Installation EN 2-4 Raised Spindle 8mm Without Arm per piece

DORMA ITS96 Concealed Door Closer for...

Estimated delivery date :  Thursday 6 August
€323.26 HT

Ref : FGT-135458

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

The Dorma ITS 96 concealed door closer offers seamless, invisible integration within the door leaf or lintel, making it ideal for applications requiring discreet door automation on single or double-leaf doors. Suitable for both left- and right-handed doors, it is engineered for multifunctional use in commercial and architectural environments.

Specifications

  • Compact cam-action closer with hydraulic damping, designed for doors from 40 mm (EN 2-4) or 50 mm (EN 3-6) thickness
  • Reversible for left- or right-handed doors; concealed installation within door leaf or frame
  • Dimensions: 42 x 32 x 277 mm (EN 2-4); 51 x 39.5 x 291 mm (EN 3-6)
  • Adjustable closing force: EN 2-4 for up to 1100 mm-wide doors; EN 3-6 for up to 1400 mm-wide doors
  • Continuously adjustable closing speed (120° to 7°) and adjustable final latch action (7° to 0°)
  • Mechanical hold-open limiter in the slide rail, adjustable up to 120°, protects doors and walls
  • Certified to EN 1154:2003-04, ISO 9001; fire and smoke check approved
  • Accessory spindle heights: 8 mm (standard), 4 mm, and 8 mm options for various door/frame gaps

Usage

The closer is built for invisible embedding in doors or frames and suits internal fire, smoke, or standard doors. Installation allows for adjustable closing force and speed, ensuring smooth operation regardless of temperature fluctuations. Mechanical limiters and optional accessories accommodate various installation scenarios.

FAQ

  1. Is the Dorma ITS 96 suitable for fire and smoke doors?
    Yes, it is certified for use on fire and smoke check doors according to EN 1154:2003-04 and ISO 9001 standards.

  2. Can the closer be installed on both left- and right-handed doors?
    Yes, it is fully reversible and can be mounted for both left- or right-handed doors without modification.

  3. What is the minimum door thickness required for installation?
    The minimum door thickness is 40 mm for EN 2-4 applications and 50 mm for EN 3-6 applications.

  4. How is the closing force and speed adjusted?
    Both are continuously adjustable via an accessible screw at the top of the unit, enabling fine-tuning after installation.

  5. Are special versions available for single or double-leaf doors?
    Yes, for double-leaf systems, the combined door width must be at least 1450 mm, and specific spindles or accessories are available for optimal fit.

mvm-dt-2025-07-07

See more

Product Details

Brand Dorma
Finishing argent
Product Dimensions 39,5 x 291 x 51 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 3-6
Leaf width (mm) 1400
Max. weight of leaf (kg) 180 Kg
For interior door oui
Operation technology à came en forme de coeur
For door ext. opening outwards. non
Opening brake non
Max. opening angle on hinges 120°
Late Close non
Max. opposite opening angle hinges 120°
Type of opening function simple action
Adjustable closing speed oui
