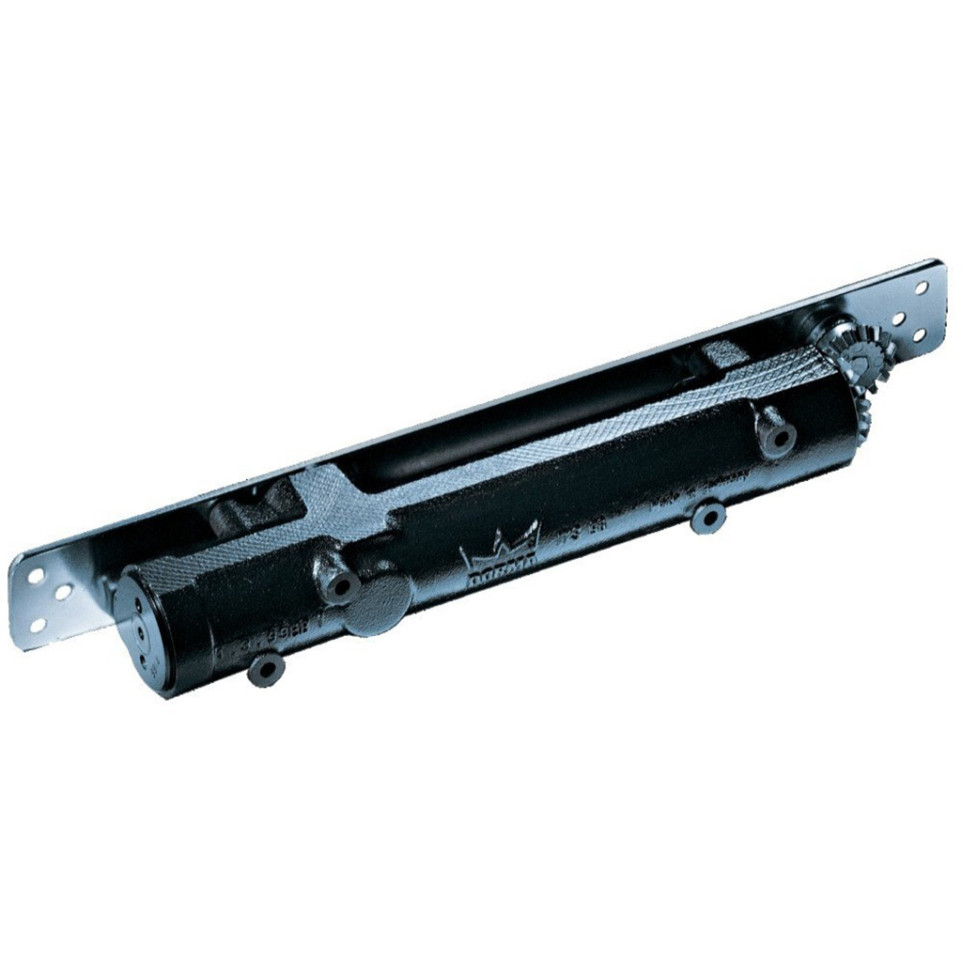

The Dorma ITS 96 is a concealed cam-action door closer designed for installation within the door leaf or transom. It's suitable for single-action doors up to 1100mm wide, providing discreet and efficient door control in various architectural settings.
The Dorma ITS 96 uses cam-action technology to reduce opening resistance. As the door is opened, the closing force decreases rapidly, allowing for easy passage. When released, the door closes automatically with adjustable speed and latching action, controlled by hydraulic valves.
| Brand | Dorma |
|---|---|
| Finishing | argent |

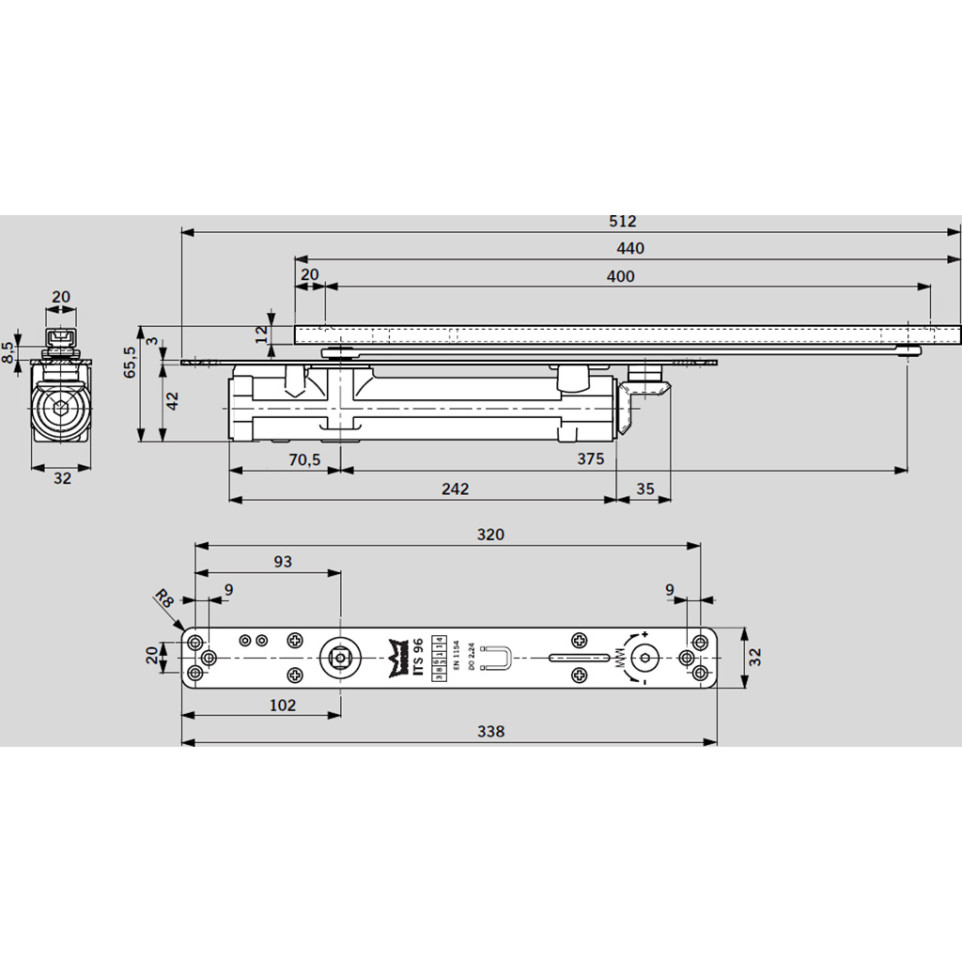

| Product Dimensions | 32 x 277 x 42 mm |
| With last stroke | oui |
| Firewall | oui |
| Strength (selon EN1154) | EN 2-4 |
| Leaf width (mm) | 1100 |
| Max. weight of leaf (kg) | 100 Kg |
| For interior door | oui |
| Operation technology | à came en forme de coeur |
| For door ext. opening outwards. | non |
| Opening brake | non |
| Max. opening angle on hinges | 120° |
| Late Close | non |
| Max. opposite opening angle hinges | 120° |
| Type of opening function | simple action |
| Adjustable closing speed | oui |
