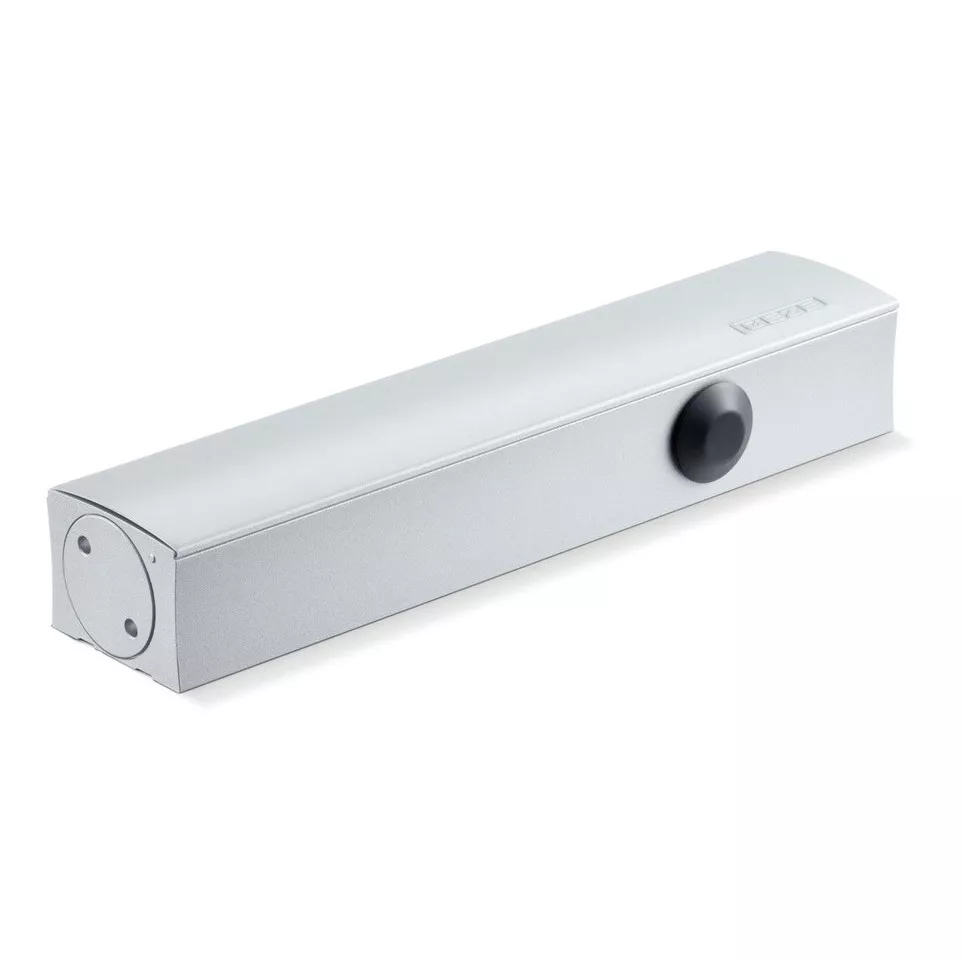

GEZE TS 4000 Overhead Door Closer Without Arm Silver / pc

GEZE TS 4000 Overhead Door Closer Without Arm Silver / pc
GEZE TS 4000 Overhead Door Closer Without Arm Silver / pc
GEZE TS 4000 Overhead Door Closer...
GEZE TS 4000 Overhead Door Closer...

Estimated delivery date :  Friday 24 July
€155.10 HT
In stock

Ref : FGT-136218

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

The Geze TS 4000 is an overhead rack and pinion door closer for single-action doors, constructed from die-cast aluminum. Designed for universal installation, it is ideal for commercial and public buildings requiring reliable and adjustable door closing control.

Specifications

  • Elliptical rack and pinion mechanism, die-cast aluminum body
  • Adjustable closing force EN 1–6 (compliant with EN 1154), for door widths up to 1400 mm
  • Concealed fixing and adjustment screws beneath a subtly domed front plate
  • Optical force indicator for precise setting; front-access adjustment screws
  • Adjustable closing speed, opening buffer (backcheck), and delayed closing (TS 4000S only)
  • Latching action (final snap) adjustable via the arm
  • Safety valve protects against over-opening and vandalism
  • Suitable for both left and right hand doors without conversion
  • Compatible with fire and smoke doors; optional mounting plate matches the body color

Usage

Mount the Geze TS 4000 directly on the door leaf or frame in standard or inverse position. Adjust closing force, speed, and latching action from the front using the dedicated screws and optical indicator. Suitable for doors up to 1400 mm wide; for larger or heavier doors, models with greater force are available by special order.

FAQ

  1. Which door types can the Geze TS 4000 be installed on?
    The TS 4000 is designed for single-action doors, suitable for both left and right hand configurations without modification.

  2. Is the door closer suitable for fire and smoke doors?
    Yes, it is tested and approved for use on fire and smoke protection doors.

  3. What adjustments can be made to the mechanism?
    You can adjust closing force, closing speed, latching speed, and backcheck directly from the front panel. The latching action is set via the arm.

  4. What is the maximum door width supported?
    The TS 4000 supports door leaf widths up to 1400 mm; higher force variants are available for doors up to 1600 mm.

  5. Can the Geze TS 4000 be used with outward- and inward-opening doors?
    Yes, it is compatible with both configurations, allowing standard or inverse mounting.

mvm-dt-2025-07-07

See more

Product Details

Brand Geze
Finishing argent

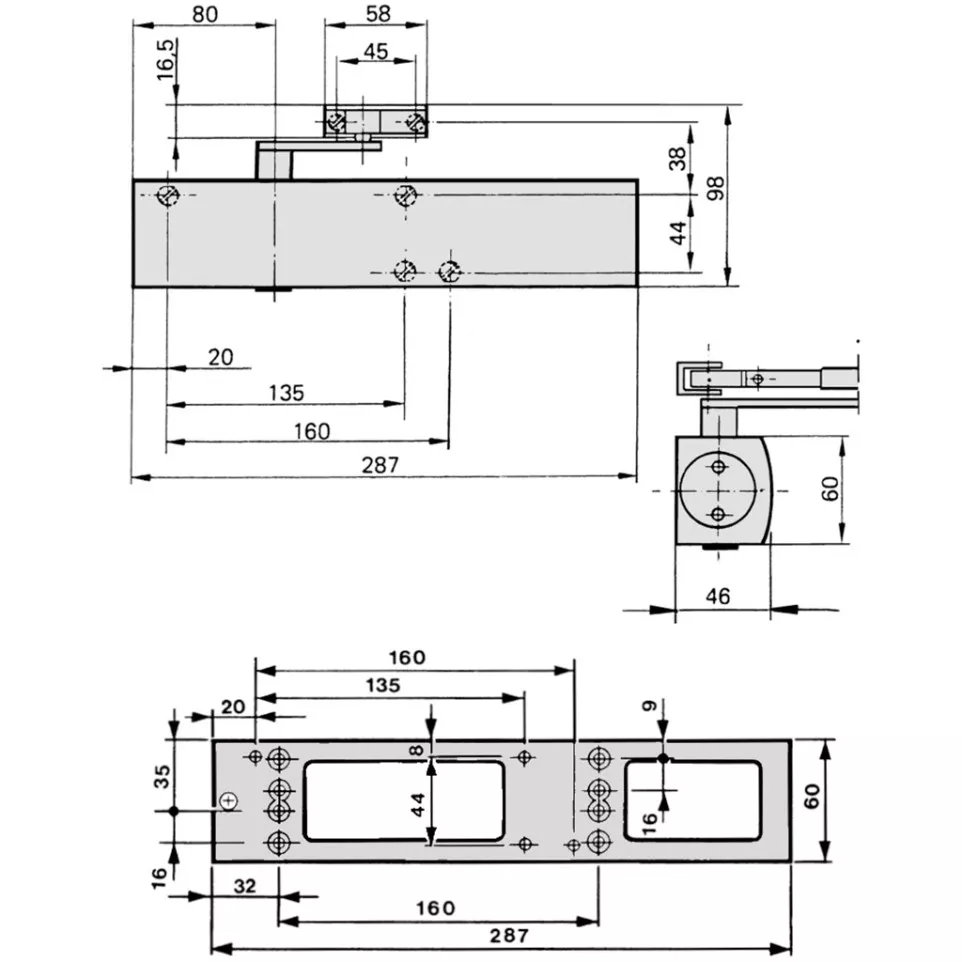

Product Dimensions 60 x 287 x 46 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 1-6
Leaf width (mm) 1400
Max. weight of leaf (kg) 120 Kg
For interior door oui
Operation technology à pignon et crémaillère
For door ext. opening outwards. oui
Opening brake non
Max. opening angle on hinges 180°
Late Close non
Type of opening function simple action
Adjustable closing speed oui
FGT-136218
