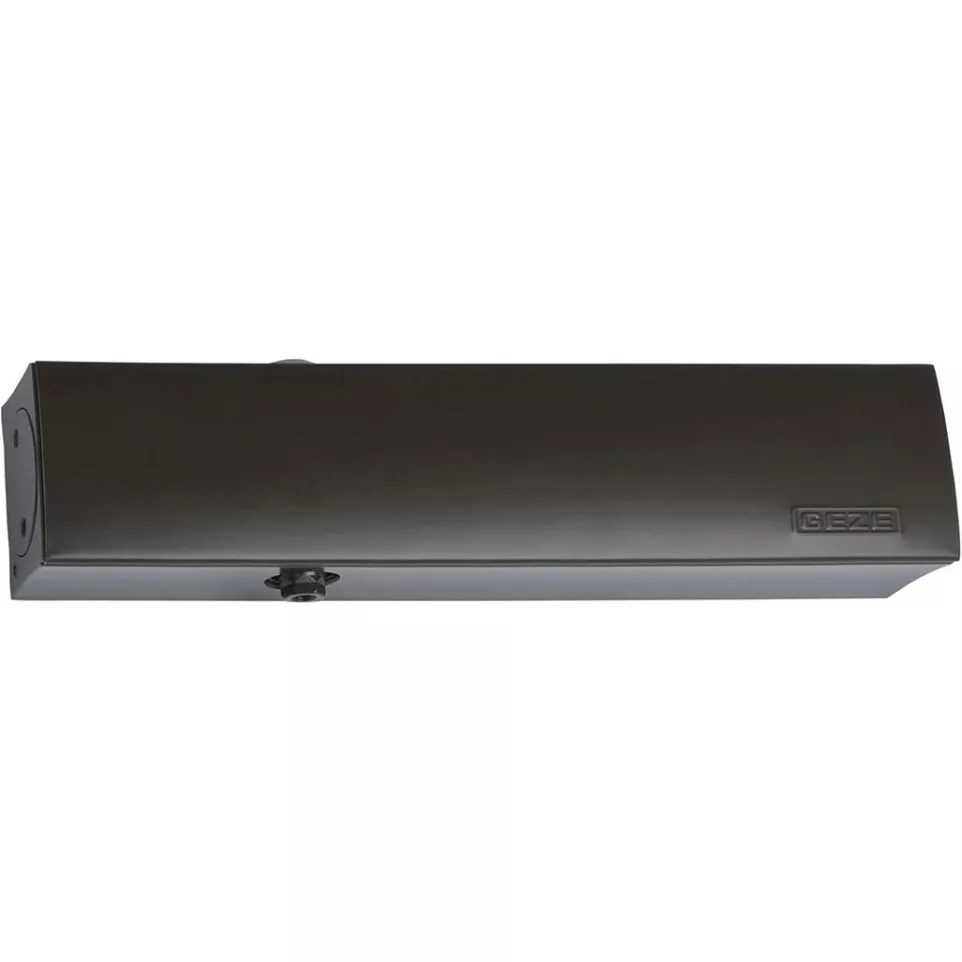

The GEZE TS 5000 L door closer in matte black is designed for single-action doors and provides reliable, adjustable closing for leaf widths up to 1400 mm. Suitable for demanding environments, it ensures smooth and secure door operation.
Install directly on the door hinge side; adjust closing force, speed, and latching to requirements. The visible force indicator aids setup. The unit is compatible with single-leaf fire or smoke protection doors, making it versatile for commercial and public buildings.
What door width does the TS 5000 L support?
It is suitable for single-action doors up to 1400 mm leaf width.
Is the closing force adjustable?
Yes, the closing force can be continuously adjusted from EN 2 to 6 using the front screw and monitored with an optical indicator.
Can it be used on both right and left-handed doors?
Yes, it is suitable for both right and left single-action doors without conversion.
Does it offer protection for fire or smoke doors?
Yes, it is certified for use on fire and smoke protection doors according to EN 1154.
What adjustments are possible on the unit?
You can adjust the closing speed, opening back check, and final latching action, all from the front panel.
mvm-dt-2025-07-20
| Brand | Geze |
|---|---|
| Finishing | noir |
| Product Dimensions | 60 x 287 x 47 mm |
| With last stroke | oui |
| Firewall | oui |
| Strength (selon EN1154) | EN 2-6 |
| Leaf width (mm) | 1400 |
| Max. weight of leaf (kg) | 120 Kg |
| For interior door | oui |
| Operation technology | à pignon et crémaillère |
| For door ext. opening outwards. | oui |
| Opening brake | oui |
| Max. opening angle on hinges | 180° |
| Late Close | non |
| Max. opposite opening angle hinges | 120° |
| Type of opening function | simple action |
| Adjustable closing speed | oui |
