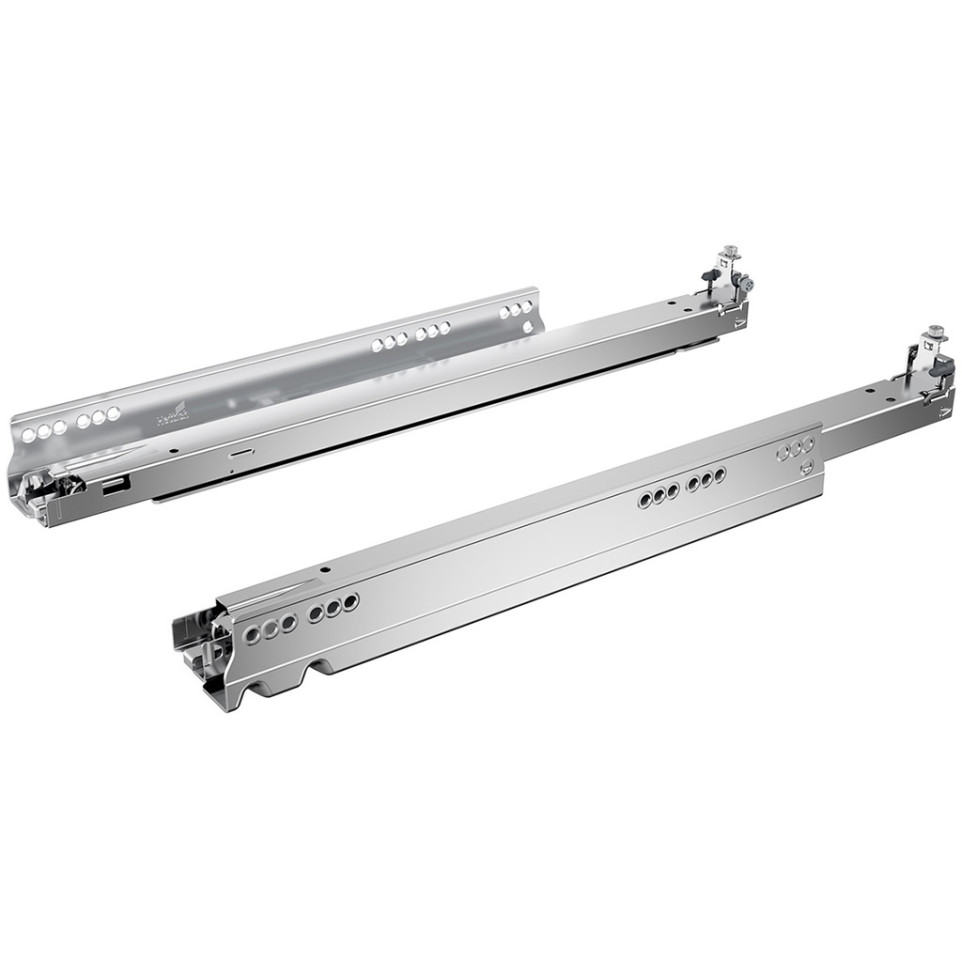

Hettich Actro 5D Full Extension Drawer Slide 40kg Silent System 420mm per piece

Usage

The Hettich Actro 5D full extension runner with Silent System is designed for use in wooden drawers, providing smooth and quiet opening and closing in residential or commercial cabinetry environments.

Advantages

• Full extension design allows complete access to the drawer contents.
• Integrated Silent System ensures gentle and quiet closing for a better user experience.
• Tool-less adjustment in five dimensions: height, side, tilt, radial, and depth for precise alignment during installation.
• High load capacity up to 40 kg supports heavy-duty use.
• Optional compatibility with Push to open Silent system for handleless furniture designs; catch must be ordered separately.[1][2][3]

Specifications

• Chemically treated galvanized steel construction offers strength and corrosion resistance.[1]
• Meets EN 15338 Level 3 durability standard for long service life under high loads.[1][3]
• Bearing capacity: max. load of up to 40 kg; suitable drawer length approximately 420 mm; fits side profile thicknesses up to ≤16 mm; tool-less height adjustment up to +3 mm, side adjustment ±1.5 mm, tilt +4 mm, radial ±1.5 mm, depth ±2 mm.[1]
• Main differentiators include concealed runner mounting for clean aesthetics and integrated damping mechanism (Silent System) that prevents slamming noises during closure.[1][3]

How it works

The slide-on installation enables the Actro runner set to be fitted quickly beneath a wooden drawer. Integrated catches allow all adjustments without tools. The internal damping ensures each close is controlled and silent while enabling total extension of the drawer’s contents.[1][3]
