Product

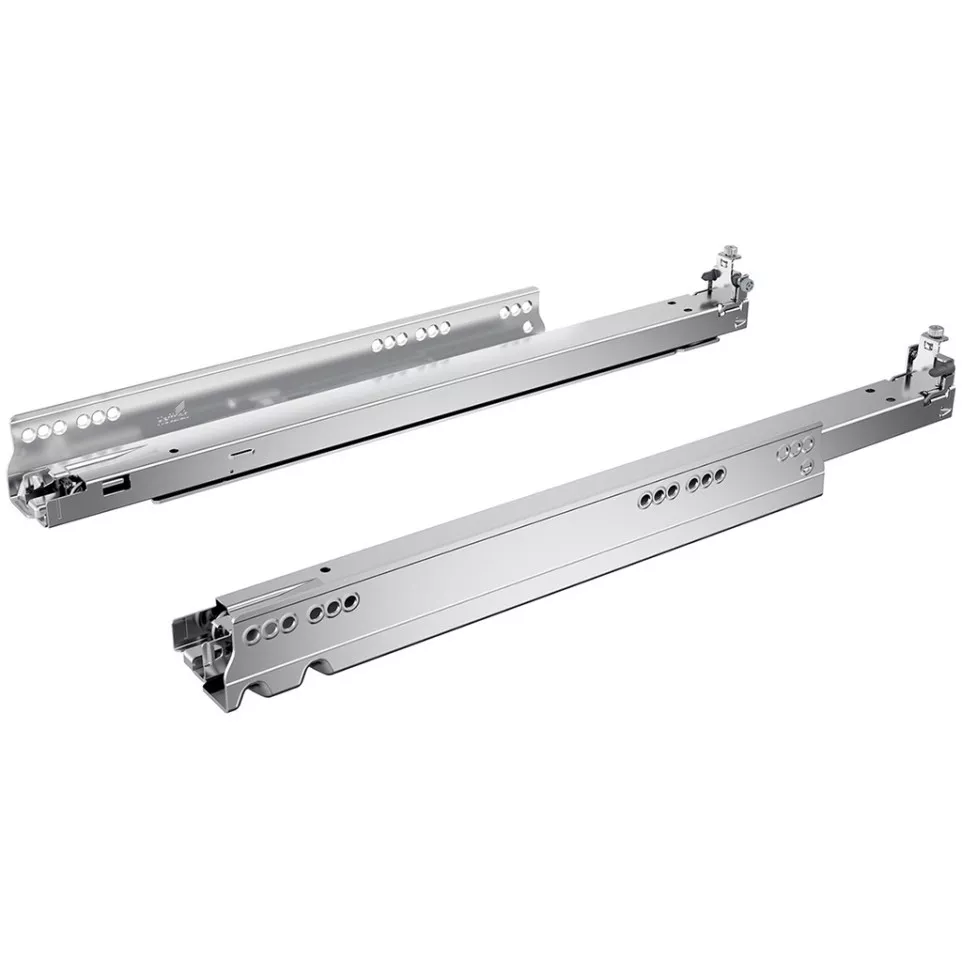

Full extension Hettich Actro 5D runner with a 580mm length and 70kg load capacity, designed for combining with wooden drawers. Integrated Silent System ensures smooth, quiet closing. Suitable for high-capacity storage in cabinetry or furniture.
Specifications
- Constructed from galvanized steel for enhanced durability
- Full extension design provides complete access to drawer contents
- Integrated Silent System soft-close mechanism for silent operation
- Optional Push to open Silent feature available
- XL load category supports up to 70kg, compliant with EN 15338, level 3
- Tool-free height adjustment up to +3mm, side adjustment +/-1.5mm, tilt adjustment up to +4mm, and radial adjustment +/-1.5mm; optional depth adjustment +/-2mm
- Compatible with separately ordered clips (FG 246175, 246176)
Usage
Install the runner on wooden drawers to achieve effortless, full-extension opening and closing with minimal noise. Make precise adjustments in height, lateral position, tilt, and depth to ensure an optimal fit and alignment for furniture or cabinetry projects.
FAQ
-
What is the maximum load capacity of this runner?
The runner supports up to 70kg, making it suitable for heavy-duty drawer applications.
-
Is soft-close included, and can I upgrade to Push to open?
An integrated Silent System soft-close is standard, and an optional Push to open Silent system can be added.
-
How do I adjust the drawer position after installation?
The system offers tool-free adjustments for height (+3mm), side (+/-1.5mm), tilt (+4mm), and radial alignment (+/-1.5mm), with optional depth adjustment (+/-2mm).
-
Are mounting clips included in the package?
Clips must be ordered separately; compatible references are FG 246175 and 246176.
-
Which material is used for this runner?
The runner is made from galvanized steel, offering strength and corrosion resistance.
