Usage

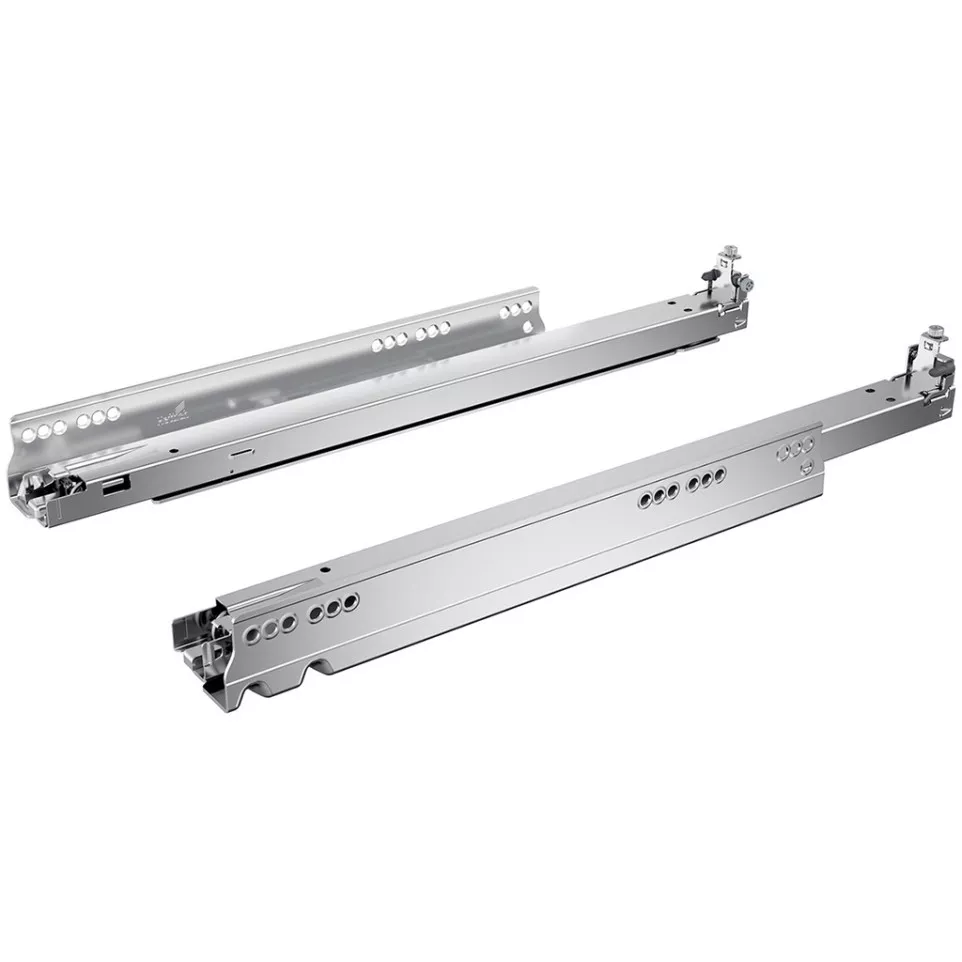

The Hettich Actro 5D 40kg full extension runner with Silent System is designed for high-quality, concealed installation in wooden drawers, offering smooth and quiet operation in kitchen, living room, or office furniture.
Advantages
- Full extension allows complete access to the entire drawer depth for optimal storage and convenience.
- Integrated Silent System ensures drawers close quietly and gently, reducing noise and wear.
- Tool-less adjustments (height up to +3 mm, side ±1.5 mm, tilt +4 mm) simplify installation and fine-tuning.
- Load capacity of up to 40 kg meets EN 15338 Level 3 requirements for demanding everyday use.
- A separate catch must be ordered; not included by default with the runner system.[1][7]
Specifications
- The runner is made from durable galvanized steel with a concealed design that supports wooden drawers up to a side profile thickness of ≤16 mm.
- Certified according to EN 15338 Level 3 standards for long-lasting durability in cabinetry applications.[1][7]
- This model supports loads up to 40 kg per set. Nominal length: 400 mm. Minimum cabinet body depth: approximately 403 mm.[1]
- Differentiating features include slide-on installation with integrated radial adjustment (+/-1.5mm), compatibility with optional Push-to-open Silent opening system, and support for optional pull-out shelf locating catches.[1][7]
How it works
The Actro 5D runners are installed beneath the drawer using a slide-on technique. Once mounted, tool-free adjustments ensure precise alignment. The integrated Silent System softly dampens closure so drawers glide quietly into place during each use.[1][7]
