Usage

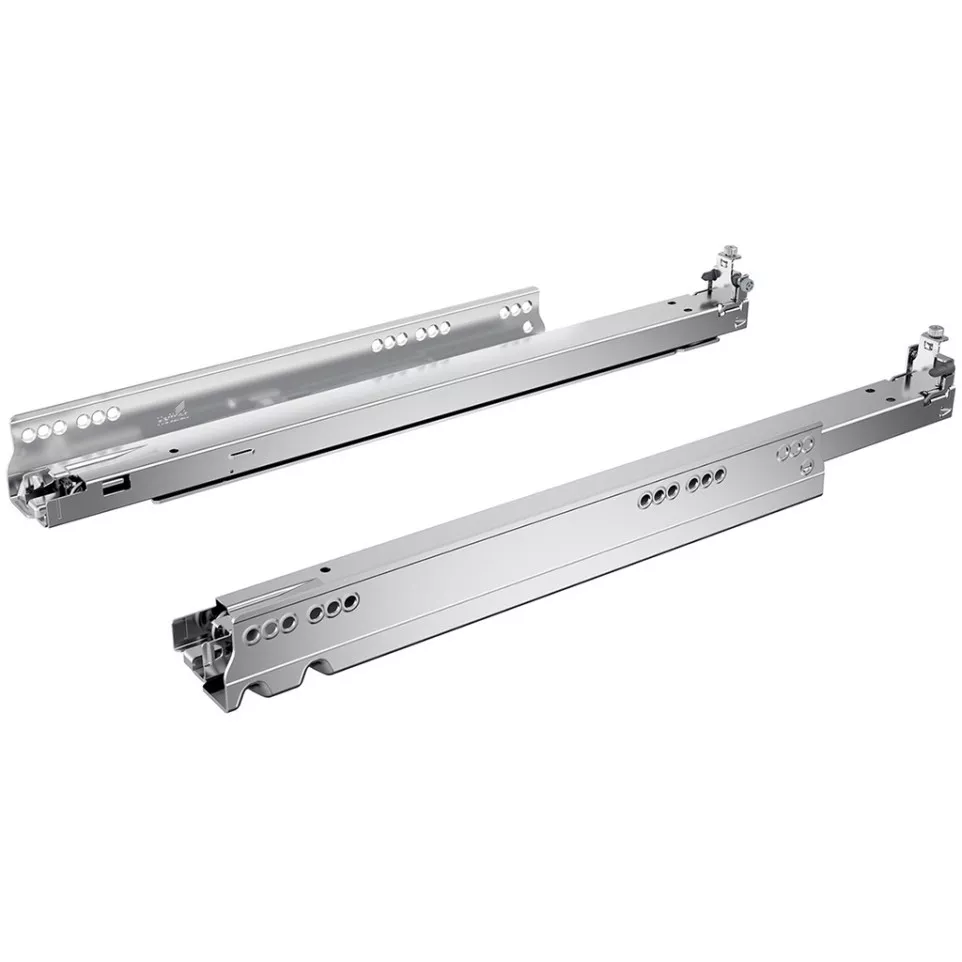

The Hettich Actro 5D full extension runner is designed for high-precision, silent movement in wooden drawers, making it suitable for residential and commercial cabinetry where smooth operation and quiet closing are required.
Advantages
- Ensures full extension for maximum drawer access and storage convenience.
- Integrated Silent System guarantees soft, quiet closing to reduce noise disturbance.
- Tool-less adjustment capability allows precise height, side, tilt, radial, and depth settings for optimal fit.
- High load capacity of up to 40 kg supports heavy drawer contents without performance loss.
- Optional compatibility with Push to open Silent system offers handleless front solutions if desired.
Specifications
- The runner features a concealed design crafted from galvanized steel for reliable strength and corrosion resistance.
Includes integrated mechanisms for tilt (+4 mm), height (+3 mm), side (±1.5 mm), radial (±1.5 mm), and depth (±2 mm) adjustments—all tool-free.
Designed specifically for drawers with a maximum side profile thickness of up to 16 mm.
- The product meets durability requirements according to EN 15338 Level 3 certification standards.
Intended solely for indoor use under standard climatic conditions.
- This model supports a nominal length of 380 mm with a minimum cabinet body depth requirement of at least 383 mm.
Withstands dynamic loads up to 40 kg while maintaining smooth operation throughout the lifespan.
- Differentiating features include user-friendly slide-on installation using catches; optional accessories such as pull-out shelf support or locating catch can be integrated.
Note that the necessary catch must be ordered separately.
How it works
The Actro 5D runner installs inside cabinetry on both sides of the wooden drawer using slide-on mounting. Once positioned, its built-in Silent System ensures each drawer closes gently while adjustable settings enable installers to achieve perfect alignment without tools or complex procedures. Optional accessories can further expand functionality if required.
