Usage

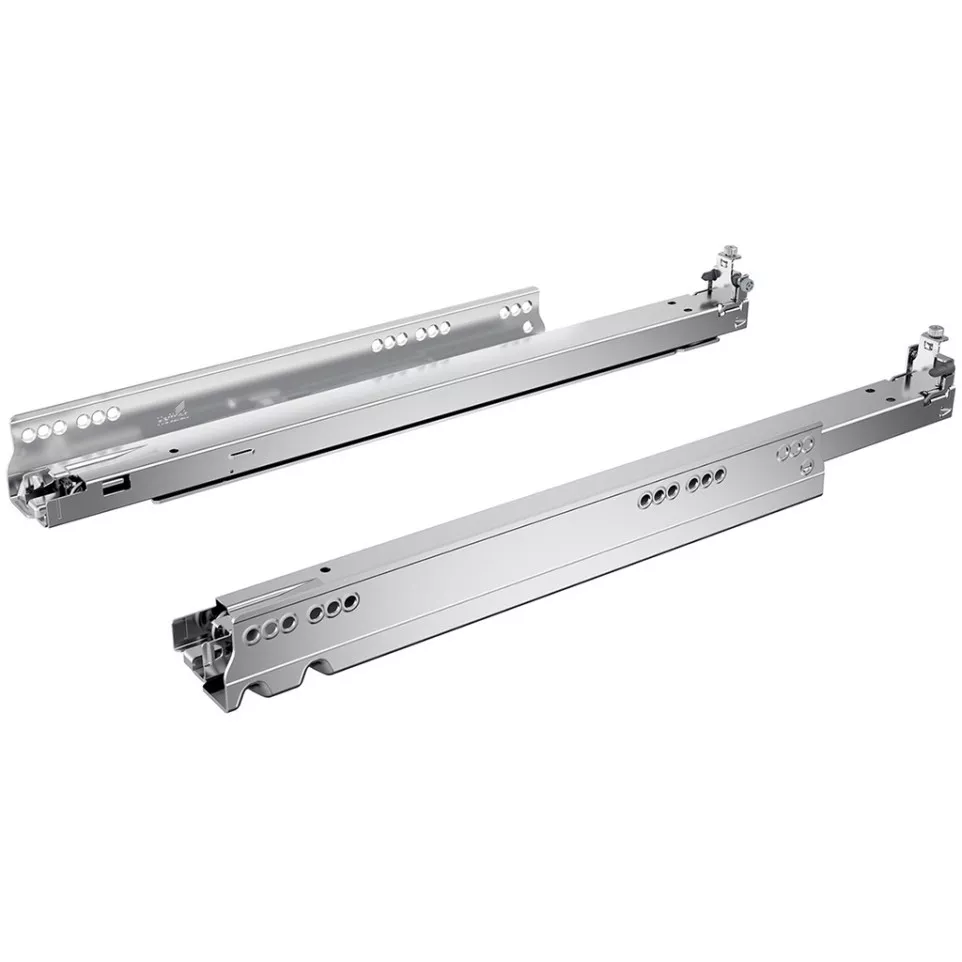

The Hettich Actro 5D full-extension runner with Silent System is designed for wooden drawers in furniture, providing smooth, reliable movement and convenient soft-closing action. Ideal for residential or commercial cabinetry requiring high performance and quiet operation.
Advantages
- Ensures a full-extension opening for maximum drawer access.
- Supports up to 40 kg load, allowing use in heavily loaded drawers.
- Equipped with integrated Silent System for gentle and quiet closing.
- Provides tool-less height, side, tilt, radial, and depth adjustments for quick installation and precise alignment.
- Suits drawers with side profiles up to 16 mm thickness; catch must be ordered separately as a minor consideration.
Specifications
- Tough galvanised steel construction with concealed runner design ensures durability and modern aesthetics.[1][5]
- Certified to EN 15338 Level 3 standards for lasting reliability under intensive use.[1]
- Bears loads up to 40 kg; nominal length: 270 mm; minimum cabinet body depth: specified by drawer setup.[2]
- Differentiating features include the Silent System soft close mechanism, optional Push to open compatibility, slide on installation technique with tool-less multi-directional adjustment (+3 mm height/±1.5 mm side/±4 mm tilt/±1.5 mm radial/±2 mm depth).
How it works
The Actro 5D runner installs beneath wooden drawers using a slide-on process. When installed, it allows the drawer to extend fully while maintaining stability under heavy loads. The integrated Silent System slows the closing action automatically for silent engagement every time.[1][6]
