Usage

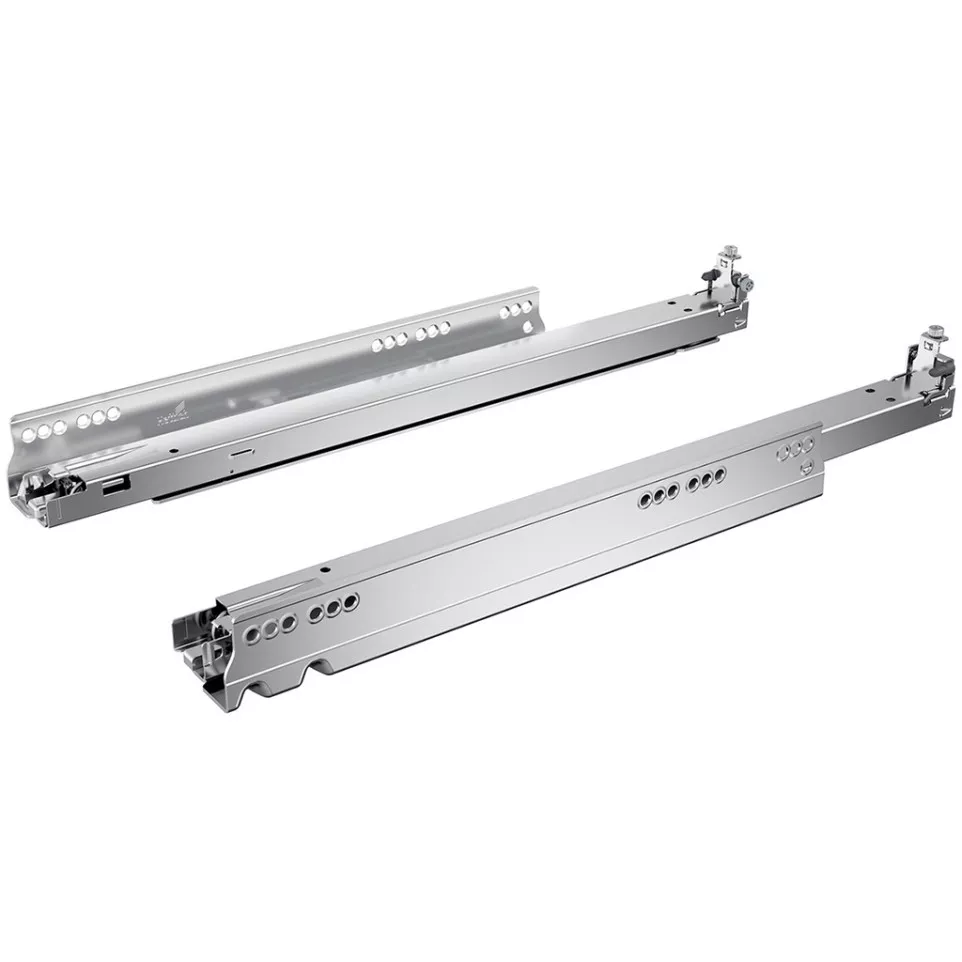

The Hettich Actro 5D full-extension runner is designed for wooden drawers in furniture, enabling smooth, silent, and stable drawer movement. Ideal for applications where high load capacity and precise adjustment are required in cabinetry.
Advantages
- Full-extension allows access to the entire drawer contents without obstruction.
- Silent System technology ensures gentle and quiet closing for enhanced user comfort.
- Tool-less adjustment (height, side, tilt, radial, depth) speeds up installation and fine-tuning.
- High load capacity of up to 40 kg meets demanding storage needs in compliance with EN 15338 Level 3 standards.
- Slim design accommodates drawers with side thicknesses up to 16 mm; catch must be ordered separately.
Specifications
- The runner is made from galvanized steel for strength and corrosion resistance. It features concealed mounting for a clean look and integrates advanced Silent System damping technology for soft closure.[1][3]
- Lifespan verified by certification to EN 15338 Level 3 standards; suitable exclusively for indoor use under standard climate conditions.[1][7]
- This model supports up to a maximum dynamic load of 40 kg. Nominal length: 600 mm. Compatible with wooden drawers using side panels up to 16 mm thick.[1]
- Differentiating features include tool-less multi-dimensional adjustments: height (+3 mm), side (±1.5 mm), tilt (+4 mm), radial (±1.5 mm), depth (±2 mm). Optional Push-To-Open function available.[1][3]
How it works
The Actro 5D runner installs easily using a slide-on mechanism. Once fitted beneath the drawer, it enables full extension while the integrated Silent System provides controlled soft closing. All essential adjustments can be fine-tuned without tools after installation.[1][3]
